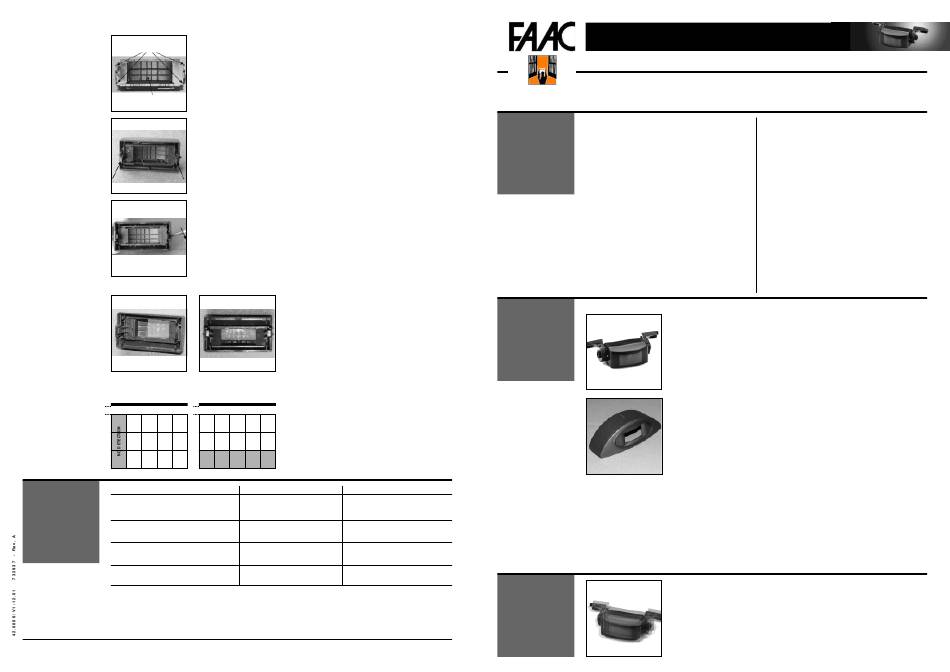

C . S E T T I N G T H E S E N S I N G F I E L D
• To adjust the sensing field according to your specific needs, use the masking delivered in the sensor box;
The minimum detection area at mounting height of 2.2 m is 0.5 m x 0.5 m
Guide pins
• To tailor the sensing field, cut segments
Remarks :
1) Be careful to cut just entire segments
2) It is necessary to cut at least one segment to get a detection
Cut-Out footprints
To insert the masking lens :
• Consider the position of the guide pins when inserting both legs of the masking lens to the front cover
• Gently push both legs of the masking lens
To remove the masking lens :
• Insert the screwdriver between the leg of the masking lens and the leg of the front cover
• Use it as a lever downwards
S E N S I N G F I E L D
ASYMMETRICAL SENSING FIELD SHORTER DEPTH
DETECTION AREA
door threshold
±10 cm ±10 cm
TROUBLE- SYMPTOMS
SHOOTINGS
The door will not open and the LED does not light up
The door will not open and the LED lights up
The door opens when no detection occurs and closes
during a detection
The sensing field does not correspond to your
requirements
FAAC S.p.A. - Via Benini, 1 40069 Zola Predosa - Italia - tel.+39 051 61724 - fax.+39 051 758518 - www.faacgroup.com
DETECTION AREA
door threshold
NODETECTION
PROBABLE CAUSES CORRECTIVE ACTIONS
The sensor is not properly powered a. Check the power supply
b. Check the supplied voltage
The wiring of the relay output is not Check the relay wiring
connected correctly
The mode of the relay output is Change the dip-switch #2 position
not correct
The cut of the masking lens is wrong Cut out a new lens to meet the required
sensing field size
B F P 1 U S E R ' S G U I D E
THE MOST ADVANCED TECHNOLOGY IN PASSIVE INFRARED SENSOR RANGE
The BFP1 is designed for use in opening of automatic doors with small and medium sized sensing fields
It is not recommended for automatic doors with large sensing fields (BFR1 range is recommended) or automatic doors when shopping
carts or trolleys are used.
TECHNICAL Technology Passive infrared and microprocessor
Optical characteristics P.I.R. with 4 elements, 15 Fresnel
SPECIFICATIONS
lenses with full independent masking
possibilities
Mounting height 3 m max
Maximum Detection area for mounting height of 2.2m
2.5 m (W) x 1.5 m (D)
Minimum Detection area for mounting height of 2.2 m
0.5 m (W) x 0.5 m (D)
Detection mode motion
Detection speed 0.1 to 1.5 m/s
Light indicator 1 red LED
Warm up 10 s
Hold time 0.5 s or 2 s
Response time < 200 ms
Power supply 12 VDC –10% to 24 VDC +30%
12 to 24 V AC ±10%
Mains frequency 50/60 Hz
Power consumption < 1 W
Connection small plug-in 5 contacts connector
Recommended cable
section < 0.5 mm
Length of cable 2.5 m
Temperature range from –30°C to +55°C

DESCRIPTION

The passive infrared
sensor
FSA Accessory
for mounting on the wall
INSTALLATION • The sensor must be firmly
fastened in order to avoid any
TIPS
vibrations
Standard output relay (free potential change-over contact)
• Max contact voltage 60 V DC/ 42 V AC
• Max contact current 1A (resistive)
• Max switching power 30W (DC) / 60 VA(AC)
Manual adjustments
• shape of sensing field (masking lens)
• sensitivity (dip switch #1)
• relay configuration (dip switch #2)
• Hold time (dip switch #3)
Immunity electromagnetic compatibility (EMC)
according to 89/336/EEC and its
amendments.
• Color anthracite grey
• Weight 40g
• Dimensions 121mm (W) x 51mm (H) x 40mm (D)
2
• Degree of protection IP54
