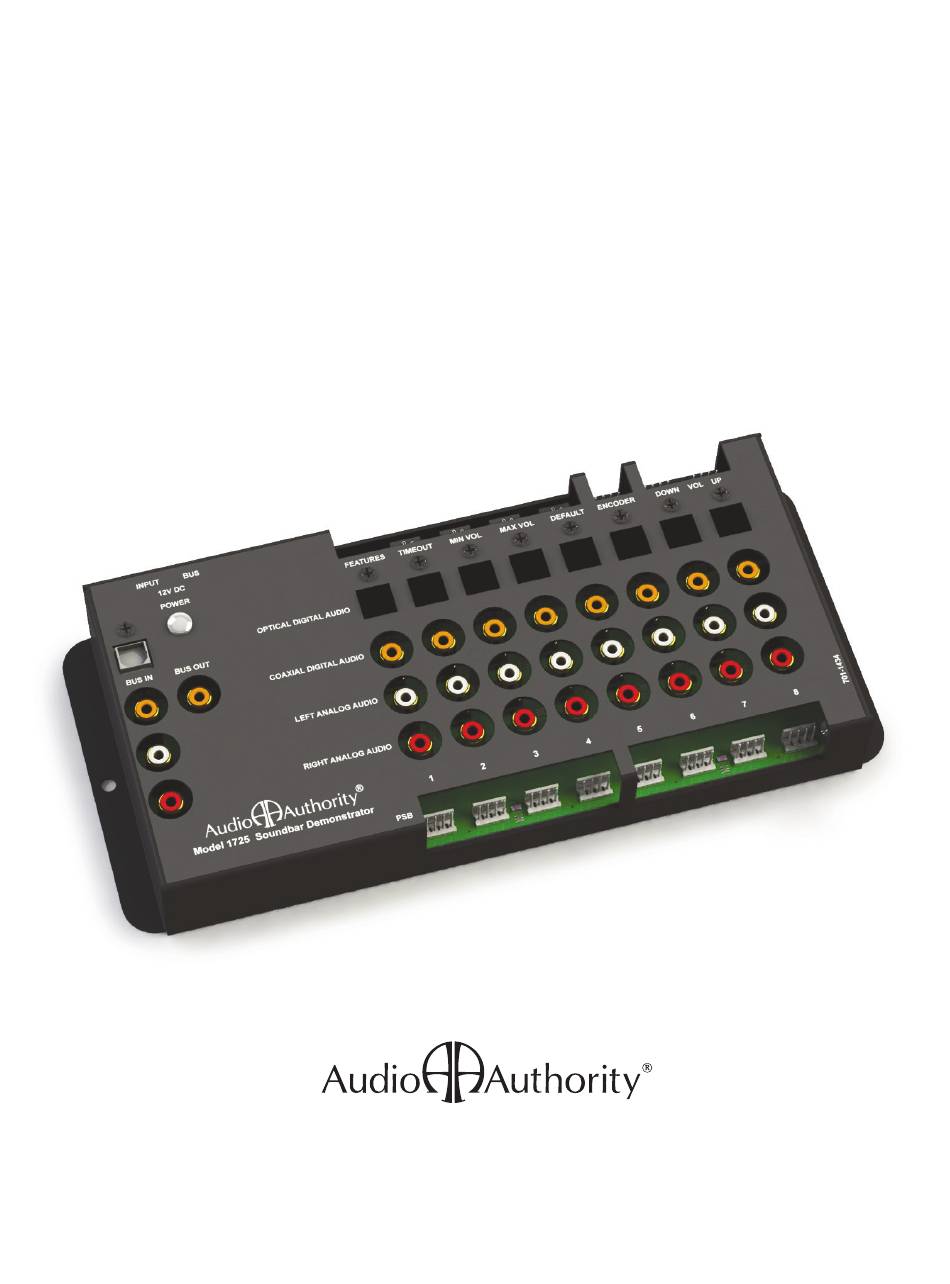

- Page 1 Instructions Model 1725 Soundbar Demonstrator...
- Page 2 This method provides interaction with the product, but can introduce unexpected volume differences when switching between soundbars. If the 1725 master volume control is used, it is best to disable soundbar controls, or install acrylic shields over the controls to prevent customer access to them.
- Page 3 ® Push-buttons are used to select each soundbar position, and to adjust volume (if buttons are used). The 1725 is compatible with our standard 2-wire, 5-volt Model 1725 Soundbar Demonstrator momentary PSB switches, or 4-wire, 12-volt switches. When using 2-wire switches (as shown), use the two pins on the right for PSB ports, and for volume button ports, use the two pins on the left, as shown in the diagram.
- Page 4 1725 does not cancel a selection on another 1725 sharing the same source signals. Power Connect 12V power supply (1A or greater) to Power Input. Connect the power Bus Out to the next 1725 provided the power supply is large enough. Each 1725 requires 600mA.
