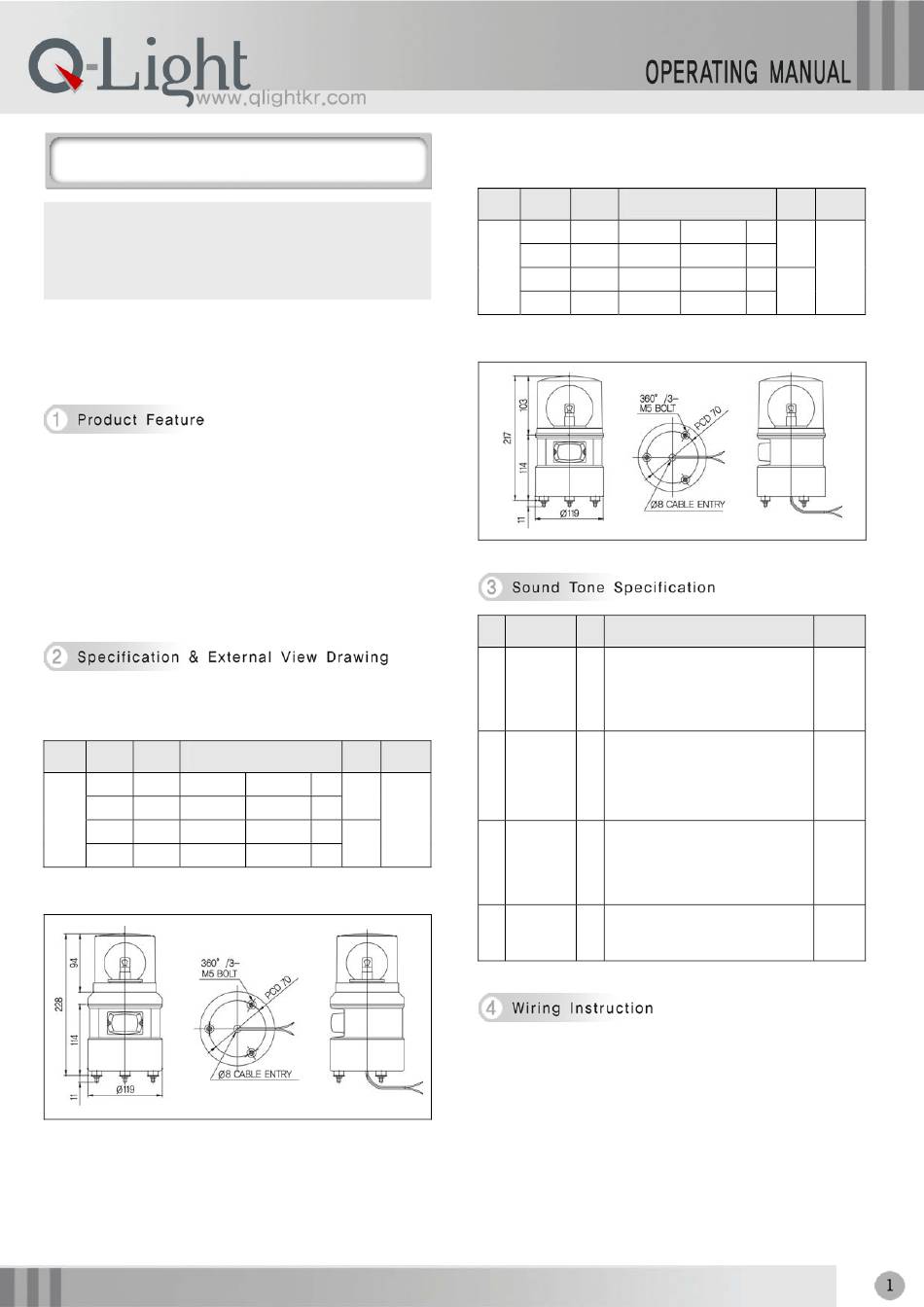

Q-Light S100D Operating Manual

S100D / S125D
OPERATING MANUAL
Bulb Revolving Warning Light with Phone
Thank you for purchasing Q.Light product.
Please read this manual carefully before installing this system
for safe and long use of the product.
▪ Ensuring high revolving durability by applying a small bearing to
the revolving axis.
▪ Max. 105dB output in spite of small size of the product.
▪ RPM : 120-140/Min.
▪ Material : Lens-AS. Body-ABS, Reflector-Heat Resisting ABS
▪ Protection Class : IP54
▪ Each model has 5 sound tones built-in. Select a suitable sound
tone for the purpose of use
1) S100D

▪ General Specification

Rated
Model Current
Voltage
DC12V 0.930A 12V10W
DC24V 0.660A 24V10W
S100D
AC110V 0.123A 12V10W
AC220V 0.064A 12V10W

▪ External View Drawing

Bulb
Weight Color
T16x35 15S 9
1.05Kg
Red-R
T16x35 15S 10
Amber-A
Green-G
T16x35 15S 9
1.44Kg
Blue-B
T16x35 15S 9
2) S125D
▪ General Specification
Rated
Model Current
Voltage
DC12V 0.930A 12V10W
DC24V 0.660A 24V10W
S125D
AC110V 0.128A 12V10W
AC220V 0.067A 12V10W
▪ External View Drawing
Main Built-in
Type CH
Sound
ch1 Fire A-ANG(Wail)
ch2 Emergency WA-U(Yelp)
5 Warning
WS ch3 Ambulance PI-PO(High-Low)
Sounds
ch4 Machinery Fault( PI-PI-PI-)
ch5 Foam Release Alarm(PI~ Continuous)
ch1 Sweet Home
ch2 For Elise
WM 5 Melodies ch3 Cuckoo's Waltz
ch4 Piano Sonata
ch5 Turkish March
ch1 Beep(Intermittent)
ch2 Door Chime
WA 5 Alarms ch3 Phone Ring
ch4 Machinery Fault(PI.PI.PI.PI.)
ch5 Tripping Bead Sound
ch1
3 Voice Reproduction of Voice Recording
WV ch2
Signals 3 Channels
ch3
Power line and signal line come out from the product.
Please refer to below wiring diagram for correct connection
of power supply and signal line.
▸ Power Line : UL1015-NO.16(1.25sq) x 2C 400mm
▪ In case of product using AC voltage : Connect the line without
polarity(wire color).
▪ In case of product using DC voltage : Black line is negative(-).
Bulb
Weight Color
T16x35 15S 9
1.07Kg
Red-R
T16x35 15S 10
Amber-A
Green-G
T16x35 15S 9
1.46Kg
Blue-B
T16x35 15S 9
Volume
Sound Tone
105dB
105dB
103dB
95dB
