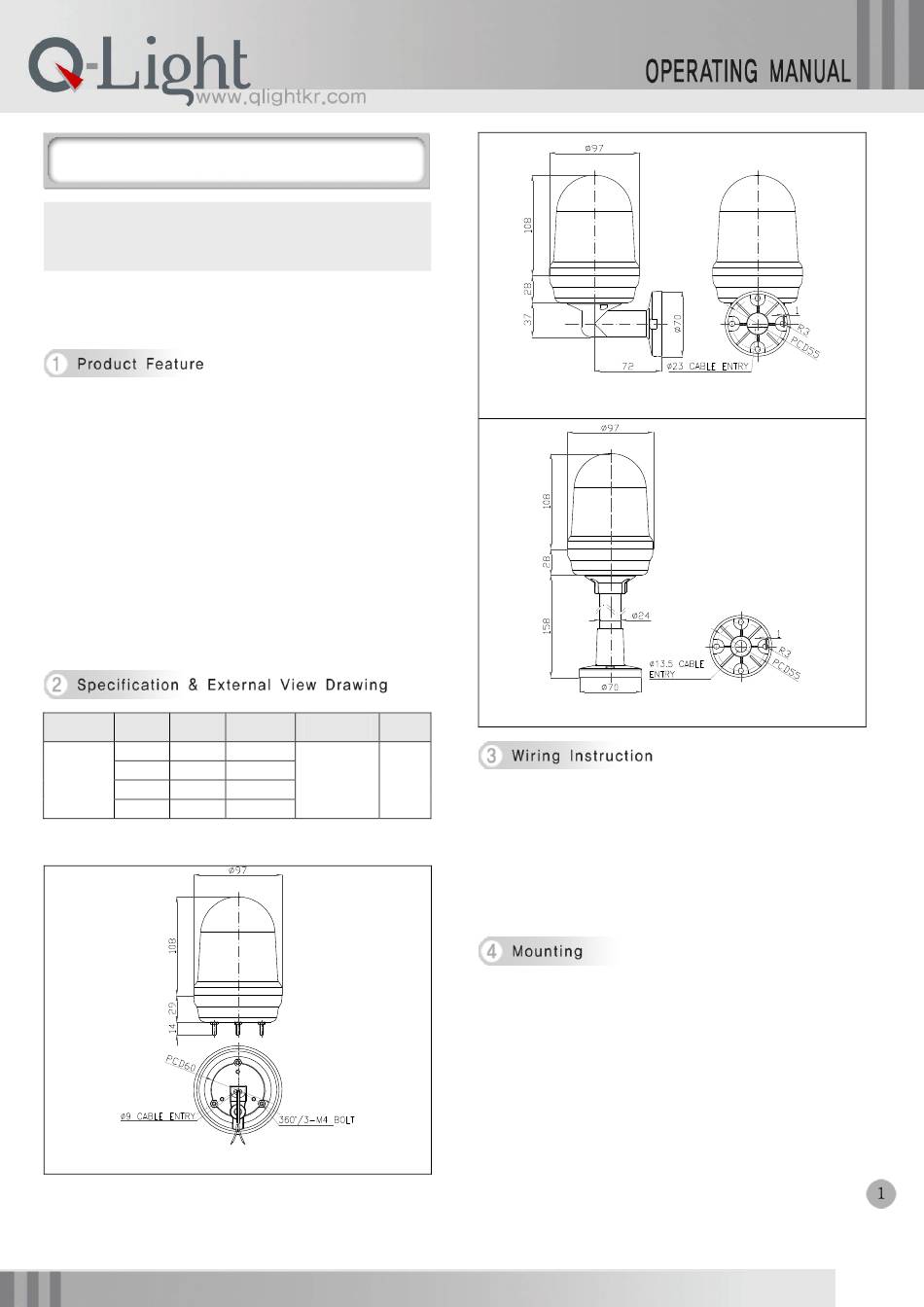

Q-Light Q100L Operating Manual

Q100L/Q100LP/Q100LW
OPERATING MANUAL

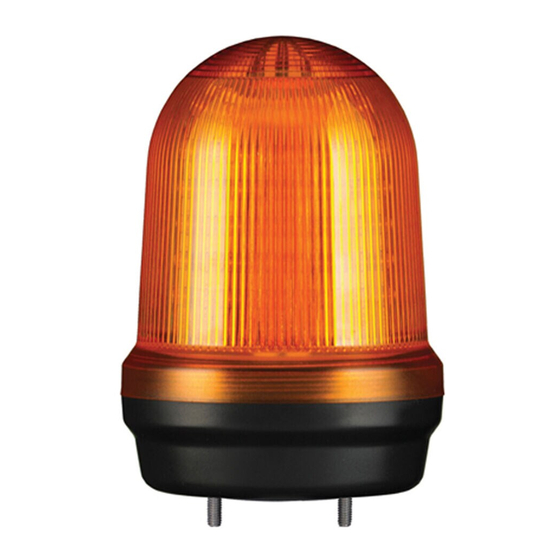

LED Steady/Flashing Light
Thank you for purchasing QLight products. Please read this manual
carefully before installing this product for safe and long use.
▪ Having long life of light source by adopting high-brightness LED
and suitable for machines having lots of vibration and impact with
high durability.
▪ Excellent in diffusing effect by employing our own unique direct-
diffusion system.
▪ Possible to select suitable operation by using built-in
steady/flashing selection switch according to the purpose of use.
▪ Possible to install various way according to installing condition.
Q100LW: Wall mounting type, Q100LP: Pole mounting type
▪ Material : Lens-PC, Body-ABS, PIPE-AL, BRACKET-ABS
▪ Flashes(when flashing) : 60~80/min.
▪ BUZZER : 80±3dB at 1M (it is optional item)
▪ Protection : IP65
Model Voltage Current
DC12V 0.235A
DC24V 0.130A
Q100L
AC110V 0.062A
AC220V 0.042A
Weight Flashes Color
0.20Kg
Red-R
0.20Kg
Amber-A
60~80/min.
0.22Kg Green-G
Blue-B
0.22Kg
Q100L
Q100LW
Q100LP
Power line UL1015-NO.18 (0.75sq) x 2C 400mm comes out from the
product.
▪ In case of product using AC voltage, connect the line without
Polarity(wire color).
▪ In case of product using DC voltage, black line is negative(-).
▪ If possible, please mount as the direction of vertical and at the
place where low vibration and low impact.
▪ Please make a suitable hole on the place where the product will
be mounted by a Drill by referring to dimension on the below
drawing.
▪ In case of direction mounting type, fix the product by using
Nuts(M4-3EA) attached on mounting bolt on the bottom of the
product.
▪ In case of pole mounting type, mount it by using nuts attached
on the Pole.
▪ Mount it by using mounting bolts M8-2EA for L-type bracket and
mount it by using another mounting bolts M5-4EA for Wall
mounting type and round type bracket.
