Q-Light SAB130 Operating Manual

ww w.qlight.com
SAB130/200
OPERATING MANUAL

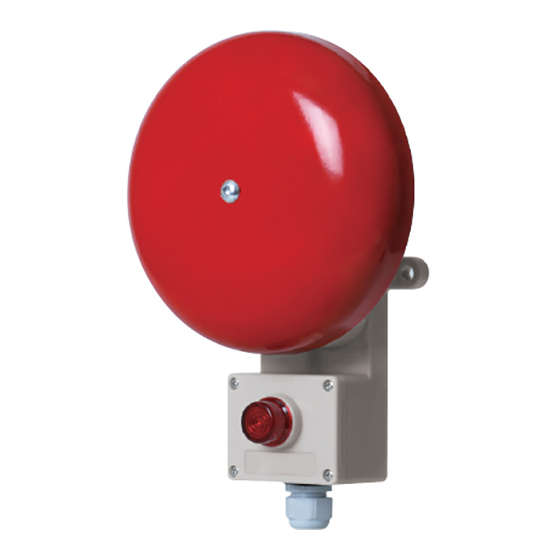

ALARM BELL WITH PILOT LAMP
Thank you for purchasing Qlight product. Please read this manual
carefully before installing this product for safe and long use.

Product Features

1
▪ Performing stable movement at vessel or large-scale plant where exists
severe vibration and strong impact by adopting a special structure of
solenoid striking bell.
▪ Taking a nice material bell housing which can maintain a clear bell
sound.
▪ Having a high durability with a strong structure for a vibration and
impact.
▪ Easy wiring and repair-maintenance due to the attached terminal box.
▪ Transmitting visual signal and audible signal simultaneously by the bell
and pilot lamp.
▪ Bell and pilot lamp are interlocked but can be operated separately.
▪ Material: Bell- STEEL, Housing-ABS
▪ Protection Class: IP56
▪ Cable entry : Standard - PG19*1EA, Customization - PG19*2EA
▪ Frequency : 1400 Hz ▪ Volume(Max.) : 90dB at 1m
Specification
2
Model Voltage Current
DC24V 1.377A
SAB130
AC110V 0.166A
SAB200
AC220V 0.116A
Technical Diagram
3
▪ Technical Diagram-SAB130
Weight Sound Standard color
* Housing-Maker's
1.80Kg 95dB
Standard Color
2.00Kg at 1m
* Bell/Lamp-Red
▪ Technical Diagram-SAB200

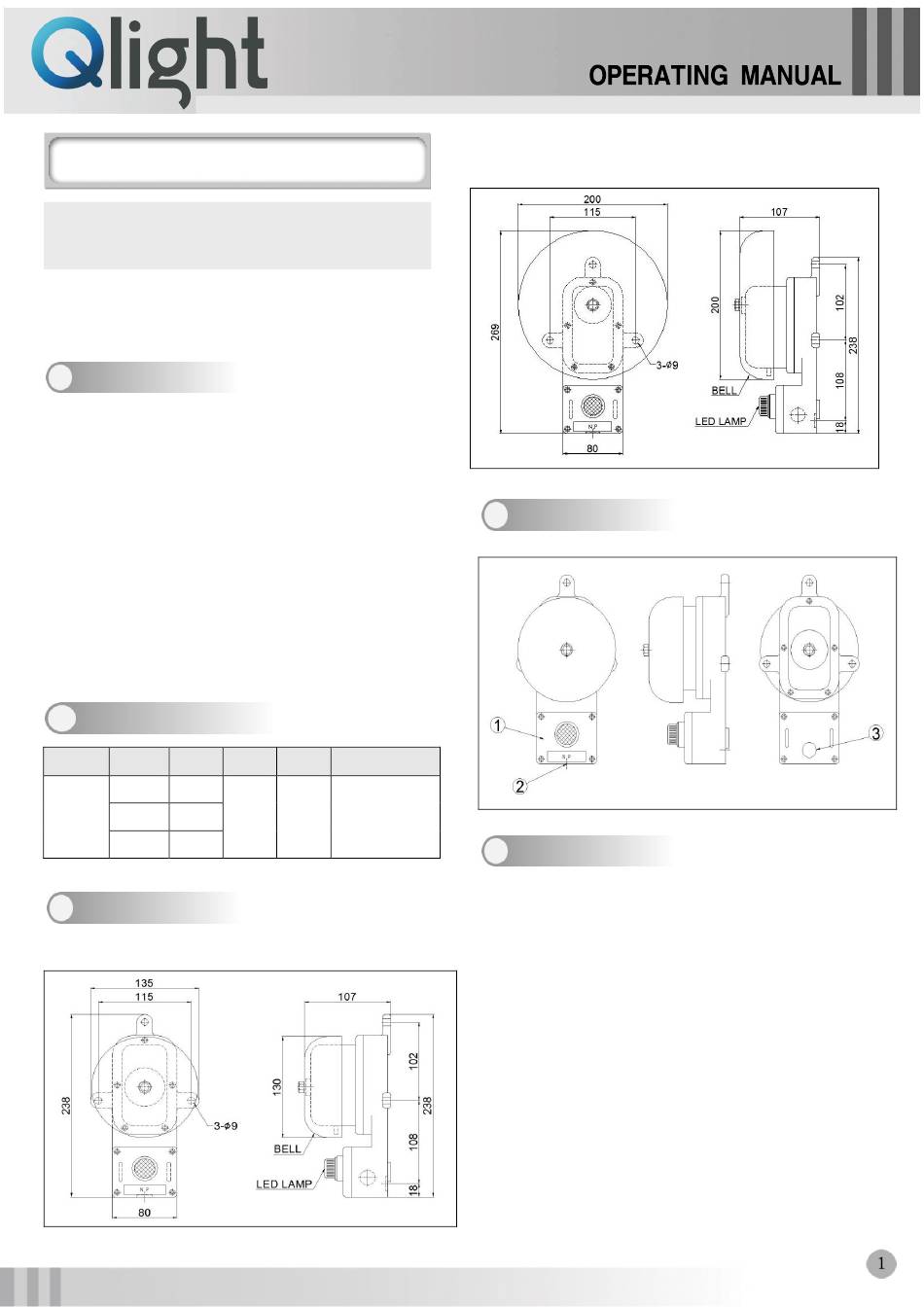

Structure Drawing
4
Wiring Instructions
5
Power line is inside of terminal box, please use this power line to
connect.
1) Connect power line
▪ Connect power line at terminal box① and come out through CABLE
ENTRY② or Back side CABLE ENTRY ③.
▪ In case of product using AC voltage, connect the line without Polarity
(wire color).
▪ In case of product using DC voltage, black line is negative (-).
2) Treating Power Cable Entry
▪ Use cable grand to the line entry to keep airtight.
kept airtight and put outdoor, this can cause a product damage by
moisture and dust.
▪ This product is manufactured for outdoor use. Mount at the place where
exists low moisture and low dust as long as possible on vertical right
direction.
If the line entry is not
