Q-Light SEDLR Operating Manual

SEDLR / SDLR / SMDLR
OPERATING MANUAL
Heavy duty LED Revolving Warning Light with Phone
Thank you for purchasing Q.Light product.
Please read this manual carefully before installing this system
for safe and long use of the product.
▪ Aluminum housing product with long shelf-life.
▪ Excellent in diffusing signal light by employing unique
direct-diffusion system.
▪ Material : Lens-PC, Body-DIECAST AL,
Horn Housing-SUS316L, Reflector-Heat Resisting ABS,
Protection Cage(Option)-SUS316L
▪ RPM : 120-140/Min.(Controllable) ▪ Protection Class : IP56
▪ Volume : SEDLR,SDLR:113-118dB(1m), SMDLR 115-120dB(1m)
▪ Protection Class : IP56
1) SEDLR
▪ Product Specification
Rated
Model Current
Voltage
DC12V 1.295A
DC24V 1.052A
SEDLR
AC110V 0.233A
AC220V 0.111A

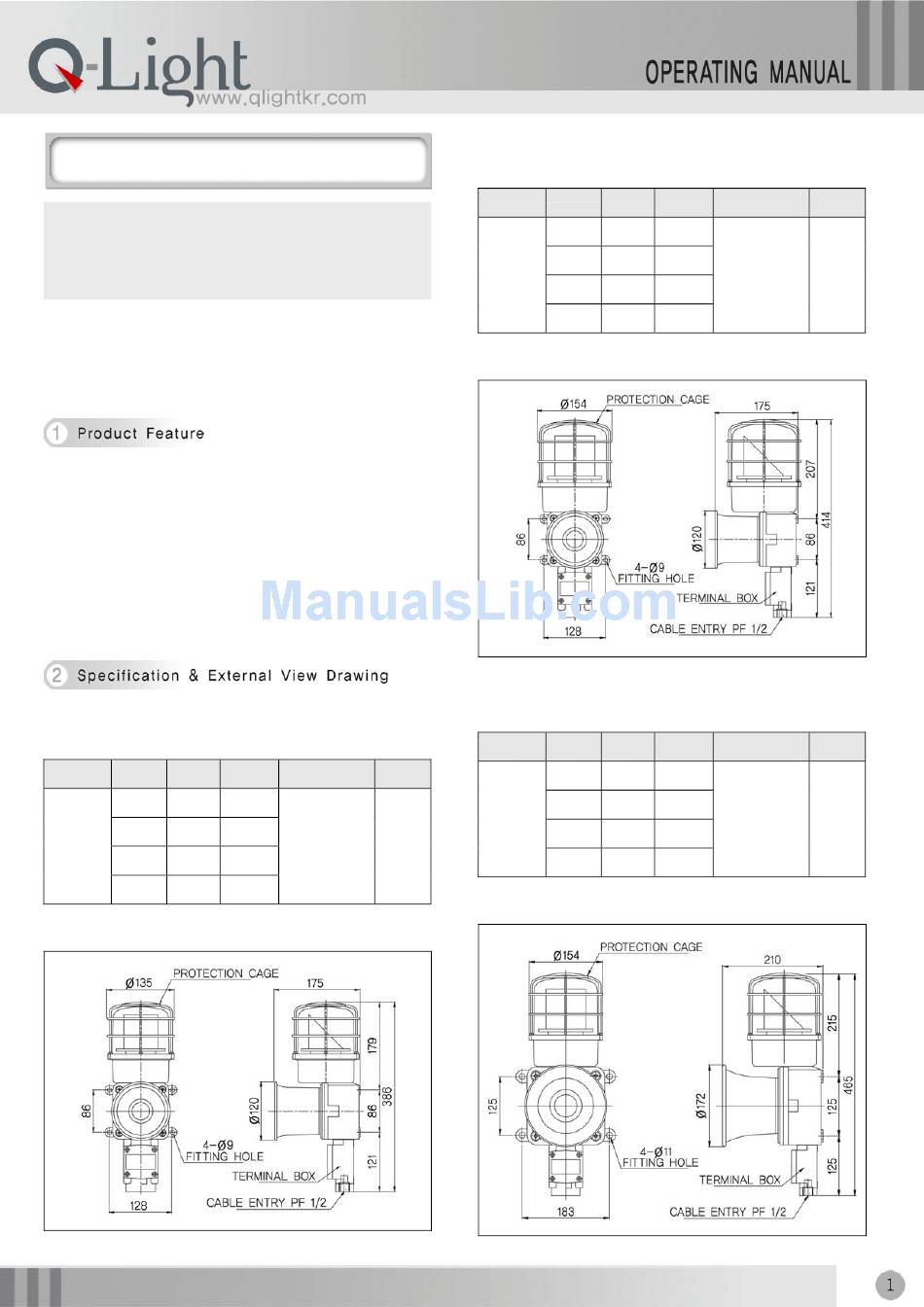

▪ External View Drawing
Weight RPM Color
3.09Kg
Green-R
3.09Kg
Amber-A
120-140/Min.
Green-G
3.86Kg
Blue-B
3.86Kg
2) SDLR
▪ Product Specification
Rated
Model Current
Voltage
DC12V 1.295A
DC24V 1.052A
SDLR
AC110V 0.233A
AC220V 0.111A
▪ External View Drawing
3) SMDLR
▪ Product Specification
Rated
Model Current
Voltage
DC12V 1.255A
DC24V 0.812A
SMDLR
AC110V 0.250A
AC220V 0.145A
▪ External View Drawing
Weight RPM Color
3.36Kg
Green-R
3.36Kg
Amber-A
120-140/Min.
Green-G
4.13Kg
Blue-B
4.13Kg
Weight RPM Color
5.91Kg
Green-R
5.91Kg
Amber-A
120-140/Min.
Green-G
6.68Kg
Blue-B
6.68Kg
