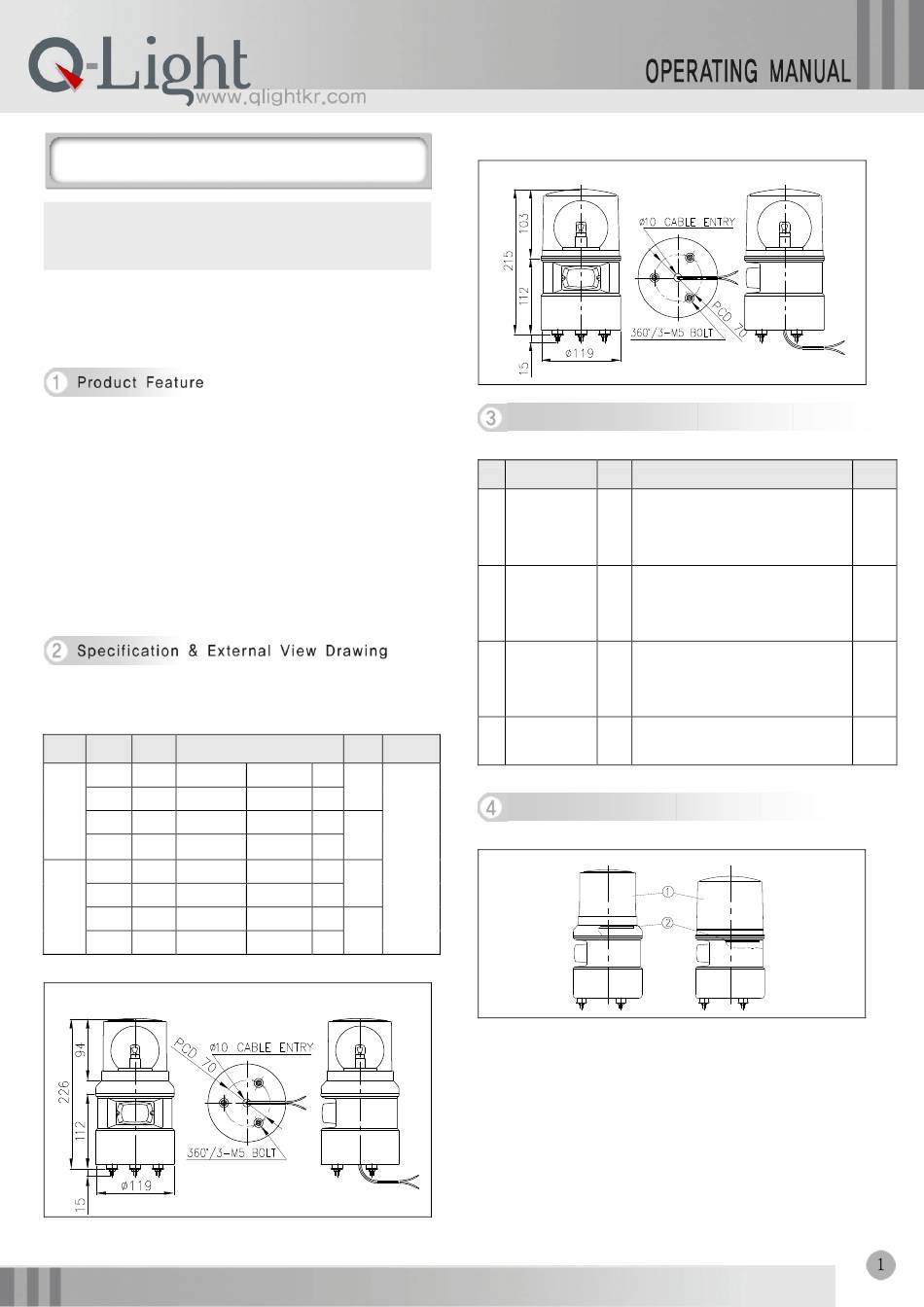

Q-Light S100D Operating Manual

S100D / S125D
OPERATING MANUAL
Bulb Revolving Warning Light with Phone
Thank you for purchasing Q.Light product. Please read this
manual carefully before installing this product for safe and long
use.
▪ Ensuring high revolving durability by applying a special power
transmission system to minimize noise and wear which is
gained a patent.
▪ Having a high tone signal sound Max. 105dB and can install at
a small place easily.
▪ RPM: 120~140RPM.
▪ Material: Lens-AS, Body-ABS, Reflector-thermostable ABS
▪ Protection Class: IP54
▪ Each model has 5 sound tones built-in. Select a suitable sound
tone for the purpose of use
▪ Certificate: CE
1) S100D
General Specification
▪
Model Voltage Current
DC12V 1.266A 12V10W
DC24V 0.766A 24V10W
S100D
AC110V 0.187A 12V10W
AC220V 0.094A 12V10W
DC12V 1.266A 12V10W
DC24V 0.766A 24V10W
S125D
AC110V 0.187A 12V10W
AC220V 0.094A 12V10W
▪ S100D External View Drawing
Bulb Weight
T16x35 15S 9
1.05Kg
T16x35 15S 10
RED-R
T16x35 15S 9
1.44Kg
AMBER-A
T16x35 15S 9
T16x35 15S 9
GREEN-G
1.07Kg
T16x35 15S 10
BLUE-B
T16x35 15S 9
1.46Kg
T16x35 15S 9
S100D
▪ S125D External View Drawing
Sound Tone Combination of Standard Product
Main Built-in
Sounds
5Warning
WS
Sounds
WM 5Melodies
WA 5Alarms
WV 3Voice Signals
Color
Change Bulb
Please kindly follow below picture and instruction.
S100D
1) Lens Removal
Remove lens① by turning it counterclockwise. and make sure
related parts(bulb etc.) on the assembling board②.
2) Bulb Change
▪ Must turn off power supply and change bulb after 1 minute at
least.
▪ Make sure the rated voltage and wattage of new bulb. If the
S125D
CH Sound Tone
ch1 Fire A-ANG Sound
ch2 Emergency WA-U Sound
ch3 Ambulance PI-PO Sound
ch4 Machinery Fault PI-PI Sound
ch5 High-Expasion Foamrelease PI~Sound
ch1 Sweet Home
ch2 For Elise
ch3 Cuckoo Waltz
ch4 Piano Sonata
ch5 Turkish March
ch1 Beep. intermittent
ch2 Door chime
ch3 Phone Ring sound
ch4 PI.PI.PI. short interval
ch5 Tripping bead sound
Ch1
Ch2 Voice recording 3 channels
Ch3
DB(Max)
105dB
105dB
103dB
95dB
S125D
