Summary of Contents for WIKA CTR3000

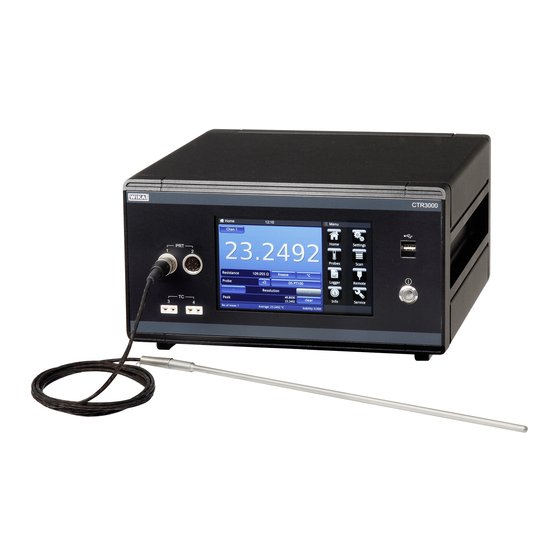

- Page 1 Operating instructions Multi-functional precision thermometer, model CTR3000 Multi-functional precision thermometer, model CTR3000...
- Page 2 1 - 67 Multi-functional precision thermometer, model CTR3000 Further languages can be found at www.wika.com. © 2018 WIKA Alexander Wiegand SE & Co. KG All rights reserved. WIKA® is a registered trademark in various countries. Prior to starting any work, read the operating instructions!
-
Page 3: Table Of Contents
4.5.1 USB interface (standard)....................18 4.5.2 Ethernet interface ......................18 4.5.3 RS232 Communication interface card ................18 4.5.4 Power input ........................18 4.5.5 Input channel expansion port (CTS Expansion, TC Expansion) .......... 19 4.5.6 Name plate ........................19 WIKA Operating Instruction, model CTR3000... - Page 4 Log files ......................48 4.6.6 Application <<Remote>> ....................50 4.6.7 Application <<Info>> ......................51 4.6.8 Application <<Service>> ....................51 4.6.8.1 Firmware update ....................51 4.6.8.2 Program SMART probe ..................52 4.6.8.3 WIKA service level .................... 52 WIKA Operating Instruction, model CTR3000...
- Page 5 Measurement ........................66 11.3.1 Thermocouple ........................66 11.3.1.1 Introduction ....................... 66 11.3.1.2 Connection ....................... 67 11.3.2 Resistance thermometer ....................67 11.3.2.1 Linearization functions for resistance thermometers .......... 67 Declarations of conformity can be found online at www.wika.com. WIKA Operating Instruction, model CTR3000...
-
Page 6: General Information
CTServiceteam@wika.com and write „Corresponding Source for CTR3000“ in the subject line. This offer is valid to anyone in receipt of this information. WARNING! Installing modified versions of open source software components on the product will result in the loss of warranty. Also support service and software updates will be refused. -
Page 7: Short Overview
It supports a wide range of thermometer types including 25 Ω SPRTs, 100 Ω PRTs, thermistors and thermocouples. The CTR3000 is a high-accuracy instrument designed for laboratory and industrial temperature measurement and calibration applications. Scope of delivery ■... -
Page 8: Safety
It supports a wide range of thermometer types including 25 Ω SPRTs, 100 Ω PRTs, thermistors and thermocouples. The CTR3000 is a high-accuracy instrument designed for laboratory and industrial temperature measurement and calibration applications intended to be used in a basic electromagnetic environment. - Page 9 WIKA service engineer. Handle electronic precision measuring instruments with the required care (protect from humidity, impacts, strong magnetic fields, static electricity and extreme temperatures, do not insert any objects into the instrument or its openings).
-
Page 10: Improper Use
Any use beyond or different to the intended use is considered as improper use. Responsibility of the operator The CTR3000 multifunctional precision thermometer is a high accuracy instrument designed for laboratory and industrial temperature measurement and calibration applications. The operator is therefore responsible for legal obligations regarding safety at work. -
Page 11: Personal Protective Equipment
This marking on the instruments indicates that they must not be disposed of in domestic waste. The disposal is carried out by return to the manufacturer or by the corresponding municipal authorities (see EU directive 2012/19/EU). WIKA Operating Instruction, model CTR3000... -
Page 12: Design And Function
automated monitoring and calibration applications; The CTR3000 will operate with all 3 and 4-wire Pt100 (100 Ohm) platinum resistance thermometers as well as most standard international thermocouple types. Temperature measurement units are selectable by front panel operation; °C, °F, K. Base measurement units mV,Ω are also displayed. -
Page 13: Principles Of Measurement
PRT is used on the correct and properly configured input channel. 4.2.2 Thermocouple measurement As well as the PRT resistance measurement facility the CTR3000 also functions as a precision millivolt-meter. Designed for high accuracy measurement over the EMF voltage range of all standard base and precious metal thermocouples, the CTR3000 achieves a basic voltage accuracy of better than ±0,004 % + 2 μV over the full measurement range. -
Page 14: Front Panel
Power on/off 4.3.2 Warm up time It is recommended that the CTR3000 be warmed up before use to stabilize the environmentally controlled components. This will ensure the best performance to the specifications. We recommend a warm up time of 1 hour for full accuracy specifications. -
Page 15: Main Screen; Home
** The selected input channel is interrogated before each measurement cycle, and when enabled, SMART probes are identified by ‘SMART´ appearing as (S) beside the field 14. Open circuit thermometer input channels will display nothing, the symbol “OL” displays that the measurement value is out of range. WIKA Operating Instruction, model CTR3000... -
Page 16: Thermometer Inputs
4.3.4 Thermometer inputs 4.3.4.1 Resistance thermometers The CTR3000 has two resistance thermometer and two thermocouple input channels, the input sockets are located on the instruments front panel. PRTs are connected via the 5 pin DIN sockets. You may connect 2, 3, or 4 wire PRTs as shown below. -
Page 17: Thermocouples
These sockets are within a temperature compensated isothermal block which eliminates the need for an external ice point reference junction. However, the CTR3000 may also be used with an external ice point reference for high precision measurement and calibration work. -
Page 18: Rear Panel
Optional RS232 communication interface card slot. A blanking plate is fitted if there is no communication interface card. The CTR3000 may (optionally) be fitted with one of these interfaces. Operation is similar for all communication interfaces. Please refer to section 4.6.6 Application <<Remote>> for further details. -
Page 19: Input Channel Expansion Port (Cts Expansion, Tc Expansion)
CTS5000 switchboxes to be used to expand the number of input connections to provide up to 64 additional channels. The universal switchbox CTS3000 will follow. 4.5.6 Name plate Please see all details in chapter 3.7 Labelling, safety marks. WIKA Operating Instruction, model CTR3000... -
Page 20: Applications And Their Functions
TC (displays °C, if the base Clear the peak values (min, max unit is selected using button 9) measured since starting the Current measured value** instrument) Selected channel; shortcut Selected probe (standard or custom); Current application name shortcut WIKA Operating Instruction, model CTR3000... -
Page 21: Status Bar
20 like Chan “#selection#”. Mathematical functions The CTR3000 can display several mathematical functions between two different channels (X, Y). The unit can be selected after the selection of the channel via function key 9 (refer to section 4.3.3 Main screen;... -
Page 22: Freeze Function
°C * 1,8 + 32 = y °Fahrenheit x °C + 273,15 = y Kelvin Temperature units The temperature cannot be measured. The device measures Ohm or mV. These electrical signals are calculated into temperature through the conversion of the probe. WIKA Operating Instruction, model CTR3000... -
Page 23: Current Multiplier
If no probe is explicitly assigned to a channel, the default probe for the channel type will be used. For PRT channels, this is 4W- PT100, for TC channels TC(K). WIKA Operating Instruction, model CTR3000... -
Page 24: Resolution "+/-"Function
Home) shows in the first line Peak_Max and in the second line Peak_Min. By pressing the „Clear“ function key 11 (refer to section 4.3.3 Main screen; Home) the values will be deleted and the values are refreshed. WIKA Operating Instruction, model CTR3000... -
Page 25: Information Bar
Information bar has the same colour as the corresponding channel selection on the home screen (blue, green, red and orange). If channels are displayed in a list or no channel relevant information is displayed the information bar will be displayed in grey. WIKA Operating Instruction, model CTR3000... -
Page 26: Application <
This will not affect the decimal separator. 4.6.2.2 Backlight-Off This setting will mean that the backlight will switch off, if no button is pressed for the set time. Options are displayed below. WIKA Operating Instruction, model CTR3000... -
Page 27: Brightness
Instrument has to restart after date or time change due to technical reasons. The instrument has no internal battery for the clock. This means that when the instrument remains powered off for several days, it loses the date and time setting. WIKA Operating Instruction, model CTR3000... -
Page 28: Sound
The following dialog will follow by pressing the button <<Factory reset>> in which the user must obviously confirm that he resets the values to the standard ones. WIKA Operating Instruction, model CTR3000... -
Page 29: Display - Average Value
For each section (standard conversion PRT, standard internal resistor, standard conversion TC and standard reference junction) one selection is necessary! For more details refer to chapter 4.6.3 Application <<Probes>>. Standard settings are marked in orange. WIKA Operating Instruction, model CTR3000... -
Page 30: Probes - Alarm For Probes
The option is between having an alarm for probes or not. If ON is clicked, then the measured temperature is compared with Tmax (set under probes). If Tmax < measured temperature, then an error appears (exclamation mark left beside the function key 12). WIKA Operating Instruction, model CTR3000... -
Page 31: Application <
Higher accuracy measurements can be made using calibrated thermometers whose characteristics have been determined. Before being used, the thermometer and its calibration details must be entered into the CTR3000 in the application <<probes>> (press the button <<probes>> while being in the <<Home>> application) under <<new probe>>. The thermometer will then appear in the thermometer list below <<configure existing probes>>... -
Page 32: New Probe <
This allows them to be kept at their normal working temperature, and so decrease settling time for each channel. The keep warm current is user selectable as ON/OFF. If set on, the CTR3000 automatically adjusts the PRT current (from 1 mA for the 100 ohm reference) to 2 mA for the 25 ohm reference. - Page 33 Therefore check the calibration system at the triple point or freezing point of water on a regular basis (independent of the recalibration cycle). Recommendation is a calibration once a year. WIKA Operating Instruction, model CTR3000...
- Page 34 The coefficients can be found in the calibration certificate while ordered a calculation. If you order a CTR3000 with a resistance thermometer and a system calibration with calculation of the coefficients, the probe will be stored under the serial number and will be calibrated with the normal sensor current.
-
Page 35: New Probe <
Once all settings are done the changes must be confirmed with <<Store>>. The CTR3000 can be used with any thermocouple (calibrated or uncalibrated) fitted with a standard miniature thermocouple connector. Connect your thermocouple to either of the miniature thermocouple connectors on the front panel. - Page 36 Therefore check the calibration system at the triple point or freezing point of water on a regular basis (independent of the recalibration cycle). Recommendation is a calibration once a year. WIKA Operating Instruction, model CTR3000...
- Page 37 4. Design and Function 8. Conversion The EMF-temperature characteristics of thermocouples are non-linear and the CTR3000 uses standard algorithms (from IEC584) to convert the measured EMF to a temperature. Thermocouples can be calibrated individually to achieve better measurement uncertainty. The calibration is presented as a deviation function polynomial.
-
Page 38: New Probe <
Once all settings are done the changes must be confirmed with <<Store>>. The CTR3000 can be used with thermistors. These are typically NTCs (negative temperature coefficient). Compared with PRTs/SPRTs, thermistors have a much higher resistance (typically measured in tens of kΩ), operate over a more limited temperature range (typically <... - Page 39 ∙ ���� (��) �� Make sure using the correct calibration parameters for the thermometer, since incorrect calibration parameters lead to erroneous results. The coefficients can be found in the calibration certificate while ordered a calculation. WIKA Operating Instruction, model CTR3000...
-
Page 40: Configure Existing Probes
All other user defined probes can be configured as needed. Delete The recycle bin has been placed on the left side of the search field. This function deletes existing probes if they are selected in the list below. Every time the CTR3000 needs a confirmation for deleting probes. Search By clicking on the “search”... -
Page 41: Smart Probes
Whenever you have changed the settings of your user-defined probe, you are able to restore the last configuration over the <<restore>> button at the end of the setting dialog. The CTR3000 wants to have a confirmation for restoring the last probe data. And then again the <<store>> button must be pressed as a confirmation. -
Page 42: Application <
Scans are started manually by the user. To scan a channel, the CTR3000 sequentially cycles through the channels that are selected and makes measurements. Therefore this function allows the user to see more channels on the screen and to have a more or less automatic measurement of several channels. -
Page 43: View
To activate the selected view press the button <<Activate view>> (only active if the scan is started), this action guides to the selected scan view. While changing from the scan application to the home application, please note that the scan is still active. This will be seen status and information bar. WIKA Operating Instruction, model CTR3000... - Page 44 Pressing again the application <<scan>>, during seeing the different views of the scan, guides the user into the application <<scan>> menu, where all settings can be done and the scan can be stopped. Please refer to section 4.6.4.1 Configuring a scan. WIKA Operating Instruction, model CTR3000...
- Page 45 <<min>> and <<max>>, so that all measured values are displayed in the graph. The division will be choosen automatically. The closer min/max the better the resolution. Please confirm all inputs by pressing the button <<store>>. WIKA Operating Instruction, model CTR3000...
-
Page 46: Application <
<<LOG>> appears in the status line, which shows that the logger is active. By pressing <<Stop>> the logger is stopped and the <<LOG>> disappears in the status line. While the logger is active, please do not change the probe configuration, including plugging or unplugging of SMART probes. WIKA Operating Instruction, model CTR3000... -
Page 47: General
A date and a time have to be defined. ends after starting. A setting in days, hours or Please store the setting. minutes has to be done. Please store the setting. Please ensure that the date and time is set correct under <<Settings>>. WIKA Operating Instruction, model CTR3000... -
Page 48: Log Files
Fehler! Verweisquelle konnte nicht gefunden werden.. If the delete button is pressed, a dialog pops up which needs again a confirmation. If the device cannot detect a memory stick, the download button is inactive. WIKA Operating Instruction, model CTR3000... - Page 49 If one channel is marked as reference, then for all other channels the difference is calculated: difference in °C (or other set standard unit) difference in raw data/ electrical value Differences can only be calculated, if the units match. WIKA Operating Instruction, model CTR3000...
-
Page 50: Application <
Before using Ethernet communication, four parameters must be set up: IP, Netmask, Gateway, and Port. Please contact the network administrator for proper settings. Please consult the computer resources department prior to connecting this instrument to your network to verify there are no conflicts with existing IP addresses. WIKA Operating Instruction, model CTR3000... -
Page 51: Application <
“new version” to install this press the button <<apply update>>. If the file cannot be found, an error log is raised. The firmware update does not delete the settings, probes and log files! WIKA Operating Instruction, model CTR3000... -
Page 52: Program Smart Probe
This can only be done while a SMART probe is connected and on the home screen, the channel is selected where the SMART probe is connected. Otherwise an error log is raised. 4.6.8.3 WIKA service level Only accessible with a password! Only for authorized users. WIKA Operating Instruction, model CTR3000... -
Page 53: Download Function
Please ensure that you eject the USB drive every time when you are ready via the function button, to be sure that all data is saved! All downloaded data will be stored in the directory “CTR3000” in the USB stick’s file system root. The directory will be created, if it does not exist. -
Page 54: Screenshot
Clicking on the button <<measured probes>> downloads all details into a *.txt file on the USB memory stick. Only the assigned probes are downloaded. A window pops up which shows that the download is complete. Following information is stored in the file in the directory *CTR3000\measured probes: Probe name Probe type Reference probe T min. -
Page 55: Smart Probes
Only the connected SMART probes are downloaded. SMART probes are only available as resistance thermometers. A window pops up which shows that the download is complete. Following information is stored in the file in the directory *CTR3000\SMART probes: Probe name Probe type... -
Page 56: Instrument Details
12 months. The basic settings will be corrected if necessary. If a RTD or TC simulator is connected to one of the instrument’s channels and both the simulator and the CTR3000 are connected to the same computer via USB, please use a USB isolator between the simulator and the computer. Otherwise there is a chance that the measurement value is affected. -
Page 57: Working With A Cts5000
Working with a CTS5000 Switchboxes are detected at power-on and are daisy-chained. Addresses are assigned in order, so the first switchbox connected to the CTR3000 will start with the lowest address. An expansion port connector is provided on the rear panel at the CTR3000 itself. Here you have to connect the CTS5000 (BUS-in) with the delivered cable. -
Page 58: Transport, Packaging And Storage
1. Wrap the instrument in an antistatic plastic film. 2. Place the instrument, along with shock-absorbent material, in the packaging. 3. If stored for a prolonged period of time (more than 30 days), place a bag, containing a desiccant, inside the packaging. WIKA Operating Instruction, model CTR3000... -
Page 59: Commissioning, Operation
▶ The instrument may only be installed and mounted by skilled personnel. ▶ Operation using a defective power supply unit (e.g. short-circuit from the mains voltage to the output voltage) can result in life-threatening voltages at the instrument! WIKA Operating Instruction, model CTR3000... -
Page 60: Faults
7. Fault Faults Personnel: Skilled personnel For contact details, please see chapter 1 “General information” or the back page of the operating instructions. Faults Causes Measures No reading Check if probe is proper connected. WIKA Operating Instruction, model CTR3000... -
Page 61: Maintenance, Cleaning And Servicing
Recalibration DKD/DAkkS certificate - official certificates: We recommend that the instrument is regularly recalibrated by the manufacturer, with time intervals of approx. 12 months. The basic settings will be corrected if necessary WIKA Operating Instruction, model CTR3000... -
Page 62: Dismounting, Return And Disposal
Return Strictly observe the following when shipping the instrument: All instruments delivered to WIKA must be free from any kind of hazardous substances (acids, bases, solutions, etc.) and must therefore be cleaned before being returned. WARNING! -
Page 63: Disposal
This marking on the instruments indicates that they must not be disposed of in domestic waste. The disposal is carried out by return to the manufacturer or by the corresponding municipal authorities (see EU directive 2012/19/EU). WIKA Operating Instruction, model CTR3000... -
Page 64: Specifications
10. Specifications 10. Specifications For further specifications see WIKA data sheet CT 60.15 and the order documentation. More specific data for thermocouples Working Range [°C] Working Range [mV] TC-Type 1820 0.291 13.820 -200 1000 -8.825 76.373 -210 1200 -8.095 69.553... -
Page 65: Technical Information
This allows primary calibrations to be carried out with suitable PRTs over reduced ranges, and will be of special importance to metrology standards departments which need to make precise measurements at ambient temperatures. WIKA Operating Instruction, model CTR3000... -
Page 66: Measurement
The part of the ITS-90 scale which may be measured by PRTs extends from 83.8058 K (- 189.3442°C) to 961.78°C. The CTR3000 is specified to measure temperature over the range -200°C to +962°C. The actual range of temperatures which may be measured depends on the type and range of the PRT. -
Page 67: Connection
11.3.2 Resistance thermometer The CTR3000 will operate with a range of 3 and 4-wire 25/100 Ohm PRTs. The best performance will be achieved only where good quality PRTs are used from reputable, proven sources. As with any measured parameter, the performance of a measurement system depends upon its stability and repeatability. - Page 68 Selecting EN60751 from the standard menu selects the standard coefficients from BS EN60751 based on ITS90. The coefficients for EN60751 are as follows: = 100 Ohm –3 –1 A = 3.9083x10 °C B = -5.775x10 –7 °C –2 C = -4.183x10 –12 °C –4 WIKA Operating Instruction, model CTR3000...
