11

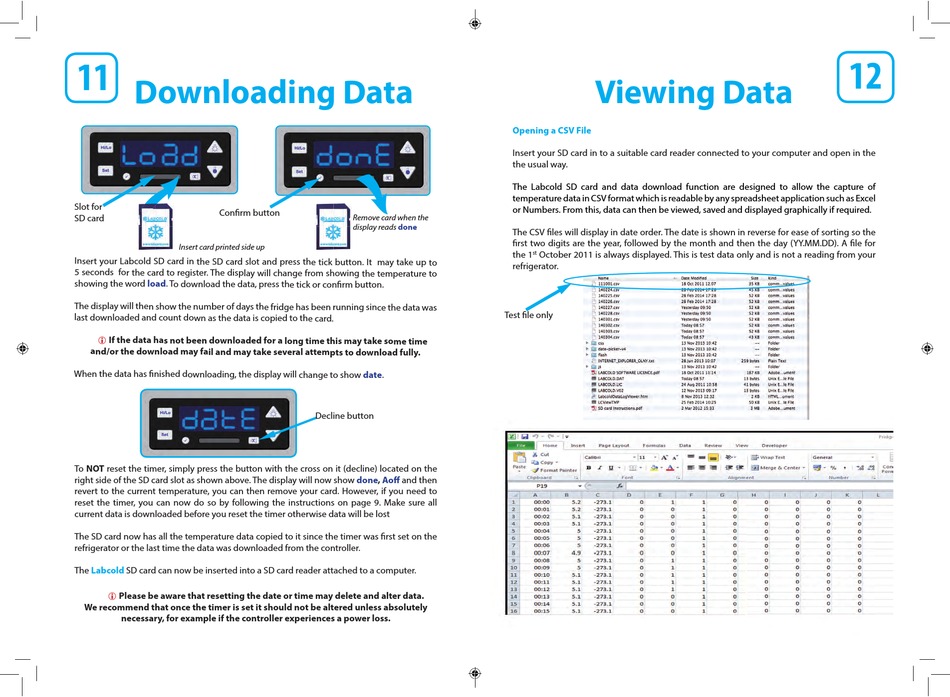

Downloading Data
Slot for
Confi rm button
SD card
Insert card printed side up
To NOT reset the timer, simply press the button with the cross on it (decline) located on the
right side of the SD card slot as shown above. The display will now show done,
revert to the current temperature, you can then remove your card. However, if you need to
reset the timer, you can now do so by following the instructions on page 9. Make sure all
current data is downloaded before you reset the timer otherwise data will be lost
The SD card now has all the temperature data copied to it since the timer was fi rst set on the
refrigerator or the last time the data was downloaded from the controller.
The
Labcold
SD card can now be inserted into a SD card reader attached to a computer.
Please be aware that resetting the date or time may delete and alter data.
We recommend that once the timer is set it should not be altered unless absolutely
necessary, for example if the controller experiences a power loss.
Remove card when the
done
display reads
Decline button
Aoff
and then
Viewing Data
Opening a CSV File
Insert your SD card in to a suitable card reader connected to your computer and open in the
the usual way.
The Labcold SD card and data download function are designed to allow the capture of
temperature data in CSV format which is readable by any spreadsheet application such as Excel
or Numbers. From this, data can then be viewed, saved and displayed graphically if required.
The CSV fi les will display in date order. The date is shown in reverse for ease of sorting so the
fi rst two digits are the year, followed by the month and then the day (YY.MM.DD). A fi le for
the 1
st
October 2011 is always displayed. This is test data only and is not a reading from your
refrigerator.
Test fi le only
12
