Digital Door Lock - Labcold IntelliCold Operating Instructions Manual

15

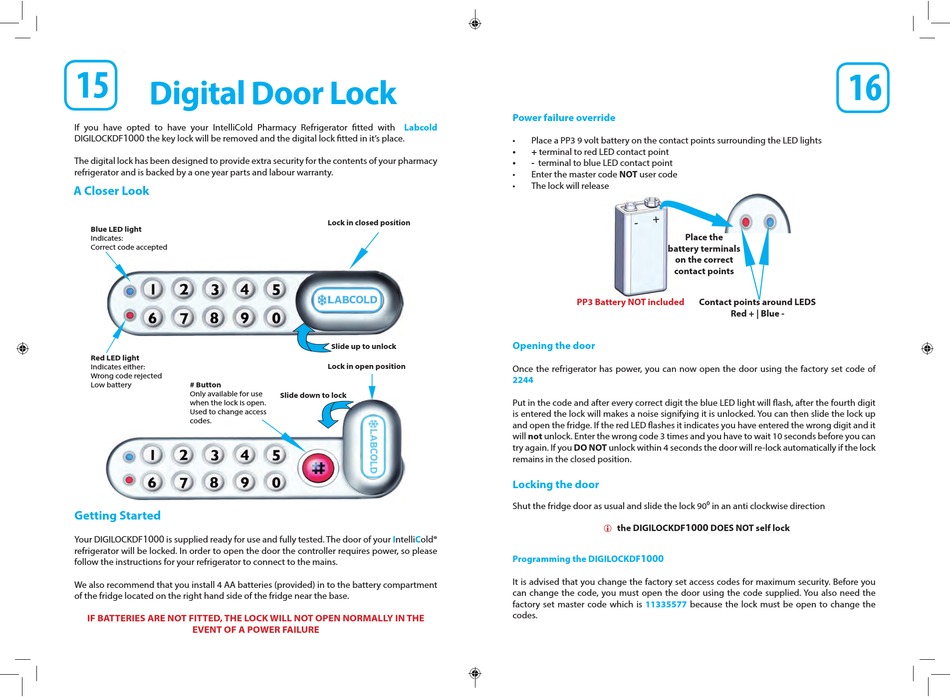

Digital Door Lock

If you have opted to have your IntelliCold Pharmacy Refrigerator fi tted with
1000
DIGILOCKDF the key lock will be removed and the digital lock fi tted in it's place.
The digital lock has been designed to provide extra security for the contents of your pharmacy
refrigerator and is backed by a one year parts and labour warranty.
A Closer Look
Blue LED light
Indicates:
Correct code accepted
Red LED light
Indicates either:
Wrong code rejected
Low battery # Button
Only available for use
when the lock is open.
Used to change access
codes.
Getting Started
1000 is supplied ready for use and fully tested. The door of your IntelliCold®
Your DIGILOCKDF
refrigerator will be locked. In order to open the door the controller requires power, so please
follow the instructions for your refrigerator to connect to the mains.
We also recommend that you install 4 AA batteries (provided) in to the battery compartment
of the fridge located on the right hand side of the fridge near the base.
IF BATTERIES ARE NOT FITTED, THE LOCK WILL NOT OPEN NORMALLY IN THE
EVENT OF A POWER FAILURE
Labcold
Lock in closed position
Slide up to unlock
Lock in open position
Slide down to lock
Power failure override
• Place a PP3 9 volt battery on the contact points surrounding the LED lights
• + terminal to red LED contact point
• - terminal to blue LED contact point
• Enter the master code NOT user code
• The lock will release
Place the
battery terminals
on the correct
contact points
PP3 Battery NOT included
Opening the door
Once the refrigerator has power, you can now open the door using the factory set code of
2244
Put in the code and after every correct digit the blue LED light will fl ash, after the fourth digit
is entered the lock will makes a noise signifying it is unlocked. You can then slide the lock up
and open the fridge. If the red LED fl ashes it indicates you have entered the wrong digit and it
will not unlock. Enter the wrong code 3 times and you have to wait 10 seconds before you can
try again. If you DO NOT unlock within 4 seconds the door will re-lock automatically if the lock
remains in the closed position.
Locking the door
Shut the fridge door as usual and slide the lock 90⁰ in an anti clockwise direction
1000
the DIGILOCKDF

1000
Programming the DIGILOCKDF
It is advised that you change the factory set access codes for maximum security. Before you
can change the code, you must open the door using the code supplied. You also need the
factory set master code which is 11335577 because the lock must be open to change the
codes.
16
Contact points around LEDS
Red + | Blue -
DOES NOT self lock
