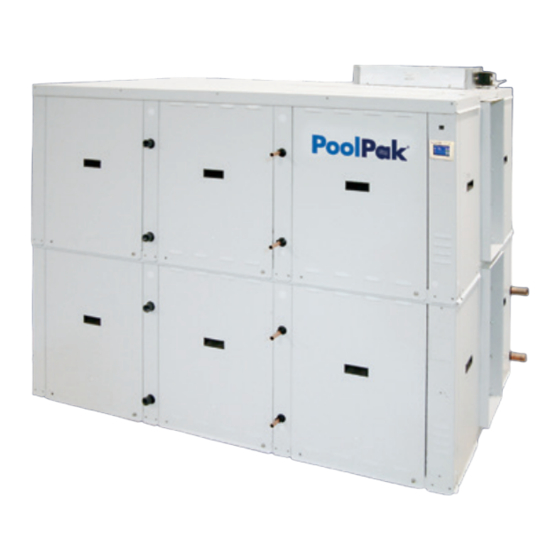

PoolPak PCP Series Start-Up Procedures

PoolPak PCP Series Start-Up Procedures

Advertisement

PCP Series
Start-Up Procedures
DOCUMENT: SVW11-SUPROCS-20181009
UPDATED: OCTOBER 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCP Series and is the answer not in the manual?

Questions and answers

Summary of Contents for PoolPak PCP Series

  • Page 1 PCP Series Start-Up Procedures DOCUMENT: SVW11-SUPROCS-20181009 UPDATED: OCTOBER 2018...
  • Page 2: Table Of Contents

    Commissioning and Normal Mode Operation ................19 Finish Start-Up and Review Settings ......................19 Commission the Dehumidifier and Switch to Normal Mode Operation............. 19 If Dehumidifier has to be Stopped or Restarted .....................20 © 2018 PoolPak LLC. All rights reserved. www.poolpak.com | 717-757-2648 |...
  • Page 3: Start-Up & Warranty Registration Package

    To submit a Start-Up report or for general assistance or inquiries - please contact Service & Customer Support Team: Phone: 1.833.DAS.POOL (1-833-327-7665) E-mail: Startups@dehumidifiedairservices.com StartUp Requests: Miscellaneous Inquiries: Support@dehumidifiedairservices.com Parts@dehumidifiedairservices.com Parts Requests: Warranty: Warranty@dehumidifiedairservices.com For additional information, please visit www.dehumidifiedairsolutions.com © 2018 PoolPak LLC. All rights reserved. www.poolpak.com | 717-757-2648 |...
  • Page 4: Start-Up Procedure

    To submit a Start-Up report or for general assistance or inquiries, please contact Service & Customer Support Team: Phone: 1.833.DAS.POOL (1-833-327-7665) E-mail: StartUp Requests: Startups@dehumidifiedairservices.com Support@dehumidifiedairservices.com Miscellaneous Inquiries: Parts Requests: Parts@dehumidifiedairservices.com Warranty: Warranty@dehumidifiedairservices.com For additional information, please visit www.dehumidifiedairsolutions.com © 2018 PoolPak LLC. All rights reserved. www.poolpak.com | 717-757-2648 |...
  • Page 5: General Inspection

    PCP Series Start-Up Procedures - GENERAL INSPECTION START-UP PROCEDURE GENERAL INSPECTION 1. Make sure following is in place before a Start Up: • Pre-Start-Up Check List is completed – dehumidifier and premise are ready for a Start-Up • Design conditions (where and what is applicable) are met. Room and pool water temperatures are brought to design conditions to establish appropriate load;...
  • Page 6: Perform Premise And Mechanical Room Inspection - Verify/Perform Following

    PCP Series Start-Up Procedures - GENERAL INSPECTION  Drain – verify P-trap is installed correctly and primed  Other systems/devices  For dehumidifiers with water or glycol circuits (heat recovery, space heating, protocol glycol loop etc) – verify that there is no air in the system (check automatic air vents, manual air bleeding valves etc).
  • Page 7: Power Up The Dehumidifier

    PCP Series Start-Up Procedures - GENERAL INSPECTION • Ductwork is installed in such a manner that:  No short-cycling occurred (no closely located supply and return grills)  No stagnant air zones  Air is supplied onto outer windows, doors (to prevent sweating) 4.
  • Page 8: Start-Up Procedure & Touch Display Basic Navigation

    PCP Series Start-Up Procedures - TOUCH DISPLAY BASIC NAVIGATION START-UP PROCEDURE & TOUCH DISPLAY BASIC NAVIGATION WARNING Before attempting to operate the dehumidifier, familiarize yourself with Touch Display Layout and Navigation. Refer to Touch Display Manual and current document. Intro Touch Display operator panel could be used as local or remote operator panel.
  • Page 9 PCP Series Start-Up Procedures - TOUCH DISPLAY BASIC NAVIGATION MAIN MENU Available in Service and Normal STATUS modes; INDICATORS Available in Access to Service and Help feature, Normal mode logs, User and as applicable Advanced (dehumidifier (factory) automatic settings from...
  • Page 10: Home Page Features

    PCP Series Start-Up Procedures - TOUCH DISPLAY BASIC NAVIGATION Home Page Features • Main Menu is available in both, Service and Normal modes, and provides access from any sub-level to following features:  Home – returns to the home page from any sub-page ...
  • Page 11 PCP Series Start-Up Procedures - TOUCH DISPLAY BASIC NAVIGATION SENSORS READOUTS ON/OFF CONTROL Displays available (configured as such) sensors, pertinent to current group. (DIGITAL OUTPUTS) Engages On/Off devices (contactors, solenoids, Start/Stop signals etc.) MODULATING CONTROL (ANALOG OUTPUTS) Sets/adjusts modulating (0-10VDC) control signals (fan speeds, modulating actuators etc.)
  • Page 12: Start-Up Procedure

    PCP Series Start-Up Procedures - VENTILATION START-UP PROCEDURE - SERVICE MODE OPERATION - VENTILATION NOTE • Not all dehumidifiers would be equipped with all systems/components mentioned below. Use following procedure as applicable to each specific dehumidifier. • To locate respective components/systems (main blower(s), exhaust and purge fans, dampers etc.) refer to dehumidifier doors labels.
  • Page 13 PCP Series Start-Up Procedures - VENTILATION 3. Run Exhaust Fan(s)1 (EF1). • Send exhaust fan(s) start signal:  Press Exhaust1 (top button group) – observe button turns green.  If applicable – verify exhaust damper actuator(s) open.  Verify exhaust fan(s) contactor(s)/relay(s) engage.
  • Page 14: Start-Up Procedure

    PCP Series Start-Up Procedures - SPACE HEATING START-UP PROCEDURE Service Mode Operation – Space Heating Verify dehumidifier Space Heating system operation (HW coil, gas heater, electric heater etc.) NOTE For proper operation verification make sure that Main Blower is running while checking Space Heating components.
  • Page 15: Compressor(S)

    PCP Series Start-Up Procedures - COMPRESSOR(S) SERVICE MODE OPERATION COMPRESSOR(S) Before Running Compressor(s): • Read this entire section first before starting and running compressor(s)! • Ensure that present load is sufficient for dehumidifier operation – RH level is at least 45%, RA temperature is at least 78°F.
  • Page 16: Verify Compressor(S) Operation

    PCP Series Start-Up Procedures - COMPRESSOR(S) NOTE Make a judgement call on what mode (AC, Reheat etc.) to start with, based on outdoor and indoor conditions: e.g. if indoor (RA) temperature is relatively high, you may want to start with full AC or Partial mode (and then do full Reheat) – with high return air temperature, compressor(s) may not sustain their operation for long period of time in full Reheat mode.
  • Page 17 PCP Series Start-Up Procedures - COMPRESSOR(S) 3. Run Compressor in full AC Mode: • Verify outdoor condenser/fluid cooler operation (keep compressor running as it is while checking condenser/ cooler fan(s) operation):  Press Compr1 (bottom menu) and engage outdoor condenser/fluid cooler fans according to their type –...
  • Page 18: For Two-Compressor Dehumidifiers

    PCP Series Start-Up Procedures - COMPRESSOR(S) 5. Run Compressor in partial mode – Reheat and AC: • While condenser/cooler fan(s) (and pump – if applicable) and compressor are running:  Press Reheat – verify button turns green and Reheat solenoid valve energizes (check magnetic pull on the solenoid coil stem) ...
  • Page 19: Commissioning And Normal Mode Operation

    PCP Series Start-Up Procedures - COMMISSIONING COMMISSIONING AND NORMAL MODE OPERATION Finish Start-Up and Review Settings Once dehumidifier operation in different modes is verified and respective data is recorded, stop the dehumidifier: • Stop/dis-energize main blower and any other, if any, ventilation or space heating components – refer to respective sections as needed.
  • Page 20: If Dehumidifier Has To Be Stopped Or Restarted

    If Dehumidifier was Not Commissioned prior, it will automatically restart in Service Mode. PoolPak is a Dehumidified Air Solutions company and member of Dehumidified Air Services, a coast-to-coast service network of local customer support specialists. Backed by real-time remote monitoring and direct access to the engineers who designed and built your dehumidifier, Dehumidified Air Services is the only organization in North America that has the scale and expertise to deliver trouble-free pool dehumidification and unparalleled customer service.
