- Page 1 PoolPak MPK with CommandPak Control System CPCS ™ BACnet /IP User’s Guide DOCUMENT #: SVW07-MPKBACNIP-20171020 UPDATED: OCTOBER 2017...

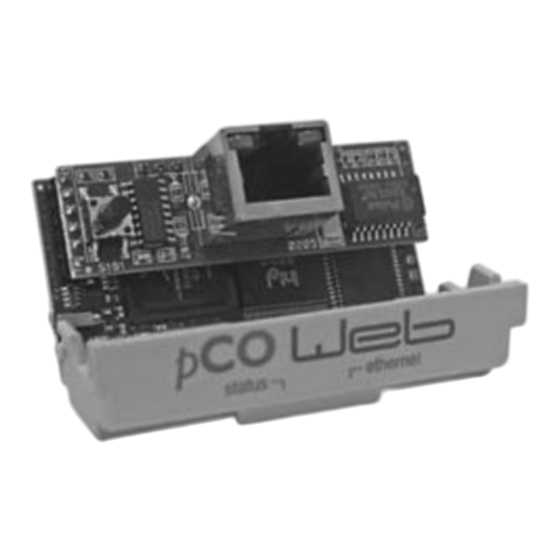

- Page 2 (BAS). Based on Carel’s pcoWeb serial card, the interface allows connection to an Ethernet network. 80 control points, including all basic information and set points for the PoolPak dehumidification system, are available through the interface. The BACnet configuration parameters for the controller are accessed in the configuration menu. To access this menu: 1.
- Page 3 Ethernet connection on the BACnet card. To access this page, enter the following address in a web browser: http://”IP Address”/config where IP Address is the address assigned to the card manually or through a DHCP server. The computer used must be on the same subnet as the BACnet card. Contact PoolPak Service at 800-959-7725 for login information.
- Page 4 Supply Air Temperature °C xwfSupAirVol Supply Air Volume xwfSupFanCur Supply Fan Current Amps xwfSurTmp Surface Temperature °C 1001 CPR1_xwiActiveFaultCode Cmpr1 Fault Code See below 1002 CPR1_xwiMode Cmpr1 Actual Mode See below © 2017 PoolPak LLC. All rights reserved. Page 4...
- Page 5 Force Purge Mode on/off xbBASForceUnoccupied Force Unoccupied on/off xbExhFan_DO Exhaust Fan Output on/off xbOccupied Occupied Mode on/off xbPool1AuxWtrHeat_DO Pool1 Aux Heat Output on/off xbPool2AuxWtrHeat_DO Pool2 Aux Heat Output on/off © 2017 PoolPak LLC. All rights reserved. Page 5...
- Page 6 • 0 – Normal. No sensors in failure. • 1 – Return air temperature • 2 – Return air humidity • 3 – Supply air temperature • 4 – Outside air temperature © 2017 PoolPak LLC. All rights reserved. Page 6...
- Page 7 • 13 – Aux cooling system failure • 14 – Compressor Module 1 fault active • 15 – Compressor Module 2 fault active • 16 – Compressor Module 3 fault active © 2017 PoolPak LLC. All rights reserved. Page 7...
-
Page 8: Changing A Set Point
To determine the actual alarm condition, the BAS can examine the present value of the active fault objects. See the Fault Code sections earlier in this document for a list of possible states. © 2017 PoolPak LLC. All rights reserved. Page 8... - Page 9 With more than 45 years of experience in indoor pool dehumidification equipment manufacturing, PoolPak LLC is the most well-known brand ® in the industry. Our people and products work daily to improve the quality and comfort of indoor pool environments. PoolPak dehumidification ®...
