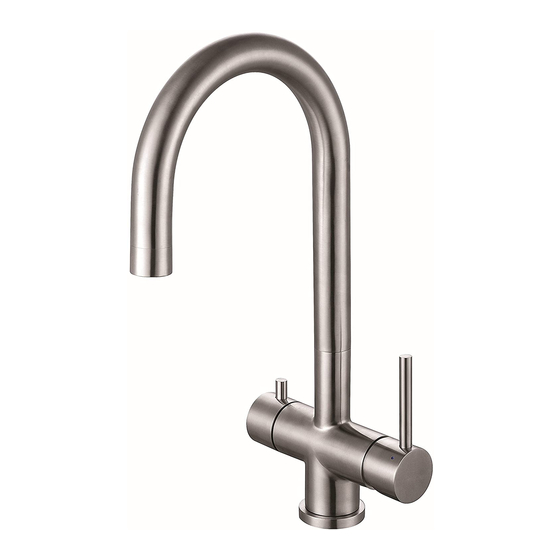

Franke EOS FFT3350 Installation Manual

STANDARD MAINTENANCE AND TROUBLESHOOTING
Replacing Mixing Cartridge
1. Shut off the water supply to the faucet
2. Turn on the faucet briefly to relieve any pressure inside the faucet
3. Remove set screw from handle C using allen key
4. Remove handle C from faucet body
5. Unscrew the cap D
6. Unscrew the cartridge lock nut E
7. Lift ceramic disk cartridge F from the body and replace it with new
cartridge. Ensure the two lugs on bottom of the cartridge sit
properly in the allocated holes at the base of the body
8. Reassemble faucet in reverse order and test for leakage
Replacing The Filtered Water Valve
1. Follow steps 1 and 2 on replacing mixing cartridge section
2. Unscrew the handle tip I
from the handle thread I
1
from the handle body I
3
3. Unscrew handle thread I from handle body I
2
4. Slide handle body I off of the faucet body
3
5. Remove phillips screw H and allen screw H
2
mounting sleeve Y and slide mounting sleeve Y off the valve stem
6. Unscrew the valve cap X using 22mm wrench
7. Remove filtered water valve G from faucet body and replace with
new valve. Ensure two tabs on the valve align with the slots in the
faucet body
8. Reassemble faucet in reverse order and test for leakage
General Maintenance
• Clean aerator periodically for any buildup
• Do not use harsh detergents, solvents, chemical agents,
especially any containing CHLORINE, or metallic sponges as
these can damage the surface finish
• Clean only with soft sponge and soapy water

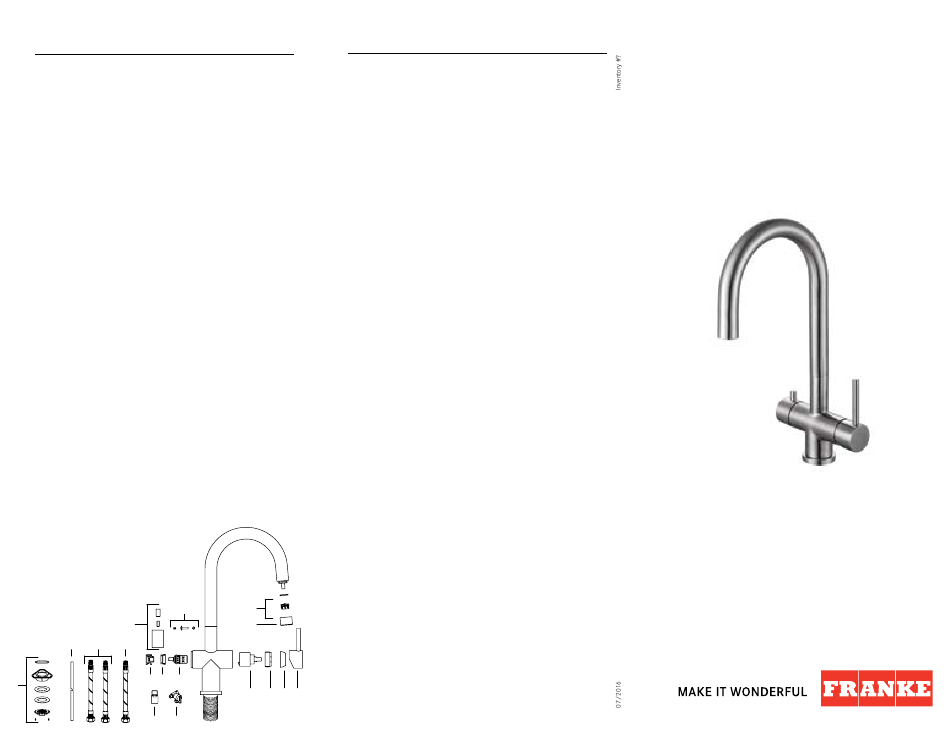

Spare/Replacement List
A. FT3301 Aerator with Washer
B. FT3302 Aerator Sleeve
C. FT3303 Mixer Handle Assembly
D. F205506 Cartridge Cap
E. F3412 Cartridge Nut
F. F206502 Cartridge
G. FT3306 Filtered Water Valve
H. FT3305 Handle Fastening Hardware
I. FT3304 Filtered Water Handle Assembly
J. FT3307 Filtered Water Connector
K. 10306 Shut-off Valve
L. 10305 Filtered Water Supply Tubing
M. F205510 Cold Water Supply Hose
N. F205509 Hot Water Supply Hose
O. FT3308 Fastening Set
H.
I
1
I
I.
2
H H
1 2
L. M. N. I
3
Y. X. G.
O.
J. K.
LIMITED LIFETIME WARRANTY
Franke Kitchen Systems, LLC (Franke) extends the following
warranty to the original purchaser of its faucets effective
January 1, 2003.
All faucets installed in a private residence will carry a limited lifetime
warranty on all mechanical parts to be free of manufacturing
defects in material and workmanship under normal usage. All
chrome finishes carry a limited lifetime warranty; all other finishes
are warranted for five (5) years from the original date of purchase.
Marine and Outdoor Installation: Franke faucets are NOT warranted
for Marine and Outdoor installations.
This warranty applies only to the original owner, providing the
and remove it
2
product has been installed in accordance with our installation
instructions, used as recommended and in a normal residential
using allen key
3
application. In the event of a warranty claim, the owner will be
from handle required to provide proof of purchase. Please save sales receipt. This
1
warranty covers all components which make the product operational.
Franke, at its option, may repair or replace the product or
components necessary to restore the product to good working
condition. Franke reserves the right to inspect the installation prior
to the actual replacement of the product or component part. This
warranty does not cover misuse or abuse, accidental damages,
scuffs or scratches, improper installation, abnormal usage, negligence
or damage caused by improper maintenance or cleaning. Normal
wear of parts is excluded from the warranty. Damage caused by
impurities or acts beyond our control are not covered. Any product
or part which has been repaired or altered in any manner outside of
Franke's factory, unless previously authorized in writing by Franke,
will void warranty. Any replacement excludes transportation and
any labor re-installation costs. This warranty does not allow
recovery of incidental or consequential damages such as loss of
use, delay, property damage or other consequential damage,
and Franke accepts no liability for such damages.
The Franke warranty is limited to the above conditions and to the
warranty period specified herein and is exclusive. Franke DISCLAIMS
all other warranties, expressed or implied, including IMPLIED
WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A
PARTICULAR PURPOSE. This warranty gives you specific legal rights
that may vary from state to state.
Further information
For any further information about our products, about the installation
of them or about the guarantee, please contact the customer
service department at:
A.
Franke Kitchen Systems, LLC
B.
Kitchen Systems Division
H
3
800 Aviation Parkway
Smyrna, TN 37167
Phone: 1-800-626-5771
Fax: 1-888-685-0007
www.franke.us/ks.com
F. E. D. C.
INSTALLATION MANUAL
EOS
FFT3350 Faucet
