Crow TLC-360 Installation Instructions

1
TLC-360
4 ELEMENT
CEILING MOUNT
PASSIVE INFRARED DETECTOR
INSTALLATION INSTRUCTIONS
P/N 7151069
REV.E A.Y.
4

MOUNTING THE DETECTOR

Choose location most likely to intercept an
intruder. Refer to the detection pattern.
1. Hold the detector in your hand and
release the mounting plate by turning it
counter-clock-wise, and separate it
from the case (Fig. 1).
2. Insert the wires through the hole in the
center of the mounting plate (Fig. 2).
3. Mount the plate using the holes marked
mounting holes.

WIRE SIZE REQUIREMENTS

Use #22 AWG (0.5 mm) or wires with a
larger diameter. Use the following table to
determine required wire gauge (diameter)
and length of wire between the detector and
the control panel.
Wire Length m 200 300
Wire Diameter mm .5 .75
Wire Length ft. 800 1200 2000 3400
Wire Gauge # 22 20
7

TERMINAL BLOCK CONNECTIONS

Run the cable through the cable entry hole
and connect the wires in accordance with
the following instructions:
Terminal 1 - Marked " - " ( GND )
Connect to ground of the control panel.
Terminal 2 - Marked " + " ( + 12V )
Connect to a positive Voltage output of 8.2-
16 Vdc source (usually from the alarm
control unit).
Terminals 3 & 4 - Marked " RELAY "
These are the output relay contacts of the
detector. Connect to a normally closed zone
in the control panel.
Terminals 5 & 6 - Marked " TAMPER "
If a Tamper function is required connect

TLC-360 FEATURES

∗ Fully sealed sensor chamber.
∗ VLSI Technology (Very Large Scale
Integration).
∗ Maximum RFI & EMI Immunity.
∗ 4 Element Pyro Sensor.
∗ Pulse Count.
∗ Sophisticated signal processing.
∗ Memory function.
∗ Hard Spherical Lens 360° coverage.
∗ Bidirectional temperature compensation.
∗ Flourescent light stability.

INTRODUCTION

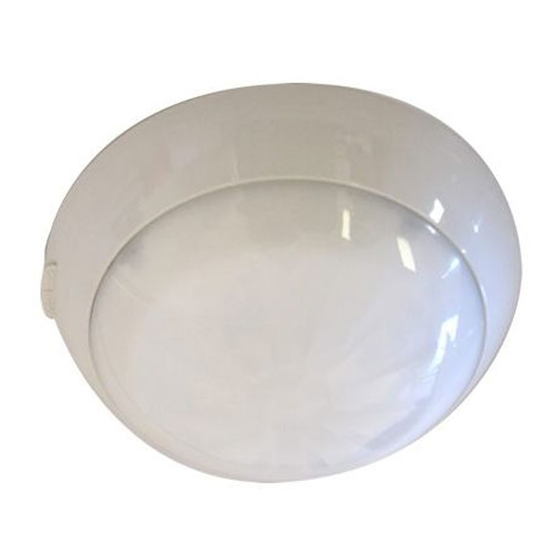

The TLC-360 is a 4-element passive infrared
intrusion detector for use in electronic
security systems in ceiling mount
applications.
You will obtain optimum performance from
your TLC-360 PIR detector by following this
manual.

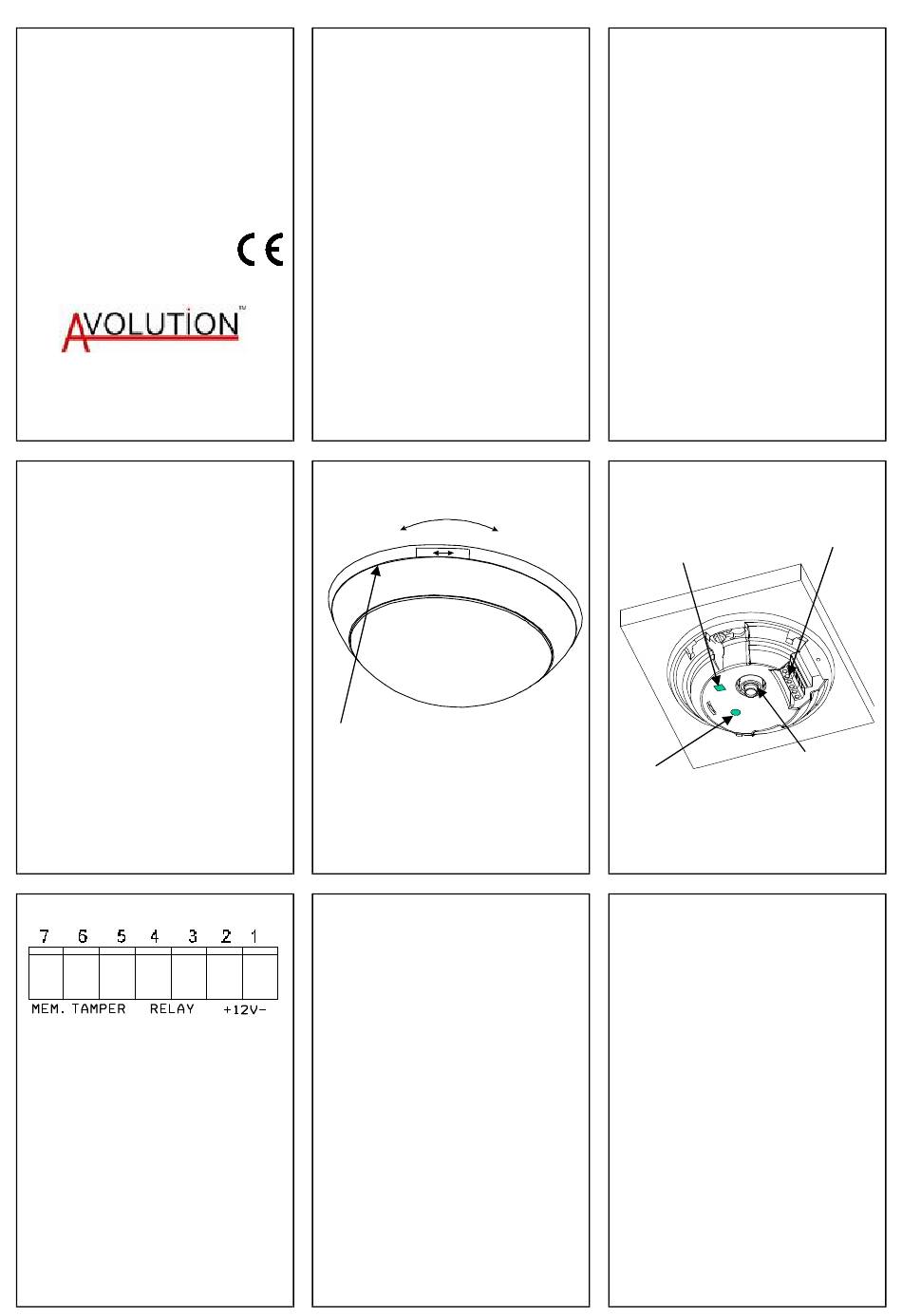

FIG. 1 - TLC-360 . EXTERNAL VIEW
OPEN
Separate cover
from base
400 800
1.0 1.5
18 16
these terminals to a 24 hour normally closed
protective zone in the control unit. If the front
cover of the detector is opened, an
immediate alarm signal will be sent to the
control unit.
Terminal 7 - Marked " MEM "
End Of Line option
2
5
CLOSE
O C
8
3
The TLC-360 reduces false alarms to an
unprecedented minimal level due to its
effective elimination of background noises and
nuisance stimuli. The TLC-360 employs
Automatic Pulse Count making it extremely
adaptable to various environments. The
unique VLSI, using sophisticated signal
processing, makes this detector virtually free
of false alarms.
The TLC-360 integrates VLSI & SMD
(surface mount device) to their full advantage.
The detector is easy to install, with no
necessary adjustments.

HARD SPHERICAL LENS

The TLC-360 is equipped with a special hard
lens. This lens is the latest development in the
security field and complies with all the new
standards requirements. It gives wide
coverage patterns, even at low mounting
heights. It is especially immune to sunlight,
halogen lights and fluorescent lights and is
impervious to attack.
6
FIG. 2 - TLC-360. INTERNAL VIEW
Pulse Count /
Terminal Strip
LED Enable Switch
Rubber
Insulation
Sensitivity/Range
Adjustment
9

PULSE COUNT /LED Enable DIP Switch

(Fig.3 and DIP-SWITCH Setting).
To change positions of the DIP-switch you
have to open the detector:
1. Turn the detector counter-clock wise and
separate it from the mounting base.
2. Change position of the switch.
3. Close the detector and reinstall assembly
screws.
