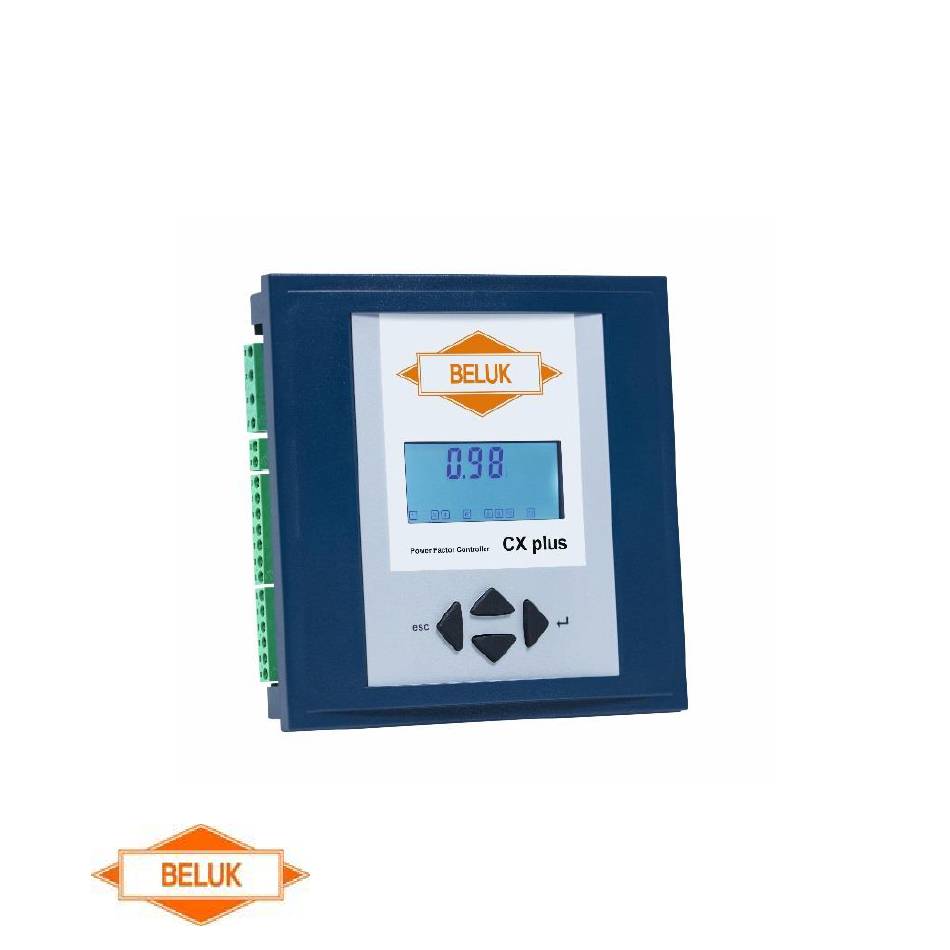

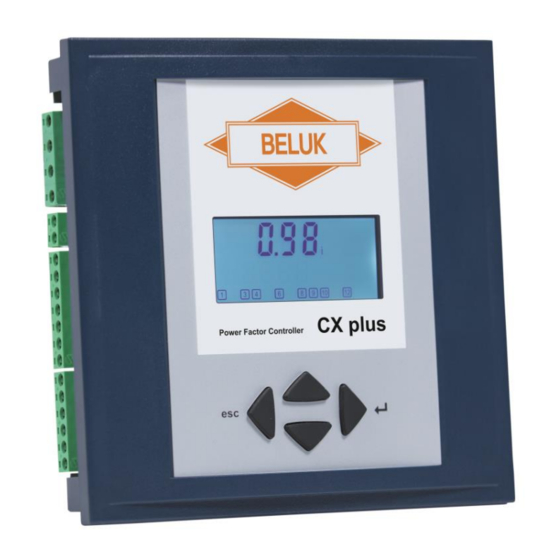

CX plus Operating Manual
x
s
Beluk GmbH
Taubenstrasse 1
86956 Schongau
Germany
MB_EN_ACXplus-R_BEL_02
Tel.: +49 8861 2332 0
Fax: +49 8861 2332 22
blr@beluk.de
http://www.beluk.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CX plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Beluk CX plus

Summary of Contents for Beluk CX plus

  • Page 1 MB_EN_ACXplus-R_BEL_02 CX plus Operating Manual Beluk GmbH Tel.: +49 8861 2332 0 Taubenstrasse 1 Fax: +49 8861 2332 22 86956 Schongau blr@beluk.de Germany http://www.beluk.de...

  • Page 2: General Safety Notes

    After that, check to ensure that the compensation system has been de- energised. Beluk GmbH assumes no responsibility or liability for injury to persons or damage to equipment due to improper installation or installation not for...
  • Page 4 New features of the CX plus over the BLR- CX  Modbus: no longer as an external add- on module, now optionally installed internally.  Alarm memory: enables the storage of the last 10 alarms  New alarms: THD I alarm ...

  • Page 5: Installation And Commissioning

    4) Disconnect and remove the old reactive power controller. 5) Plug the CX plus into the switch panel section and fix it with the two mounting brackets. (Section 138 x 138 mm) 6) Connect the protective conductor to the PE terminal of the metal back of the CX plus.
  • Page 6 11) Activation of user-guided initial commissioning “FIrSt SEtUP“ after confirming “YES“. Afterwards all required parameters are requested by CX plus. The choice of “NO” requires, that the user implements the following parameters (12) … 15)) manually. 12) The current transformer factor (Ct) must be entered.
  • Page 7 Questions during commissioning: 1) No AUTO display → control stopped Reasons: Manual operation, control is switched off, temperature is too high, current is less than 15 mA, voltage or THD of voltage are not permitted 2) U ALARM display → voltage out of tolerance Check settings for rated voltage (SETUP/ Un) and voltage transformer (SETUP/ Pt) 3) I Lo ALARM display →...
  • Page 8 Display: INFO: Stage database AUTO: Automatic operation MANUAL: Manual operation SETUP: Settings menu ALARM: Alarm memory EXPORT: Feeding back of active power 2nd target cosϕ is active ALARM: Flashes if there is an alarm notification 1st line: cos ϕ/ menu items inductive/ capacitive 2nd line: code of metered and set values...

  • Page 9: Operation

    Operation: The controller is operated using 4 keys. Increase values Select menu items Opens menus/ Enter Exit menus/ Esc Cursor to the right Cursor to the left Settings Reset alarm (5 sec.) Decrease values Select menu items Input parameters: ↑, ↓ Digit adjust (up/ down) →...
  • Page 10 Main menu: Select menu items with ↑, ↓, enter the submenu with → Measurement value display: (Change with ↑, ↓) Δ , I, P, Q, Q, S, THD U, 3.-19. Har. U, THD I, 3.-19. Har. I, cosϕ, PF, APF, Hz(F), t(°C), thi (°C), OPh (h), tanϕ, U hi, THD U hi INFO stage database: Power and power loss of stages, number of...
  • Page 11 INFO stage database: Please note: The current status of the outputs is not displayed. Browse through stages with ↑, ↓ and select with →. The selected stage flashes. ↑, ↓ displays the following information: Current capacitor output The output relates to Un Output reduction of the capacitor: Current output/ nominal output in % Number of operation cycles...

  • Page 12: Manual Operation

    MANUAL operation: Enter manual operation by pressing → for three seconds. Browse stages with ↑, ↓. The selected stage is displayed in line 2 as a number. → switches the stage on or off. Exit manual operation with ←. Important information: In the menu Manual operation, only stages with stage type AUTO can be switched.

  • Page 13: Setup Settings Menu

    SETUP settings menu: After opening SETUP, submenu 100 appears. → Open menu 100. ↑, ↓ Menu 200 - 600 & 800, with optional Modbus: 200 - 800 (locked with password → Reference Manual) Rated voltage (correct setting is very important) For voltage monitoring and stages database reference.
  • Page 14 In case of incorrect connection of the voltage or current path (phase, polarity), the reactive power controller cannot be operated. Thus, the connection should be corrected. Since this is not always possible, the CX plus alternatively provides the following functions: Automatic initialisation: SETUP/ 100/ AI The AI switches all outputs on and off several times.
  • Page 15 Status: Flty, stage is disabled Procedure: Do individual stage symbols flash during operation mode? Check fuse, contactor and capacitor output of the corresponding stage. Acknowledgement in SETUP/ 100/ OUt or restart (interruption of the measuring/ supply voltage) of the CX plus.
  • Page 16 Alarms: Alarm system settings: SETUP/ 500 → Reference Manual Measuring voltage out of tolerance ALARM: I Lo Measuring current < 5 mA (check I-measuring path) ALARM: SETUP/ 500/ 518 → “YES” = I-Low alarm blocked I Hi Measuring current > 6 A (transformation ratio of the ALARM: built-in current transformer is too small) Compensation target unreachable (check system)

  • Page 17: Factory Settings

    Factory settings SETUP/ 100 open 301/ sensitivity 60 % IMPORTANT SETTINGS 302/ target cosϕ1 1.00 Un/ rated voltage 400 V 303/ target cosϕ2 i 0.95 Ct/ current transformer 304/ EXPORT cosϕ2 Pt/ voltage transformer 305/ switching time 10 s AI/ start Ai 306/ St stage exchange PFC/ control 307/ active stage exchange...
  • Page 18 Factory settings SETUP/ 500 locked 523/ switch off interval 60 s ALARM SETTINGS 501/ manual reset SETUP/ 600 locked 502/ THD U Limit 20 % RESET 503/ THD stages off 601/ factory settings 504/ delay of harm. alarm 60 s 602/ stages database 505/ I= 0 freeze controller 603/ operating hours...

  • Page 19: Technical Specifications

    Technical specifications: Voltage: 90- 550 V, 1 ph., 50/60 Hz, 6 VA Current: 5 mA- 6 A, 1 ph., <1 VA, Switching outputs: Relay, NO contact, common contact supply: max. 10 A 250 V AC/ 5 A, 400 V AC/ 1 A Digital input: 90- 250 V AC Temperature measurement:...
  • Page 20 Technical specifications: Weight: Approx. 0.6 kg Dimensions: Housing: 144 x 144 x 58 mm (WxHxD) Cut-out: 138 (+0.5) x 138 (+0.5) mm Alarm memory: Storage of the last 10 alarms Standards: IEC 61010- 1 IEC 61000 6- 2 IEC 61000 6- 4: level B IEC 61326- 1 UL 61010 Conformity:...
