HyQuest Solutions PVD200 Operation Manual

Current meter counter (with signal processor)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

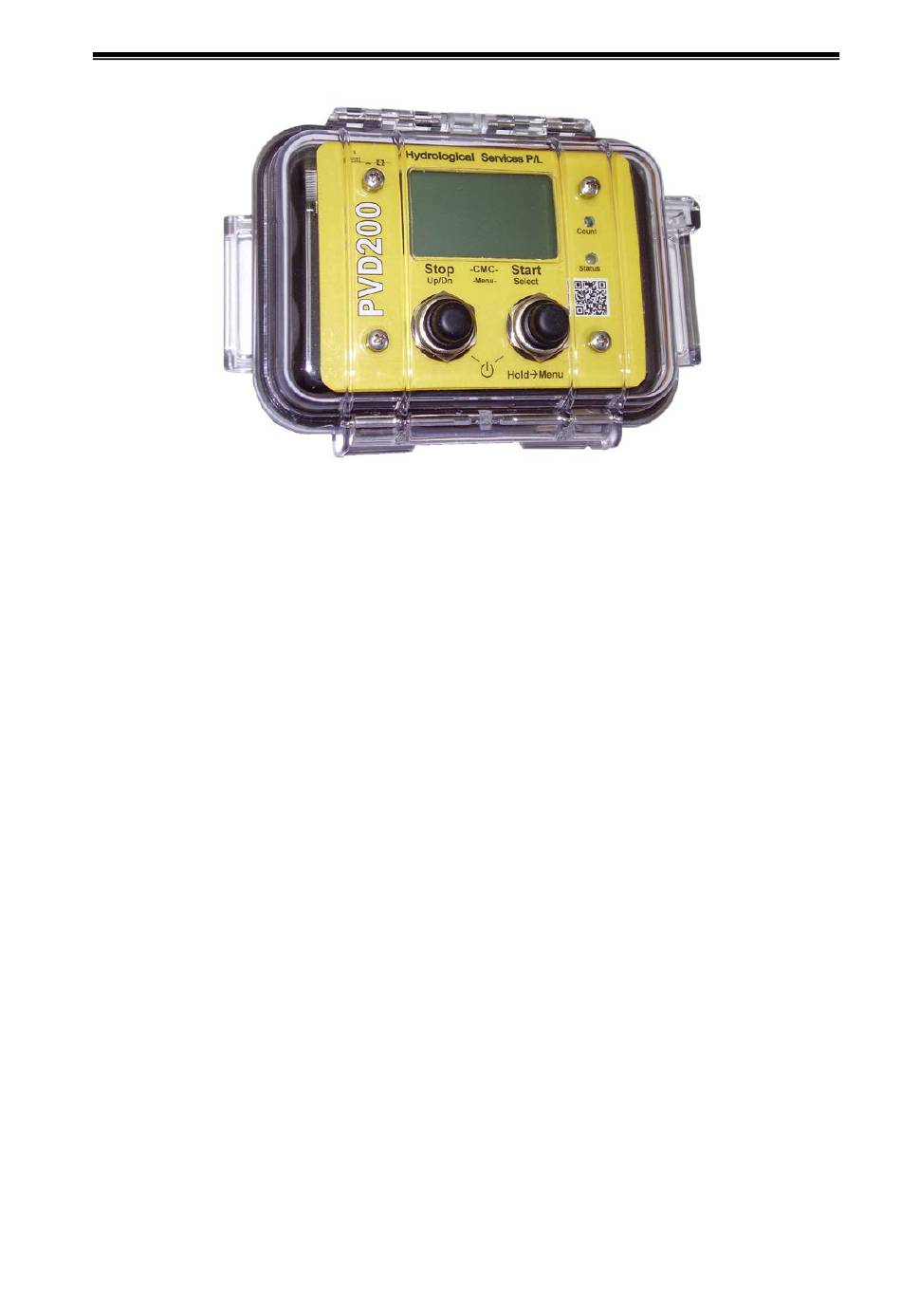

HyQuest Solutions Pty. Ltd.
PVD200
Current Meter Counter
(with signal processor)
Operation Manual
HyQuest Solutions Pty Ltd
48-50 Scrivener Street
Liverpool NSW 2170
Australia
Ph. 61 2 9601 2022 Fax. 61 2 9602 6971
Internet: www.hyquestsolutions.com.au
E-Mail: sales@hyquestsolutions.com.au
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PVD200 and is the answer not in the manual?

Questions and answers

Related Manuals for HyQuest Solutions PVD200

Summary of Contents for HyQuest Solutions PVD200

  • Page 1 HyQuest Solutions Pty. Ltd. PVD200 Current Meter Counter (with signal processor) Operation Manual HyQuest Solutions Pty Ltd 48-50 Scrivener Street Liverpool NSW 2170 Australia Ph. 61 2 9601 2022 Fax. 61 2 9602 6971 Internet: www.hyquestsolutions.com.au E-Mail: sales@hyquestsolutions.com.au - 1 -...

  • Page 2: Table Of Contents

    Appendix A Capturing a Spin Test ............... 20 Appendix B Measuring Meter Dwell ............25 Appendix C Example Calibration Certificate ..........26 Appendix D Ground Feeler Device Model GFD .......... 27 Current Meter Counter – Model: PVD200 - 2 - Issue 1.03 August 2018 © Copyright...

  • Page 3: Introduction

    The PVD200 can operate with current meter velocities from less than 0.05 ft/sec to more than 20 ft/sec for a Price AA meter. The PVD200 also provides a slow-speed mode to improve measurements with extremely slow rotating current meters [velocities less than 0.25 ft/sec].

  • Page 4: Overview

    2. Product Overview Overview Any pulse type current meter can be connected to the PVD200, and after entering the pulse to velocity equations, it can display the measured velocity directly. Velocity can be either displayed in feet/sec (ft/sec) or metres/second (m/sec) and is chosen by the user in a menu.

  • Page 5: Operation

    HyQuest Solutions Pty. Ltd. 4. Operation Navigating Screens The PVD200 has two front panel buttons that are used to turn power ON and OFF, view menus, and choose operating settings. The labeling on the PVD200 gives you a reminder of the button functions: Power ON –...

  • Page 6: Current Meter Counter Operation

    4. If “Stop” (left hand button) is pressed during a measurement, the count, elapsed time and velocity are frozen at that point. Current Meter Counter – Model: PVD200 - 6 - Issue 1.03 August 2018...

  • Page 7: Current Meter Counter Menus

    In Cat Whisker Fast the Status LED is Red. In Cat Whisker Slow the Status LED is off. One important operating features of the PVD200 is the ability to signal process each contact closure. Contact closures from any type of meter are inherently noisy causing miscounting or double counting.
  • Page 8 10. The Units selection can be imperial (ft) or metric (m). (The units do not modify the result of the velocity equations – you must enter the appropriate equations to match the required units.) Current Meter Counter – Model: PVD200 - 8 - Issue 1.03 August 2018...
  • Page 9 The Power Down time can be set to 15, 20, 25, 30, 35,…..60 mins. If no buttons are pressed, the PVD200 will power down automatically after this time. The BackLight time can be set to 1,2,3,4,5,6…14,15 mins or Off. This is the time the backlight stays on after a button is pressed –...
  • Page 10 This menu is for testing only. dc Thresh = 87 (fresh water or air) dc Thresh = 26 (extremely salty water) Current Meter Counter – Model: PVD200 - 10 - Issue 1.03 August 2018...

  • Page 11: Indicator Leds

    PVD200. When the external device makes ‘discovery’, the user must select the PVD200 within the device’s menu setup and enable the connection. The external device should respond with a ‘connected’ message. The PVD200 can now be used in a normal manner. All ®...

  • Page 12: Serial Communications Interface

    PVD200 will not automatically power down when Bluetooth is enabled and connected. 4.5.1 Serial Communications Interface The PVD200 can be connected to a hand-held or notebook computer or any device that can ® transmit and receive serial communications using Bluetooth using an application such as HyperTerm.
  • Page 13 If there is no contact closure detected when the measurement interval has been reached, the PVD200 will continue to send data and the user must send the ‘I’ command to abort the function. Note that the meter contact number, nn, is limited to a total of 255 counts (hexadecimal notation ‘FF’).

  • Page 14: Data Conversion Example

    Example: v1.0 4.5.2 Data Conversion Example The data format of the PVD200 is transmitted in HEX ASCII (base 16 numbers using the ASCII code which is displayable on any terminal) to provide efficiency in the number of data characters sent through the serial interface. Following is an example of the interpretation of the data.
  • Page 15 HyQuest Solutions Pty. Ltd. Data Format Notes The data format presented by the PVD200 during a measurement provides for displaying a computed velocity by an external device at a 1-second rate. The accumulating contact closure counts and time interval counts can be used in a rating equation to display velocity.

  • Page 16: Operating The Special Functions Using Serial Communications

    A laptop, desktop PC, or PocketPC using a terminal emulating package or Microsoft ’s HyperTerminal can be used to invoke the function. No menu selections in the PVD200 are needed. The selection of the meter type and turning the buzzer On and Off can all be done using the serial communications interface.

  • Page 17: Maintenance And Repair Procedure

    Allow the unit to dry out completely before reinstalling the batteries. There are no user serviceable parts inside the PVD200. If the unit does not function properly, the unit must be returned to HyQuest Solutions for component repair. The PVD200 does not require any calibration or adjustments.

  • Page 18: Specifications

    170 dwell Pygmy meter - CatW 0.04ft/s(0.012m/s)@ 10 to 90 dwell Maximum Conductivity > 50,000 Siemens (max velocity ranges must be derated 20%) µ Current Meter Counter – Model: PVD200 - 18 - Issue 1.03 August 2018 © Copyright...
  • Page 19 First Term Entry: Maximum Allowable: 6.5535 Second Term Entry: Maximum Allowable: 6.5535 Range Values: Maximum Allowable: 9.99 Note: Incorrect or unreasonable entries can give unexpected results. Current Meter Counter – Model: PVD200 - 19 - Issue 1.03 August 2018 © Copyright...

  • Page 20: Appendix A Capturing A Spin Test

    (ASCII ‘0A’) At the end of the spin test, the PVD200 sends a final data string that displays the total number of counts and total time all shown in decimal notation. This format makes it easy to copy the final total number of counts and total elapse time information onto a form.
  • Page 21 4. When the meter is spun, the OPERATING STATUS indicator will blink when a contact closure is detected. 5. The PVD200 will output through the serial port a character string (as described Current Meter Counter – Model: PVD200 - 21 - Issue 1.03 August 2018...
  • Page 22 Click “Stop”. The file will be saved under the file name given. The file can be opened using Windows “NotePad” or “WordPad” and can be easily imported into Excel for analysis. To better align the data being displayed, the PVD200 will respond to the Carriage Return key, . Entering a...
  • Page 23 13. Click ‘Finish’, and then click ‘OK’ to import data into the existing worksheet. 14. Save the workbook under a file name. 15. Shown below is an example of an imported ‘Spin Test’ file. Current Meter Counter – Model: PVD200 - 23 - Issue 1.03 August 2018...
  • Page 24 Total Number of Meter Counts = 163 Total Spin Time = 119.3 seconds 96 101 106 111 116 121 126 131 136 141 146 151 156 161 166 Current Meter Counter – Model: PVD200 - 24 - Issue 1.03 August 2018...

  • Page 25: Appendix B Measuring Meter Dwell

    The contact time and total time shown above in the formula are expressed in terms of the number of samples measured at a sample rate of 1200 Hz as it is measured by the PVD200. A high sample rate is used to reflect a more accurate measure of the contact time and total time measured.

  • Page 26: Appendix C Example Calibration Certificate

    | individually rated meters, recalibration is sometimes | carried out at yearly intervals or after 300 hours of use, | whichever is the shorter. |_____________________________________________________________| D127.08.00 Current Meter Counter – Model: PVD200 - 26 - Issue 1.03 August 2018 © Copyright...

  • Page 27: Appendix D Ground Feeler Device Model Gfd

    When the gauging weight contacts the streambed, the GFD causes the current meter signal to short-circuit. The Buzzer option on the PVD200 should be set to “EnFull”, and the buzzer will beep continuously indicating the gauging weight is in contact with the streambed. Once the weight is raised slightly off the streambed, the orange led will turn “OFF”...
  • Page 28 Angle Plug connects the amergraph cable to the Ground Feeler Device. GROUND FEELER DEVICE PART No. GFD Hanger bar is attached to bottom section Current Meter Counter – Model: PVD200 - 28 - Issue 1.03 August 2018 © Copyright...
  • Page 29 Customer to specify lead when ordering. Gauging weight attached; The pin is making contact with the Angle Plug connecting sleeve (closed contact); Gauging weight has reached streambed. Current Meter Counter – Model: PVD200 - 29 - Issue 1.03 August 2018 © Copyright...
