EN

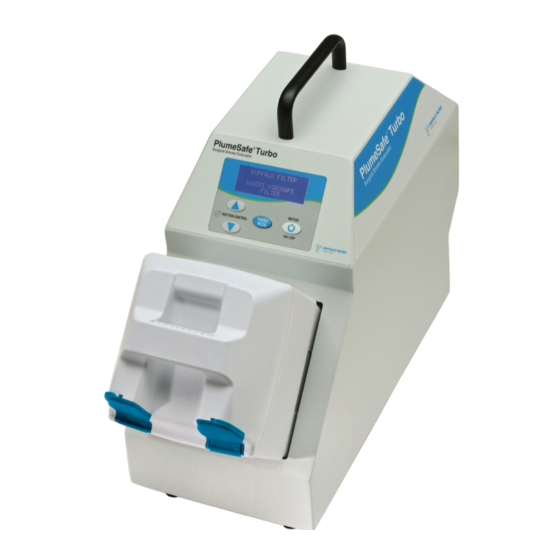

PlumeSafe
Turbo
®
™
Surgical Smoke Plume Evacuator
Operator's Manual
BUFFALO FILTER
®
Buffalo Filter
is a registered trademark of Buffalo Filter LLC in the United States and other countries. © 2018 Buffalo Filter LLC. All Rights Reserved.
900989 REV J
www.buffalofilter.com
+1.716.835.7000 (International)
1.800.343.2324 (United States)
bf.smoke-info@filtrationgroup.com
Advertisement
Table of Contents
Related Manuals for Buffalo filter PlumeSafe Turbo
Summary of Contents for Buffalo filter PlumeSafe Turbo
- Page 1 Surgical Smoke Plume Evacuator Operator’s Manual BUFFALO FILTER ® Buffalo Filter is a registered trademark of Buffalo Filter LLC in the United States and other countries. © 2018 Buffalo Filter LLC. All Rights Reserved. 900989 REV J www.buffalofilter.com +1.716.835.7000 (International) 1.800.343.2324 (United States)
- Page 2 For a period of three (3) years following the date of delivery, BUFFALO FILTER warrants the Turbo Auto-Sense™ against any defects in material or workmanship. BUFFALO FILTER will repair or replace (at BUFFALO FILTER’S option) the same without charge, provided that routine maintenance as specified in this manual has been performed using replacement parts approved by BUFFALO FILTER.
-
Page 3: Table Of Contents
Table of Contents & List of Illustrations Section Title Page SYSTEM DESCRIPTION Introduction Inspection Operational Information Cautions and Warnings OPERATING INSTRUCTIONS System Controls ViroSafe® Filter Instructions Set-up and Operation Specifications MAINTENANCE General Maintenance Information Cleaning Periodic Inspection Troubleshooting CUSTOMER SERVICE Equipment Return Ordering Information TERMS &... -
Page 4: System Description
System Description Section 1.0 1.1 Introduction BUFFALO FILTER® Turbo Auto-Sense™ Smoke Evacuation Systems are intended to evacuate and filter surgical smoke plume and aerosols created by the interface surgical tools with tissue, examples being lasers, electrosurgery systems, and ultrasonic devices. -
Page 5: Operational Information
8. Upon request, BUFFALO FILTER will provide the following: Service and Repair Instructions, including Circuit Diagrams and Parts List 9. The fuses in the power entry module are to be serviced by an authorized BUFFALO FILTER technician as follows: 100/120 VAC, 50/60 Hz use 10 Amp 250 Volt Fuse (Slo-Blo) -
Page 6: Cautions And Warnings
The Turbo Auto-Sense™ Smoke Evacuation System(s) and all filters are not intended for contact with patients. 1.4 Cautions and Warnings Please note that all Cautions and Warnings should be read and understood before any use of this equipment. Buffalo Filter Turbo Auto-Sense ™ Operator’s Manual: Page 6... - Page 7 Turbo Auto-Sense™ or shielding the location. • The use of ACCESSORIES other than those specified by BUFFALO FILTER, or sold by BUFFALO FILTER as replacement parts for internal components, may result in increased emissions or decreased immunity of the Turbo Auto-Sense™.
- Page 8 • Do not block either the tubing or the filter. If either becomes occluded or significantly restricted, the motor/blower may overheat and cause the unit to fail. • Using any other filter or accessory not supplied by BUFFALO FILTER may cause damage and/ or cause the system to be inoperable and may void the warranty.
- Page 9 There are no user serviceable components in the Turbo Auto-Sense™ Smoke Evacuation System(s). Refer service to qualified service personnel. Use only with the power cord provided and always plug into a grounded outlet. Buffalo Filter Turbo Auto-Sense ™ Operator’s Manual:...
- Page 10 PROTECTION AGAINST INGRESS OF WATER AS DETAILED IN IEC 60529 ALTERNATING CURRENT PROTECTIVE EARTH, (GROUND) EQUIPOTENTIALITY DENOTES THE DATE THE EQUIPMENT WAS MANUFACTURED DENOTES THE MANUFACTURER OF THE DEVICE NON-IONIZING RADIATION CONSULT INSTRUCTIONS Buffalo Filter Turbo Auto-Sense ™ Operator’s Manual: Page 10...
-
Page 11: Operating Instructions
The amount of suction may be adjusted using the UP or DOWN arrow buttons located on the key pad (Figure 1). It is recommended that you select the lowest suction setting that effectively clears the operative field of surgical smoke. Buffalo Filter Turbo Auto-Sense ™ Operator’s Manual:... - Page 12 These circuit fuses protect both the system and the operator from damage or injury. SERVICE When a service message appears, please contact Buffalo Filter Customer Service for instructions. Below are some examples of service screens that may appear.
- Page 13 3. Smoke Evacuator will use this language as the default language. 4. To change the default language, remove filter and press motor on and turbo button simultanously. 5. Repeat step 2. Buffalo Filter Turbo Auto-Sense ™ Operator’s Manual: Page 13...
-
Page 14: Virosafe® Filter Instructions
Note: Before installing or removing any filter, be sure that the system is turned off. Filter Installation Instructions: The installation of the ViroSafe® Filter into the BUFFALO FILTER Turbo Auto-Sense™ Smoke Evacuation System(s) is quick and simple. 1. Remove the ViroSafe® Filter from the shipping box and discard any protective wrapping. Examine all filters for damage during shipping and storage. -
Page 15: Set-Up And Operation
8. Replace the ViroSafe® Filter when the Filter Life Remaining indicator on the LCD Display flashes REPLACE FILTER. Failure to change the filter will affect the performance of the system. Buffalo Filter Turbo Auto-Sense ™ Operator’s Manual: Page 15... - Page 16 50/60 Hz Variable Flow Control Motor Watts 1000 ±10% Motor Static Suction 85 inches H O (6.5 mm orifice) (211 mbar) *For reference purposes only **using a new 7/8” x 6’ hose Buffalo Filter Turbo Auto-Sense ™ Operator’s Manual: Page 16...
- Page 17 220/240 VAC Frequency, auto sensed 50/60 Hz Variable Flow Control Motor Watts 1000 ±10% Motor Static Suction (6.5 mm orifice) (21.1) *For reference purposes only **using a new 7/8” x 6’ hose Buffalo Filter Turbo Auto-Sense ™ Operator’s Manual: Page 17...
- Page 18 CISPR 11 domestic purposes. Harmonic Emissions Class A Not applicable. IEC 61000-3-2 Voltage Fluctuations/ Class A Not applicable. Flicker Emissions IEC 61000-3-3 Buffalo Filter Turbo Auto-Sense ™ Operator’s Manual: Page 18...
- Page 19 Power frequency 3 A/m 3 A/m Power frequency magnetic fields should be at levels characteristic of a typical (50/60 Hz) magnetic field location in a typical commercial or hospital environment. IEC 61000-4-8 Buffalo Filter Turbo Auto-Sense ™ Operator’s Manual: Page 19...
- Page 20 If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the Surgical Smoke Evacuator. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. Buffalo Filter Turbo Auto-Sense ™ Operator’s Manual:...
- Page 21 NOTE 1: At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structure, objects, and people. Buffalo Filter Turbo Auto-Sense ™ Operator’s Manual:...
-
Page 22: Maintenance
Section 3.0 3.1 General Maintenance Information This section contains information for ordinary upkeep of the BUFFALO FILTER Turbo Auto-Sense™ Smoke Evacuation System. While the system has been designed and manufactured to high industry standards, it is recommended that periodic inspection and performance testing be performed by a qualified Biomedical Technician to ensure continued safe and effective operation. -
Page 23: Customer Service
To reorder, obtain replacement parts or to return a unit for service, call Customer Service at: 800-343-2324 (716) 835-7000 or contact your authorized BUFFALO FILTER Distributor/Representative. BUFFALO FILTER Turbo Auto-Sense™ Smoke Evacuation System versions available: • 100/120 VAC 50/60 Hz • 220/240 VAC 50/60 Hz Available accessories: •... -
Page 24: Terms & Warranty
The warranty above is the only warranty made merchandise is damaged in transit, a claim must by Buffalo Filter and is expressly in lieu of be made to the carrier involved. Buffalo Filter will all other warranties, expressed or implied, assist customers in pursuing these claims. - Page 25 New York State. Using any filter not manufactured by Buffalo Filter may cause damage to the systems and will be cause for voiding the warranty.
- Page 26 +1 716.835.7000 or +1 716.835.3414 fax www.buffalofilter.com Customer Service: 800.343.2324 (U.S. Only) +1 716.835.7000 (International) ® Buffalo Filter is a registered trademark of Buffalo Filter LLC in the United States and other countries. © 2018 Buffalo Filter LLC. All Rights Reserved.
