Frico 125-12B Original Instructions Manual

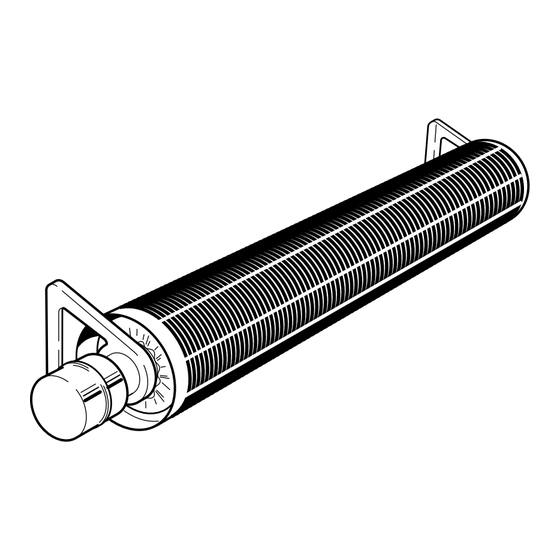

Ribbed pipe radiator
Hide thumbs
Also See for 125-12B:
- Assembly and operating instructions manual (8 pages) ,
- Original instructions manual (10 pages)
Related Manuals for Frico 125-12B
Summary of Contents for Frico 125-12B
- Page 1 Original instructions Kamrörsradiator Ribbed pipe radiator Oребренные трубчатые радиаторы Radiateurs à ailettes Rippenheizkörper ..16 ..8 ..10 ..12 ..14...
- Page 2 Kamrörsradiator / Ribbed pipe radiator / Oребренные трубчатые радиаторы Radiateurs à ailettes / Rippenheizkörper Mått / Dimensions / Основные размеры / Dimensions / Abmessungen [mm] [mm] 125-12B 125-22B 125-32B 125-42B 125-52B 1185 1060 127-22B 127-42B 1925 1800 ø5,5 Minimiavstånd / Minimum distances / Минимальные расстояния при установке / Distances minimales / Mindestabstände...
- Page 3 Many of Frico's products can be used as both local space heaters (as defined in (EU) 2015/1188) and for technical heating purposes. It is up to the installer responsible for the installation to assess whether the Ecodesign Regulation is applicable or not.
- Page 4 Приборы управления для установок оборудования, не подпадающих под нормы требований Экодизайн (EU) 2015/1188 FR: Régulations pour les installations non couvertes par la réglementation relative à l'écoconception (UE) 2015/1188 Tekniska data Kamrörsradiator 125 IP44 Effekt Spänning Vikt [kg] 125-12B 230V~ 125-22B 230V~ 125-32B 230V~ 125-42B 230V~ 125-52B 1150 230V~ Kamrörsradiator 127.
-
Page 5: Технические Характеристики
Technical data Технические характеристики Ribbed pipe radiator 125 IP44 Модель 125 IP44 Type Output Voltage Weight Модель Мощность Напряжение Вес [kg] [Вт] [В] [кг] 125-12B 230V~ 125-12B 230B~ 125-22B 230V~ 230B~ 125-22B 125-32B 230V~ 125-32B 230B~ 230V~ 125-42B 125-42B 230B~... -
Page 6: Wiring Diagrams
Kamrörsradiator / Ribbed pipe radiator / Oребренные трубчатые радиаторы Radiateurs à ailettes / Rippenheizkörper Wiring diagrams Control by thermostat, 125-12B, 125-22B, 125-32B, 125-42B and 127-22B TAP16R °C 230V~ °C 125-12B - 125-42B 127-22B Control by thermostat, 125-52B and 127-42B TAP16R °C... - Page 7 Kamrörsradiator / Ribbed pipe radiator / Oребренные трубчатые радиаторы Radiateurs à ailettes / Rippenheizkörper Wiring diagrams Control by thermostat, 125-12B, 125-22B, 125-32B, 125-42B and 127-22B. Controls for installations not covered by the Ecodesign Regulation (EU) 2015/1188. KRT(V) 19(00) 16A 230V~ /10A 400V~ °C...
-
Page 8: Installation
- Electronic room temperature control plus with the instructions. week timer - Room temperature control with open The FRICO ribbed pipe radiators are window detection manufactured by steel pipes with ribbed fins. - Adaptive start control The ends are constructed in such a way that The product can be controlled in a different they can be used as mounting consoles. - Page 9 Ribbed pipe radiator Safety • For all installations of electrically heated products should a residual current circuit breaker 300 mA for fire protection be used. • The unit may have hot surfaces during operation and when cooling down! • The unit must not be fully or partially covered with clothing, or similar materials, as overheating can result in a fire risk! •...
- Page 12 Main offi ce Frico AB Tel: +46 31 336 86 00 Box 102 SE-433 22 Partille mailbox@frico.se Sweden www.frico.se For latest updated information and information about your local contact: www.frico.se...
