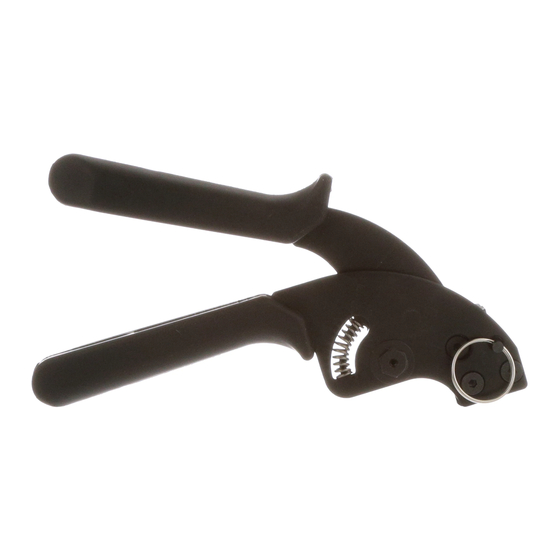

Panduit ST2MT Operation Instructions

© Panduit Corp. 2016
ST2M T
ST2MT

OPERATION INSTRUCTIONS

TOOL SHIPPED
FULLY ASSEMBLED
TINLE Y P ARK , IL
MADE IN U .S .A.
ST2M T
TINLE Y P ARK , IL
MADE IN U .S .A.
Page: 1 of 2

TOOL MAINTENANCE

TO INHIBIT CORROSION AND
MAINTAIN PERFORMANCE OF
THE TOOL, KEEP THE METAL
SURFACES COATED WITH A
LIGHT OIL (WD-40 ® OR
EQUIVALENT).
NOTE: This precision tool has
been engineered and designed
for use with Panduit Pan Steel
Stainless Steel Ties. It is not
intended for other uses such as
cutting or tensioning other types
of fastening devices.

OPERATING INSTRUCTIONS

1. Loop tie around bundle and
insert tip through head. Pull tie
up snug on bundle by hand.
2. Place tool on tie as shown.
3. Squeeze handles as many
times as necessary to tighten tie
to the desired tension.
4. While maintaining final handle
pressure from Step 3, rotate tool
1/4 to 1/2 turn until excess tail is
cut off. Remove cut-off portion
from tool.
PA22165A01
Rev. 08 6-2016
