- Page 1 SINISTER SDX 2500 CLASS D MONO BLOCK SUBWOOFER AMPLIFIER O W N E R ' S M A N U A L wetsounds.com...
- Page 2 SINISTER SDX 2500 CL ASS D M O N O B LO C K S UB WOOF E R AM PLIF IER Wet Sounds Sinister SDX 2500 Owner’s Manual...
- Page 3 The Sinister amplifiers use superior performance circuitry by utilizing Wet Sounds exclusive Class D technology combined with Wet Sounds MAXED™ Power supply. The MAXED power supply is a patent pending technology designed to provide high efficiency levels never thought to be achievable in a mobile audio amplifier.
-
Page 4: Installation Instructions
WARNING We build all Wet Sounds™ products to play at high volumes for extended periods of time. Your ears however are not designed for high volume listening. This product can easily generate high volumes that can permanently damage your hearing. We urge you to limit your exposure to very high volume sound. - Page 5 If the amp can’t get all the power it needs it will not produce its full output. Your Wet Sounds™ amplifier will produce full output longer than other amplifies on the market today.
- Page 6 Top mounted crossover controls Wet Sounds designed the Sinister amplifier from the ground up as a true marine amplifier. Marine amplifiers are mounted to amp panels in a boat. Making it harder to access the controls.

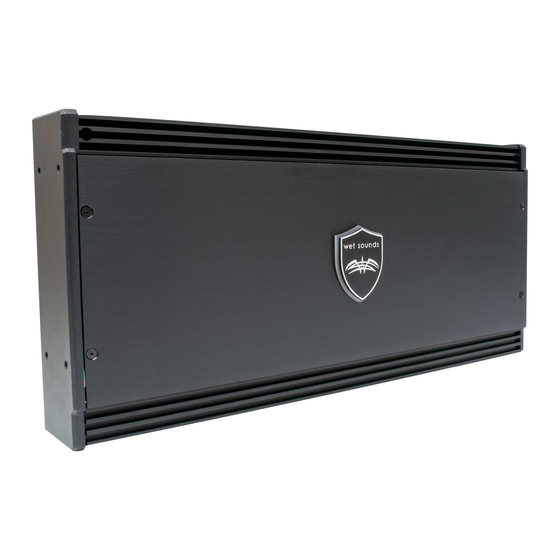

- Page 7 Top mount back lit 3 way LED Badge Light: Red/White/Blue. Horizontal or Vertical Placement The Wet Sounds shield logo badge not only looks great but provides the amplifier status through its acrylic spacer. Two screws hold the badge onto the cover plate. With the option for horizontal or vertical placement.
-
Page 8: Power Connections
(in a car audio application, make sure to ground to the chassis as close to the amp as possible). You will also be attaching the Remote turn on. Labeled Turn ON” This is usually a blue wire from the head unit. Wet Sounds Sinister SDX 2500 Owner’s Manual... -
Page 9: Speaker Connections
Connecting two speakers, each to one set of positive and negative terminals will result in a parallel speaker connection. If only using one set of speaker wires, it is not necessary to use both sets of speaker output terminals on the SDX2500. Wet Sounds Sinister SDX 2500 Owner’s Manual... - Page 10 If you blow a fuse. Check your wiring for short circuits and why the fuse is blowing. Also, check the speakers and speaker wiring as well. You should trouble shoot the system before replacing fuses. Wet Sounds Sinister SDX 2500 Owner’s Manual...
- Page 11 These controls will not respond on any other “Slave” amp in the chain. SDX2500 Control SDX2500 Dimensions Set “Master” amp to “Normal”. All Set “Phase Control” on all amps to “IN”. other amps in the chain set to “Slave”. Wet Sounds Sinister SDX 2500 Owner’s Manual...
- Page 12 These controls will not respond on any other “Slave” amp in the chain. Set “Input Source” on “Master” amp Set “Phase Control” on “Master” amp to “IN”. to “Normal”. Set “Input Source” on Set “Phase Control” on “Slave” amp to “OUT”. “Slave” amp to “Slave”. Wet Sounds Sinister SDX 2500 Owner’s Manual...
-
Page 13: Specifications
1W 4 Ohm > 81dB S/N Ratio (Awtg) 1000W 4 Ohm >111dB Input Sensitivity 0.2V – 6.0V All specifications and information are Subject to change without notice, please visit www.wetsounds.com for the most up-to-date information. Wet Sounds Sinister SDX 2500 Owner’s Manual... - Page 14 CONTROL SDX2500 Control SDX2500 Dimensions DIMENSIONS SDX2500 Dimensions SDX2500 Front Plate 22.125” SDX2500 Dimensions 22.125” SDX2500 Front Plate SDX2500 Front Plate Wet Sounds Sinister SDX 2500 Owner’s Manual...
-
Page 15: Limited Warranty
LIMITED WARRANTY Length and limits of Warranty Wet Sounds warrants this product to be free of defects in material or workmanship for (2) years from the date of purchase. Wet Sounds warranty applies exclusively to the original purchaser, not transferable and the amplifier must be purchased from an Authorized Wet Sounds Retailer within the United States.
