Inovonics EE1722 Installation Instructions

EE1722 Temperature/Humidity Transmitter

Installation Instructions

1 Overview

The Inovonics EE1722 is designed for harsh environments, where
condensation, frost, temperature, or humidity fluctuations are a concern.
The EE1722 requires the remote ACC710 sensor.

1.1 Inovonics Contact Information

For product and installation videos visit us at
www.inovonics.com/videos or use the QR
code below.
If you have any problems with this procedure, contact Inovonics technical
services:
• E-mail: support@inovonics.com.
• Phone: (800) 782-2709; (303) 939-9336.

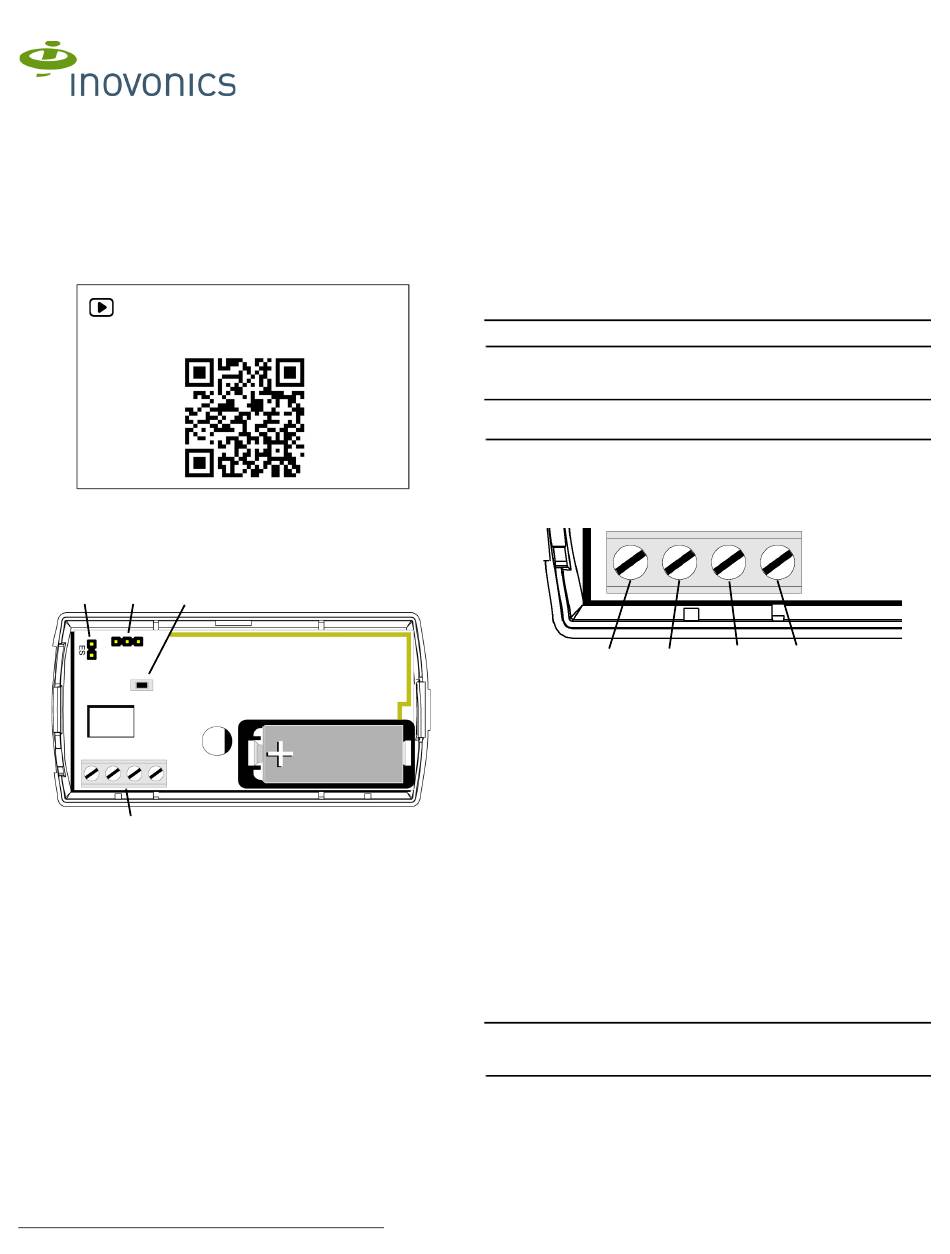

1.2 EE1722 Components

B
A
C
D
Figure 1 EE1722 components
A EchoStream Select pins
C Reset button
1.3 What's in the Carton
• Three drywall mounting anchors.
• Three wall mount screws.
• Two selection jumpers.
• One piece of mounting tape.

2 Installation and Startup

2.1 Installation Notes

• These products are designed to be maintained by professional
security technicians.
• Products are tested for indoor use.
• All products should be manually tested weekly.
5.25.17 05274C © Inovonics, 2017 - www.inovonics.com
B Programming header
D External temperature/humidity
sensor terminal block

2.2 Install the Battery

1. Pry the top lip of the mounting bracket up, and lift the bracket off of the
transmitter.
2. Use your thumb to depress the housing release tab on the bottom of the
transmitter; separate the housing.
3. If replacing a battery, use the hole in the back of the housing to push the
old battery out of the battery holder.
4. Install the battery.
5. Press the Reset button to initialize the transmitter.
2.3 Attach the External Temperature and Humidity
Sensor
Note: The ACC710 cabling can be trimmed as needed.
To attach the ACC710 external temperature/humidity sensor:
6. Route the four ACC710 wires through the rectangular cutouts on the
back of the housing and bracket.
Note: If you want to use the cutout at the top of the housing, you will need
to trim the bracket.
7. Use a small screwdriver to attach the external sensor wiring leads to the
terminal block in the following order:
a. Attach the Black wire first.
b. Attach the Yellow wire second.
c. Attach the Purple wire third.
d. Attach the Red wire last..
Yellow
Purple
8. Clip the uninsulated silver wire back to the cabling insulation.
9. Press the Reset button to complete the procedure.

2.4 Enable EchoStream Select

To meet ETSI requirements, Inovonics has developed a new line of EE
868MHz-only products. These new 868MHz-only products are compatible
with older systems that include EchoStream select products. If you are
using any ES products in your current system, you will need to enable
EchoStream select compatibility on this 868MHz-only product; if you are
not using any EchoStream select products, skip to section 2.5, "Program
the Transmitter".
To enable EchoStream select compatibility:
10. Place a selection jumper on the enable EchoStream Select pins.
11. Press the Reset button to complete the procedure.

2.5 Program the Transmitter

EE1722 transmitters are programmed at the factory. It is not usually
necessary to reprogram EE1722 series transmitters. If you want to
reprogram the transmitter, parameters can be changed using the
programming header.

2.6 Mount the Transmitter

12. Attach the mounting bracket to the wall, using either screws or double-
sided tape.
Note: There are two mounting holes for standard installation. An optional
third mounting hole is located under the battery. Use the third mounting
hole to secure the housing to the bracket.
13. Hook the bottom of the transmitter into the bracket's bottom catch, and
press the transmitter into the bracket so that the bracket's top lip snaps
into place.
Black
Red
