SMARDY HOME 190 Instruction Manual

Reverse osmosis system 50 gpd
Hide thumbs
Table of Contents

Advertisement

Quick Links

Reverse Osmosis system 50 GPD
Instruction manual EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HOME 190 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SMARDY HOME 190

Summary of Contents for SMARDY HOME 190

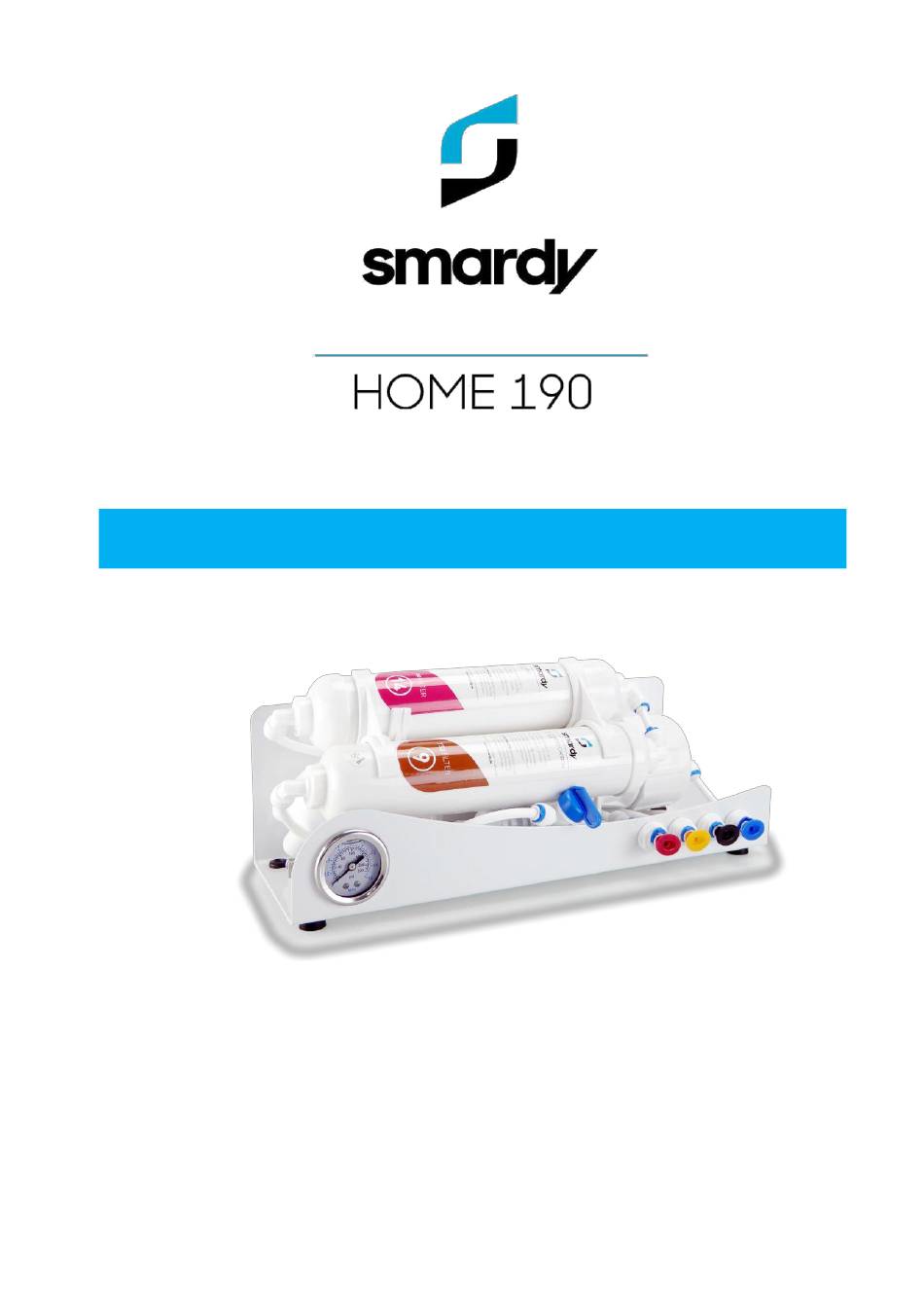

  • Page 1 Reverse Osmosis system 50 GPD Instruction manual EN...

  • Page 2: Table Of Contents

    1. Unpacking Remove all packaging material. Make sure that the reverse osmosis system does not show any external damage. 2. Scope of supply 1. smardy reverse osmosis water filter 2. Membrane 3. Hose line water inlet 4. Hose line optional tank 5.

  • Page 3: Insertion Of The Membranes

    Note: This system is equipped with plug connectors. These enable an easy and secure connection of the hose lines. Insert the hose into the respective opening of the connector until you notice a resistance. Only after the resistance, the hose will be fixed in the anchor.

  • Page 4: Connecting The Lines

    4. Connecting the lines • Please connect hose lines as follows: Remove the blue retaining rings from the plug connectors at the Water inlet Waste water and Osmosis water • Now insert the hoses into the connectors. • Fasten the blue retaining rings back onto the connectors Water inlet Optional: Waste water...

  • Page 5: Installation

    5. Installation The scope of supply contains a universal adapter. You can screw it directly onto your water tap. In addition you remove the aerator (sieve) from your water tap and then screw the thread adapter onto the water tap. Then screw the universal adapter onto the thread adapter.

  • Page 6: First Commissioning

    N° Description Change interval N° 8 Membrane 50 GPD Every 24 months N° 9 Activated carbon afterfilter Every 6 months Daily output 190 L N° 14 Sediment filter Every 6 months Just smardy original filters ensure a trouble-free functioning!!

  • Page 7: Technical Data

    8. Technical data • Dimensions: 36cm x 14cm x 12,5cm (LxWxH) • Daily filter performance: 190 Liter • Water purification without electricity – only 3 bar tap water pressure required 9. Assembly and instructions • We recommend, to let an installer perform the installation. Incorrect assembly can lead to water damage in the house! •...

  • Page 8: Filter Order

    11 Filter order Link for accessories: https://www.amazon.co.uk/dp/B06Y139JF9 smardy© Robert-Bosch-Str. 6b 86830 Schwabmünchen Germany info@smardy.de...
