Danfoss NEMA-3R Installation Instructions Manual

Installation Instructions
NEMA-3R Cover Kit for D1h–D2h
®
VLT FC Series FC 102, FC 103, FC 202, and FC 302
1.1 Description
The NEMA 3R cover kit is designed for D1h and D2h enclosure
sizes for the following applications:
• ®
VLT HVAC Drive FC 102
®
•
VLT Refrigeration Drive FC 103
®
•
VLT AQUA Drive FC 202
• ®
VLT AutomationDrive FC 302
This kit adds a cover to the outside vents of the frequency
converter and provides NEMA 3R compliant protection against
weather and hosed water. The kit is used only with frequency
converters that have E5S in the 13–15 position of the type
code. The type code is found on the nameplate.
1 Protection rating for the NEMA 3R kit

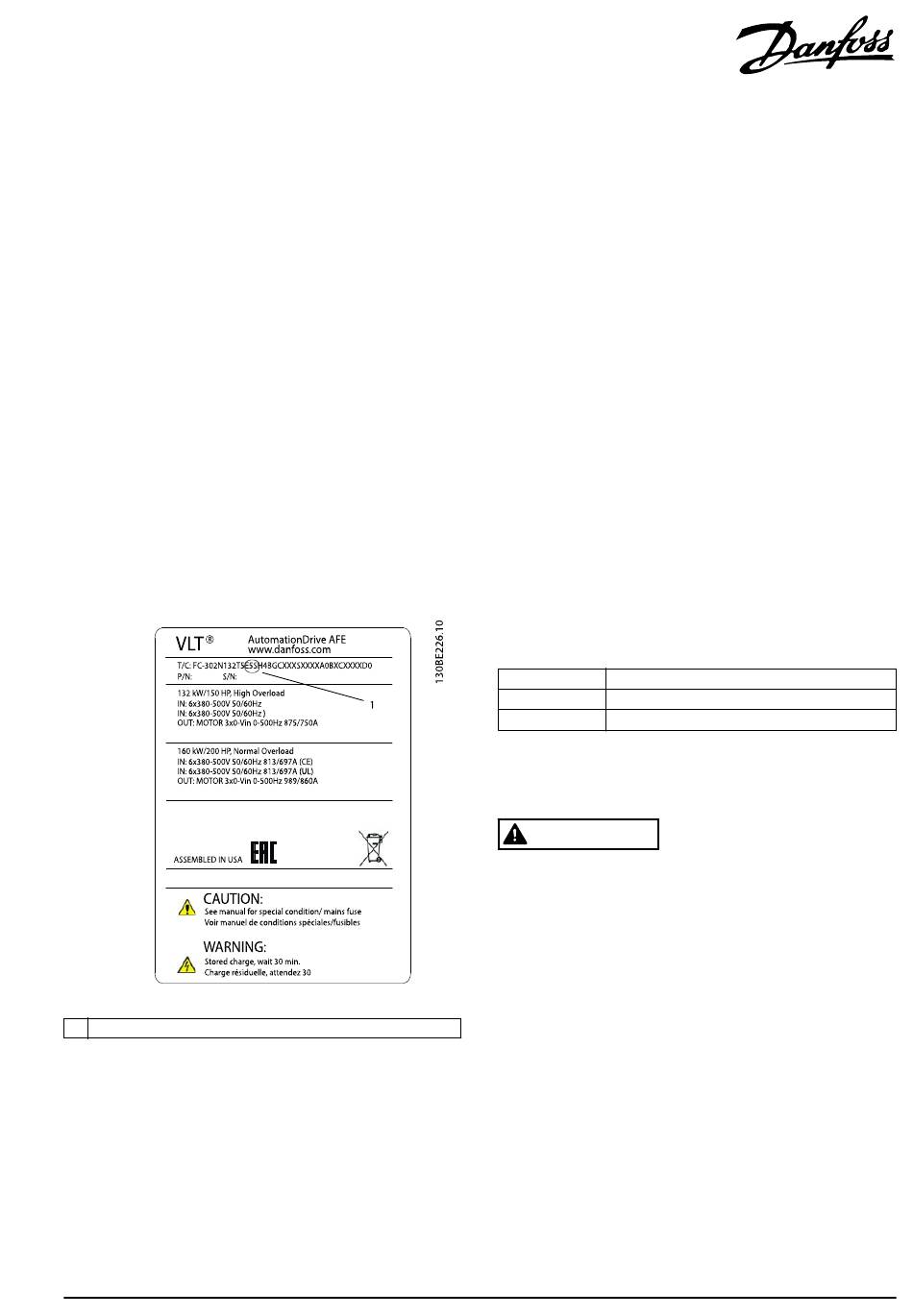

Illustration 1.1 Example of a D-size Enclosure Nameplate
The NEMA 3R kit contains the following parts:
•
•
•
•
•
1.2 Kit Part Numbers
Part number
176F6302
176F6303
Table 1.1 Part Numbers for the NEMA 3R Cover Kit
1.3 Safety Instructions
ELECTRICAL SHOCK HAZARD
VLT® frequency converters contain dangerous voltages when
connected to mains voltage. Improper installation, and
installing or servicing with power connected, can cause
death, serious injury, or equipment failure.
To avoid death, serious injury, or equipment failure:
•
•
•
•
Danfoss A/S © 06/2015 All rights reserved.
Top plate (1).
Gland plate with attached gasket (1).
NEMA 3R cover (1).
Adhesive label (1).
3-sectioned plastic bag containing:
- For top plate, lifting eyelets (2) and screws
(6) without captive washers.
- For gland plate, screws (6) for D1h or (8) for
D2h. These screws have captive washers.
- For NEMA 3R cover, screws (6) without
captive washers.
Kit description
NEMA 3R cover kit for D1h enclosures
NEMA 3R cover kit for D2h enclosures
WARNING
Only use qualified electricians for the installation.
Disconnect the frequency converter from all power
sources before installation or service.
Treat the bus bar and heat sink as live whenever
the unit has mains voltage connected (including
when the frequency converter is tripped or waiting
for a command).
Follow the guidelines in these instructions and local
electrical safety codes.
