Room Alert Signal Tower

Installation

The initial installation of the Room Alert Signal Tower can be completed quickly and easily provided the
instructions below are followed with detail and care. Before beginning, please lay out the contents of the
Room Alert Signal Tower package so that the components can all be located and accessed with ease.

Package Contents

The main components included with the standard (default) Room Alert Signal Tower package include:
• One (1) Room Alert Signal Tower ID Box
• One (1) Ethernet Cable (10' length, red)
• One (1) 5v 1A Power Adapter (110-240v, 50-60Hz)
• One (1) Room Alert Signal Tower User's Guide & Reference Manual (you're reading it)
• One (1) Getting Started With PageR Enterprise manual
• One (1) AVTECH Update CD
• One (1) Package Of Literature & Additional Information
NOTE: Some of the components arriving with this package may be individually wrapped and contain additional supporting
components. Please remember to keep these components together as they will be required for proper setup. If you received
additional components (i.e. like additional sensors) that are not mentioned above, instructional material explaining the proper
setup of that component should be included with it. If you cannot find the proper instructional materials, check the included CD
or 'Support' and 'Downloads' sections of the AVTECH.com website for any appropriate installation or application note that will
instruct you on the proper installation and use of that component. Install those components after the Room Alert Signal Tower
setup is completed.

Room Alert Signal Tower ID Box

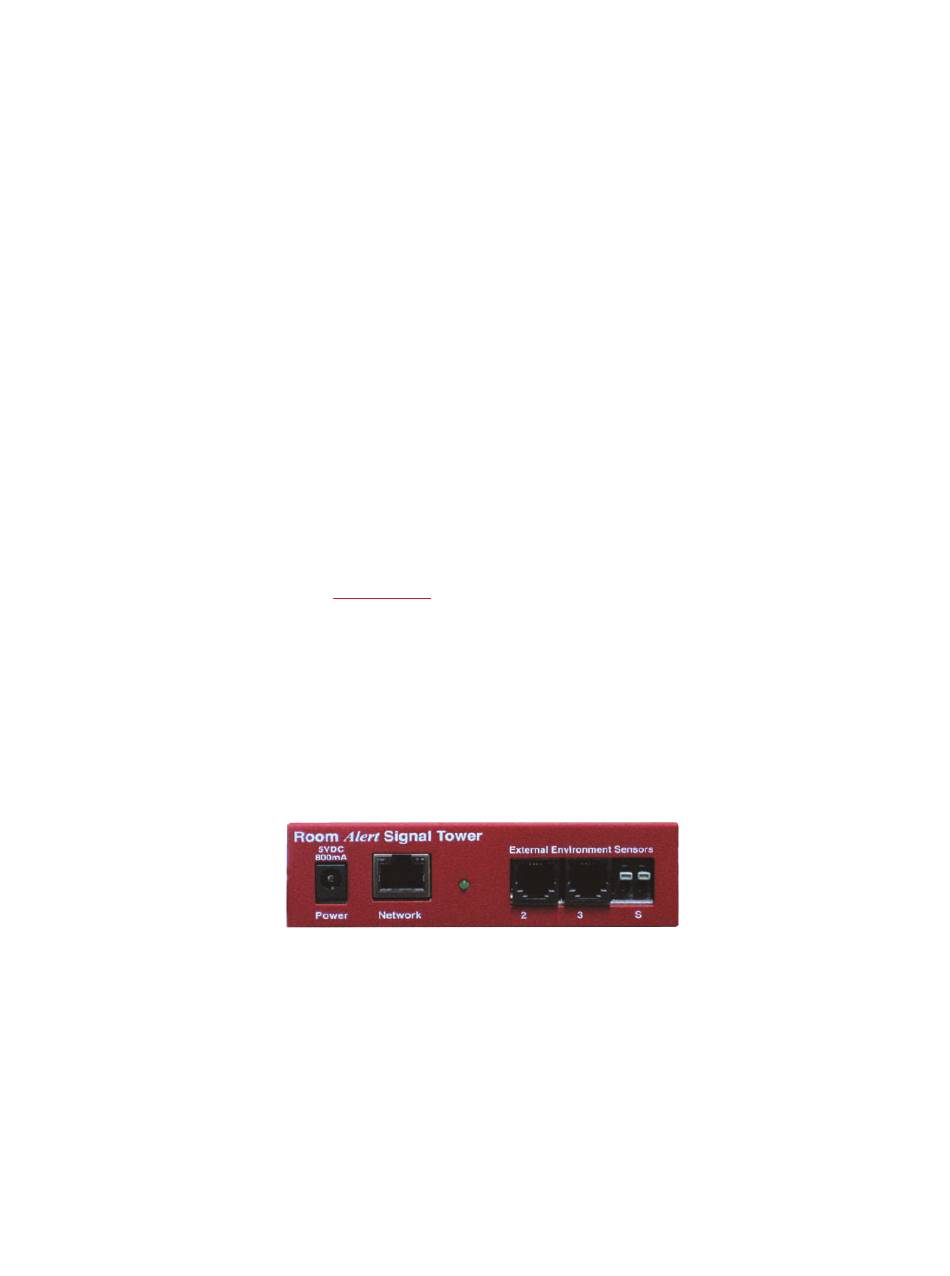

The graphics below identify the primary components of the Room Alert Signal Tower ID box that are
visible on the front and rear panels.
A.
Main Power Port — Connect the 'AVTECH 5v 1A Power Adapter' to this port to power the
Room Alert Signal Tower unit. Do not use any other power adapter or it could damage the unit.
B.
Network Port — Attach the Room Alert Signal Tower unit to the network by plugging the
Ethernet cable into this port and then connecting the other end to the network. The left LED
above the 'Network' port indicates Link status and should light up and remain a solid green
or orange color. The right LED above the 'Network' port indicates Activity status and should
blink with network activity on the port. The color of this LED can be green or orange as well.
When the device reboots, the Link LED will turn on and off several times. If the Link LED
AVTECH Software Inc.
Front View (Room Alert Signal Tower ID Box)
