4-Zone Keypad Energizer Setup - Nemtek Druid LCD 2X Network Manual

4 4-Zone Keypad Energizer Setup A
A 4-zone energizer network can be created by connecting two Druid LCD 2x energizer via
the keypad bus, using the NEMTEK 4-Zone Keypad. Both energizers can be controlled
with one keypad and alarms generated on either energizer will be visible on the keypad.
The output pulses of both energizers will also be synchronised with this setup. The
master energizer will be displayed as Energizer 1 (Zone 1 & 2) and the slave energizer as

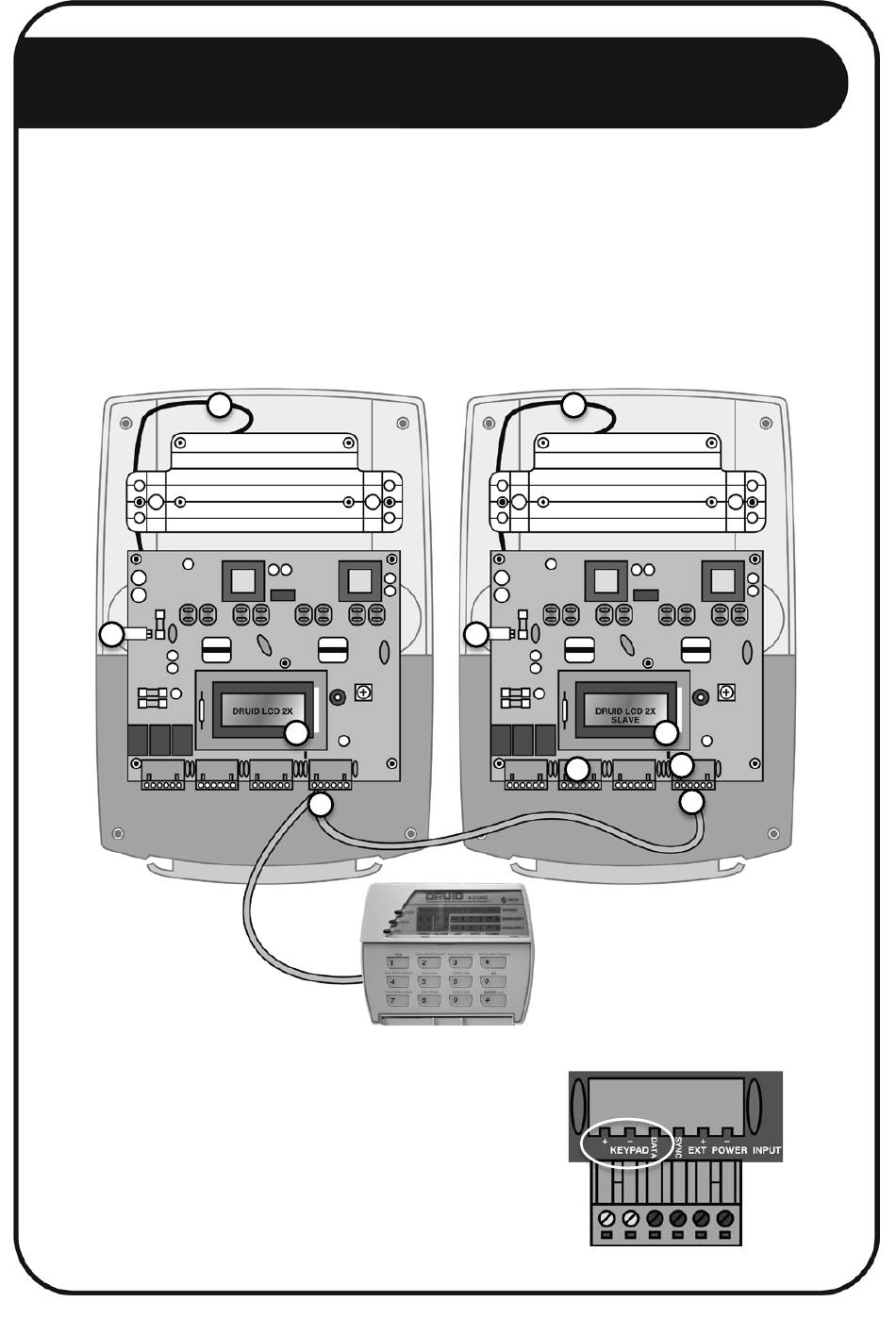

Energizer 2 (Zone 3 & 4) on the keypad. Follow the setup instructions chronologically,
with the corresponding number in the figure, given after the steps in brackets.
2
1
1. Set up the master energizer:
a. Disconnect the energizer mains
and battery power. [1, 2]
b. Connect the keypad's power
(marked + and -) and data line
(marked DATA) to the master energizer. [3]
4
3
5
6
5
10
9
8
7
