Automatic Systems TRS 372 Technical Instructions page 7

1. Conduit installation for the passage of cables and remote control devices (as seen in implementation
drawings) should be planned in advance.
Remember that the cable ends must extend 4m [13ft] above ground level, as electrical connections are
done in the upper section of the full-height turnstile.
2. Ensure that the surface on which the full-height turnstile is to be installed is perfectly flat (without any
irregularities) and made of concrete or other non-flammable material.
3. Following the instructions presented in the Installation Drawing, use your drilling template to mark the
location of the various drilling holes.
4. If you chose to use the anchoring bolts provided by Automatic Systems, bore holes that have a diameter
of 15 mm and are 85 mm deep into the surface.
Caution: Although the anchoring bolts provided by Automatic Systems are compatible with most
configurations, the complete fixing process must be adapted to the environment and nature of the ground
on which the full-height turnstile is to be installed. All civil work must be approved and validated by a
knowledgeable engineer..
The equipment must be fixed to the ground prior to being used!
Automatic Systems cannot be held responsible for accidents or damages resulting from a faulty anchoring
installation.

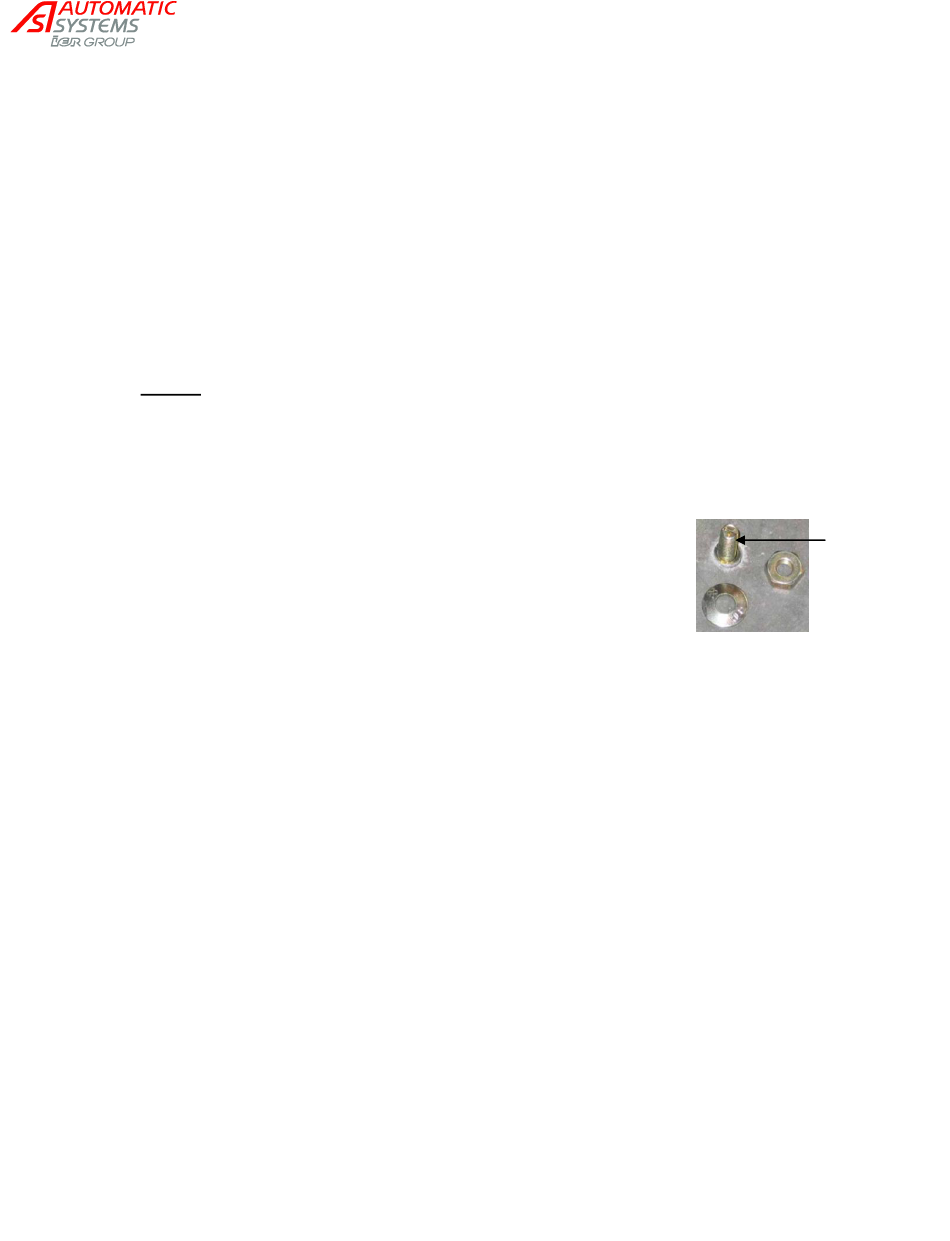

5. Put the anchoring bolts (21) in place. Pre-tighten the nuts so as to fix the
expanding anchoring bolt into the ground. Proceed then to remove the nuts
previously tightened in order to be able to install the fixing brackets later on.
