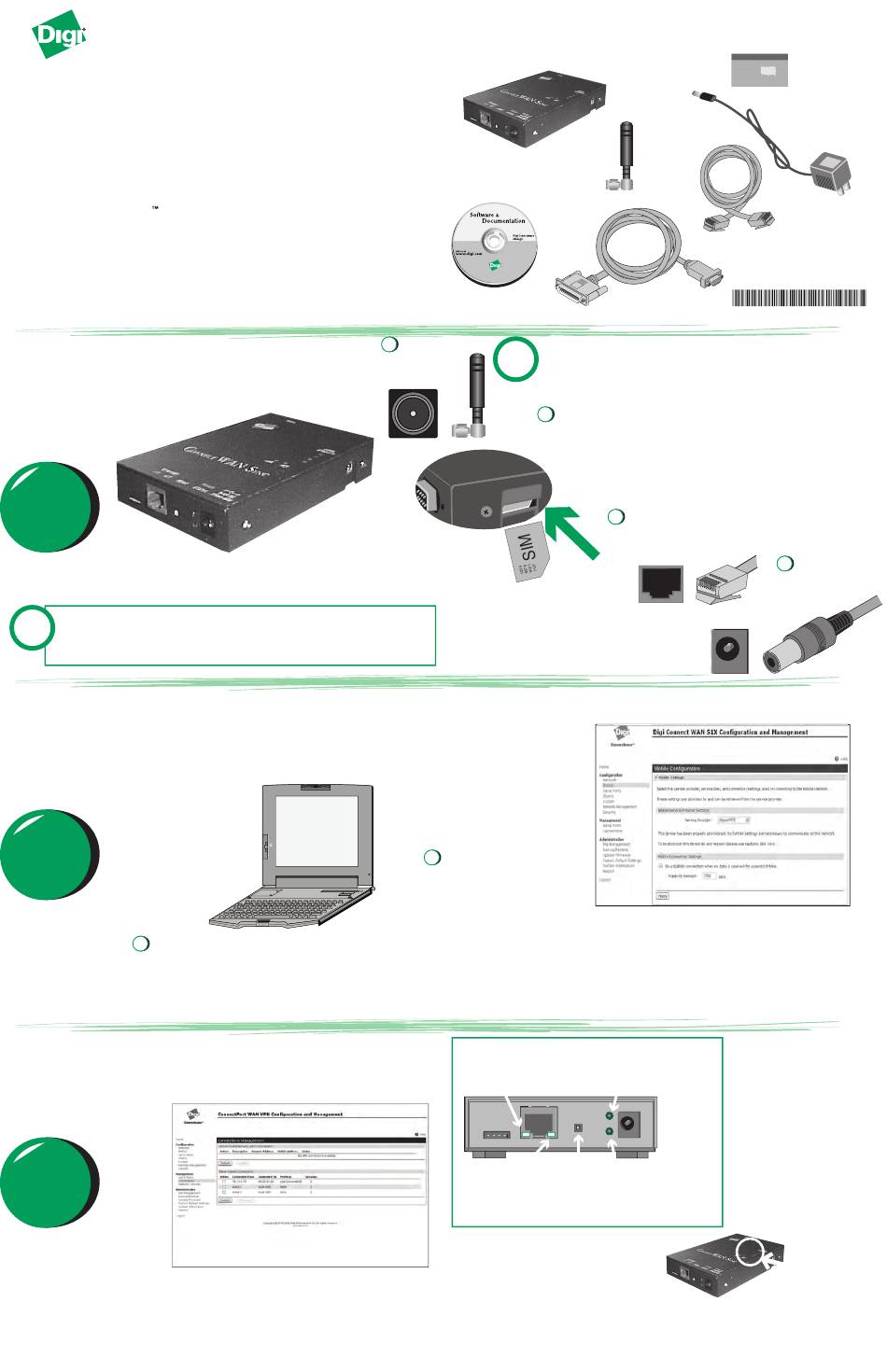

Digi Connect WAN Sync Edge 10 Quick Start Manual

Quick Start Guide
Connect WAN Sync Edge 10

Connect Hardware

HARDWARE
The ConnectPort WAN has DHCP server enabled by default.
!
In order to discover your Digi device, make sure your host
computer is setup to obtain IP addresses automatically.
Also ensure all firewall software is temporarily disabled.

Configure Cellular Settings

CONFIGURE
1
Open your web browser and enter
the IP 192.168.1.1 into the URL address
bar.

Verify Cellular Connection

VERIFY
Under Management click Connections to verify your
device has been properly provisioned. To test your
configuration and verify proper Ethernet to cellular
routing, see the back of this guide.
© Digi International Inc., 2005.
Digi, Digi International, the Digi logo, the Making Device Networking Easy logo, Digi Connect, and RealPort
are trademarks or registered trademarks of Digi International, Inc. in the United States and other countries worldwide.
All other trademarks are the property of their respective owners.
Digi Connect WAN Sync
Digi Connectware
Manager CD
1
Connect !
Warning: Do not over-tighten the antenna. Over-tightening may
antenna.
damage internal connections. Loosen antenna before adjusting
antenna angles.
2
2
From the web
interface, under
Configuration click
Mobile. Enter your
service provider name
and connection
parameters and click
Apply.
Network Link
(green) on
Ethernet activity or
access point engaged
ACT (yellow)
on - network
traffic detected
(off when no
traffic detected)
A SIM card must be supplied and activated
by a Cellular Service Provider for device
operation.
*SIM card not included
Antenna
cross-over Ethernet
DB-25M to DB-9F
Orient SIM card* with metal
side down and short corner to
the outside. Use caution to
insure card is properly seated
in SIM socket.
3
Connect
Ethernet cable
to your laptop.
Power (green)
steady blinking;
seeking or waiting
for an IP address
Reset
Diagnostic (yellow)
flashes 3 times
during startup or
reset indicating
successful startup.

What you will need

SIM
1234
5678 AT&T SIM
9101
1121
cable
PN:(1P) 90000735-88 A
4
Connect
power supply.
The Link LED will
remain on steady
and the Active
LED will blink
when connection
is active.
