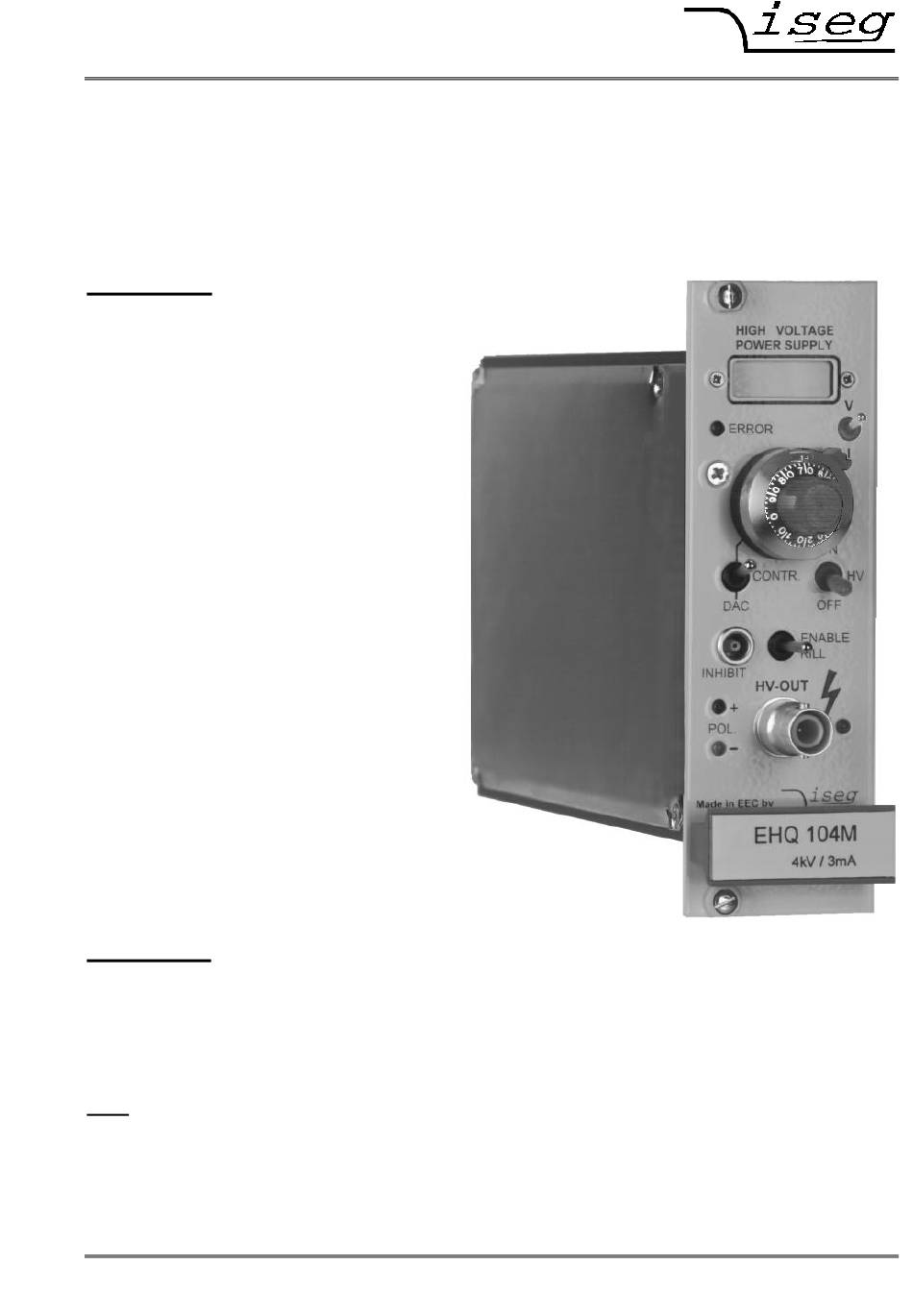

Precision High Voltage Sources in 3U Eurocard Format
Contents:
1. General information
2. Technical Data
3. NHQ Description
4. Front panel
5. Handling
6. RS232 Interface
7. Program example
Appendix A: Block diagram
Appendix B: Rotary switch locations
Attention!
-The unit shall not be operated with the cover removed.
-We decline all responsibility for damages and injuries caused by an improper use of the mo-
dule. It is highly recommended to read the operators manual before any kind of operation.
Note
The information in this manual is subject to change without notice. We take no responsibility whatsoever for any
error in the document. We reserve the right to make changes in the product design without reservation and
without notification to the users.
Filename EHQ10x_eng.___; Version 2.04 from 26.02.98
iseg Spezialelektronik GmbH
Bautzner Landstr. 23
D - 01454 Radeberg / Rossendorf
Operators Manual
Email: sales@iseg-hv.de
http://www.iseg-hv.com
Germany
S p e z i a l e l e k t r o n i k G m b H
Phone ++ 49 351 / 26 996 - 0
Fax
++ 49 351 / 26 996 - 21
Advertisement
Table of Contents
Related Manuals for iseg EHQ 102M
Summary of Contents for iseg EHQ 102M
- Page 1 We reserve the right to make changes in the product design without reservation and without notification to the users. Filename EHQ10x_eng.___; Version 2.04 from 26.02.98 iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Phone ++ 49 351 / 26 996 - 0 Bautzner Landstr.
-
Page 2: General Information
Additionally, the maximal output current is programmable via the interface. The high voltage output protected against overload and short circuit. The output polarity can be switched over. 2. Technical data Type (with RS 232) EHQ 102M EHQ 103M EHQ 104M EHQ 105M Output voltage V 0 ... -
Page 3: High Voltage Supply
The high-voltage filters are housed in individual metal enclosures to shield even minimum interference radiation. iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Phone ++ 49 351 / 26 996 - 0 Bautzner Landstr. -
Page 4: Front Panel
If at the last working of the unit activated the function ″Autostart″, the high voltage will be Attention! generated with the saved parameters immediately! iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Phone ++ 49 351 / 26 996 - 0 Bautzner Landstr. 23 http://www.iseg-hv.com... -
Page 5: Manual Control Mode
While the unit is operated in manual control mode, RS232 read cycles are interpreted only. Commands are accepted, but do not result in a change of the output voltage. iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Phone ++ 49 351 / 26 996 - 0 Bautzner Landstr. - Page 6 The commands are transmitted in ASCII. The end of command is formed by the sequence <CR> <LF> ( 0x0D 0x0A , 13 10 respectively). Leading zeroes can be omitted on input, output is in fixed format. iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Phone ++ 49 351 / 26 996 - 0 Bautzner Landstr.
-
Page 7: Command Set
If output voltage shut off permanently (by ERR or INH at ENABLE KILL or TRP) you must do ”Read status word” before the output voltage restoring is possible. iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Phone ++ 49 351 / 26 996 - 0 Bautzner Landstr. -
Page 8: Error Codes
Ramp speed saving in EEPROM (EEPROM guarantee 1 million saving cycles) Software Contact us for an overview on our user friendly control and data acquisition software! iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Phone ++ 49 351 / 26 996 - 0 Bautzner Landstr. 23 http://www.iseg-hv.com... -
Page 9: Program Example
S p e z i a l e l e k t r o n i k G m b H 7. Program example /***************************************************************************************************/ ehq.cpp example program for iseg ehq hv boards, written by Jens Römer, 27.2.97 this code was compiled under BC, please contact iseg for the source file */ /***************************************************************************************************/ #include <dos.h> #include <stdio.h> #include <conio.h>... - Page 10 HV-Filter OUTPUT switch HV-Transformer Appendix A: Block diagram EHQ iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Phone ++ 49 351 / 26 996 - 0 Bautzner Landstr. 23 http://www.iseg-hv.com ++ 49 351 / 26 996 - 21 D - 01454 Radeberg / Rossendorf...
- Page 11 Appendix B: EHQ side cover Polarity rotary switch (e.g.: polarity negative) Rotary switches for V and I iseg Spezialelektronik GmbH Email: sales@iseg-hv.de Phone ++ 49 351 / 26 996 - 0 Bautzner Landstr. 23 http://www.iseg-hv.com ++ 49 351 / 26 996 - 21...
