user manual
last change on: 07.04.2017

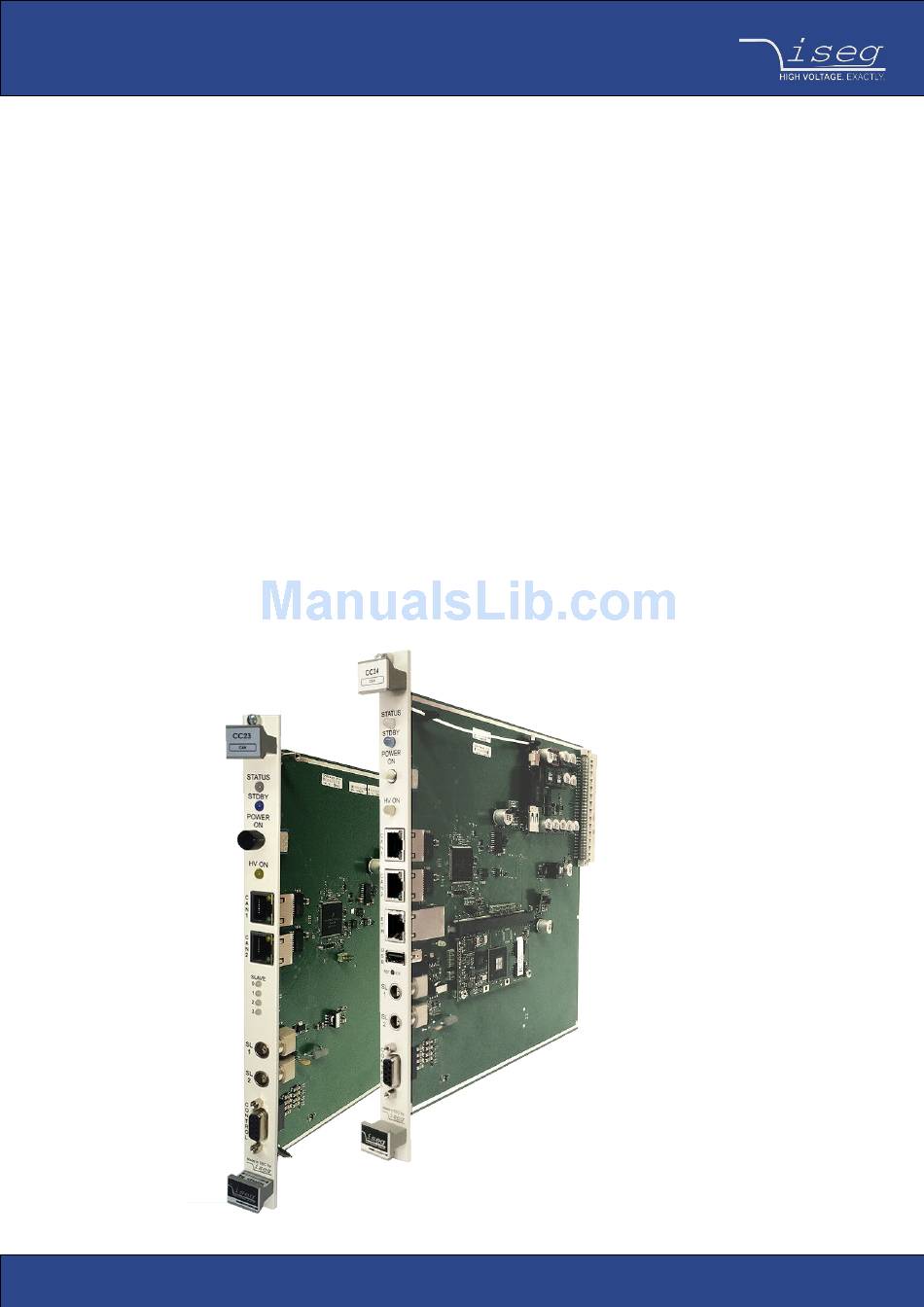

Crate Controller 2x Series
Controller module for use with MMS compatible ECH crate series and MMS
compatible modules
Ethernet and WiFi (opt.) connectivity
•
Master (CC24) / Slave (CC23) versions available
•
Embedded Linux-Server with iCS control system (Master version)
•
Two independent CAN extension ports (for Slave connection)
•
Controls crate and module functions
•
Digital I/O: Free configurable INHIBIT, INTERLOCK
•
Preconfigured services: EPICS, SNMP, HTTP, SOAP, Websocket
•
Webbrowser based control and configuration system
•
Easy configuration and firmware updates of connected hardware
•
www.iseg-hv.com
-
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for iseg CC23
Summary of Contents for iseg CC23
- Page 1 Controller module for use with MMS compatible ECH crate series and MMS compatible modules Ethernet and WiFi (opt.) connectivity • Master (CC24) / Slave (CC23) versions available • Embedded Linux-Server with iCS control system (Master version) • Two independent CAN extension ports (for Slave connection) •...
-
Page 2: Document History
Copyright © 2015-2017 iseg Spezialelektronik GmbH / Germany. All Rights Reserved. This document is under copyright of iseg Spezialelektronik GmbH, Germany. It is forbitten to copy, extract parts, duplicate for any kind of publication without a written permission of iseg Spezialelektronik GmbH. This information has been prepared for assisting operation and maintenance personnel to enable efficient use. -
Page 3: Warranty Information
Warranty information This product is shipped with a warranty of 36 months, starting with issue of invoice. Within this period iseg will repair or replace in case of defective under proper use. Crate Controller CC24/CC23 | v1.4 Last change on: 07.04.2017 | www.iseg-hv.com... -
Page 4: Table Of Contents
Center bar: Channel list..................................26 Center bar: Chart....................................26 Right bar: Device information................................27 Right bar: Camera....................................27 Right bar: Live log....................................27 Right bar: Commands...................................27 13 Appendix......................................... 27 14 Manufacturer´s contact....................................28 Crate Controller CC24/CC23 | v1.4 Last change on: 07.04.2017 | www.iseg-hv.com 4/28... -
Page 5: General Information
1 General information The iseg CC 24/23 series is an intelligent embedded Linux-Server system with preinstalled iseg Communication Server (iCS). The iCS comes with a large set of preconfigured services as EPICS, Web-Control, SNMP¹, SOAP, Websocket, OPC/UA , isegHAL and HTTP-API. -
Page 6: Technical Data
5 Hardware setup and topology An ECH crate which is equipped with a CC24 Host Controller can be extended with up to 2 x 4 CC23 slave controllers using the green and the yellow daisy chain CAN lines. Legacy CAN controlled crates can be connected at the end of each of these lines. -
Page 7: Can Connector Leds
Both CAN connectors are internally terminated by a 120 Ohm resistor. If two CC2x controllers are directly connected by a direct assigned (no crossover) FTP Cat. 6 patch cable, no further termination is needed. Crate Controller CC24/CC23 | v1.4 Last change on: 07.04.2017 | www.iseg-hv.com 7/28... -
Page 8: Connecting Legacy Crates (Ech238, 224 Etc.)
Connecting legacy crates (ECH238, 224 etc.) CC2x controllers are able to connect legacy CAN-only driven iseg crates. So it is possible to extend existing hardware setups with a new MMS series crate (ECH44A, ECH242, ECH244) and CC2x crate controller to access complete hardware by Ethernet or WiFi with all major advantages of the integrated server hardware. -
Page 9: Safety-Loop Connector
The safety loop feature has to be activated by removing of a jumper on the backside of the modules also, see specific module manual for more information. NOTE Crate Controller CC24/CC23 | v1.4 Last change on: 07.04.2017 | www.iseg-hv.com 9/28... - Page 10 SL connector on a module will only deactivate this one module. Figure 3: Safety loop 1 - wiring example Crate Controller CC24/CC23 | v1.4 Last change on: 07.04.2017 | www.iseg-hv.com 10/28...
-
Page 11: Control Connector
1.11 (or higher) E08C0 2.xx 2.40 (or higher) E08C2 1.xx 1.24 (or higher) E08C2 3.xx 3.02 (or higher) E08C2 4.xx 4.51 (or higher) E08F0 2.xx 2.44 (or higher) Crate Controller CC24/CC23 | v1.4 Last change on: 07.04.2017 | www.iseg-hv.com 11/28... -
Page 12: Wifi
10. The module can be plugged out now and another module can be plugged in to repeat the configuration process from step 5 11. Press the button POWER-ON for about one second to turn off the crate and exit the CONFIGURATION MODE Crate Controller CC24/CC23 | v1.4 Last change on: 07.04.2017 | www.iseg-hv.com 12/28... -
Page 13: Ac Line Power Fail
Pin 2 and Pin 9) must be connected to the CONTROL connector before starting the configuration. The LED STATUS blinks red instead of green in this case. You can contact iseg customer support for purchase accessory parts (see page 13) -
Page 14: Ics2 - Iseg Communication Server 2
The iseg Communication Server iCS is a software solution to control iseg high voltage hardware from multiple devices over wired or wireless network. iCS is a manufacturer specific Linux OS, which runs on iseg hardware, like iCSmini2 or CC2x crate controller series. -
Page 15: How To Connect Via Wifi
Make sure to have the WiFi adapter onboard or external installed, all modules are plugged in and CAN connections if used attached. Start the crate or device. Use your mobile device or computer to search for existing WiFi networks and select „iseg-iCS_XXXX“ (serial). Enter the factory default password... -
Page 16: Hardware
(corresponding to yellow or green CAN line), master crates and modules in legacy crates with a blue upper tab border. Crate Controller CC24/CC23 | v1.4 Last change on: 07.04.2017 | www.iseg-hv.com 16/28... -
Page 17: Ethernet Configuration
192.168.16.1 NAMESERVER 192.168.2.1 192.168.16.1 Plug USB flash drive into the USB slot at the front panel of the Crate-Controller / one USB slot of iCSmini2 Plug in mains Crate Controller CC24/CC23 | v1.4 Last change on: 07.04.2017 | www.iseg-hv.com 17/28... -
Page 18: Wifi Configuration
This enables user to install own services or freely configure, e.g.EPICS plugins etc. INFORMATION The local filesystem is divided into a system and a user data partition. To make changes on the readonly Crate Controller CC24/CC23 | v1.4 Last change on: 07.04.2017 | www.iseg-hv.com 18/28... -
Page 19: (Re)Set Ssh Access
Plug off the USB flash drive and check on a computer if the file created on point 2 is still there. If not, the factory reset was succesful. Crate Controller CC24/CC23 | v1.4 Last change on: 07.04.2017 | www.iseg-hv.com 19/28... -
Page 20: Icsservice Configuration
URL, Parameters with leading $, params not mandatory [$param] Response Description http://<IP-of-iCSmini>/api/lgetItemsInfo XML with item object information http://<IP-of-iCSmini>/api/login/$username/$password API Key Returns API Key to be identified for session Crate Controller CC24/CC23 | v1.4 Last change on: 07.04.2017 | www.iseg-hv.com 20/28... -
Page 21: Epics
Switch controller of line 0 (master) on EPICS For the use of iseg hardware with Experimental Physics and Industrial Control System (EPICS) the iCS comes with a preinstalled integrated Input-Output-Controller (IOC). This service can be enabled or disabled using the switch „enable EPICS input / output... -
Page 22: Iseghalservice
Controller / iCSmini hardware. The isegHALservice API is similar to isegHALapi with some specific extension. Please refer Appendix “isegHAL” for details. For an easy start a simple example program isegHalRemoteExample demonstrates the remote access. There are virtual instruments (VIs) which are based on the library “isegHAL-remote” in order to control iseg hardware via LabVIEW... -
Page 23: Updates
(CC, iCSmini) firmware firmware update files for iseg devices (like HV modules, crate controllers etc.) All update files can be downloaded from iseg web repository using the check online for updates... - Page 24 “Check online for updates” feature the iCS directly connects to iseg online software repository. All update files can also be downloaded from iseg website (http://iseg-hv.com/en/support/downloads) or directly on http://download.iseg-hv.com/ NOTE Crate Controller CC24/CC23 | v1.4 Last change on: 07.04.2017 | www.iseg-hv.com 24/28...
-
Page 25: Icscontrol - Control And Monitor Web Application
The left column shows the configured hardware. If connected with iseg CAN line management slaves are shown in yellow or green background, corresponding to the CAN line they are connected with. Every device has a colored left border showing the running state. -
Page 26: Left Bar: Channel Folders
Chart-Icon on top of Vmeas column. To show plots of all channels select or deselect all channels, and disable/re-enable the chart by clicking the chart icon twice. Crate Controller CC24/CC23 | v1.4 Last change on: 07.04.2017 | www.iseg-hv.com 26/28... -
Page 27: Right Bar: Device Information
The commands tab prefills the input fields according to the selected hardware device (device explorer). 13 Appendix For more information please use the following download link:s CAN EDCP Programmers-Guide http://download.iseg-hv.com/documentation/SYSTEMS/Manuals/English/MMS/CAN_EDCP_Programmers-Guide.pdf Crate Controller CC24/CC23 | v1.4 Last change on: 07.04.2017 | www.iseg-hv.com 27/28... -
Page 28: Manufacturer´s Contact
14 Manufacturer´s contact iseg Spezialelektronik GmbH Bautzner Landstr. 23 01454 Radeberg / OT Rossendorf Germany Direct Fon: +49 351 26996-0 Fax: +49 351 26996-21 Internet www.iseg-hv.com www.iseg-hv.de E-Mail support @ iseg-hv.de sales @ iseg-hv.de...
