BLUM TANDEMBOX Quick Start Manual

FOLD FOLD
TANDEMBOX

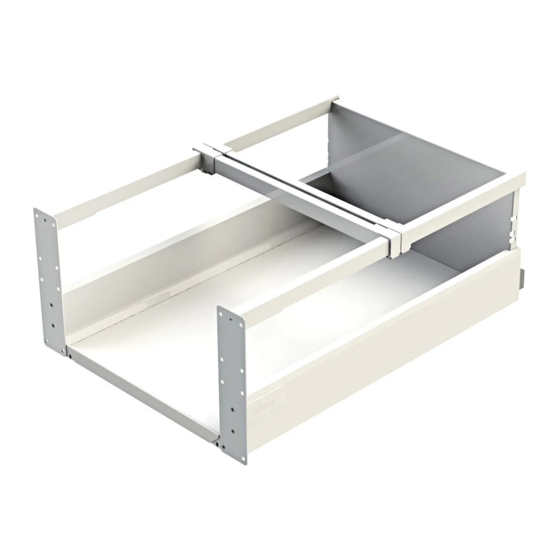

Waste/recycle set
Installation

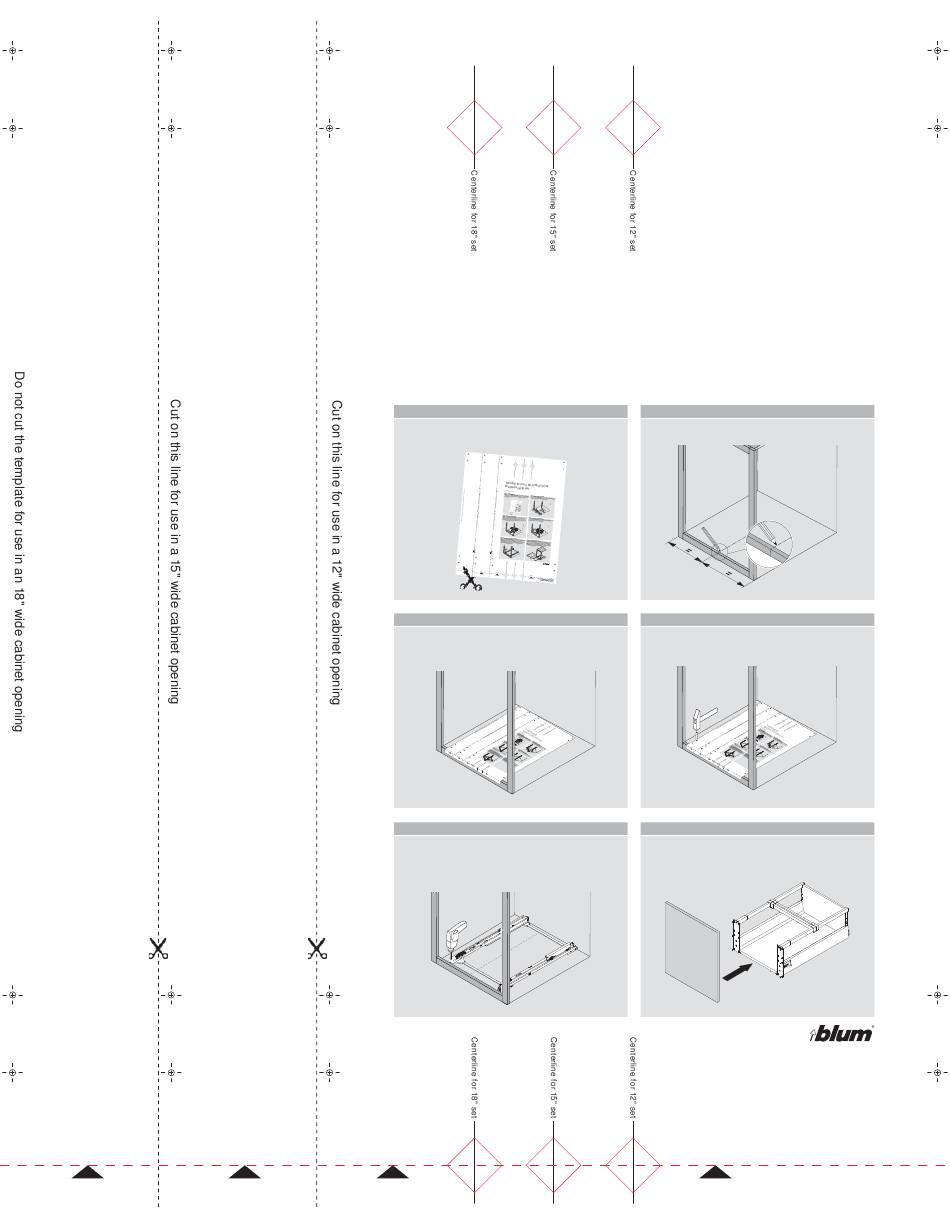

Step 1 — Prepare template
Remove template from box and read all instructions carefully. For 12"
or 15" sets, cut off left side of template on the line marked for your set.
Step 3 — Align and secure template
Lay template inside cabinet. Line up fold with the front edge of the
cabinet, then align template on the centerline, front and back. Taping
template to the cabinet face and bottom is required to keep template
in place while marking the holes.
Step 5 — Mount the waste/recycle set
Remove template and place cabinet profile set on bottom of cabinet.
Set runners back 4 mm and line up centerline mark on cabinet bottom
with center marks on the metal crossrails. Use a power drill and a
#2x2" (or longer) Phillips bit to secure all eight pre-attached screws.
FOLD
Step 2 — Mark centerline in cabinet
Using a framing square, mark centerline of cabinet opening. It is
helpful to make a mark that extends 20" into cabinet.
Step 4 — Mark mounting screw locations
Punch eight hole locations marked on the template, pre-boring
through template is not recommended.
Step 6 — Attach drawer front to front bracket
Use the specifications and instructions on the reverse side of this
template to attach drawer front and install drawer. Next, open the
drawer and insert your bins. Your waste/recycle drawer is now ready
to use.
Please call 1-800-438-6788 for assistance installing Blum products.
Technical specifications subject to change without notice.
LIT.TBX5500.09.17 © 2017 Blum, Inc. Printed in USA
