Interlogix RCR-REX Installation Manual

RCR-REX Request-to-Exit
Dual Technology Motion Sensor
Installation Guide

Introduction

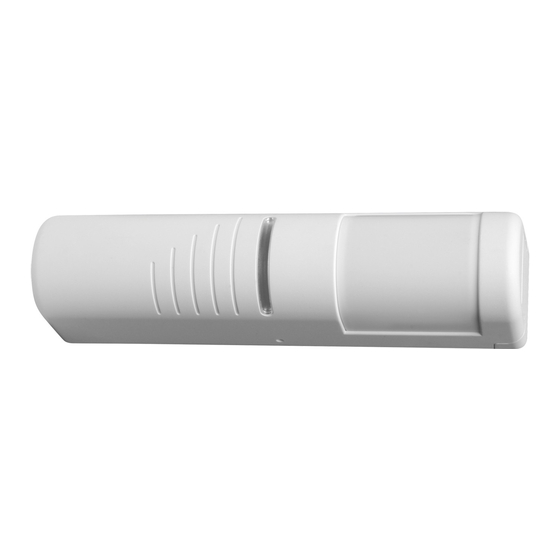

This is the Interlogix RCR-REX Request-to-Exit Dual
Technology Motion Sensor Installation Instructions for
models RCR-REX-W, RCR-REX-B, and RCR-REX-G.

Installation

Determine if the sensor will be ceiling or wall mounted. Avoid
locating the sensor between double doorways where objects
can be inserted through a crack to gain unauthorized entry.
CAUTION: When handling the sensor, do not touch the lens
window.
To install the sensor, do the following:
1. To open the front cover, insert a small screwdriver into
the bottom of the locking tab and pull upward (Figure 1).

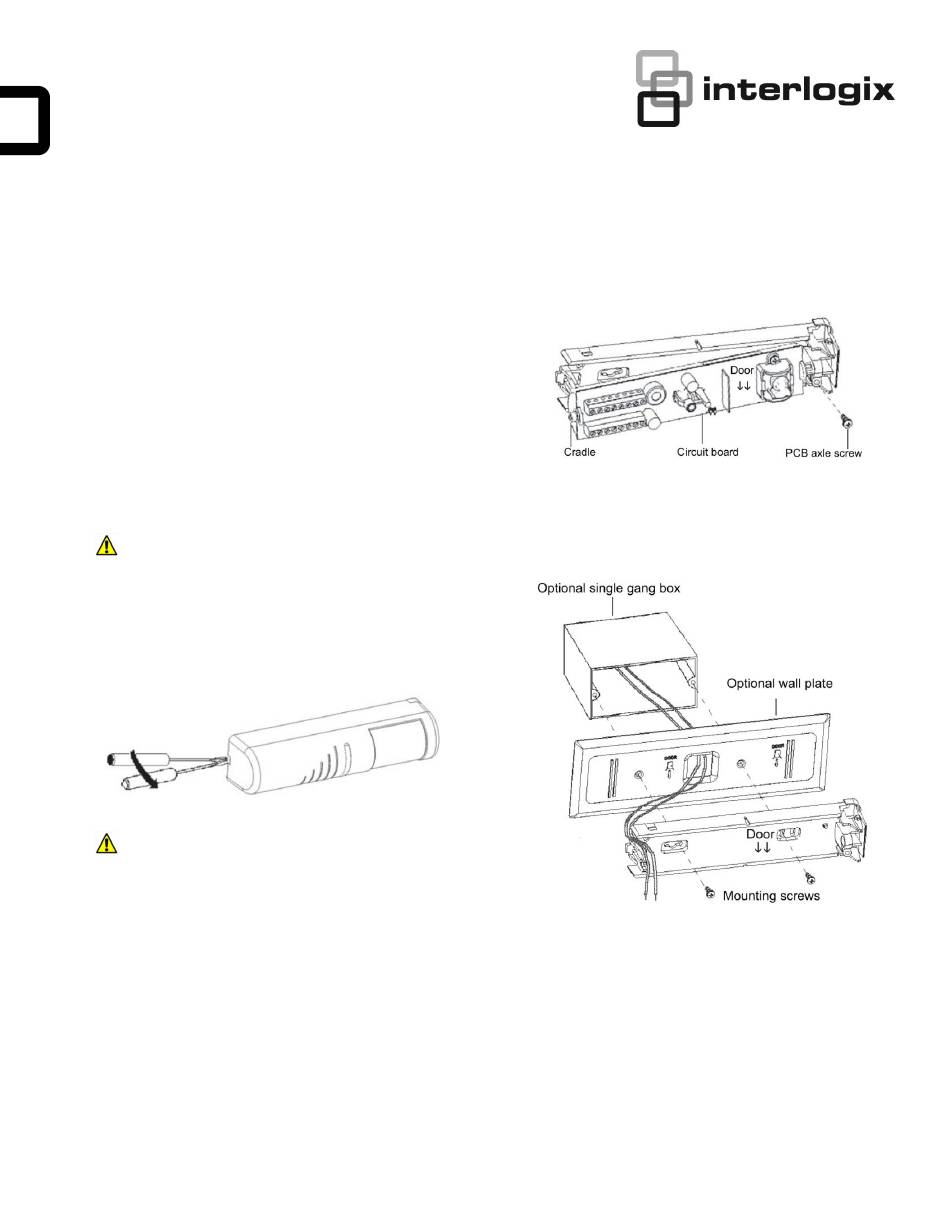

Figure 1: Open the cover
CAUTION: You must be free of static electricity before handling
sensor circuit boards. Touch a grounded, bare metal
surface before touching circuit boards or wear a
grounding strap.
2. Remove the screw holding the circuit board (PCB)
cradle axle to the back housing and carefully remove
the circuit board with cradle from the housing (Figure 2).
© 2018 UTC Fire & Security. All rights reserved.
Figure 2: Remove the circuit board and cradle
3. Route wiring to the sensor mounting location. If you are
using the wall plate, pull the wires through the cable
entry hole (Figure 3).
Figure 3: Mounting and wiring access
4. Insert the mounting screws into the back (wall mount) or
top (ceiling mount) mounting screw holes to fasten the
back housing and wall plate, if used, to the wall or
ceiling (Figure 3).
5. Reinstall the PCB/cradle and secure in place with the
PCB axle screw (Figure 2).
6. Complete wiring connection (See Wiring on page 2).
7. Swing the front cover in place and walk test the sensor
for appropriate coverage and function (see Initial power
up on page 4.
1 / 7
P/N 466-5444 • REV A • 8NOV18
