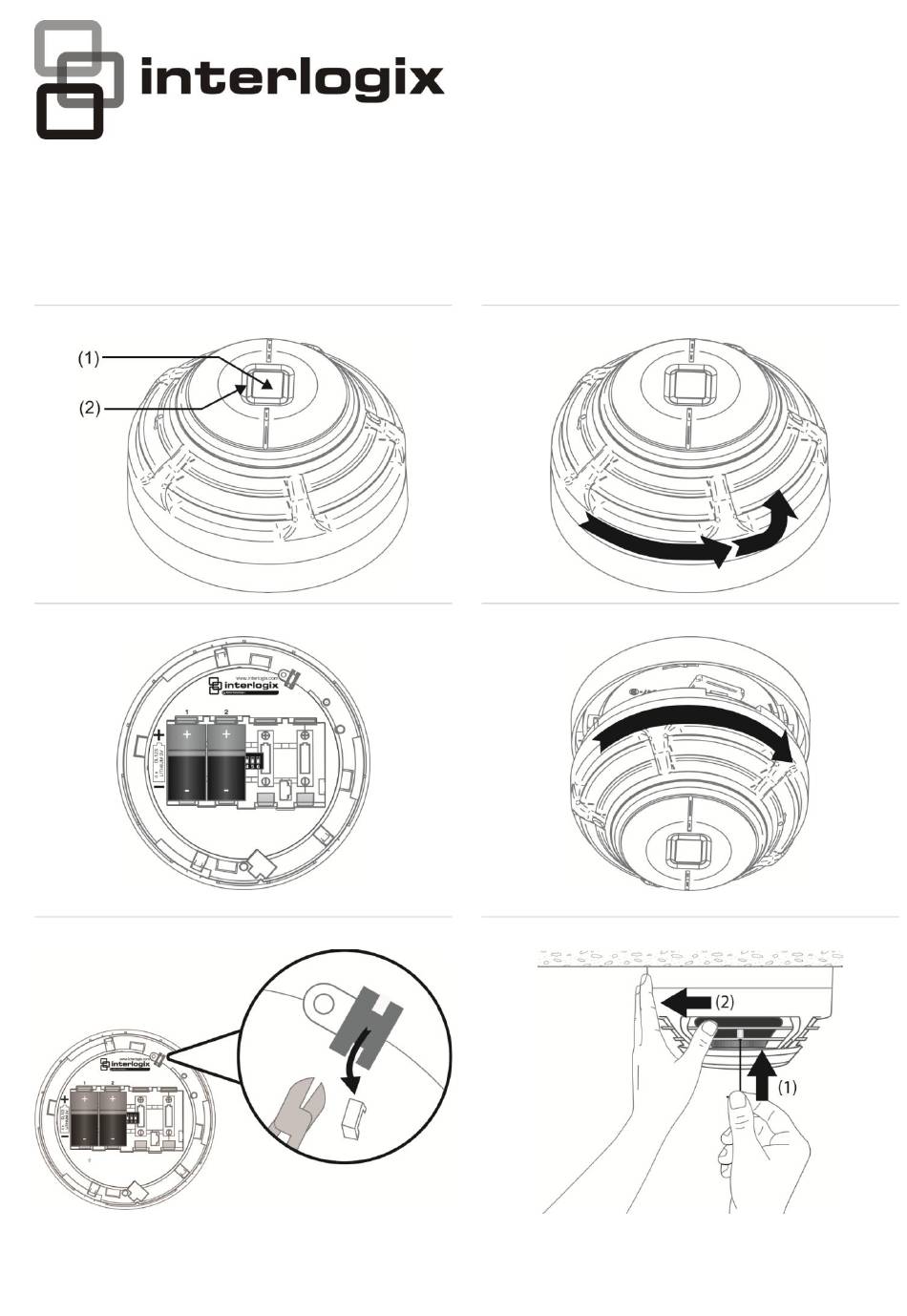

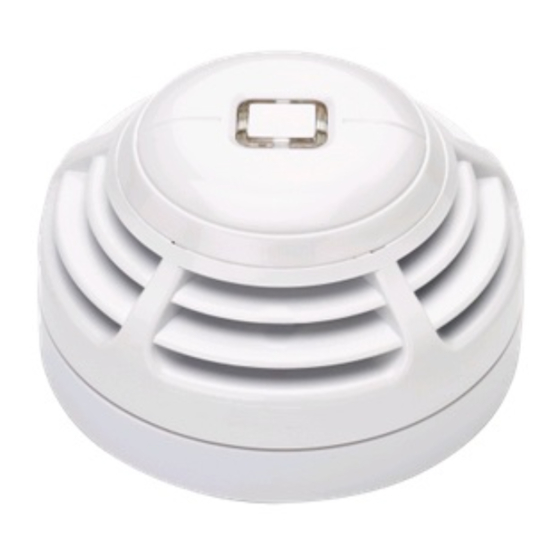

- Page 1 TX-6010-03-1 / RF581I4 - Smoke / Heat Sensor Installation Sheet P/N MK256 • REV 01 • ISSUE 2 • AJM © UTC Fire & Security. All rights reserved.
- Page 2 Description Locations to avoid The TX-6010-03-1 and RF581I4 are Learn Mode wireless • Very dusty or insect infested areas. smoke / heat alarms, designed for use in a security system • with a compatible control panel. Both devices comply with Very humid areas.
- Page 3 Optional device locking Configuration switch The device includes an optional locking mechanism. Remove The 6-way configuration switch, located in the middle of the the thin section of plastic shown in Figure 5. device's battery tray provides additional settings as follows: Switches 1 to 3 –...
- Page 4 Sensor maintenance Testing the device Remove dust cover before use. Siren and signal integrity test The device should be tested upon installation and in Test each device to verify that siren and signal integrity accordance with local requirements. responses are adequate. Testing should only be carried out by a fully trained competent Caution: When testing the siren’s sounder pressure levels, person.
- Page 5 Be prepared Fire prevention and escape Practice the following steps to prepare you and your family in NEVER IGNORE THE SOUND OF THE ALARM! IF THERE IS ANY QUESTION AS TO THE CAUSE OF THE ALARM, IT the event of a fire: SHOULD BE ASSUMED THAT THERE IS A FIRE AND THE •...
- Page 6 Note: Replace only with specified batteries Year of first CE marking Note: DO NOT mix batteries of Product identification TX-6010-03-1 / RF581I4 different type or age Intended use See DoP point 3 CAUTION! Danger of explosion if batteries are incorrectly replaced.
