Replacing the rechargeable battery pack
Headset – SDW 10 HS
ASSY 180118
Disassembly/Assembly Instructions
MAY 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDW 10 HS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sennheiser SDW 10 HS

Summary of Contents for Sennheiser SDW 10 HS

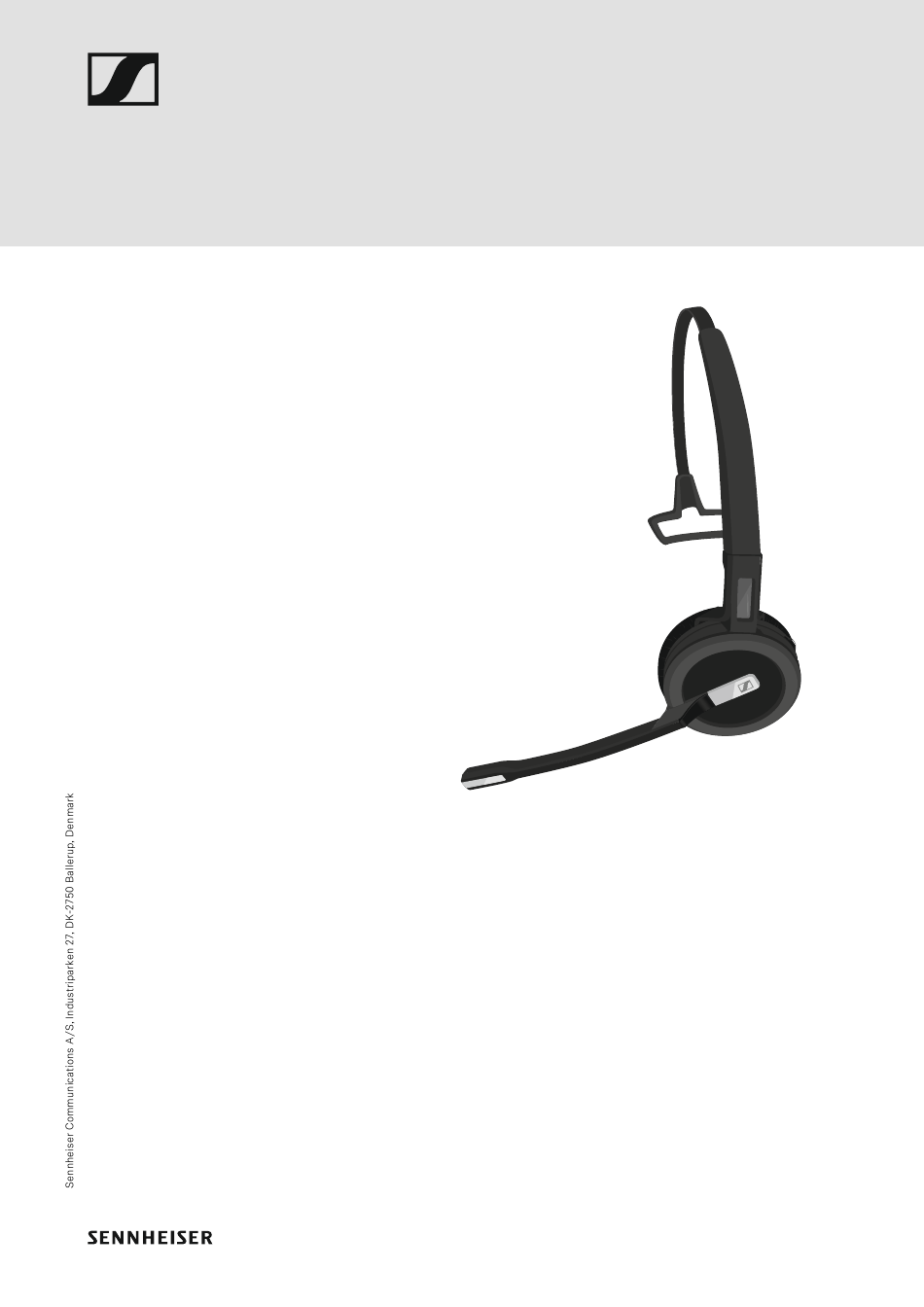

  • Page 1 Replacing the rechargeable battery pack Headset – SDW 10 HS ASSY 180118 Disassembly/Assembly Instructions MAY 2018...

  • Page 2: Table Of Contents

    SDW 10 HS Contents Safety instructions General Safety instructions for rechargeable batteries Disassembly / Assembly Required material Disassembling the rechargeable battery pack 2.2.1 Removing the ear hook or the headband 2.2.2 Opening the battery compartment 2.2.3 Removing the rechargeable battery...

  • Page 3: Safety Instructions

    SDW 10 HS Safety instructions Safety instructions General Always check the safety and testing regulations that are currently valid for your country and abide by the following regulations: • Repair-related (e.g. in accordance with VDE 0701 in Germany). • Device-related in accordance with IEC 60950-1.

  • Page 4: Safety Instructions For Rechargeable Batteries

    Never put batteries in mouth. • Recycle or dispose of used batteries according to instructions. Only use rechargeable batteries recommended by Sennheiser and the appropriate chargers. Do not expose to moisture. Switch rechargeable battery-powered products off after use.

  • Page 5: Disassembly / Assembly

    Disassembly / Assembly Disassembly / Assembly 2.1 Required material • new Battery pack for SDW 10 HS – ID No. AHB552826TPC • Pointed object (e.g. small screwdriver) to open the battery compartment 2.2 Disassembling the rechargeable battery pack 2.2.1 Removing the ear hook or the headband...

  • Page 6: Opening The Battery Compartment

    SDW 10 HS Disassembly / Assembly 4. Pull the two units apart from each other. The headset loosens and you hear a click. CLICK! CLICK! 5. Remove the headset from the holder. 2.2.2 Opening the battery compartment Press the first clamp with a screwdriver.
  • Page 7 SDW 10 HS Disassembly / Assembly 3. Gently move the battery compartment cover in direction of the headset holder until you overcome a slight resistance. CAUTION! Damage to the product due to improper handling! The wires can be kinked or damaged if you open the battery compartment too jerkily.

  • Page 8: Removing The Rechargeable Battery

    SDW 10 HS Disassembly / Assembly 2.2.3 Removing the rechargeable battery Lift the rechargeable battery. 2. Carefully loosen the connector plug. Do not pull on the wires. ASSY 180118 | MAY 2018 8 | 11...

  • Page 9: Assembling The New Battery Pack

    SDW 10 HS Disassembly / Assembly 2.3 Assembling the new battery pack Rotate the battery so that the marking signs are visible at the top. Insert the connector plug of the new rechargeable battery into the connection socket. Observe correct orientation of the connector plug.
  • Page 10 SDW 10 HS Disassembly / Assembly 4. Make sure that the wires are aligned and not crossing over each other. Gently press down the three wires. 5. Slide the battery compartment cover in the two small locking pins. 6. Close the battery compartment. You hear a click. Make sure the two small holders are closed.

  • Page 11: Testing And Further Information

    SDW 10 HS Testing and further information Testing and further information 3.1 Testing the battery and final adjustments Test the function of the headset: Press the Hook button to switch on the headset. The LED lights up blue. 2. Remount the headband or earhook. See User Guide for further information.
