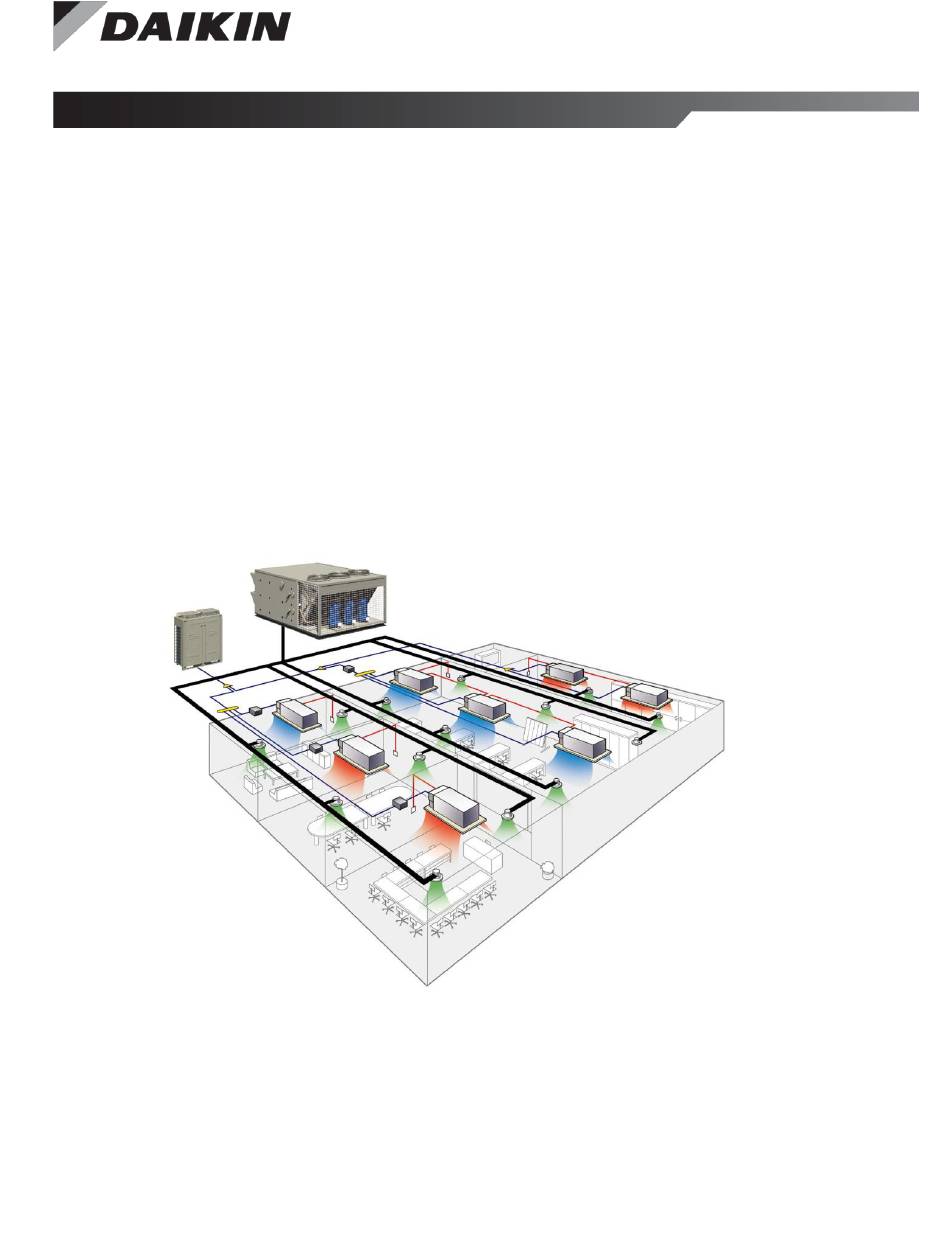

Operation and Maintenance Manual
DIII-NET Communication Gateway
For Daikin Air Handling Units integrated
with a Daikin VRV System

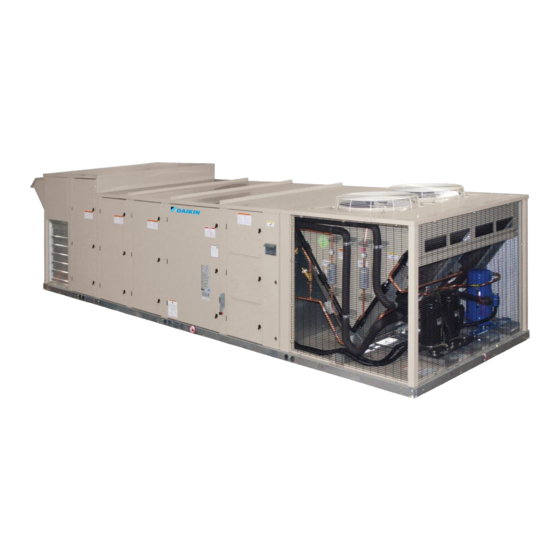

Applied Rooftop Model: RPS, RDT & RAH
Commercial Rooftop Model: MPS
Self-Contained Model: SWP & SWT
IM 1133-1
Group: Controls
Part Number: IM 1133
Date: January 22, 2014
Supersedes: IM 1133

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIII-NET and is the answer not in the manual?

Questions and answers

Summary of Contents for Daikin DIII-NET

  • Page 1 Part Number: IM 1133 Date: January 22, 2014 Supersedes: IM 1133 DIII-NET Communication Gateway For Daikin Air Handling Units integrated with a Daikin VRV System Applied Rooftop Model: RPS, RDT & RAH Commercial Rooftop Model: MPS Self-Contained Model: SWP & SWT...
  • Page 2: Table Of Contents

    .....................................6 PPLICATION ..................................7 OMPONENT Light Emitting Diodes (LEDs) ..............................7 INSTALLATION ..................................8 ....................................8 IRING Installing a New DIII-NET Communication Gateway ......................8 Replacing an Existing DIII-NET Communication Gateway ....................11 INTEGRATION ..................................12 DIII-NET C ......................12 ONFIGURING THE OMMUNICATION ATEWAY DIII-NET Communication Gateway Addressing ........................13 Configuring the DIII Board and MicroTech III Controller .....................14...
  • Page 3: Figures

    Figure 4, DIII-NET Communication Gateway mounted in unit ............................9 Figure 5, DIII-NET Communication Gateway Schematics ..............................9 Figure 6, Incorporating DIII-NET board into an existing Modbus Daisy Chain ....................... 10 Figure 7, DIII-NET Wiring Schematic....................................10 Figure 8, DIP Switch Configuration ....................................11 Figure 9 MicroTech III Menu Structure ....................................
  • Page 4: Revision History

    Conditioning Americas Manual Limited Warranty Consult your local Daikin Representative for warranty details. Refer to Form 933-43285Y. To find your local Daikin representative, go to www.DaikinApplied.com. Notice © 2014 Daikin Applied, Minneapolis MN. All rights reserved throughout the world.
  • Page 5: General Information

    IM 1133-C General Information ® This manual contains the information you need to install the DIII-NET Communication Gateway on a MicroTech III Applied Air Handling Unit (AAH) Controller (i.e., RoofPak™ applied rooftop, Maverick™ II commercial rooftop or Self-Contained Unit), incorporate it into the DIII-Net network, and maintain it.
  • Page 6: Description

    Application The MicroTech III controller will act as a Modbus master device communicating with the DIII-NET Communication Gateway acting as a Modbus slave device. The DIII-NET Communication Gateway will translate the Modbus point information into the DIII-NET protocol and vice-versa.
  • Page 7: Component Data

    Light Emitting Diodes (LEDs) The LED’s on the DIII-NET Communication Gateway are used to indicate either the DIII-NET Communication Gateway is working correctly or there is a fault. A description of what each of the LEDs being energized or de-energized means is listed in Table 1.
  • Page 8: Installation

    IM 1133-C Installation The DIII-NET Communication Gateway will be factory installed. If it is necessary to replace this board, see section Replacing DIII-NET Communication Gateway. If a new board is being installed on an existing unit, see section Installing a New DIII_NET Communication Gateway.
  • Page 9: Figure 4, Diii-Net Communication Gateway Mounted In Unit

    The secondary of this transformer must remain ungrounded. Figure 4, DIII-NET Communication Gateway mounted in unit Connect the 24VAC power from the transformer to X6A on the DIII-NET Communication Gateway using the provided wire harness. See Figure 5. If there are fewer than 2 pairs of modbus wires going to the MCB, skip to step 11. If there are 2 pairs continue with step 9.
  • Page 10: Figure 6, Incorporating Diii-Net Board Into An Existing Modbus Daisy Chain

    Figure 6, Incorporating DIII-NET board into an existing Modbus Daisy Chain 11. Connect a pair of wires from the MCB to the Modbus Communication Port (X2M) on the DIII-NET Communication Gateway. See Figure 5. (There should be 2 pairs of modbus wires connected to the MCB at this point, unless there were none to begin with, see Figure 6.)
  • Page 11: Replacing An Existing Diii-Net Communication Gateway

    IM 1133-C 13. Position the binary DIP switches on the DIII-NET Communication Gateway to “0110 1010” as configured in Figure 8. 14. Power up the Daikin Applied Air Handling Unit, MicroTech III Unit Controller and DIII-NET Communication Gateway. 15. Configure MicroTech III and Daikin VRV unit controllers as instructed in the Integration section.
  • Page 12: Integration

    Integration Once the DIII-NET Communication Gateway has been properly installed on the unit and connected to a DIII network, it is then possible to integrate the unit controller with a Daikin Intelligent Touch Controller or iTouch Manager over a DIII network. The integration process is described in the following section.
  • Page 13: Diii-Net Communication Gateway Addressing

    DIII-NET Communication Gateway Addressing Before a unit can be viewed and controlled through a DIII network, the DIII-NET Communication Gateway must be assigned a DIII address. Configuring the DIII board is done through the MicroTech III unit controller. The following diagram in Figure 9 details the menu structure of the MicroTech III Applied Air Handling Unit Controller related to the DIII-NET Communication Gateway.
  • Page 14: Configuring The Diii Board And Microtech Iii Controller

    Under the Cooling Setup menu, set Cooling Reset to None. (The setpoint will not be sent to the controller from the DIII network if Cooling Reset is set to Network because the DIII-NET Communication Gateway communicates to the unit controller via MODBUS, rather than a COM module.) If the iTouch version is set to “USw/Spt,”...
  • Page 15: Intelligent Touch Controller Configuration

    When the System menu displays as shown in Figure 12, select “Zone/Group” and then press the Execute button. Figure 12, Zone/Group Selection Screen, Intelligent Touch Controller In the Zone / Group Settings screen, press the “Settings” button in the “Reg. Groups” box and then OK. DIII-NET COMMUNICATION GATEWAY www.DaikinApplied.com...
  • Page 16: Figure 13, Zone / Group Screen

    IM 1133-C Figure 13, Zone / Group Screen Settings Button Use the triangular Up and Down arrow buttons to change the icon as desired and then press OK. Figure 14, Group Settings Screen Change icon buttons. DIII-NET COMMUNICATION GATEWAY www.DaikinApplied.com...
  • Page 17: Creating A New Zone And Setting The Intelligent Touch Controller Dead Band

    When the System menu displays as in Figure 17, select “Zone/Group” then press “Execute”. Figure 17, System Menu for Selecting Zone/Group Make a new zone group populated only by the DIII-NET Communication Gateway as follows:  Under the “Zone List” box press the “Add” button and make sure the new zone group is highlighted.
  • Page 18: Figure 18, System Zone Group Screen

    IM 1133-C  Highlight the unit DIII-NET Communication Gateway address from the “Group” box.  Press the double arrow button to add the unit to that zone. Figure 18, System Zone Group Screen Group box Zone List box DIII-NET address...
  • Page 19: Figure 20, Configure Screen For Setting Setpoint Range

    From the Configure screen press the “Setpoint Range” button. Then press OK. Figure 20, Configure Screen for Setting Setpoint Range Setpoint Range Button From the “Setpoint Range” screen, set “Min Cool/Heat SP Differential” to “0*”. Figure 21, Setpoint Range Configuration Screen Set to Zero* DIII-NET COMMUNICATION GATEWAY www.DaikinApplied.com...
  • Page 20: Intelligent Touch Controller Operation

    Figure 23, MicroTech III Air Handler Unit in Unoccupied Mode Figure 24 shows the MicroTech III Air Handling unit running in Unoccupied operation (requires optional space sensor, refer to OM 920 for more information, available on www.DaikinApplied.com DIII-NET COMMUNICATION GATEWAY www.DaikinApplied.com...
  • Page 21: Adjusting Discharge Air Setpoint

    IM 1133-C Figure 24, MicroTech III Air Handler in Unoccupied Operation Adjusting Discharge Air Setpoint This only applies if ‘Std’ or ‘USw/Spt’ is selected for iTouch Version. Refer to DIII-Net Communication Gateway Note: Addressing section for more information. Discharge air temperature setpoint cannot be adjusted with ‘USw/oSpt’ selected.
  • Page 22: Adjusting Fan Speed

    This only applies if the Supply Fan Capacity Control flag is set to ‘Speed/Net’ on the MicroTech III controller. Refer Note: to OM 920 for more information on this topic. 1. Highlight the MicroTech III Air Handling unit and select Configure. DIII-NET COMMUNICATION GATEWAY www.DaikinApplied.com...
  • Page 23: Figure 28, Microtech Iii Air Handling Unit Selected

    2. On the Configuration Screen, press the Advanced Settings button. Advanced Settings Button 3. On the Advanced Settings screen, select the desired Fan Speed setting and press OK. Figure 29, Advanced Settings Configuration Screen Fan Speed Settings DIII-NET COMMUNICATION GATEWAY www.DaikinApplied.com...
  • Page 24: Itouch Manager Configuration

    Auto Register a Unit to the iTouch Manager The iTouch Manager will often automatically detect units on a DIII network. However, most Daikin AHU’s must be added manually. See the next section, “Manually Add a Unit to the iTouch Manager.” To automatically register a unit to the iTouch Manager, proceed with the following steps: 1.
  • Page 25: Figure 32, Service Login Screen

    Figure 34, Auto Register Screen Select Units 7. When prompted to confirm the changes, select OK. See Figure 35. The iTM will immediately shutdown after confirmation. After it has automatically rebooted, the unit(s) should be registered. DIII-NET COMMUNICATION GATEWAY www.DaikinApplied.com...
  • Page 26: Manually Add A Unit To The Itouch Manager

    Manually Add a Unit to the iTouch Manager Most Daikin AHU’s are not recognized by the iTM’s Auto Register feature. Because of this, it is often necessary to register a unit to the iTouch Manager manually. To manually add a unit to the iTM: Select the “Menu List”...
  • Page 27: Figure 37, Add Management Point To Itouch Manager

    40. This address must match the DIII board’s address as previously set by the MicroTech III Unit Controller. See section “DIII-NET Communication Gateway Addressing” steps 5-7. Set the name of the unit by clicking “Modify” next to “Name.” See Figure 39. When the keyboard comes up, enter a name for the unit and press OK.
  • Page 28: Figure 41, Setting Unit Name

    Figure 42, New Management Point on iTouch Manager 12. When prompted to confirm the changes, select OK. See Figure 43. The iTM will immediately shutdown after confirmation. After it has automatically rebooted, the unit should be registered. Figure 43, Confirm Register Data Point DIII-NET COMMUNICATION GATEWAY www.DaikinApplied.com...
  • Page 29: Changing Icon And Description On Itouch Manager

    From the Menu List Screen, tap the 4 corners of the screen as shown in Figure 31 to access the service login. Enter the password “daikin” and press OK. See Figure 32. A red frame will appear around the edges of the screen when the service login is active. See Figure 36.
  • Page 30: Figure 46, Entering Detailed Information

    11. Select OK to exit menu. Figure 47, Icon Selection 12. When prompted to confirm the changes, select OK. The iTM will save the changes and shutdown. When the iTM has rebooted the changes will have been applied. See Figure 43. DIII-NET COMMUNICATION GATEWAY www.DaikinApplied.com...
  • Page 31: Itouch Manager Operation

    IM 1133-C iTouch Manager Operation This section describes the operation of the iTouch Manager to monitor and control Daikin Applied Air Handler Units. Refer to EM11A017 for more information about the operation of the iTouch Manager, available on www.daikinac.com. If the Intelligent Touch Controller is being used, see section “Intelligent Touch Controller...
  • Page 32: Adjusting Setpoints

    IM 1133-C Adjusting Setpoints This only applies if ‘Std’ or ‘USw/Spt’ is selected for iTouch Version. Refer to DIII-Net Communication Gateway Note: Addressing section for more information. The discharge air temperature setpoint cannot be adjusted with ‘USw/oSpt’ selected. The iTouch Manager adjusts the active setpoint of an AHU. If the unit is in cooling mode, the iTM will adjust the cooling setpoint, if the unit is in heating mode the heating setpoint will be adjusted.
  • Page 33: Advanced Settings

    On/Off – Turn unit on or off Operation Mode – Has no effect on Daikin AHUs. Setback Setpoint – Sets unoccupied setpoints for certain types of units. Has no effect on Daikin AHUs. Cool Setpoint – modifies active setpoint. See section “Adjusting...
  • Page 34: Figure 53, Detailed Settings Screen

    Modify the Min and Max setpoint values for Cooling and Heating. See Figure 54. Figure 54, Setpoint Restrictions Setpoint Restriction Enable Cooling Limit Enable Heating Limit Press OK to save changes. DIII-NET COMMUNICATION GATEWAY www.DaikinApplied.com...
  • Page 35 Select the R/C Prohibition tab from the Detailed Settings screen. Select the checkbox(s) next to the operations to be restricted. Selected “Permitted” or “Prohibited” Press OK to save changes. When prompted, confirm unit setup. Changes will be sent to the unit controller. DIII-NET COMMUNICATION GATEWAY www.DaikinApplied.com...
  • Page 36: Service Information

    Verify that the MicroTech III controller is setup correctly. See section “Configuring the DIII Board and MicroTech III Controller.”  If the DIII-NET Communication Gateway still does not respond, contact the Daikin Controls Customer Support Group at 866-462-7829. Parts List Replacement Communication Board...
  • Page 37: Alarms

    Air flow Fault Lo discharge air temperature Fault High discharge air temperature Fault High return air temperature Fault Duct High pressure Limit Discharge air sensor Fault Control temperature sensor error Fault Fault Emergency stop Fault Freeze DIII-NET COMMUNICATION GATEWAY www.DaikinApplied.com...
  • Page 38: Configurable Parameters

    33 - 49 Read OAAdd49-64 Displays valid Air-Net address 49 - 64 R / W SelectOAAddr Selects OA unit address to displays setup for 0 - 64 Read CurrOAAddr Displays current OA address selected 0 - 64 DIII-NET COMMUNICATION GATEWAY www.DaikinApplied.com...
  • Page 39 IM 1133-C Daikin Applied Training and Development Now that you have made an investment in modern, efficient Daikin equipment, its care should be a high priority. For training information on all Daikin HVAC products, please visit us at www.DaikinApplied.com and click on Training, or call 540-248-9646 and ask for the Training Department.
