Take-Up / Pay-Out Reel Material Measurement With Alarm - DART Controls DM8000 CONTROL SERIES Instruction Manual

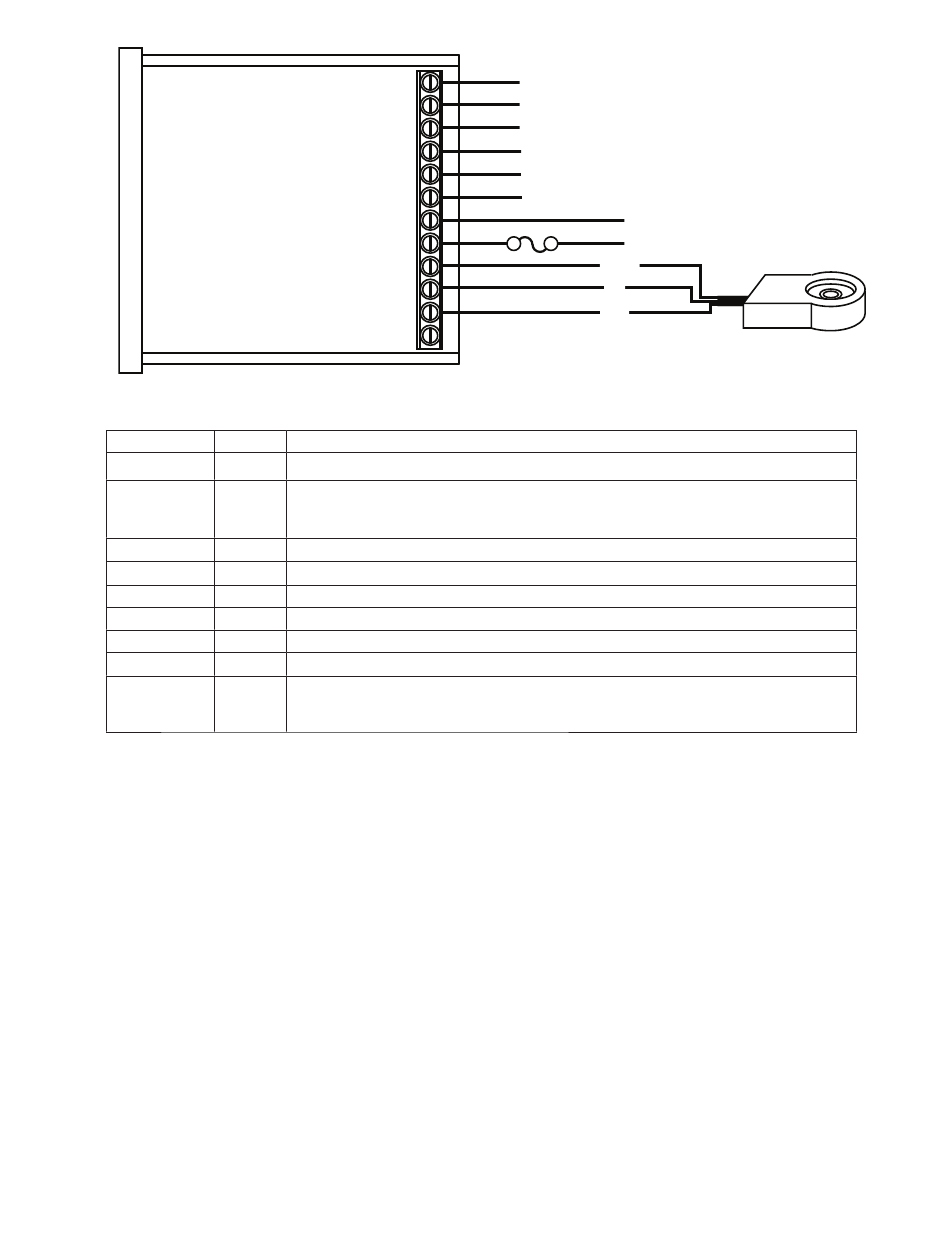

Wiring Diagram:
DM8000
Parameter Confi guration:
Parameter Value
10 2
20 555
21 1250
22 1
24 1
40 4
41 1
43 1
48 1350

Take-up / Pay-out Reel Material Measurement with Alarm

Description:
A take-up / pay-out system where the DM8000 displays a measurement of dispensed or
accumulated material in linear yards. Once the desired amount of material, 1500 yards,
has been dispensed or accumulated, an external light should illuminate to indicate that
the specifi ed material volume has passed. At this point, the user must be able to press
a button on the user interface to reset the count to zero and the process repeats.
NC2
P1-1
C2
P1-2
NO2
P1-3
NC1
P1-4
C1
P1-5
NO1
P1-6
N
P1-7
L
P1-8
COM
P1-9
+5V
P1-10
S1
P1-11
S2
P1-12
Time Mode Setting
Display should indicate 9:15 (555) when motor at Reference RPM, parameter 21. In
time mode, all display values are entered in total number of seconds.
For example, 555 = (9 minutes * 60 seconds-per-minute) + 15 seconds.
This is the RPM at which the Display Reference, parameter 20, should be displayed.
Pulses per revolution of shaft encoder or pickup is 1 PPM
Display fi ltering / averaging set to 1 seconds
Alarm active when display value is above upper limit
Constant alarm output with automatic reset
Flash display when alarm output is active
Upper limit setting for 22 minutes and 30 seconds. In time mode, all limits are entered
in total number of seconds.
For example, 1350 = (22 minutes * 60 seconds-per-minute) + 30 seconds.
Not Used
Not Used
Not Used
Not Used
Not Used
Not Used
}
2 Amp
AC Line Input 85-250VAC, 50-60 Hz
black
red
white
Notes
23
Dart PU-2E or
Equivalent
Encoder
