DART Controls DP4 Control Series Instruction Manual

Digital speed potentiometer with display for ac and dc drives
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

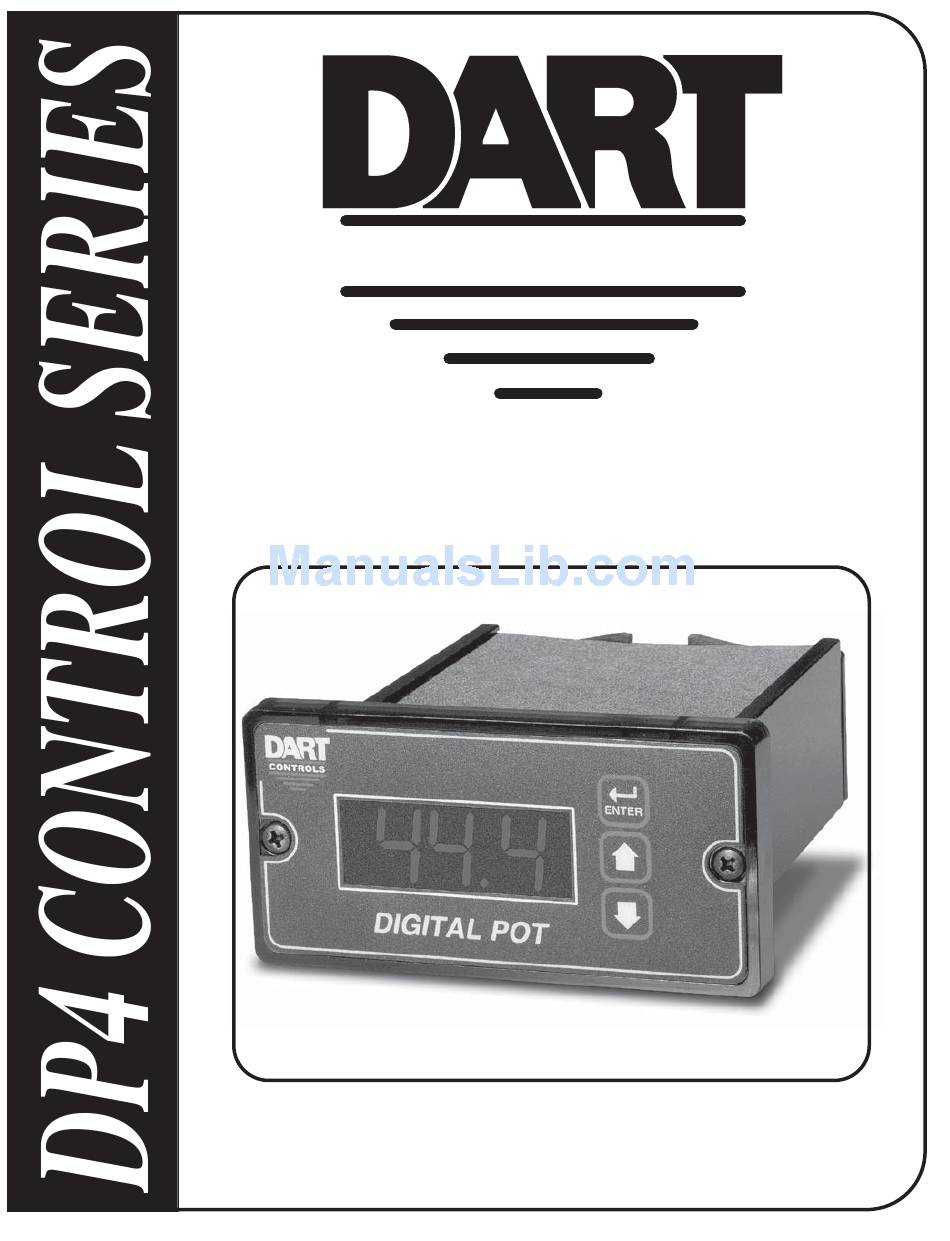

CONTROLS
Instruction Manual
DIGITAL SPEED POTENTIOMETER WITH DISPLAY
FOR AC AND DC DRIVES
P.O. Box 10
Phone (317) 873-5211
5000 W. 106th Street
Fax (317) 873-1105
Zionsville, Indiana 46077
www.dartcontrols.com
LT78 (0817)
A-5-3462D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP4 Control Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DART Controls DP4 Control Series

Summary of Contents for DART Controls DP4 Control Series

  • Page 1 CONTROLS Instruction Manual DIGITAL SPEED POTENTIOMETER WITH DISPLAY FOR AC AND DC DRIVES P.O. Box 10 Phone (317) 873-5211 5000 W. 106th Street Fax (317) 873-1105 Zionsville, Indiana 46077 www.dartcontrols.com LT78 (0817) A-5-3462D...
  • Page 2 Warranty Dart Controls, Inc. (DCI) warrants its products to be free from defects in material and workmanship. The exclusive rem- edy for this warranty is DCI factory replacement of any part or parts of such product which shall within 12 months after delivery to the purchaser be returned to DCI factory with all transportation charges prepaid and which DCI determines to its satisfaction to be defective.

  • Page 3: Table Of Contents

    Table of Contents Introduction ............................2 General Features ..........................2 Models & Options ..........................3 Model Options ..........................3 Available Options .......................... 3 Specifications ........................... 3 Electrical ............................3 Mechanical ........................... 3 Environmental ..........................3 Cut-out and Mounting Dimensions ....................4 Mechanical Installation ........................

  • Page 4: Introduction

    Utilizing Dart's new modular bus design techniques, the DP4 series is ideal for volume OEM applications requiring specialized inputs and outputs. Contact Dart Controls' Sales Department for details. This flexibility makes the DP4 series ideal for applications such as:...

  • Page 5: Models & Options

    Models & Options Model Options Pickup or Input Voltage Model Output Voltage Encoder @ 50 - 60Hz Required? 0-2 VDC 85-265VAC THROUGH 0-24 VDC Available Options Option Suffix Description Example Expansion board which adds support for remote push button wiring via a DP4-1 European-style terminal block.

  • Page 6: Cut-Out And Mounting Dimensions

    Mechanical Installation Exploded Panel View PANEL MOUNTING GASKET (WITH THE ADHESIVE SIDE OF CUSTOMER GASKET FACING THE CUSTOMER MOUNTING PANEL MOUNTING PANEL) (HOLE CUT-OUT FOR CONTROL HOUSING APPROXIMATELY 3.622" WIDE BY 1.770" HIGH) CONTROL SUPPLIED WITH EACH CONTROL: 1) GASKET 2) (2) 6-32 X 3/4 PANHEAD BLACK OXIDE STAINLESS SCREWS 3) (2) #6 NUT WITH LOCKWASHER Cut-out and Mounting Dimensions...

  • Page 7: Installation & Diagrams

    Installation & Diagrams P1 Terminal Block Hook-Up Diagram AC INPUT P1-1 2 AMP 85-265VAC P1-2 AC INPUT P1-3 HIGH OUTPUT Connect to the speedpot of the control being driven. P1-4 WIPER OUTPUT High must be positive voltage with respect to low. P1-5 LOW OUTPUT P1-6...

  • Page 8: Option Wiring

    -1 Option Wiring The -1 option board is a module which allows external up and down push buttons to be wired to the unit. These buttons operate exactly like the Up and Down buttons on the user interface. This module is commonly used to allow PLCs or hand-held pendants to operate the front-panel remotely.

  • Page 9: How To Change A Parameter's Value (The Short Story)

    How to Change a Parameter's Value (The Short Story) 1. Hold down the Enter button until Parameter-Selection Mode is entered 2. Using the Up and Down buttons, select the desired parameter number to view or edit 3. Press the Enter button to change the value of the parameter 4.

  • Page 10: Detailed Configuration Instructions

    Detailed Configuration Instructions Default Configuration When shipped from the factory, the following basic settings are in place: Rate Mode Operation in % Units Unipolar Output without Deadband Decimal Point Display: XXX.X Display Range: 0 - 100.0 Output Range: 0 - 100% of Applied Pot High Voltage Signal Input 1 (S1) Mode: Force Output to 0% when Low Signal Input 2 (S2) Mode: Force Output to 0% when Low Alarm Output: Disabled...

  • Page 11: Software Parameters

    Software Parameters Value Range Factory User Parameter Description (units) Default Settings Selecting this item exits to Running Mode Read-Only Parameters Model Number 40 – DP4 Unit Software Build 1 – 9999 Hardware Version 1 – 9999 Serial Number – Major (reserved) Serial Number –...
  • Page 12 Software Parameters, cont'd Value Range Factory User Parameter Description (units) Default Settings Signal Input #1 (S1) Setup S1 Input Configuration 1 – Output 0% When S1 Low 2 – Output 0% When S1 High 3 – Output Setpoint When S1 Low 4 –...

  • Page 13: Parameter Descriptions

    Parameter Descriptions Parameter 0 – Exit to Running Mode When parameter 0 is selected in Parameter-Selection Mode, the unit will return to Running Mode and display the running value. This should be selected once the changes to the parameters are completed. Parameter 1 –...
  • Page 14 Parameter 13 – Decimal Point (DP) Position This selects the format of the display with respect to the decimal point’s position. This parameter does not affect the value entry for other parameters. The decimal point is only displayed in Rate modes.
  • Page 15 Parameter 22 – Display Value at Center Output This defines the center value for the display in bipolar (or bidirectional) modes of operation. In bipolar applications, this value should be set to the display value that corresponds to a null or zero output.
  • Page 16 Mode 3: Ouput Setpoint When S1 Low When the S1 input is at an electrically low state or wired to the unit's common, the DP4 will force its output to a percentage which corresponds to the programmed jog setpoint, parameter 31. Once the S1 input returns to an electrically high (+5V) state or allowed to float disconnected, the output will once again correspond to the display value.
  • Page 17 Mode 6: Output 100% When S2 High When the S2 input is at an electrically high (+5V) state or allowed to float disconnected, the DP4 will force its output to 100%. Once the S2 input returns to an electrically low state or wired to the unit's common, the output will once again correspond to the display value.
  • Page 18 Mode 3: Pulse & Auto Reset In this mode, the alarm output will pulse on and off until the alarm condition ceases to exist. The pulsed modes are commonly used for audible alarms where a constant output would be considered distracting or awkward. The alarm will automatically reset when the conditions return to normal.
  • Page 19 Parameter 48 – Alarm 1 Upper Limit This setting defines either the upper limit or upper end of a range for the alarm region. Alarm limits are set in display units without regard to decimal point or colon position. In Rate Mode, a limit of 123 could represent a display value of 123, 12.3, 1.23, or 0.123.

  • Page 20: Application Examples

    Application Examples User Interface for Industrial Conveyor Oven with AC Drive Description: An industrial tunnel oven currently uses an AC invertor drive with an attached speedpot to control the motor which drives its train. Because the process time for the oven is known, it is preferred that the user be able to set the process time in minutes and seconds on a digital display.

  • Page 21: Digital Front Panel For Regenerative Industrial Treadmill

    Wiring Diagram: P1-1 *FUSE AC Line 85-265VAC, 50-60 Hz P1-2 Partner P1-3 +10V Ref. Variable- Motor Frequency P1-4 Input Control Control P1-5 -10V Ref. P1-6 P1-7 NOT USED Speed 1 P1-8 Manual P1-9 Speed Selector Switch Speed 2 (3-Position) P1-10 NOT USED P1-11 P1-12...
  • Page 22 Application Diagram: Belt Analog Regenerative Control Treadmill Motor Enable Switch Jog Switch Enable Disable CONTROLS Page Valu Tach 12.4 Alarm ENTER DIGITAL POT Dart DP4 Control Wiring Diagram: P1-1 *FUSE AC Line 85-265VAC, 50-60 Hz P1-2 Partner P1-3 +10V Ref. Analog Control P1-4...

  • Page 23: Programmable Digital Voltage Source With Enable Switch

    Parameter Configuration: Parameter Value Notes Output mode set to rate bipolar to support +/-10V regenerative drive Zero-blanking set to 2 digits Decimal point position set to XXX.X on display Power-up display value set to default at 0.0 Display minimum set to -12.0 Display maximum set to 12.0 Display center set to 0.0 Set output minimum to 0% (-10V)
  • Page 24 Wiring Diagram: P1-1 *FUSE AC Line Input 85-265VAC, 50-60 Hz P1-2 P1-3 P1-4 0-5V Output Voltage P1-5 to Device Under Test P1-6 P1-7 Enable Switch P1-8 120VAC Illuminated Pylon-Style P1-9 NOT USED Alarm P1-10 P1-11 P1-12 NOT USED * Size fuse according to unit and application. See electrical specifications for maximums.

  • Page 25: Troubleshooting

    When doing this, the relay click should be audible and the NC (Normally Closed) and C (Common) terminals should become internally shorted at the terminal block. Technical Support Options • Visit the Dart Controls Web Site at: www.dartcontrols.com • Email technical support at: sales@dartcontrols.com •...
  • Page 26 - Notes -...
  • Page 27 - Notes -...
  • Page 28 Other Stock Items Available Stock # 5JJ58 Stock # 2M510 Stock # 6Z386A Stock # 6Z385A Stock # 6Z388B 1/40 - 2/3 Hp 1/50 Hp - 1.0 Hp 1/50 - 2 Hp 1/50 Hp - 2.0 Hp 1/4 - 2 Hp NEMA 4 Enclosed Open Chassis SCR NEMA 4/4X...
