AMX NXB-CCG-K NetLinx Clear Connect Installation Manual

Overview

The NXB-CCG-K NetLinx Clear Connect Wireless Gateway (FG2606-868) connects NetLinx
Controllers with Lutron's Clear Connect Occupancy Sensors. The Gateway includes a web
interface for simplified integration, configuration, and programming of Clear Connect
devices. When integrated with an AMX NetLinx Controller, installers now have a simple and
cost-effective path to offer smart room automation that includes light and AV control from a
single interface, occupancy sensing, scheduled shutdown and energy management.
Ethernet LED
RF LED
Power/Status LED
CAT5 Cable
Port

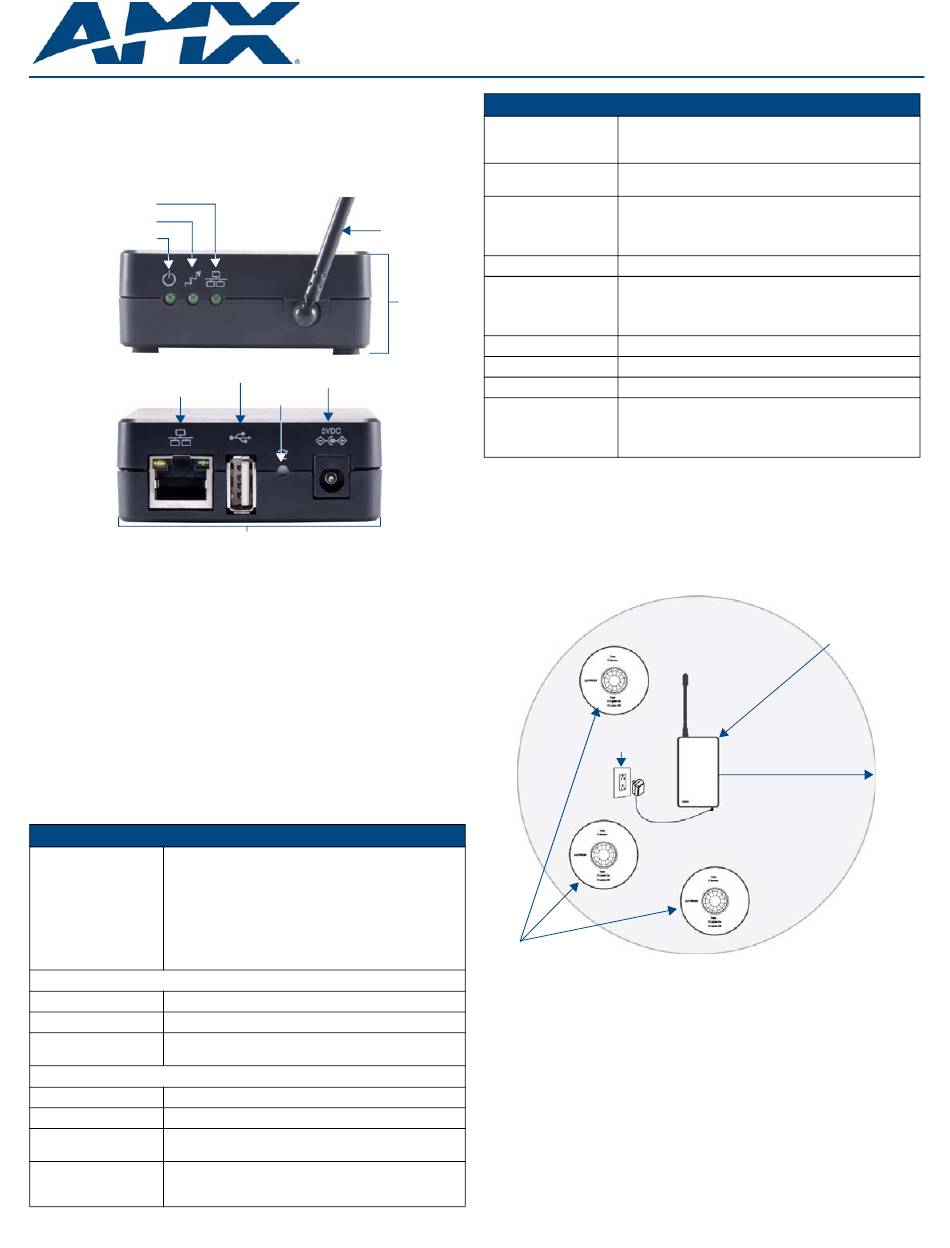

FIG. 1
NXB-CCG-K ClearConnect Wireless Gateway

Common Applications

The NXB-CCG-K is ideal for new and retrofit applications looking for the least costly way to
add AV control to a room. The NXB-CCG-K is designed to interface with Lutron's Clear
Connect Occupancy Sensors.

Features

• Clear Connect Enabled – Lutron's patented RF Technology uses a quiet band that is
essentially free of interference, ensuring reliable communication between system
devices
• Create Light & Control Events with Room Occupancy – Use the Clear Connect
Wireless Occupancy Sensor with RMS to automatically power-up and shut down the
lights and AV equipment to maximize energy conservation
• Simple Web Configuration – Browse to the NetLinx Clear Connect Gateway URL to
quickly add Clear Connect Enabled Occupancy/Vacancy Sensors
The NXB-CCG-K can control up to 31 devices at a time, and can configure up to ten devices
at a time up to that maximum through its Web Interface Pages.

Product Specifications

NXB-CCG-K (FG2606-868) Specifications
Power Requirements: • Power Input: 600mA @ 5VDC, DC adapter optional
(5V DC, 3A).
• Surge Protection: To withstand surge voltages without
damage or loss of operation, in accordance with IEEE
C62.41-1991 Recommended Practice on Surge Voltages in
Low-Voltage AC Power Circuits.
• Power Failure Memory: Should power be interrupted, the
NXB-CCG-K will return to its previous state when power is
restored.

Front Panel Components:

Power/Status LED: Displays power status and other system status indicators.
RF LED: Displays the Tx / Rx activity on the RF link.
Ethernet LED: Displays the connection status and Tx / Rx activity on the
Ethernet link.

Rear Panel Components:

CAT5 Cable Port: Maximum cable length: 328 ft (100 m)
USB Cable Port: Manufacturer use only.
Reset Button: Press and hold for 20 seconds to restore the system to the
Factory Default settings.
Power Jack: (IEC PELV / NECR Class 2). This product should be
connected to a safety isolating supply conforming with
EN61558.
NXB-CCG-K
Antenna
USB Cable
5VDC Power
Port
Jack
Reset
Button
2.56"
(65.1 mm)
NetLinx® Clear Connect™ Gateway
NXB-CCG-K (FG2606-868) Specifications (Cont.)
Operating Environment:
ESD Protection:
Communications:
Auto Discovery:
Dimensions (HWD):
1"
(25.4 mm)
Weight:
Certifications:
Included Accessories:
Other AMX Equipment:

Important Notes

Proper orientation of the antenna helps ensure maximum range and the best performance.
The NXB-CCG-K should be positioned centrally to the devices being controlled, and as high
and clear of obstructions as possible. The NXB-CCG-K utilizes an omni-directional antenna,
which produces a circular pattern perpendicular to the antenna. For best performance, the
antenna should be positioned vertically (tip up or down, not sideways). Try to keep the
antenna at least 2 feet from metallic objects.
RF Device Placement: All dimmers, switches, keypads and shades / draperies must be
located within 30 ft (9 m) of the NXB-CCG-K (FIG. 2).
Lutron Occupancy Sensors
FIG. 2 RF Configuration of NXB-CCG-K and Occupancy Sensors
Codes: Install in accordance with all local and national electrical codes.
WARNING: Using a DC adapter not rated at the proper specifications could damage the
NXB-CCG-K.
Cleaning: To clean, wipe with a clean damp cloth. DO NOT use any chemical cleaning
solutions.

Installation Guide

• 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity,
non-condensing.
• Indoor use only.
ESD protection to withstand electrostatic discharge without
damage or memory loss, in accordance with IEC 61000-4-2.
• The NXB-CCG-K communicates to other Clear Connect
devices through RF.
• All devices must be located within 30 feet (9 m) of the
NXB-CCG-K.
Supports the ZeroConf auto discovery protocol.
• Without antenna: 1" x 2 9/16" x 4 7/16"
(25.4 mm x 65.1 mm x 112.7 mm)
• With antenna: 3 2/16" x 2 9/16" x 4 7/16"
(79.4 mm x 65.1 mm x 112.7 mm)
0.3 lbs (136.08 g)
• CE
• NXB-CCG-K Installation Guide (93-2606-68)
• CCD3-OCRB-P-WH, 868 MHz Ceiling Mount Occupancy/
Vacancy Sensor (FG2606-44-WH)
• PS-CCG 5 VDC, 3A Power Supply With 2.1mm Barrel
Connector (FG423-61)
Power Source
30 feet (9 m) maximum
NXB-CCG-K
Note: Antenna
position for clarity
only. Antenna should
always be installed
upright.
