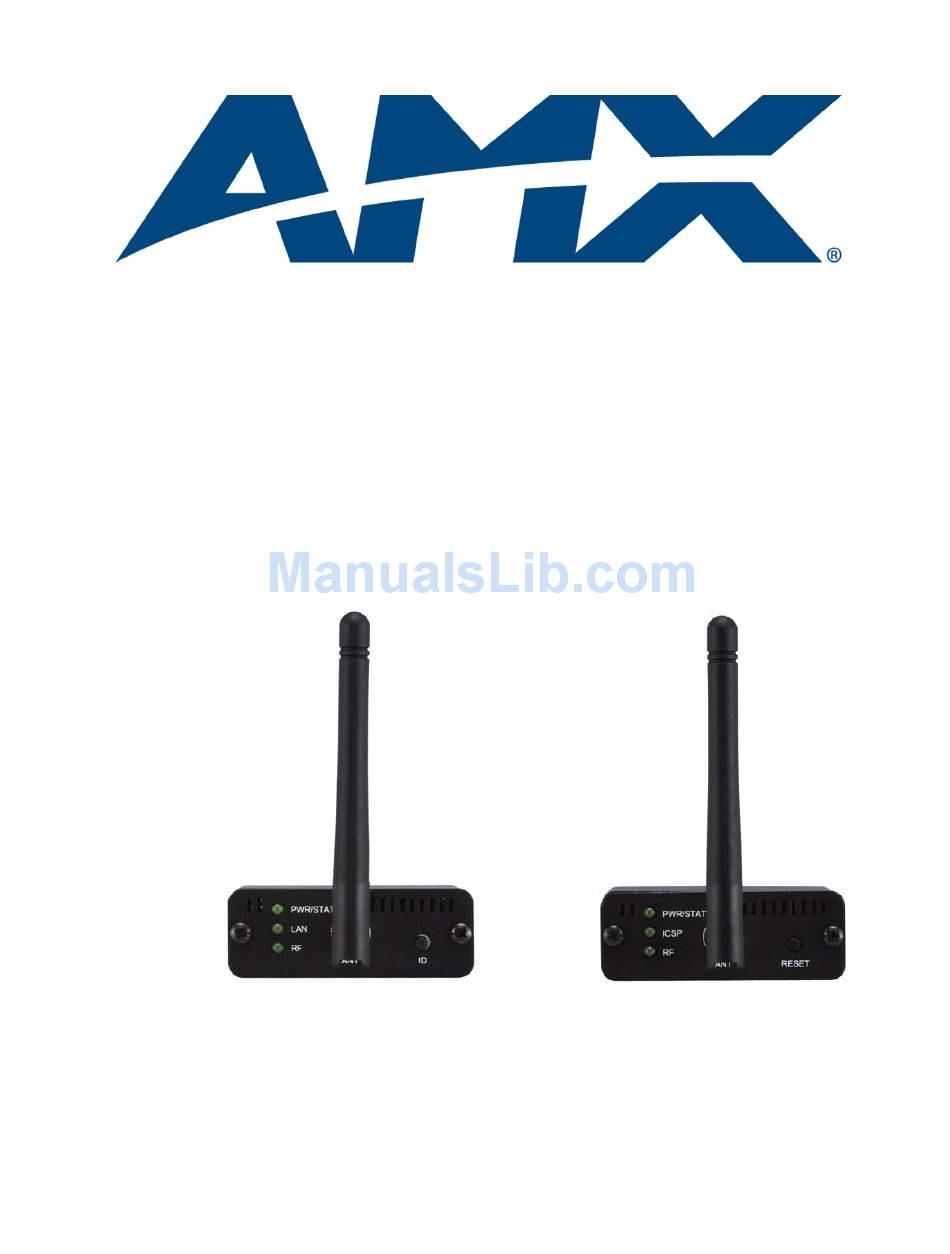

- Page 1 Operation/Reference Guide NXR-ZGW-PRO NetLinx ZigBee Pro Gateway NXR-ZRP-PRO NetLinx ZigBee Pro Repeater L a s t u p d a t e d : 2 / 1 4 / 2 0 1 2 C o n t r o l S y s t e m A c c e s s o r i e s...
-
Page 2: Nxr-Zgw-Pro Netlinx Zigbee Pro Gateway
The NXR-ZGW-PRO NetLinx ZigBee Pro Gateway (FG5791-11) is an Ethernet to ZigBee wireless gateway, designed as the center of a ZigBee Pro network. The NXR-ZGW-PRO features a 10/100BaseT, auto- negotiating Ethernet port capable of Power over Ethernet (PoE), 16 Mbytes of Flash, 16 Mbytes of SDRAM, and a ZigBee Pro transceiver, and is controlled via a web server interface. - Page 3 10/100BaseT modular (RJ-45) connector - used to connect the Ethernet port NXR-ZGW-PRO to your LAN and/or to connect your third party device to the LAN when the NXR-ZGW-PRO is used as a gateway. Certifications: •...
-
Page 4: Nxr-Zrp-Pro Netlinx Zigbee Pro Repeater
• RF - The LED blinks when RF is active and is off when RF is inactive. Antenna Mount A reverse SMA connection that supports a 2.4GHz antenna. Reset Button Press and hold for approximately 10 seconds to return the NXR-ZRP-PRO to factory default settings. NXR-ZGW-PRO NetLinx ZigBee Pro Gateway & NXR-ZRP-PRO NetLinx ZigBee Pro Repeater... - Page 5 It’s Your World - Take Control™ 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com...
