AMX NXR-ZGW-PRO Installation Manual

Overview
The NXR-ZGW-PRO (FG5791-11) is an Ethernet to ZigBee wireless gateway,
designed as the center of a ZigBee Pro network. The NXR-ZGW-PRO features a
10/100BaseT, auto-negotiating Ethernet port capable of Power over Ethernet
(PoE), 16 Mbytes of Flash, 16 Mbytes of SDRAM, and a ZigBee Pro transceiver,
and is controlled via a web server interface.
Connection LEDs
PWR/STATUS
LAN
RF
(Front)
Antenna Mount
10/100BaseT Modular
(RJ-45) connector
ETHERNET
PoE
(Rear)

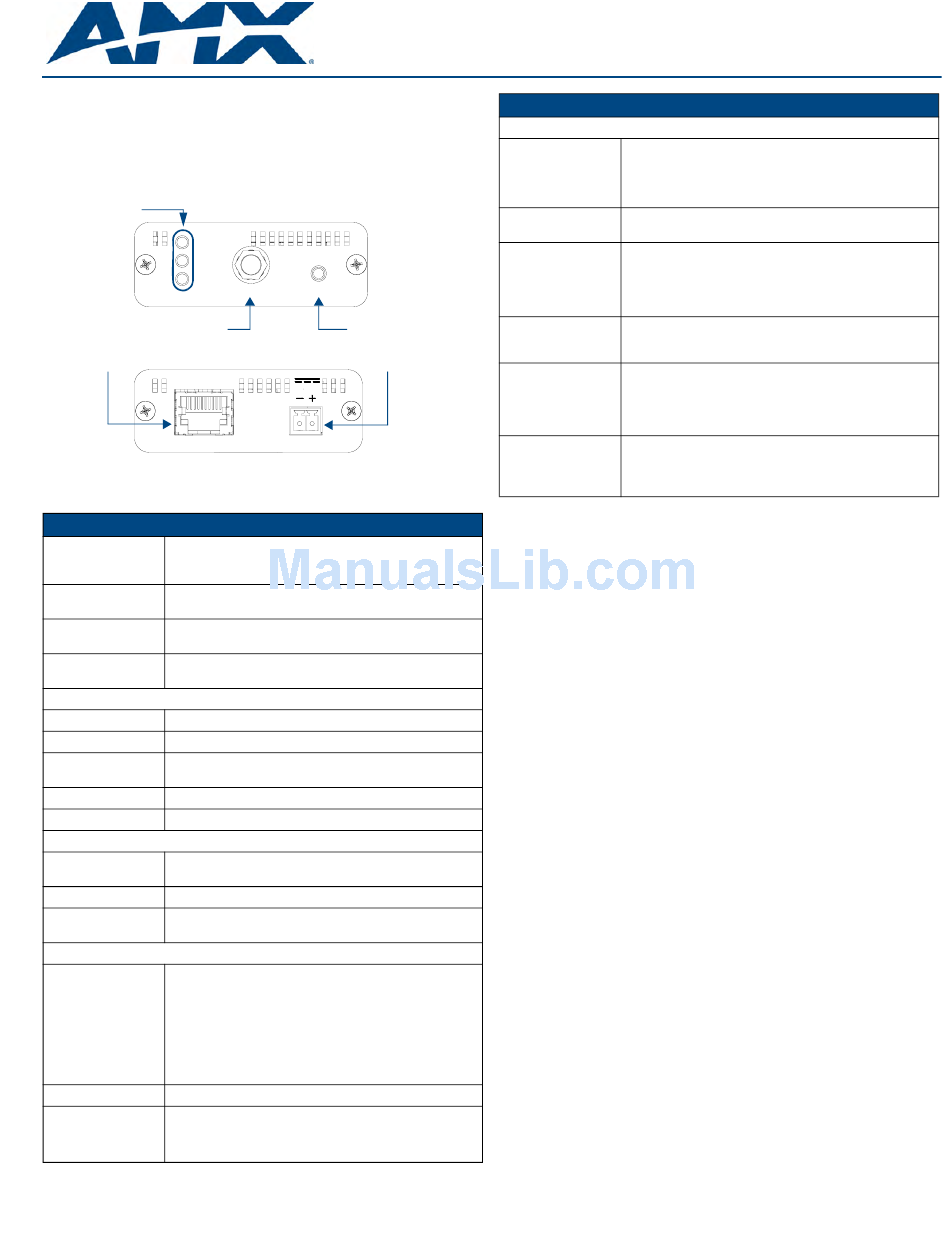

FIG. 1
NXR-ZGW-PRO (front and rear)
Specifications
NXR-ZGW-PRO (FG5791-11) Specifications
Dimensions (HWD): 4.50" x 2.50" x 0.94"
(114.30 mm x 63.50 mm x 23.81 mm)
Note: length does not include antenna
Weight: • Without Antenna: 0.35 lbs (158.75g)
• With Antenna: 0.40 lbs (181.44g)
Power: • 10.5 - 18 VDC; (13.5 VDC nominal operation voltage)
• Power over Ethernet (PoE) Class 2
Memory: • 16 Mbytes of Flash
• 16 Mbytes of SDRAM
Radio Specifications:
Frequency 2.4GHz
Operating channels 11 - 26
Modulation DSS
technique
Output power Region/country specific
Coverage area 165 feet (50.2m)
Firmware/Software Specifications:
Management Built-in browser-based management with User Name/
Password authentication
IP configuration Static IP or DHCP client (default is DHCP/Zeroconf)
Communications • ZigBee
• TCP/IP
Front Components:
LEDs • PWR/STATUS - Blinking green LED: the device is installed
and communicating properly. Power ON, but no master
connection, is indicated with a solid light, Power OFF is
indicated with no light.
• LAN - Green LED: Ethernet connection is established.
Blinking: indicates both sending and receiving information
via Ethernet.
• RF - Solid LED: end devices are connected; no LED: end
devices not connected; LED blinks to indicate activity.
Antenna Mount A reverse SMA connection that supports a 2.4GHz antenna.
ID Button • When used in conjunction with NetLinx Studio, sets the
device and system numbers for the NXR-ZGW-PRO.
Press and hold for approximately 30 seconds to return the
NXR-ZGW-PRO to factory default settings.
ANT ID
ID Button
2-pin 3.5mm captive
wire power connector
12VDC
PWR
NXR-ZGW-PRO
NXR-ZGW-PRO Specifications (Cont.)
Rear Components:
Power connector • 2-pin 3.5mm captive-wire connector
• Power Over Ethernet (PoE) - powers the device through
the CAT5 cable. Both Power and Data can be transmitted
simultaneous through the CAT5 cable when using the
appropriate equipment.
Ethernet port 10/100BaseT Modular (RJ-45) connector - connects the
NXR-ZGW-PRO to your LAN.
Certifications: • FCC ID: CWU-NXRZGWPRO
• IC ID: 5078B-ZGWPRO
• CE
• IEC-60950
• ZigBee Certified
Operating/Storage • Operating Temperature: -30°C (-22°F) to 70°C (158°F)
Environments: • Relative Humidity: 5% to 85% non-condensing; intended
for indoor use only
Included • Rubber feet
Accessories: • Velcro mounting strip
• 2.4GHZ, MONO, RSMA, 3.5IN, 2.0DBI Antenna
(70-0012-SA)
• Power Supply (24-5791-SA)
Other AMX Products: • Mio Modero R-3 Remote (FG148-03)
• Mio Modero R-4 Remote (FG148-04)
• NXR-ZRP-PRO ZigBee Pro Repeater (FG5791-03)
• AC-DIN-ZIGBEE DIN Rail Mounting Bracket (FG532-06)
Things To Consider Before Starting
Several factors will help decide the best place to install NXR-ZGW-PRO gateway
devices. Before installing, consider the following:
Location and Antenna Direction
The best location for NXR-ZGW-PRO devices are usually in the center of your
wireless network, with line of sight to all of your mobile devices. Try to place the
antenna in a position that can best cover your wireless network. Normally, the
higher you place the antenna, the better performance you receive.
Note: For minimal interference, try to keep any installed NXR-ZGW-PRO at least
10' (3.048m) from any WiFi access points.
NOTE (Mio R-3 or R-4 Users): Due to the wireless nature of the ZigBee
network, temporary interference (such as leaving a room or large objects
passing between the controller and its gateway device) may prevent a command
from reaching the NetLinx master. If this happens while increasing volume,
the master may receive the command to increase the volume but not the
command to stop increasing it. Therefore, programmers should consider
setting safeguards for volume control, either established volume limits or
timeouts with the NetLinx master or more interactive adjustment from the remote
(i.e., direct volume control), to prevent issues with lost commands.
For more information on installing a ZigBee network, please refer to the ZigBee
Installation Guide, available at www.amx.com.
Connecting Power to the NXR-ZGW-PRO
The NXR-ZGW-PRO receives power via either PoE or 2-pin 3.5 mm mini-captive
wire connection, the NXR-ZRP only utilizes the 2-pin 3.5 mm mini-captive wire
connection. If PoE is selected, the NXR-ZGW-PRO will draw power through the
CAT5 Ethernet cable at approximately 60mA at 48V. If the 2-pin 3.5 mm mini-
captive wire connector is selected, as in cases where the available power
through the Ethernet cable is insufficient for operation, the following steps are
necessary:
Preparing captive wires for the 2-pin 3.5 mm mini-captive wire
connector
You will need a wire stripper and flat-blade screwdriver to prepare and connect
the captive wires.
1. Strip 0.25 inch (6.35 mm) of wire insulation off all wires.
2. The PWR and GND cable from the 12 VDC power supply must be
connected to the corresponding location on the 2-pin 3.5 mm
mini-captive wire connector (FIG. 2).
3. Tighten the clamp to secure the two wires. Do not over-torque the screws.
Installation Guide
NetLinx ZigBee Pro Gateway
