8 X 8 Synchroshuttle Transmission - MASSEY FERGUSON 1648 Product Information Manual

FEATURES AND BENEFITS
®
MASSEY FERGUSON 1600 SERIES

8 x 8 SynchroShuttle Transmission

Available in the 1643, 1648, and 1655, this transmission provides an economical shuttle shift.
The two non-synchronized ranges and four non-synchronized gears present eight forward
and eight reverse speeds. Range and gear changes are made by fully depressing the clutch,
bringing the tractor to a complete stop and selecting the proper range/gear combination. The

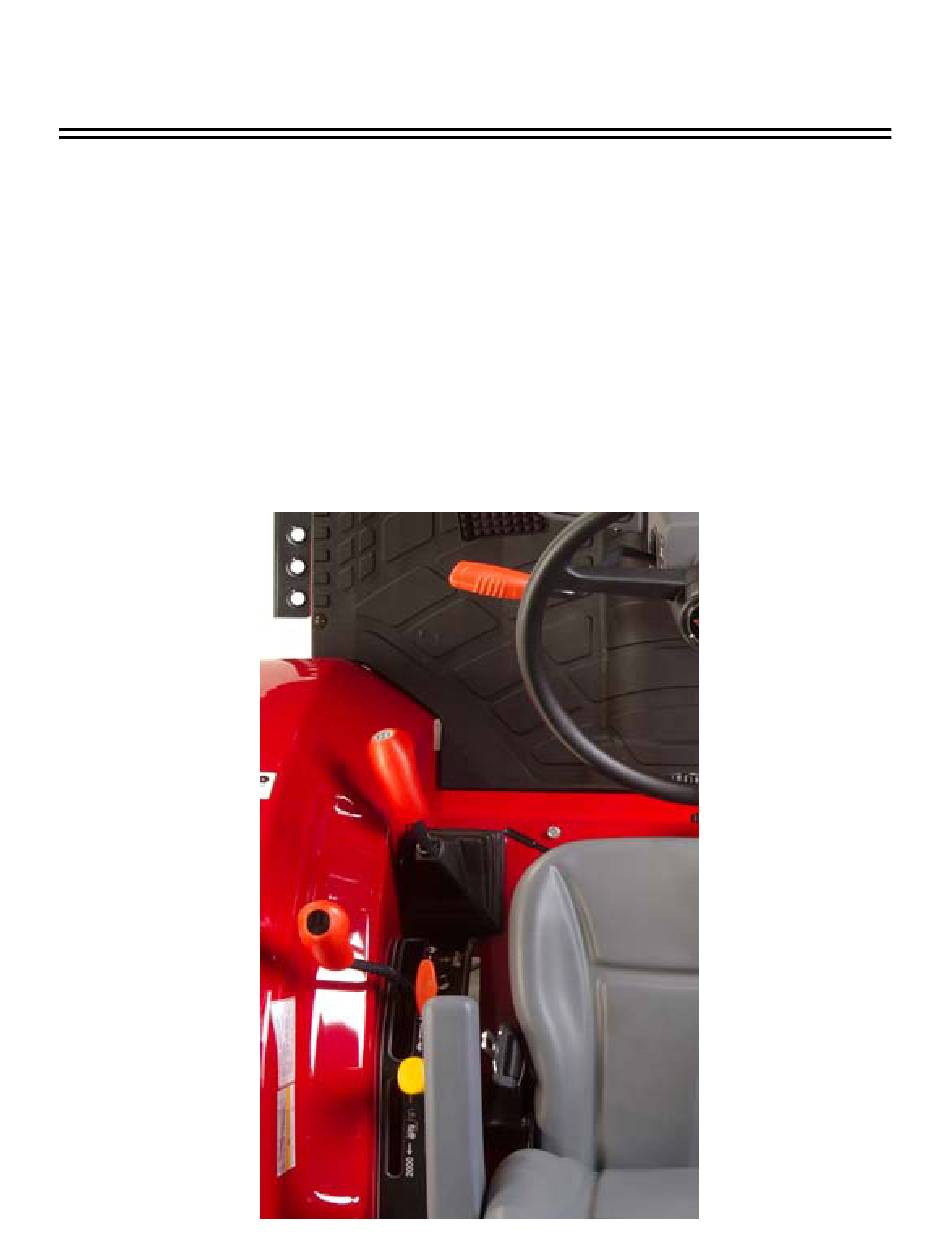

gear and range shift levers are located on the left control console.
To change the direction of travel depress the clutch pedal and move the shuttle lever forward
or backward. The shuttle is located on the left side of the steering column.
This transmission is great for applications where frequent changes in direction are required,
such as loader work.
220-4
