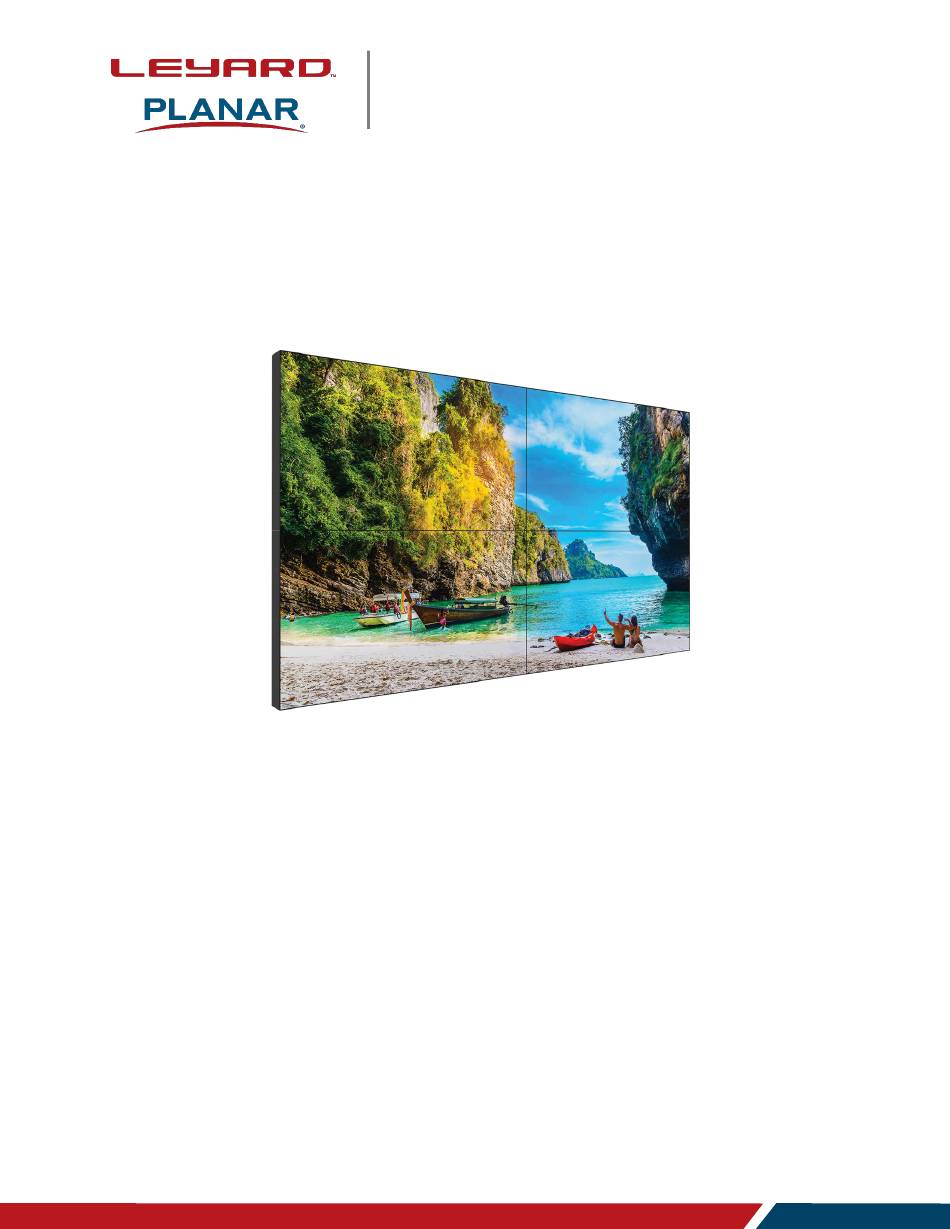

Planar VM Series User Manual
020-1357-00C
User Manual
Planar VM Series
VM55LX-U
VM55LX-X
VM55MX-X
Page | 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VM55LX-U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Planar VM55LX-U

Summary of Contents for Planar VM55LX-U

  • Page 1 User Manual Planar VM Series VM55LX-U VM55LX-X VM55MX-X Planar VM Series User Manual Page | 1 020-1357-00C...
  • Page 2 Copyright © October 2018 by Leyard Optoelectronics Co., Ltd. and Planar Systems, Inc. All rights reserved. This document may not be copied in any form without permission from Leyard or Planar. Information in this document is subject to change without notice.

  • Page 3: Table Of Contents

    VESA Mounts, General Description 4.1 Installing the Alignment Brackets ................10 Cleaning the Display Installing the Cable Clips Planar VM Series - Standard Inputs Before You Begin 8.1 Tools/Equipment List ....................19 8.2 Other Things You May Need ...................19 8.3 Plan Your Installation....................19 8.4 Prepare Your Installation Location ................20...
  • Page 4 Selecting the Input Source ................32 16.5 Navigating Through the Menus .................32 OSD Main Menu 17.1 Picture ......................33 17.2 Screen ......................37 17.3 Audio ........................39 17.4 Configuration 1 ....................41 17.5 Configuration 2 ....................44 17.6 Advanced Option ....................47 Planar VM Series User Manual Page | 4 020-1357-00C...
  • Page 5 By incorporating IPS panel technology, the result is outstanding viewing angles and contrast. The Planar VM Series features 55" Full HD LCD displays with tiled bezel widths of 1.8 or 3.5mm and 500 or 700-nit brightness. The Planar VM Series delivers high reliability to meet the demands of digital signage applications including retail, hospitality, universities, sports bars, corporate lobbies, casinos and museums.

  • Page 6: Safety Information

    Introduction Safety Information Before using the Planar VM Series, please read this manual thoroughly to help protect against damage to property, and to ensure personnel safety.  Be sure to observe the following instructions.  For your safety, be sure to observe ALL the warnings detailed in this manual.

  • Page 7: Important Safety Instructions

    9. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles and the point where they exit from any Planar large format LCD display. 10. Only use the attachments/accessories specified by the manufacturer.

  • Page 8: Recommended Usage

    The following models are warranted for 24 x 7 usage:  VM55LX-U  VM55LX-X  VM55MX-X Planar recommends turning off the power for 4 hours per day for optimal performance. For complete warranty details, please visit www.planar.com/warranty. Planar VM Series User Manual Page | 8 020-1357-00C...

  • Page 9: Important Waste Disposal Information

    Important Waste Disposal Information Please recycle or dispose of all electronic waste in accordance with local, state, and federal laws. Additional resources can be found online at http://www.planar.com/about/green/. The crossed-out wheelie bin symbol is to notify consumers in areas subject to Waste Electrical and Electronic Equipment (WEEE) Directive 2012/19/EU that the product was placed on the market after August 13, 2005 and must not be disposed of with other waste.

  • Page 10: Vesa Mounts, General Description

    VESA mounts are used to secure the Planar VM Series display. The display can be installed using a variety of VESA mounts available through Planar. If you do not have a VESA mount, and would like to purchase one, contact Planar.
  • Page 11 Introduction Alignment Bracket Hardware Installation: 2. Install the brackets as shown after the first row of panels have been installed. 3. Repeat step 2 for subsequent rows of panels. Planar VM Series User Manual Page | 11 020-1357-00C...
  • Page 12 Introduction 4. Install the brackets as shown for the bottom of the first row and the top of the last row. Planar VM Series User Manual Page | 12 020-1357-00C...

  • Page 13: Cleaning The Display

    If the surface requires additional cleaning, use LCD screen cleaner or LCD wipes, which are available at most electronics stores.  Do not let cleaner seep into the display, as it may cause electrical shock or damage. Planar VM Series User Manual Page | 13 020-1357-00C...
  • Page 14 One per box. DP Cable DP cable. AC Power North American Cord power cord. AC Power EU power cord. Cord IR Extender Used to receive Cable signals from the remote control. Planar VM Series User Manual Page | 14 020-1357-00C...
  • Page 15 Alignment Aligns the Brackets panels on the wall. M4 Screws, Used for Spacers and attaching the Washers alignment brackets. Remote Used to control Control the display (AAA batteries included). Planar VM Series User Manual Page | 15 020-1357-00C...
  • Page 16 Package Contents Part Description Number Picture Cable Clips Used to clamp and organize the cables. Quick Start Quick start Guide guide. Handling Handling guide. Guide Planar VM Series User Manual Page | 16 020-1357-00C...

  • Page 17: Installing The Cable Clips

    Use the cable clips included in the Accessory Kit to assist with cable management. These clips adhere into place using adhesive backing as shown in the image below. Attach clips near HDMI and AC power cables to assist with cable routing and to release cable strain. Planar VM Series User Manual Page | 17 020-1357-00C...

  • Page 18: Planar Vm Series - Standard Inputs

    Package Contents Planar VM Series - Standard Inputs Planar VM Series User Manual Page | 18 020-1357-00C...

  • Page 19: Before You Begin

    You should have a detailed plan of how the units are to be configured. The plan should include calculations for the following:  Power maximums reference below by display size: VM55LX-U: 5 units max per 20A circuit VM55LX-X: 6 units max per 20A circuit VM55MX-X: 4 units max per 20A circuit ...

  • Page 20: Prepare Your Installation Location

    4K @ 50/60Hz: 8m (25 ft) maximum  4K @ 24/25/30Hz: 15m (50 ft) maximum  1080p @ 60Hz and lower resolutions: 20m (65 ft) maximum DisplayPort  8m (25 ft) maximum Planar VM Series User Manual Page | 20 020-1357-00C...

  • Page 21: Unpacking

    Installing the Display Unpacking Each Planar VM Series display ships in its own box. The number of display cartons will vary depending on the video wall size. The LCD panel is extremely fragile due to its very thin bezel. As a result, it’s important that you unpack, handle and install each display with care. Powering on the panel before mounting is recommended to evaluate for transit damage.

  • Page 22: Thermal Expansion

    As a general rule, Planar recommends a gap of at least one business card’s thickness (approximately 0.375mm) between panels when installing LCD displays. If pinching is a concern prior to installing or when observing pinching after installation, increase the gap distance to the thickness of at least two business cards (approximately 0.75mm).

  • Page 23: Connecting External Equipment

    Connecting External Equipment 8.8.1 Connecting Multiple Displays in a Daisy-chain Configuration The Planar VM Series displays are designed to be installed in a daisy-chain configuration for video walls. Note: For larger video wall configuarions, a distribution amp is recommended. 8.8.1.1 Display control connection RS232 8.8.1.2 Digital video connection...
  • Page 24 Installing the Display 8.8.2 IR Connection Note: This display’s remote control sensor will stop working if the [IR IN} is connected. Planar VM Series User Manual Page | 24 020-1357-00C...

  • Page 25: Installing Ops Expansion (Optional)

    Installing the Display Installing OPS Expansion (Optional) ® Planar VM Series displays are equipped with an expansion slot that supports the Intel Open- Pluggable Specification (OPS). The slot supports OPS devices including PCs, SDI modules etc. To install an OPS device, remove the protective cover on the display and slide the device firmly into position.

  • Page 26: Installing Cosmetic Trim (Optional)

    Note: The cosmetic trim pieces are different for each edge, and in some cases the screw length may vary for some trim pieces. Take care to ensure that the proper trim piece is connected to the correct edge of the display. Planar VM Series User Manual Page | 26 020-1357-00C...

  • Page 27: Osd Keypad

    Audio Mute Input Source Selection Menu Right / Increase value / Volume + Menu Left / Decrease value / Volume -  Menu Up  Menu Down Menu Menu open / close Planar VM Series User Manual Page | 27 020-1357-00C...

  • Page 28: Led Indicators

    The LED indicator light is located on the rear of the display near the keypad. The following table explains what the different colors and blink patterns mean. LED On Power Status Condition Green Power on Standby Power save mode Red / Green Blinking IR codes received AC off Planar VM Series User Manual Page | 28 020-1357-00C...

  • Page 29: Using The Display In Flat Or Tilted Orientation

    Installations where the display is tilted downward or upward at an angle may also be prone to these issues and are not recommended. Note: Failure to follow these instructions will void the warranty. Planar VM Series User Manual Page | 29 020-1357-00C...

  • Page 30: Using The Remote Control

    0x00 0x6E [Yellow] 0x00 0x6F [Blue] 0x00 0x70 0x00 0x01 0x00 0x02 0x00 0x03 0x00 0x04 0x00 0x05 0x00 0x06 0x00 0x07 0x00 0x08 0x00 0x09 0x00 0x00 ID Set Enter Planar VM Series User Manual Page | 30 020-1357-00C...

  • Page 31: Pairing The Remote Control To The Display

    4. Test that the pairing is successful by pressing a remote control key, such as the HOME key. If the key is not accepted by the display, check the Monitor ID setting in the OSD matches the ID code selected on the remote control. Planar VM Series User Manual Page | 31 020-1357-00C...

  • Page 32: Basic Remote Functions

    ,,, and OK to navigate through the menus and 2. Within the menu, use adjust options. 3. Press BACK to return to the previous menu. To exit the menu system, press HOME. Planar VM Series User Manual Page | 32 020-1357-00C...

  • Page 33: Osd Main Menu

    Operating the Display 17. OSD Main Menu 17.1 Picture Planar VM Series User Manual Page | 33 020-1357-00C...
  • Page 34  Select gamma.  Options: Native, 1.8~2.60  Default: Native Color Temperature  Select color temperature.  Options: 3200K, 5500K, 6500K, 7500K, 9300K, Native, User 1, User 2  Default: Native Planar VM Series User Manual Page | 34 020-1357-00C...
  • Page 35 Range: 0~255  Default: 128 o Blue Gain    Adjust the amount of blue in bright content. Press to select the desired level.  Range: 0~255  Default: 128 Planar VM Series User Manual Page | 35 020-1357-00C...
  • Page 36 Default: Off Overscan  Adjust the zoom (overscan) of the image.  Options: Off, On  Default: Off Picture Reset  Reset all setting in the Picture menu to their default values. Planar VM Series User Manual Page | 36 020-1357-00C...

  • Page 37: Screen

    Range: 0~100  Default: 50 Phase    Adjust the phase of the displayed signal (VGA source only). Press to select the desired level.  Range: 0~100  Default: 50 Planar VM Series User Manual Page | 37 020-1357-00C...
  • Page 38  Note: This feature does not continually reacquire the signal. Screen Reset  Reset all settings in the Screen menu to their default values. Planar VM Series User Manual Page | 38 020-1357-00C...

  • Page 39: Audio

    Default: 50 Audio Out (Line Out)    Adjust the volume for the Line Out connector on the display. Press to select the desired level.  Range: 0~100  Default: 30 Planar VM Series User Manual Page | 39 020-1357-00C...
  • Page 40 Note: The Digital option cannot be selected for DisplayPort and the DisplayPort option cannot be selected for Digital. Audio Reset  Reset all settings in the Audio menu to their default values. Planar VM Series User Manual Page | 40 020-1357-00C...

  • Page 41: Configuration 1

    Options: Power Off, Force On, Last Status  Default: Last Status Panel Saving  Brightness o Automatically limit the backlight intensity in order to reduce power consumption. o Options: Off, On o Default: Off Planar VM Series User Manual Page | 41 020-1357-00C...
  • Page 42 The subnet mask used by the display’s network interface. Configurable if DHCP is set to Off.  DNS Address o The address of the DNS server used by the display’s network interface. Configurable if DHCP is set to Off. Planar VM Series User Manual Page | 42 020-1357-00C...
  • Page 43 Default: On Configuration 1 Reset  Reset all settings in the Configuration 1 menu to their default values. Factory Reset  Reset all settings in all menus to their default values. Planar VM Series User Manual Page | 43 020-1357-00C...

  • Page 44: Configuration 2

    17.5 Configuration 2 OSD Turn Off    Adjust the time in seconds before the OSD menu disappears. Press to select the desired level.  Range: Off, 5~120 seconds  Default: 45 Planar VM Series User Manual Page | 44 020-1357-00C...
  • Page 45   commands. See page 31 for more information. Press to select the desired level.  Options: 1~255  Default: 1 Heat Status  Read the internal temperature of the display. Planar VM Series User Manual Page | 45 020-1357-00C...
  • Page 46 Options: English, French, German, Spanish, Italian, Simplified Chinese, Traditional Chinese, Japanese, Portuguese  Default: English Configuration 2 Reset  Resets all settings in the Configuration 2 menu to their default values. Planar VM Series User Manual Page | 46 020-1357-00C...

  • Page 47: Advanced Option

    In most cases, this setting will not need to be changed from Auto.  Options: Auto, 1024x768, 1280x768, 1360x768, 1366x768  Default: Auto Planar VM Series User Manual Page | 47 020-1357-00C...
  • Page 48 Indicate the number of display horizontally in the tiled wall. o Options: 1~15 o Default: 1  V Monitors o Indicate the number of displays vertically in the tiled wall. o Options: 1~15 o Default: 1 Planar VM Series User Manual Page | 48 020-1357-00C...
  • Page 49 Off Timer    Force the display to enter standby mode after the specified period of time. Press to select the desired level.  Options: Off, 1~24 hours  Default: Off Planar VM Series User Manual Page | 49 020-1357-00C...
  • Page 50  Daylight Saving Time o Enable or disable Daylight Saving Time, and select the effective dates.  Date and Time o Displays the current date and time configured in the display. Planar VM Series User Manual Page | 50 020-1357-00C...
  • Page 51 Options: Sun, Mon, Tue, Wed, Thu, Fri, Sat o Default: None  Every Week o Indicate whether the schedule is for the current week only, or for every week going forward. o Options: Off, On o Default: Off Planar VM Series User Manual Page | 51 020-1357-00C...
  • Page 52  Options: Off, On  Default: Off Standby Mode  Select the behavior of the display in standby mode.  Options: Lower Power, Fast Startup  Default: Low Power Planar VM Series User Manual Page | 52 020-1357-00C...
  • Page 53 Update the display’s firmware from a USB flash drive. See the firmware upgrade instructions within the firmware package for more information. Advanced Settings Reset  Resets all settings in the Advanced Settings menu to their default values. Planar VM Series User Manual Page | 53 020-1357-00C...
  • Page 54 External Control External Control In addition to using the Planar VM Series remote control and display, there are other methods of controlling the Planar VM Series display externally:  Using a serial link to send binary commands and to receive responses to those commands.
  • Page 55 15.625 27.000 ITU-R BT.656, CEA-861-F Formats 21 & 22 EDTV 480p 59.940 31.469 27.000 x CEA-770.2, CEA-861-F Formats 2 & 3 576p 31.250 27.000 x ITU-R BT.1358, CEA-861-F Format 17 & 18 Planar VM Series User Manual Page | 55 020-1357-00C...
  • Page 56 CEA-861-F Format 97, 4:2:0 sub-sampling 3840x2160 135.000 594.000 x CEA-861-F Format 97 4096x2160 54.000 297.000 x CEA-861-F Format 98 4096x2160 56.250 297.000 x CEA-861-F Format 99 4096x2160 67.500 297.000 x CEA-861-F Format 100 Planar VM Series User Manual Page | 56 020-1357-00C...
  • Page 57 Support RGB 4:4:4 YUV 4:4:4 YUV 4:2:2 YUV 4:2:0 Video Timing Input Supported Supported Supported Supported 4K @ HDMI 1-2, 50/60Hz 4K @ 50/60Hz DisplayPort All Other Supported Timings All Inputs Planar VM Series User Manual Page | 57 020-1357-00C...
  • Page 58 Display Weight 64 lbs (29 kg) 58 lbs (27 kg) Mounting VESA 400mm x 400mm Fanless Speakers 10W x 2 built-in Usage Recommended Usage 24x7 Backlight D-LED Backlight Life 50,000 hours min Planar VM Series User Manual Page | 58 020-1357-00C...
  • Page 59 Min -4°F ~ Max 140°F (-20°C ~ 60°C) Storage Temperature Operating Min 32°F ~ Max 104°F (0-40°C) at up to 3000 m Temperature 20-85% RH Humidity FCC Class A, cTUVus, CE Approvals Planar VM Series User Manual Page | 59 020-1357-00C...
  • Page 60 Dimensions Dimensions VM55LX-U Planar VM Series User Manual Page | 60 020-1357-00C...
  • Page 61 Dimensions VM55LX-X and VM55MX-X Planar VM Series User Manual Page | 61 020-1357-00C...
  • Page 62 Perform the adjustments according to "Operating the Display" on page 27.  If the problem you are experiencing is not described below, or you cannot correct the problem, stop using the display and contact Planar’s Technical Support Department. See "Accessing the Planar Technical Support Website" on page 63. Issue Check for the following Make sure the correct source is selected.
  • Page 63 Accessing the Planar Technical Support Website Accessing the Planar Technical Support Website Go to http://www.planar.com/support/ to locate the following support documents and resources:  User Guide  RS232 User Manual  Standard Warranties  Planar support hotline number and email...
  • Page 64 / off, 30 cosmetic trim, 24 location, 20 mounts, 10 of display on a wall, 19 unpacking, 21 OPS, 23 planning, 19 IR remote key codes, 28 VESA mounts, 10 VM55LX-U Planar VM Series User Manual Page | 64 020-1357-00C...
  • Page 65 Index dimensions, 58 volume, 30 specifications, 56 VM55LX-X dimensions, 59 specifications, 56 warranty, 2, 8 VM55MX-X waste disposal, 9 dimensions, 59 specifications, 56 Planar VM Series User Manual Page | 65 020-1357-00C...
