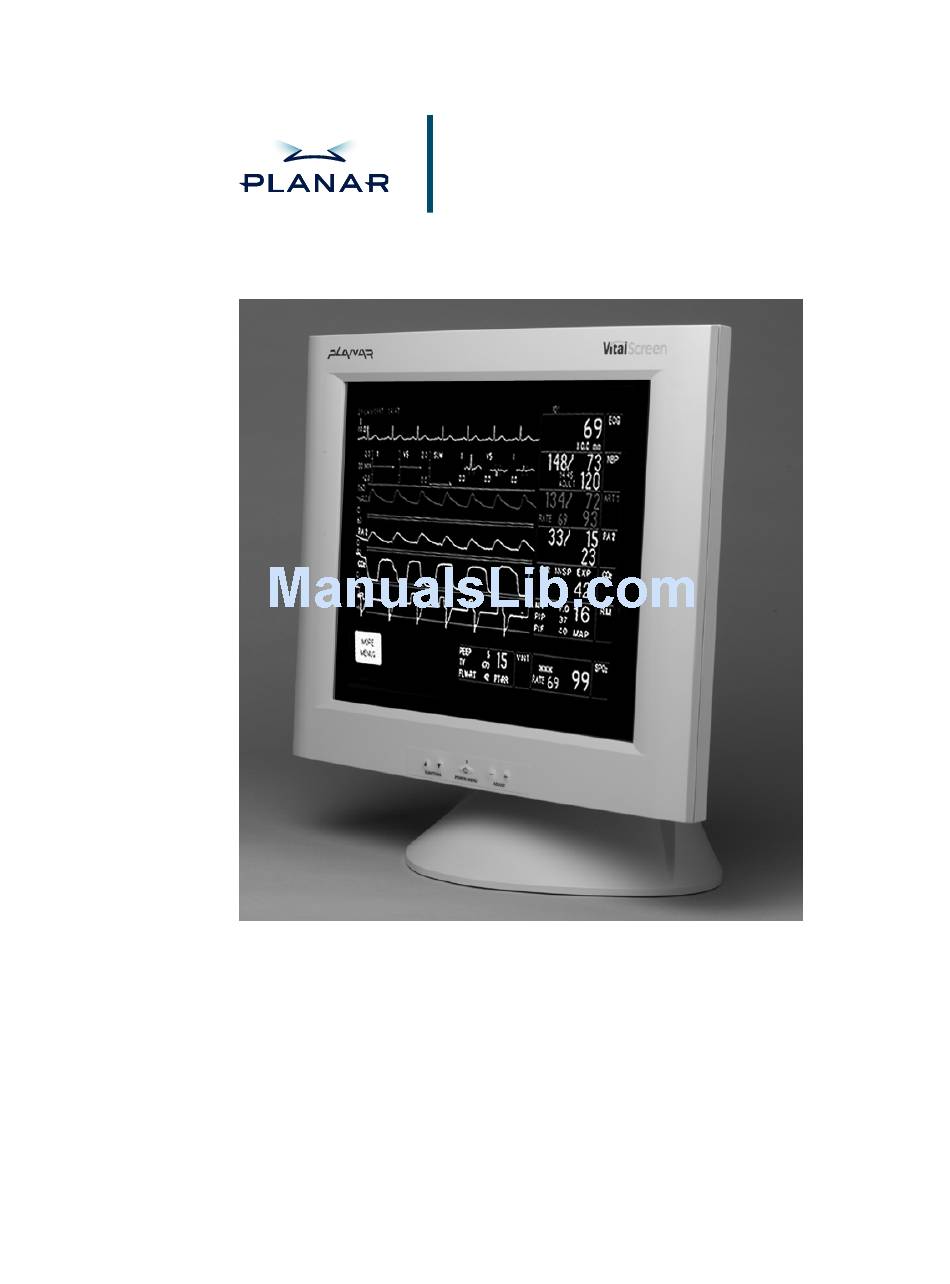

- Page 1 VitalScreen 17.4" Display VS17.4SXAD / CM17.4SXAD OPERATIONS MANUAL www.planar.com...
- Page 2 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. This document is subject to change without notice. Planar provides this information as reference only. Reference to other vendors’ product does not imply any recommendation or endorsement.
-
Page 3: Regulatory Compliance
IEC/EN 60601-1:1900 along with Amendments 1 and 2. To help the medical device designer evaluate the suitability of these displays, Planar has also conducted EMC testing to IEC 60601-1-2 as it can be applied. The display with its power supply alone does not represent a functional medical device. - Page 4 Planar Systems, Inc., located in Beaverton, Oregon, USA, is the manufacturer of these displays in the meaning of the directive. As required by the MDD in Article 14, Planar Systems, Inc., not residing in the European Economic Area (EEA), has a European representative, Planar Systems, Inc.Espoo, Finland.
-
Page 5: Fcc Compliance Statement
The Federal Communications Commission warns that changes or modifications of the unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. VS17.4SXAD / CM17.4SXAD 020-0168-00B... -
Page 7: Table Of Contents
Using the Onscreen Display ... Onscreen Display Main Menu ... S-Video and Composite Video Settings... Onscreen Display Lockout ... Supported CVBS and S-Video Modes... Appendix A: Technical Information Appendix B: Troubleshooting Index Description of Warranty Ordering Information VS17.4SXAD / CM17.4SXAD 020-0168-00B... -
Page 9: About This Manual
Congratulations on your purchase of the VitalScreen This operations manual will help you set up, use, and maintain the VS17.4SXAD or CM17.4SXAD model properly. Retain this manual for future reference. Read this section carefully to learn how to handle the display safely and clean it correctly. -
Page 10: Product Information
• Replace any cord or cable that is frayed or damaged with another of the same type and rating as supplied by Planar. (See “Ordering Information” at the end of this manual for part numbers.) The safety and regulatory listings and certifications... -
Page 11: Cleaning Instructions
Do not spray liquid cleaners directly onto the screen. Disposal Information The VitalScreen display contains cold cathode fluorescent lamps, which contain a maximum of 20 milligrams of mercury (5 milligrams per lamp). Follow local ordinances or regulations for its disposal. VS17.4SXAD / CM17.4SXAD 020-0168-00B Product Information | xi... -
Page 12: Symbol Explanations
Canadian and U.S. standards. The product has been tested to comply with FCC Class B standards. More information available in accompanying documents. Protective earth ground. The product has been tested to comply with Underwriters’ Laboratories standards. Indoor use only. VS17.4SXAD / CM17.4SXAD 020-0168-00B... -
Page 13: The Vitalscreen 17.4" Display
The Planar 17.4" display series, for the first time, consists of these two distinct versions: VitalScreen CSR and VitalScreen CR. Both displays have been designed for hospital use, but they have several differences. -
Page 14: Vitalscreen Csr
Many of the features and benefits that differentiate the VitalScreen CSR and VitalScreen CR displays are not visually apparent. The simplest way to identify your Planar display is to check the interface buttons on the front panel. Note these differences for the interface buttons: •... -
Page 15: Selecting A Workspace
• Documentation package including CD, operations manual in English, and EU Declaration of Conformity If you have questions about what comes with your display, compare the part number for the display with the ordering information on page 25. VS17.4SXAD / CM17.4SXAD 020-0168-00B The VitalScreen 17.4" Display | 3... -
Page 16: Identifying The Components
17.4" LCD screen LCD screen A 17.4-inch diagonal AMLCD. The screen supports most display standards from 640 x 480 VGA to 1280 x 1024 SXGA. VS17.4SXAD / CM17.4SXAD 020-0168-00B... -
Page 17: Front Panel
Power switch / Onscreen display Function buttons Adjustment buttons Power ON indicator VS17.4SXAD / CM17.4SXAD 020-0168-00B The VitalScreen 17.4" Display | 5 Dual function button to control display power and access the OSD menu. Press this button for 2 seconds to turn the display ON or OFF. -
Page 18: Back Panel
Connect the system VGA cable from the computer VGA output to this port for analog mode. Connect the system DVI cable from the computer DVI output to this port for digital mode. VS17.4SXAD / CM17.4SXAD 020-0168-00B... -
Page 19: Installing The Display
2 Plug the power connector of the adapter into the power port on the display. (Locate the locking 4-pin power connector on the back panel next to the USB downstream port.) 3 Insert the power cord into a grounded wall outlet. VS17.4SXAD / CM17.4SXAD 020-0168-00B... -
Page 20: Connecting The Display To The System
6 If VGA analog is used, select the Auto-Adjust menu on the onscreen display, if you are using VGA analog. (See “Onscreen Display Main Menu” on page 11.) Press the PLUS or MINUS ( activate it. / ) control to VS17.4SXAD / CM17.4SXAD 020-0168-00B... -
Page 21: Connecting A Video Device
9 millimeters. Forcing the screws deeper into the mounts and exceeding this maximum length may damage the display. VS17.4SXAD / CM17.4SXAD 020-0168-00B Installing the Display | 9 ) control to enter video mode. -
Page 22: Power Management System
4 Refer to www.portrait.com landscape to portrait mode. AC Input Power LED Status 60 watts maximum Steady green 5 watts maximum Blinking green 5 watts maximum Blinking green 5 watts maximum for software that allows conversion from VS17.4SXAD / CM17.4SXAD 020-0168-00B... -
Page 23: The Display Controls
Then use the Function buttons to select the desired function and the Adjustment buttons to make the needed changes. The available control functions are grouped into categories. The selected mode of operation (either analog or digital) determines the available categories. VS17.4SXAD / CM17.4SXAD 020-0168-00B... - Page 24 FW (firmware) version Switch to video input port. (Available with S-Video and Composite Video display) Support six different languages: English, Dutch, German, French, Spanish, Italian Port 1 analog, Port 2 digital Reset display Close the onscreen display VS17.4SXAD / CM17.4SXAD 020-0168-00B...
- Page 25 Native size H-position V-position H-size V-size Graphic/Text To main menu VS17.4SXAD / CM17.4SXAD 020-0168-00B Installing the Display | 13 Adjust the contrast level of the display Adjust the brightness of the display’s backlight Auto adjusts video level when selected Gamma curve adjustment, ranging from 0.85 to 1.15...
- Page 26 Audio volume adjustment Adjust the OSD position horizontally Adjust the OSD position vertically Shows the display mode Shows the firmware version Push this key… Function UP ( Function DOWN ( Adjust PLUS ( ) Adjust MINUS ( ) VS17.4SXAD / CM17.4SXAD 020-0168-00B...
-
Page 27: S-Video And Composite Video Settings
Audio volume Video → VGA Pressing and holding the Power/Menu button for more than 2 seconds turns off the display. VS17.4SXAD / CM17.4SXAD 020-0168-00B Installing the Display | 15 Adjust the contrast level of the display Adjust the brightness of the display’s backlight... -
Page 28: Onscreen Display Lockout
In the table on page 17, ‘A’ signifies analog mode and ‘D’ signifies digital mode. Also, if the input timing is close to one of the modes, generally it can be displayed by manually adjusting the clock and/or phase from within the OSD menu. VS17.4SXAD / CM17.4SXAD 020-0168-00B... - Page 29 VESA 1280x1024 VESA 1280x1024 VESA 1280x1024 1024x768 1024x768 1024x768 1024x800 1024x800 1152x900 1152x900 1280x1024 1280x1024 VS17.4SXAD / CM17.4SXAD 020-0168-00B Installing the Display | 17 Supported Video Modes Vertical Horizontal Scanning Scanning Dot Clock Frequency Frequency (MHz) (Hz) (kHz) 25.20 70.15 31.50...
-
Page 31: Appendix A: Technical Information
Nonoperating Humidity Operating Nonoperating Altitude Operating Nonoperating VS17.4SXAD / CM17.4SXAD 020-0168-00B Technical Information Specification 17.4-inch (442-mm) SXGA active matrix LCD Full color supporting 8-bits/color 18" x 18" x 8.5" (457 mm x 457 mm x 216 mm) 15" x 19.5" x 8.5" (381 mm x 495 mm x 216 mm) 20 lb (9 kg) 13.6"... -
Page 32: Appendix B: Troubleshooting
3 Turn the display off and then turn it back on. 4 Connect your system to another Planar 17.4 display, if one is available. If the system functions properly with the alternate display but not with the original display, and the original display’s power LED is blinking, the output timing of the computer’s video board may be out... -
Page 33: Index
7 instructions cleaning, xi safety, x landscape-to-portrait conversion, 10 LCD screen, 4 lockout, onscreen display, 16 VS17.4SXAD / CM17.4SXAD 020-0168-00B main menu, onscreen display, 11, 12 mechanical conversion, landscape to portrait, 10 menu function, 13 main, 11, 12... -
Page 35: Description Of Warranty
Planar, and to any drawings or specifications furnished to Planar by the Buyer if approved by Planar. This warranty shall be effective only if Planar receives notice of such defect or nonconformance during the period of the warranty. - Page 36 (503) 748-1493. You will need the unit’s serial number and a brief description of the problem to receive an RMA number. In Europe, call Planar Customer Service at +358 9 420 01 between 8 and 4 . Eastern European time, Monday through Friday, or fax your request to +358 9 420 0200.
-
Page 37: Ordering Information
VitalScreen Medically Certified Display with universal VESA mounting solution and U.S. power cord (resistive touch) VS17.4SXADVTR SXGA 17.4-inch video-equipped VitalScreen Medically Certified Display with universal VESA mounting solution and European power cord (resistive touch) VS17.4SXAD / CM17.4SXAD 020-0168-00B Part Number 996-0497-00 996-0497-01... - Page 38 VitalScreen CR CM17.4SXAD 17.4 SXGA VitalScreen CR (non-touch) with desk stand and U.S. power cord CM17.4SXAD 17.4 SXGA VitalScreen CR (non-touch) with desk stand and European power cord CM17.4SXAD-TR 17.4 SXGA VitalScreen CR (non-touch) with standard mounting (VESA compatible, 75 mm) and U.S.
- Page 40 North and South America Sales Planar Systems, Inc. 1195 NW Compton Drive Beaverton, OR 97006-1992 +1 (503) 748-1100 phone +1 (503) 748-1493 fax sales@planar.com tech_support@planar.com Europe and Asia-Pacific Sales Planar Systems, Inc. Olarinluoma 9, P.O. Box 46 FIN-02201 Espoo, Finland...
