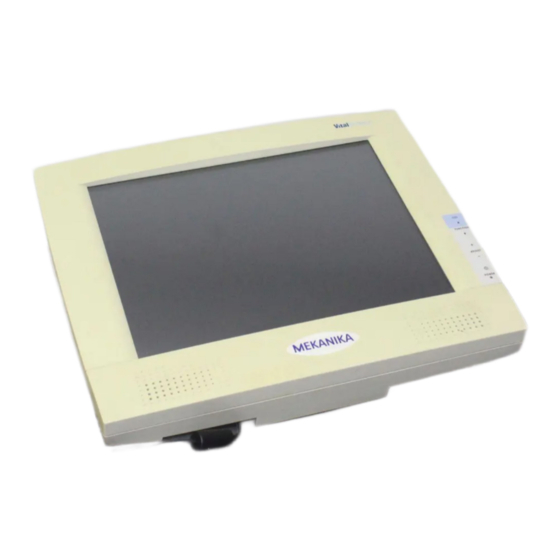

Planar VitalScreen VS15XAD Operation Manual
15" display
Hide thumbs
Also See for VitalScreen VS15XAD:
- Operation manual (37 pages) ,
- Operation manual (26 pages)
Subscribe to Our Youtube Channel
Related Manuals for Planar VitalScreen VS15XAD
Summary of Contents for Planar VitalScreen VS15XAD

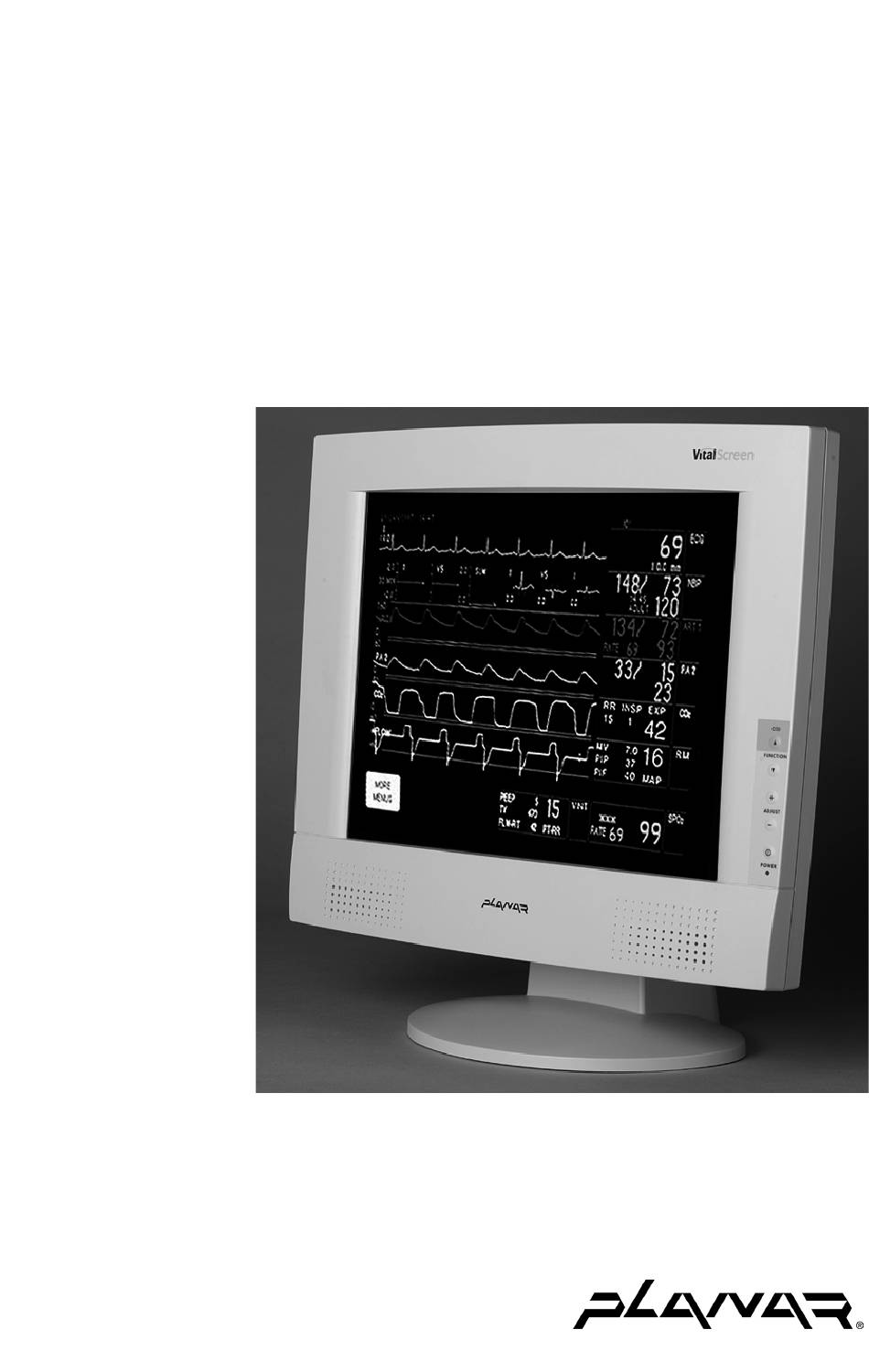

- Page 1 OPERATIONS MANUAL ™ VitalScreen 15" Display VS15XAD / VS15XAD-TR QUICK LINKS Contents Index About the Display Display Installation Display Controls Troubleshooting Ordering Parts Warranty...
- Page 2 Planar is a registered trademark and VitalScreen is a trademark of Planar Systems, Inc. DOCUMENT HISTORY...
-
Page 3: Table Of Contents
Contents Regulatory Compliance ......iv About This Manual ......v Product Information . -
Page 4: Regulatory Compliance
(EMC) laws. Planar Systems, Inc. has made great efforts to support the medical device industry, in particular, medical device manufacturers and medical device system integrators. -
Page 5: About This Manual
Planar Systems, Inc., located in Beaverton, Oregon, USA, is the manufacturer of these displays in the meaning of the directive. As required by the MDD in Article 14, Planar Systems, Inc., not residing in the European Economic Area (EEA), has a European representative, Planar Systems, Inc.—Espoo, Finland. -
Page 6: Product Information
• Replace any cord or cable that is frayed or damaged with another of the same type and rating, as supplied by Planar. The safety and regulatory listings and certifications are based on the cable supplied by Planar. - Page 7 Cleaning The VS15XAD VitalScreen continues to operate while being cleaned in instructions a fashion normal for a hospital environment. This means cleaning the display with a damp, mild soapy cloth. Drip protection is provided in accordance with IPX1 rating defined in the IEC/EN60529 standard. The VitalScreen withstands nonabrasive cloths and cleaning solutions used in hospital for like equipment.
- Page 8 viii Symbol This table explains the symbols appearing on the display or explanations power adapter. Symbol Description Proof of conformity to applicable European Economic Community Council directives and two harmonized standards published in the official journal of the European Communities. The product has been tested and certified by CSA to C22.2 No.
-
Page 9: About The Vitalscreen
About the VitalScreen ™ The Planar VS15XAD VitalScreen display is a high-resolution color monitor designed to be versatile and easy to use. This VitalScreen display can accept either analog or digital video input and display most video standards from 640 x 480 (Video Graphics Array, or VGA, standard) to 1024 x 768 (Extended Graphics Array, or XGA, standard). -
Page 10: Unpacking The Display
Model VS15XAD / VS15XAD-TR Unpacking the Display Inspect the display and other package contents for shipping damage that could cause a fire or shock hazard. Report any shipping damage to the carrier or transportation company immediately, and contact customer service for assistance. Keep all packing material in case you need to ship, store, or return the display. - Page 11 About the VitalScreen Front panel LCD screen A 15-inch diagonal AMLCD. The screen can producing most display standards from 640 x 480 VGA to 1024 x 768 XGA. Function UP and Controls for the onscreen display menu. DOWN buttons UP navigates the OSD main menu. DOWN navigates through the OSD submenus.
- Page 12 Model VS15XAD / VS15XAD-TR Back panel Touchscreen port Port for the RS-232 cable; used to operate the optional touch screen. This cable is provided with the Optional Touch Screen package. Audio Line-In port Jack for the audio cable. (You can also connect the CD-ROM Line Out to this jack.) Stereo headphone Port for stereo headphones or powered...
-
Page 13: Installing The Display
Installing the Display To install the VS15XAD VitalScreen display, connect the power supply first. Next, connect the video cable. Then choose whether to connect optional stereo speakers and touch screen. Connecting the AC Power You must use the Ault power adapter with this display unit. 1 Plug the AC power cord into the AC power adapter. -
Page 14: Connecting The Video Cable
Model VS15XAD / VS15XAD-TR Connecting the Video Cable 1 Turn off your computer and the display before connecting the two units. 2 Plug the video cable into the VGA connector port on the back panel. 3 Plug the other end of the video cable into the VGA port on the computer. -
Page 15: Connecting The Stereo Speakers
If so, the volume is set tothe maximum. Although the display speakers are adequate for most audio applications, Planar does not recommend using the display speakers as the exclusive audio source for medical alarms or applications critical for audio performance. -
Page 16: Connecting The Optional Touch Screen
Model VS15XAD / VS15XAD-TR Connecting the Optional Touch Screen 1 Plug the RS232 cable to the RS232 port on the back panel. 2 Plug the other end of the cable into the RS232 serial port on your computer. 3 Load the touchscreen driver from the CD enclosed. Power Management System The VitalScreen display complies with the VESA DPMS power management standard. -
Page 17: Display Controls
Display Controls This chapter explains the onscreen display (OSD) menu: the user interface for controlling various aspects of the VitalScreen display. The VitalScreen display features an intuitive, menu-driven, onscreen display. Using the OSD menu, you can adjust the contrast, brightness, display position, color temperature, and stereo speaker volume, as well as set onscreen display parameters. -
Page 18: Onscreen Display Main Menu
Model VS15XAD / VS15XAD-TR Onscreen Display Main Menu The available control functions of the onscreen display are grouped into categories. The display’s selected mode of operation (either analog or digital) determines the available categories. See the following table. Onscreen Menu for Analog Operation Basic Change brightness, contrast and view DDC mode. -
Page 19: Function Menus
Display Controls Function Menus The following tables describe the items of each OSD menu. Basic Menu Contrast Adjust the contrast level of the display Brightness Adjust the brightness of the display backlight Volume Adjust the audio volume Digital/analog DDC mode (information only) - Page 20 Model VS15XAD / VS15XAD-TR Position Menu Auto Adjust Automatically adjust the picture quality and alignment (It is recommended that you use this function in Microsoft™ Windows™ or similar environments. This function is not available in the interlaced modes of operation.) Phase Adjust the screen display for focus and clarity...
- Page 21 Display Controls Miscellaneous Menu H-Position Adjust the onscreen display position horizontally V-Position Adjust the onscreen display position vertically Menu Timer Adjust the length of idle time before the menu display turns off (5, 10, 15, 20, 25, 30 seconds) Information Display the incoming display mode and firmware version Language...
- Page 22 Model VS15XAD / VS15XAD-TR Color Menu COLOR 9300 Set the color temperature of white to 9300 degrees Kelvin COLOR 6500 Set the color temperature of white to 6500 degrees Kelvin COLOR USER Enable “User Color” selection, and adjust individual RGB levels Adjust red contrast Adjust green contrast Adjust blue contrast...
- Page 23 Display Controls Digital Basic Menu Contrast Adjust the contrast level of the display Brightness Adjust the brightness of the display backlight Volume Adjust the audio volume Digital/analog DDC mode (information only)
-
Page 24: Onscreen Display Lockout
Model VS15XAD / VS15XAD-TR Digital Miscellaneous Menu H-Position Adjust the onscreen display position horizontally V-Position Adjust the onscreen display position vertically Menu Timer Adjust the length of idle time before the menu display turns off (5, 10, 15, 20, 25, 30 seconds) Information Display the incoming display mode and firmware version... -
Page 25: Ddc Change
Display Controls DDC Change Analog-to-Digital Mode or Digital-to-Analog Mode Follow these instructions to change the display from analog to digital mode or from digital to analog mode. 1 Make sure the display power is ON. (Look for a steady or blinking power LED below the OSD buttons). -
Page 26: Appendix A: Technical Information
Technical Information VS15XAD/VS15XAD-TR Specification Display panel 15-inch (381 mm) XGA active matrix color TFT LCD Display colors 262,144 colors Dimensions 408 x 333 x 85 mm (width x height x depth) Weight 5 kilograms Display area 304.1 x 228.1 mm (width x height) 15 inch (380.1 mm) diagonal Response time 30 milliseconds ON and 25 milliseconds OFF max. -
Page 27: Appendix B: Troubleshooting
Troubleshooting Problem Display indicates “No Video” Solution When the display is powered-on and no video signal is being received, the following message appears until the display enters power-saving mode. Check to ensure that the video cable is connected to the user system and the display. - Page 28 Appendix B 4 If one is available, connect your system to another VitalScreen display. If the system functions properly with the alternate display, but not with the VS15XAD display, and the VS15XAD display’s power LED is blinking, the output timing of the computer’s video board may be out of the display’s synchronous range.
-
Page 29: Index
Index AC power, connecting front panel , 3, Adjust button Function adjusting display buttons analog-to-digital mode menus audio cable line-in port identifying components information disposal back panel ordering parts Basic menu product technical installing display cable audio audio line-in port, connecting LCD screen touchscreen cleaning... - Page 30 Index repair service unpacking display safety instructions VESA DPMS selecting workspace video , 3, stereo speakers analog cable , 4, connecting cable, connecting headphone port digital cable viii symbol, packaging input cable technical information warranty touch screen workspace, selecting cable cleaning connecting port...
- Page 31 Planar, and to any drawings or specifications furnished to Planar by the Buyer if approved by Planar. This warranty shall be effective only if Planar receives notice of such defect or nonconformance during the period of the warranty.
- Page 32 OF THE POSSIBILITY OF SUCH DAMAGES. The warranty set forth above shall not be enlarged, diminished, or affected by, and no obligation or liability shall arise from Planar, any authorized dealer, or any other person’s rendering of technical advice, assistance, or services in connection with the Buyer’s order of the goods furnished hereunder.
- Page 33 (503) 748-1493. You need the unit’s serial number and a brief description of the problem to receive an RMA number. In Europe, call Planar Customer Service at +358 9 420 01 between 8 and 4 . Eastern European time, Monday through Friday, or fax your request to +358 9 420 0200.
- Page 34 Cable, DVI-DVI, 3 m, white, smooth surface 903-0231-00 Cable, DVI-DVI, 10 m, white, smooth surface 903-0232-00 European medical grade power cord, 3 m 903-0251-00 US medical grade power cord, 3 m 903-0169-00 Universal mounting plate 501-0301-00 Planar desk stand 501-0348-00...
- Page 35 European medical grade power cord, 3 m 903-0251-00 US medical grade power cord, 3 m 903-0169-00 Touchscreen cable, 3 m, white, smooth surface 903-0234-00 Touchscreen cable, 10 m, white, smooth surface 903-0235-00 Universal mounting plate 501-0301-00 Planar desk stand 501-0348-00...
- Page 36 Americas Sales Medical Sales Europe & Asia-Pacific Sales Planar Systems, Inc. Planar Systems, Inc. Planar Systems, Inc. 1195 NW Compton Drive 400 Fifth Avenue Olarinluoma 9, P. O. Box 46 Beaverton, OR 97006-1992 USA Waltham, MA 02451-8738 USA FIN-02201 Espoo, Finland...
