Page 1

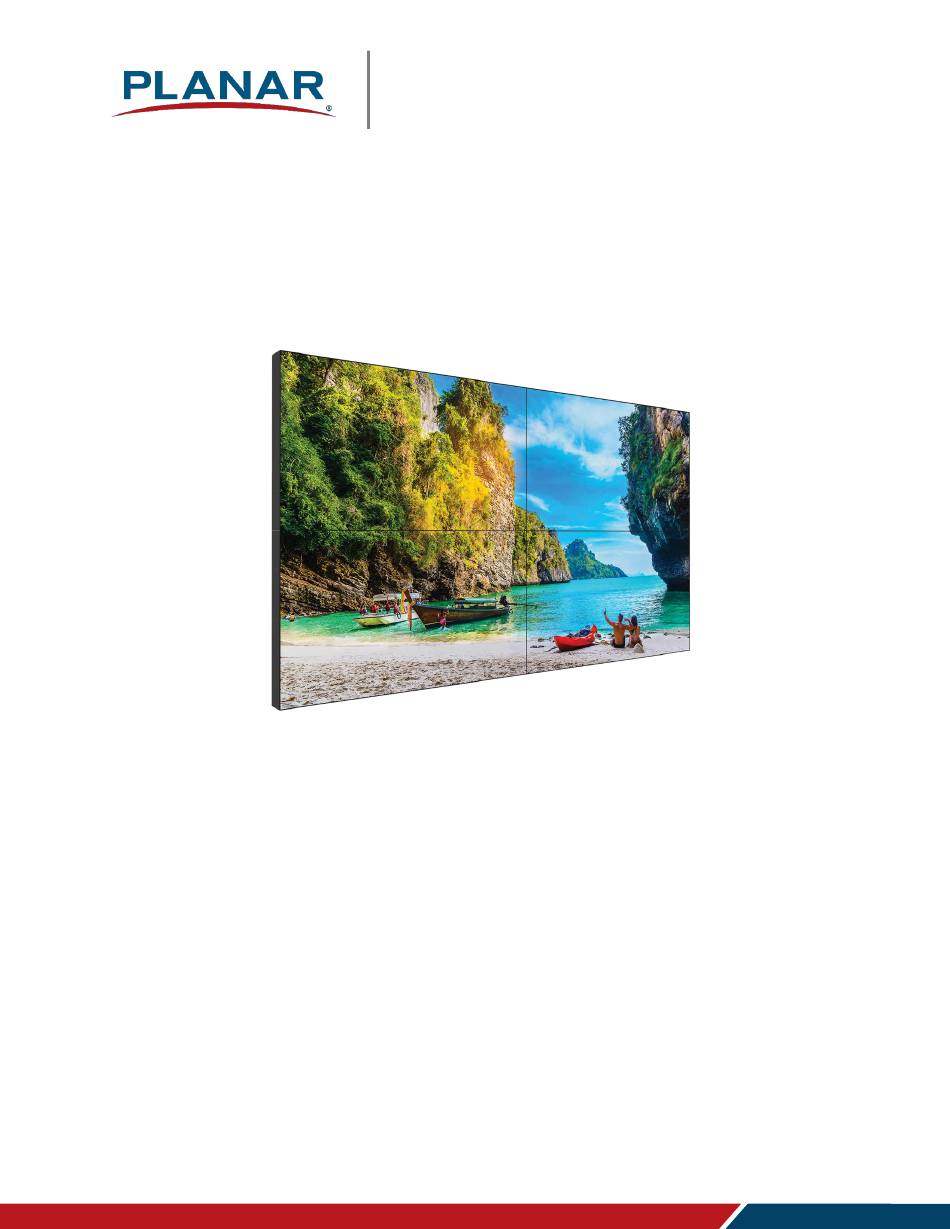

User Manual Planar VM Series VM49LX-U VM49MX-X VM55LX-M VM55LX-U VM55LX-X VM55MX-M VM55MX-X Planar VM Series User Manual Page | 1 020-1357-01D...
VESA Mounts, General Description 4.1 Installing the Alignment Brackets ................11 Cleaning the Display Installing the Cable Clips Planar VM Series - Standard Inputs Before You Begin 8.1 Tools/Equipment List ....................20 8.2 Other Things You May Need ...................20 8.3 Plan Your Installation....................20 8.4 Prepare Your Installation Location ................21...
Page 5
The Planar VM Series features 55" Full HD LCD displays with tiled bezel widths of 0.88, 1.8 or 3.5mm and 700 or 500-nit brightness, and 49" Full HD LCD displays with tiled bezel widths of 1.8 or 3.5mm and 700 or 500-nit brightness, respectively.
Introduction Safety Information Before using the Planar VM Series, please read this manual thoroughly to help protect against damage to property, and to ensure personnel safety. Be sure to observe the following instructions. For your safety, be sure to observe ALL the warnings detailed in this manual.
9. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles and the point where they exit from any Planar large format LCD display. 10. Only use the attachments/accessories specified by the manufacturer.
VM55LX-M VM55LX-U VM55LX-X VM55MX-M VM55MX-X Planar recommends turning off the power for 4 hours per day for optimal performance. For complete warranty details, please visit www.planar.com/warranty. Planar VM Series User Manual Page | 8 020-1357-01D...
Important Waste Disposal Information Please recycle or dispose of all electronic waste in accordance with local, state, and federal laws. Additional resources can be found online at http://www.planar.com/about/green/. The crossed-out wheelie bin symbol is to notify consumers in areas subject to Waste Electrical and Electronic Equipment (WEEE) Directive 2012/19/EU that the product was placed on the market after August 13, 2005 and must not be disposed of with other waste.
Changing the factory default picture settings or enabling other features will increase power consumption that could exceed the limits necessary to qualify for ENERGY STAR rating. For more information on the ENERGY STAR program, refer to energystar.gov. Planar VM Series User Manual Page | 10 020-1357-01D...
Introduction VESA Mounts, General Description VESA mounts are used to secure the Planar VM Series display. The display can be installed using a variety of VESA mounts available through Planar. If you do not have a VESA mount, and would like to purchase one, contact Planar.
Page 12
VM49MX-X panels require the use of half brackets on the left and right edges. VM55LX-M, VM55LX-U, VM55LX-X, VM55MX-M, VM55MX-X VM49LX-U and VM49MX-X 3. Repeat step 2 for subsequent rows of panels. Planar VM Series User Manual Page | 12 020-1357-01D...
Page 13
Introduction 4. Install the brackets as shown for the bottom of the first row and the top of the last row. Planar VM Series User Manual Page | 13 020-1357-01D...
If the surface requires additional cleaning, use LCD screen cleaner or LCD wipes, which are available at most electronics stores. Do not let cleaner seep into the display, as it may cause electrical shock or damage. Planar VM Series User Manual Page | 14 020-1357-01D...
Page 15
One per box. DP Cable DP cable. AC Power North American Cord power cord. AC Power EU power cord. Cord IR Extender Used to receive Cable signals from the remote control. Planar VM Series User Manual Page | 15 020-1357-01D...
Page 16
Brackets (in wall. Required 49” models on the left and only) side wall edges for VM49LX-U and VM49MX-X only. M4 Screws, Used for Spacers and attaching the Washers alignment brackets. Planar VM Series User Manual Page | 16 020-1357-01D...
Page 17
Number Picture Remote Used to control Control the display (AAA batteries included). Cable Clips Used to clamp and organize the cables. Quick Start Quick start Guide guide. Handling Handling guide. Guide Planar VM Series User Manual Page | 17 020-1357-01D...
Use the cable clips included in the Accessory Kit to assist with cable management. These clips adhere into place using adhesive backing as shown in the image below. Attach clips near HDMI and AC power cables to assist with cable routing and to release cable strain. Planar VM Series User Manual Page | 18 020-1357-01D...
Ventilation and cooling requirements If hanging display on a wall, location of studs in the wall For additional physical spacing requirements, please refer to your video wall mount manual Planar VM Series User Manual Page | 20 020-1357-01D...
Installing the Display Unpacking Each Planar VM Series display ships in its own box. The number of display cartons will vary depending on the video wall size. The LCD panel is extremely fragile due to its very thin bezel. As a result, it’s important that you unpack, handle and install each display with care. Powering on the panel before mounting is recommended to evaluate for transit damage.
As a general rule, Planar recommends a gap of at least one business card’s thickness (approximately 0.375mm) between panels when installing LCD displays. If pinching is a concern prior to installing or when observing pinching after installation, increase the gap distance to the thickness of at least two business cards (approximately 0.75mm).
8.8.1 Connecting Multiple Displays in a Daisy-chain Configuration The Planar VM Series displays are designed to be installed in a daisy-chain configuration for video walls. The displays can be connected in the daisy-chain in any order, and any displays can be selected as the first and last displays in the chain.
Page 25
Installing the Display 8.8.2 IR Connection Note: This display’s remote control sensor will stop working if the [IR IN} is connected. Planar VM Series User Manual Page | 25 020-1357-01D...
Installing the Display Installing OPS Expansion (Optional) ® Planar VM Series displays are equipped with an expansion slot that supports the Intel Open- Pluggable Specification (OPS). The slot supports OPS devices including PCs, SDI modules etc. To install an OPS device, remove the protective cover on the display and slide the device firmly into position.
Take care to ensure that the proper trim piece is connected to the correct edge of the display, and that the correct screw is used for each trim piece. Planar VM Series User Manual Page | 27 020-1357-01D...
Page 28
Audio Mute Input Source Selection Menu Right / Increase value / Volume + Menu Left / Decrease value / Volume - Menu Up Menu Down Menu Menu open / close Planar VM Series User Manual Page | 28 020-1357-01D...
Page 29
The LED indicator light is located on the rear of the display near the keypad. The following table explains what the different colors and blink patterns mean. LED On Power Status Condition Green Power on Standby Power save mode Red / Green Blinking IR codes received AC off Planar VM Series User Manual Page | 29 020-1357-01D...
Page 30
Installations where the display is tilted downward or upward at an angle may also be prone to these issues and are not recommended. Note: Failure to follow these instructions will void the warranty. Planar VM Series User Manual Page | 30 020-1357-01D...
Page 31
0x00 0x06 0x00 0x07 0x00 0x08 0x00 0x09 0x00 0x00 ID Set Enter 0x00 0x3E 0x00 0x3F HDMI 1 0x00 0x39 HDMI 2 0x00 0x3A 0x00 0x3B 0x00 0x3C 0x00 0x3D Planar VM Series User Manual Page | 31 020-1357-01D...
4. Test that the pairing is successful by pressing a remote control key, such as the HOME key. If the key is not accepted by the display, check the Monitor ID setting in the OSD matches the ID code selected on the remote control. Planar VM Series User Manual Page | 32 020-1357-01D...
,,, and OK to navigate through the menus and 2. Within the menu, use adjust options. 3. Press BACK to return to the previous menu. To exit the menu system, press HOME. Planar VM Series User Manual Page | 33 020-1357-01D...
Operating the Display 17. OSD Main Menu 17.1 Picture Planar VM Series User Manual Page | 34 020-1357-01D...
Page 35
Select gamma. Options: Native, 1.8~2.60 Default: Native Color Temperature Select color temperature. Options: 3200K, 5500K, 6500K, 7500K, 9300K, Native, User 1, User 2 Default: Native Planar VM Series User Manual Page | 35 020-1357-01D...
Page 36
Range: 0~255 Default: 255 o Blue Gain Adjust the amount of blue in bright content. Press to select the desired level. Range: 0~255 Default: 255 Planar VM Series User Manual Page | 36 020-1357-01D...
Page 37
Default: Off Overscan Adjust the zoom (overscan) of the image. Options: Off, On Default: Off Picture Reset Reset all setting in the Picture menu to their default values. Planar VM Series User Manual Page | 37 020-1357-01D...
Range: 0~100 Default: 50 Phase Adjust the phase of the displayed signal (VGA source only). Press to select the desired level. Range: 0~100 Default: 50 Planar VM Series User Manual Page | 38 020-1357-01D...
Page 39
Note: This feature does not continually reacquire the signal. Screen Reset Reset all settings in the Screen menu to their default values. Planar VM Series User Manual Page | 39 020-1357-01D...
Default: 50 Audio Out (Line Out) Adjust the volume for the Line Out connector on the display. Press to select the desired level. Range: 0~100 Default: 30 Planar VM Series User Manual Page | 40 020-1357-01D...
Page 41
Note: The Digital option cannot be selected for DisplayPort and the DisplayPort option cannot be selected for Digital. Audio Reset Reset all settings in the Audio menu to their default values. Planar VM Series User Manual Page | 41 020-1357-01D...
Options: Power Off, Force On, Last Status Default: Last Status Panel Saving Brightness o Automatically limit the backlight intensity in order to reduce power consumption. o Options: Off, On o Default: Off Planar VM Series User Manual Page | 42 020-1357-01D...
Page 43
The subnet mask used by the display’s network interface. Configurable if DHCP is set to Off. DNS Address o The address of the DNS server used by the display’s network interface. Configurable if DHCP is set to Off. Planar VM Series User Manual Page | 43 020-1357-01D...
Page 44
Default: On Configuration 1 Reset Reset all settings in the Configuration 1 menu to their default values. Factory Reset Reset all settings in all menus to their default values. Planar VM Series User Manual Page | 44 020-1357-01D...
17.5 Configuration 2 OSD Turn Off Adjust the time in seconds before the OSD menu disappears. Press to select the desired level. Range: Off, 5~120 seconds Default: 45 Planar VM Series User Manual Page | 45 020-1357-01D...
Page 46
commands. See page 32 for more information. Press to select the desired level. Options: 1~255 Default: 1 Heat Status Read the internal temperature of the display. Planar VM Series User Manual Page | 46 020-1357-01D...
Page 47
Options: English, French, German, Spanish, Italian, Simplified Chinese, Traditional Chinese, Japanese, Portuguese Default: English Configuration 2 Reset Resets all settings in the Configuration 2 menu to their default values. Planar VM Series User Manual Page | 47 020-1357-01D...
In most cases, this setting will not need to be changed from Auto. Options: Auto, 1024x768, 1280x768, 1360x768, 1366x768 Default: Auto Planar VM Series User Manual Page | 48 020-1357-01D...
Page 49
Indicate the number of displays horizontally in the tiled wall. o Options: 1~15 o Default: 1 V Monitors o Indicate the number of displays vertically in the tiled wall. o Options: 1~15 o Default: 1 Planar VM Series User Manual Page | 49 020-1357-01D...
Page 50
Off Timer Force the display to enter standby mode after the specified period of time. Press to select the desired level. Options: Off, 1~24 hours Default: Off Planar VM Series User Manual Page | 50 020-1357-01D...
Page 51
Daylight Saving Time o Enable or disable Daylight Saving Time, and select the effective dates. Date and Time o Displays the current date and time configured in the display. Planar VM Series User Manual Page | 51 020-1357-01D...
Page 52
Options: Sun, Mon, Tue, Wed, Thu, Fri, Sat o Default: None Every Week o Indicate whether the schedule is for the current week only, or for every week going forward. o Options: Off, On o Default: Off Planar VM Series User Manual Page | 52 020-1357-01D...
Page 53
Options: Off, On Default: Off Standby Mode Select the behavior of the display in standby mode. Options: Lower Power, Fast Startup Default: Low Power Planar VM Series User Manual Page | 53 020-1357-01D...
Page 54
Update the display’s firmware from a USB flash drive. See the firmware upgrade instructions within the firmware package for more information. Advanced Settings Reset Resets all settings in the Advanced Settings menu to their default values. Planar VM Series User Manual Page | 54 020-1357-01D...
Operating the Display 18. Tiling Configuration When using the VM Series displays in a tiled configuration, configure the displays by performing steps in the following order: 1. Cabling: Daisy-chained wiring of video and communication connections. See section 8.8 (page 24).
8. Choose a display next to the baseline display and adjust its gain values (red, green and blue) to make its color match the baseline display. Concentrate on the center of the displays, not the adjacent edges. Planar VM Series User Manual Page | 56 020-1357-01D...
Page 57
10. If there is a need to start over, use the Picture Reset or Factory Reset features in the OSD. Refer to section 17 (page 34) for more information. Planar VM Series User Manual Page | 57 020-1357-01D...
Frame compensation basically mimics the mind’s function by “hiding” portions of the picture (as if the mullions were actually hiding the image) and allow the distributed image to appear as one very large image. Planar VM Series User Manual Page | 58 020-1357-01D...
Page 59
Note: Start with the same settings for top and bottom, and the same settings for left and right. Make adjustments as needed to compensate for any variations in the gaps between displays. Planar VM Series User Manual Page | 59...
Page 60
External Control External Control In addition to using the Planar VM Series remote control and display, there are other methods of controlling the Planar VM Series display externally: Using a serial link to send binary commands and to receive responses to those commands.
Page 61
15.625 27.000 ITU-R BT.656, CEA-861-F Formats 21 & 22 EDTV 480p 59.940 31.469 27.000 x CEA-770.2, CEA-861-F Formats 2 & 3 576p 31.250 27.000 x ITU-R BT.1358, CEA-861-F Format 17 & 18 Planar VM Series User Manual Page | 61 020-1357-01D...
Page 62
CEA-861-F Format 97, 4:2:0 sub-sampling 3840x2160 135.000 594.000 x CEA-861-F Format 97 4096x2160 54.000 297.000 x CEA-861-F Format 98 4096x2160 56.250 297.000 x CEA-861-F Format 99 4096x2160 67.500 297.000 x CEA-861-F Format 100 Planar VM Series User Manual Page | 62 020-1357-01D...
Page 63
Support RGB 4:4:4 YUV 4:4:4 YUV 4:2:2 YUV 4:2:0 Video Timing Input Supported Supported Supported Supported 4K @ HDMI 1-2, 50/60Hz 4K @ 50/60Hz DisplayPort All Other Supported Timings All Inputs Planar VM Series User Manual Page | 63 020-1357-01D...
Page 64
Width (1.8mm) 51 lbs (23 kg) 51 lbs (23 kg) Display Weight 64 lbs 58 lbs 58 lbs (29 kg) (27 kg) (27 kg) Mounting VESA 400 mm x 400 mm Planar VM Series User Manual Page | 64 020-1357-01D...
Page 65
49" Orientation Landscape / Portrait Brightness (Typ.) 450 cd/m 700 cd/m Contrast Ratio 20,000:1 (local dimming enabled) Contrast Ratio 1300:1 (local dimming disabled) Viewing Angle (Typ.) 178 degrees Response Time (Typ.) Planar VM Series User Manual Page | 65 020-1357-01D...
Page 66
Min -4°F ~ Max 140°F (-20°C ~ 60°C) Operating Min 32°F ~ Max 104°F (0-40°C) at up to 3000 m Temperature Humidity 20-85% RH Approvals FCC Class A, cTUVus, CE ENERGY STAR Certified Planar VM Series User Manual Page | 66 020-1357-01D...
Page 67
Specifications Dimensions VM49LX-U Planar VM Series User Manual Page | 67 020-1357-01D...
Page 68
Specifications VM49MX-X Planar VM Series User Manual Page | 68 020-1357-01D...
Page 69
Specifications VM55LX-M and VM55MX-M Planar VM Series User Manual Page | 69 020-1357-01D...
Page 70
Specifications VM55LX-U Planar VM Series User Manual Page | 70 020-1357-01D...
Page 71
Specifications VM55LX-X and VM55MX-X Planar VM Series User Manual Page | 71 020-1357-01D...
Page 72
Perform the adjustments according to "Operating the Display" on page 28. If the problem you are experiencing is not described below, or you cannot correct the problem, stop using the display and contact Planar’s Technical Support Department. See "Accessing the Planar Technical Support Website" on page 73. Issue Check for the following Make sure the correct source is selected.
Page 73
Accessing the Planar Technical Support Website Accessing the Planar Technical Support Website Go to http://www.planar.com/support/ to locate the following support documents and resources: User Guide RS232 User Manual Standard Warranties Planar support hotline number and email...
Page 74
17 cosmetic trim, 26 location, 20 mounts, 10 unpacking, 21 of display on a wall, 19 OPS, 25 planning, 19 IR remote key codes, 30 VESA mounts, 10 VM55LX-U dimensions, 69 Planar VM Series User Manual Page | 74 020-1357-01D...
Page 75
Index VM55LX-X dimensions, 70 VM55MX-X warranty, 2, 8 dimensions, 70 waste disposal, 9 volume, 32 Planar VM Series User Manual Page | 75 020-1357-01D...
