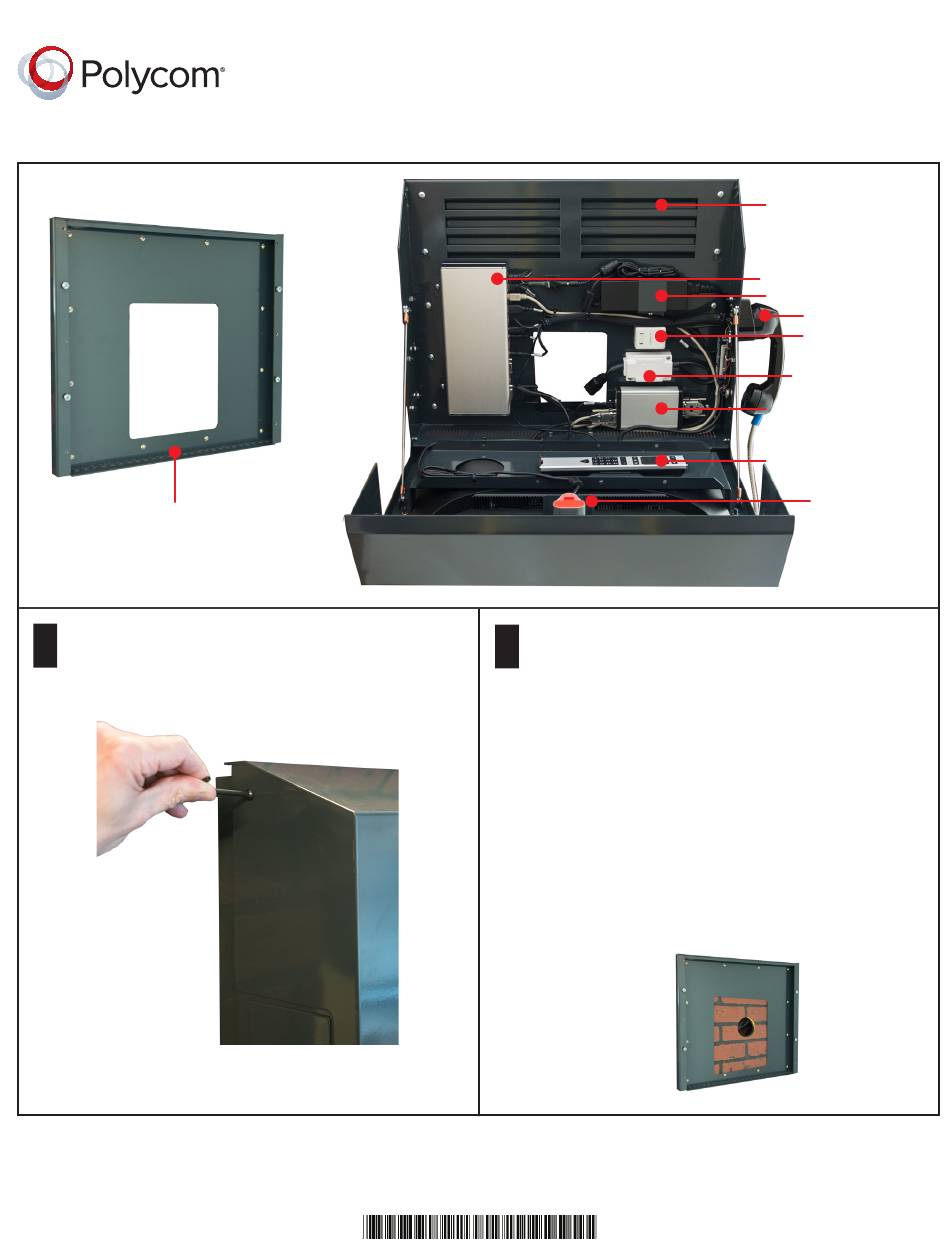

Polycom RealPresence Video Protect 500 Setup Sheet

Video conferencing system protected by a rugged, solid steel housing

Advertisement

Quick Links

Wall Mount Plate
Remove the security screw from each side of the
1
enclosure, using the supplied L key. Remove the
wall mount plate from the system.
© 2016, Polycom, Inc. All rights reserved. POLYCOM® and the names and marks associated with Polycom's products are trademarks and/or service marks of
Polycom, Inc. and are registered and/or common law marks in the United States and various other countries. No portion hereof may be reproduced
or transmitted in any form or by any means, for any purpose other than the recipient's personal use, without the express written permission of Polycom.
Polycom® RealPresence®
Video Protect 500
www.polycom.com
1725-08415-004A
Attach the wall mount bracket to a brick or concrete
2
wall, using appropriate anchoring hardware, such as
1/4"-20 x 1-1/4" concrete anchors, 1/4"-20 x 1-1/4" hex
cap screws, and 1/4" washers (not supplied). If you
are mounting to a surface other than brick or
concrete, use appropriate mounting hardware or
seek professional assistance.
The installer should have a plan for connecting the
system using one of the following options:
 A hole drilled in the wall with network and
AC ready for system
 AC wall outlet and/or a LAN wall outlet, which
then connects to system
 2 x 1/2" conduits directly into the bottom (cover
plate must be removed)
SETUP SHEET
Video Protect
System
Group Series 500
Codec
Power Supply
Handset
Ethernet
Junction Box
AC Junction Box
Intelligent Activation
Module (IAM)
Remote
EagleEye
Acoustic
Camera
