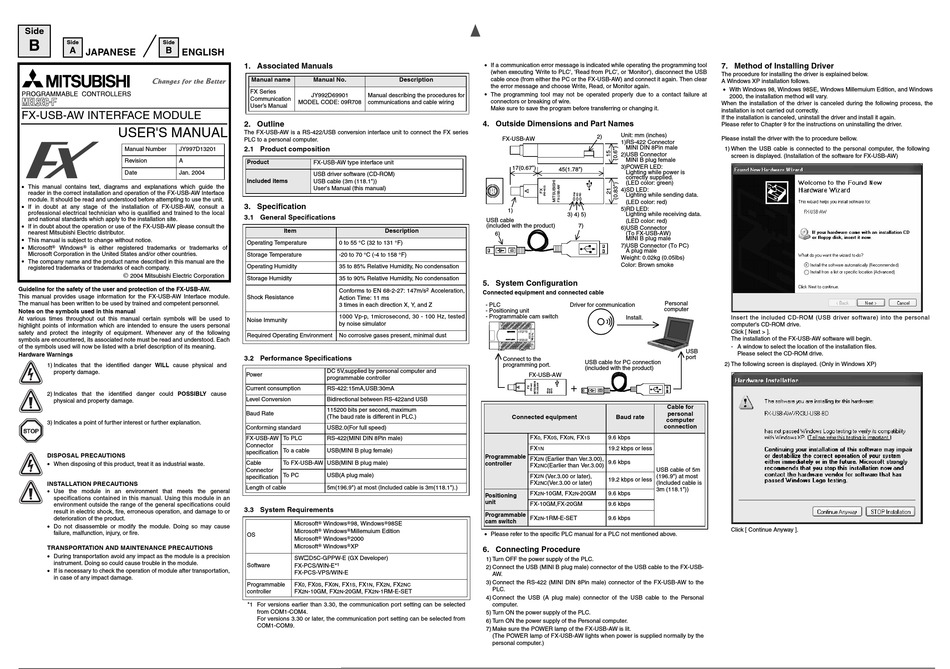

FX-USB-AW INTERFACE MODULE
USER'S MANUAL
Manual Number JY997D13201
Revision A
Date Jan. 2004
• This manual contains text, diagrams and explanations which guide the
reader in the correct installation and operation of the FX-USB-AW Interface
module. It should be read and understood before attempting to use the unit.
• If in doubt at any stage of the installation of FX-USB-AW, consult a
professional electrical technician who is qualified and trained to the local
and national standards which apply to the installation site.
• If in doubt about the operation or use of the FX-USB-AW please consult the
nearest Mitsubishi Electric distributor.
• This manual is subject to change without notice.
• Microsoft  
Windows is either registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other countries.
• The company name and the product name described in this manual are the
registered trademarks or trademarks of each company.

2004 Mitsubishi Electric Corporation
Guideline for the safety of the user and protection of the FX-USB-AW.
This manual provides usage information for the FX-USB-AW Interface module.
The manual has been written to be used by trained and competent personnel.
Notes on the symbols used in this manual
At various times throughout out this manual certain symbols will be used to
highlight points of information which are intended to ensure the users personal
safety and protect the integrity of equipment. Whenever any of the following
symbols are encountered, its associated note must be read and understood. Each
of the symbols used will now be listed with a brief description of its meaning.
Hardware Warnings
1) Indicates that the identified danger WILL cause physical and
property damage.
2) Indicates that the identified danger could POSSIBLY cause
physical and property damage.
3) Indicates a point of further interest or further explanation.
DISPOSAL PRECAUTIONS
• When disposing of this product, treat it as industrial waste.
INSTALLATION PRECAUTIONS
• Use the module in an environment that meets the general
specifications contained in this manual. Using this module in an
environment outside the range of the general specifications could
result in electric shock, fire, erroneous operation, and damage to or
deterioration of the product.
• Do not disassemble or modify the module. Doing so may cause
failure, malfunction, injury, or fire.
TRANSPORTATION AND MAINTENANCE PRECAUTIONS
• During transportation avoid any impact as the module is a precision
instrument. Doing so could cause trouble in the module.
• If is necessary to check the operation of module after transportation,
in case of any impact damage.
1. Associated Manuals
Manual name Manual No. Description
FX Series
JY992D69901 Manual describing the procedures for
Communication
MODEL CODE: 09R708 communications and cable wiring
User's Manual
2. Outline
The FX-USB-AW is a RS-422/USB conversion interface unit to connect the FX series
PLC to a personal computer.
2.1 Product composition
Product FX-USB-AW type interface unit
USB driver software (CD-ROM)
Included items USB cable (3m (118.1"))
User's Manual (this manual)
3. Specification
3.1 General Specifications
Item Description
Operating Temperature 0 to 55 °C (32 to 131 °F)
Storage Temperature -20 to 70 °C (-4 to 158 °F)
Operating Humidity 35 to 85% Relative Humidity, No condensation
Storage Humidity 35 to 90% Relative Humidity, No condensation
Conforms to EN 68-2-27: 147m/s
Shock Resistance Action Time: 11 ms
3 times in each direction X, Y, and Z
1000 Vp-p, 1microsecond, 30 - 100 Hz, tested
Noise Immunity
by noise simulator
Required Operating Environment No corrosive gases present, minimal dust
3.2 Performance Specifications
DC 5V,supplied by personal computer and
Power
programmable controller
Current consumption RS-422:15mA,USB:30mA
Level Conversion Bidirectional between RS-422and USB
115200 bits per second, maximum
Baud Rate
(The baud rate is different in PLC.)
Conforming standard USB2.0(For full speed)
FX-USB-AW To PLC RS-422(MINI DIN 8Pin male)
Connector
To a cable USB(MINI B plug female)
specification
Cable To FX-USB-AW USB(MINI B plug male)
Connector
To PC USB(A plug male)
specification
Length of cable 5m(196.9") at most (Included cable is 3m(118.1").)
3.3 System Requirements
  
Microsoft Windows 98, Windows 98SE
 
Microsoft Windows Millemuium Edition
OS
 
Microsoft Windows 2000
 
Microsoft Windows XP
SW!D5C-GPPW-E (GX Developer)
1
Software FX-PCS/WIN-E*
FX-PCS-VPS/WIN-E
Programmable FX 0 , FX 0S , FX 0N , FX 1S , FX 1N , FX 2N , FX 2NC
controller FX 2N -10GM, FX 2N -20GM, FX 2N -1RM-E-SET
*1 For versions earlier than 3.30, the communication port setting can be selected
from COM1-COM4.
For versions 3.30 or later, the communication port setting can be selected from
COM1-COM9.
• If a communication error message is indicated while operating the programming tool
(when executing 'Write to PLC', 'Read from PLC', or 'Monitor'), disconnect the USB
cable once (from either the PC or the FX-USB-AW) and connect it again. Then clear
the error message and choose Write, Read, or Monitor again.
• The programming tool may not be operated properly due to a contact failure at
connectors or breaking of wire.
Make sure to save the program before transferring or changing it.
4. Outside Dimensions and Part Names
2)
FX-USB-AW
17(0.67")
45(1.78")
1)
3) 4) 5)
USB cable
(included with the product) 7)
6)
5. System Configuration
2
Acceleration,
Connected equipment and connected cable
- PLC Driver for communication
- Positioning unit
- Programmable cam switch
Connect to the
USB cable for PC connection
programming port.
(included with the product)
FX-USB-AW
+
Connected equipment
FX , FX , FX , FX
0 0S 0N 1S
FX 1N
Programmable
FX (Earlier than Ver.3.00),
2N
controller
FX (Earlier than Ver.3.00)
2NC
FX (Ver.3.00 or later),
2N
FX (Ver.3.00 or later)
2NC
FX 2N -10GM, FX 2N -20GM
Positioning
unit
FX-10GM,FX-20GM
Programmable
FX -1RM-E-SET
2N
cam switch
• Please refer to the specific PLC manual for a PLC not mentioned above.
6. Connecting Procedure
1) Turn OFF the power supply of the PLC.
2) Connect the USB (MINI B plug male) connector of the USB cable to the FX-USB-
AW.
3) Connect the RS-422 (MINI DIN 8Pin male) connector of the FX-USB-AW to the
PLC.
4) Connect the USB (A plug male) connector of the USB cable to the Personal
computer.
5) Turn ON the power supply of the PLC.
6) Turn ON the power supply of the Personal computer.
7) Make sure the POWER lamp of the FX-USB-AW is lit.
(The POWER lamp of FX-USB-AW lights when power is supplied normally by the
personal computer.)
7. Method of Installing Driver
The procedure for installing the driver is explained below.
A Windows XP installation follows.
• With Windows 98, Windows 98SE, Windows Millemuium Edition, and Windows
2000, the installation method will vary.
When the installation of the driver is canceled during the following process, the
installation is not carried out correctly.
If the installation is canceled, uninstall the driver and install it again.
Please refer to Chapter 9 for the instructions on uninstalling the driver.
Unit: mm (inches)
Please install the driver with the to procedure bellow.
1)RS-422 Connector
MINI DIN 8Pin male
1) When the USB cable is connected to the personal computer, the following
2)USB Connector
screen is displayed. (Installation of the software for FX-USB-AW)
MINI B plug female
3)POWER LED:
Lighting while power is
correctly supplied.
(LED color: green)
4)SD LED:
Lighting while sending data.
(LED color: red)
5)RD LED:
Lighting while receiving data.
(LED color: red)
6)USB Connector
(To FX-USB-AW)
MINI B plug male
7)USB Connector (To PC)
A plug male
Weight: 0.02kg (0.05lbs)
Color: Brown smoke
Personal
computer
Install. Inser t the included CD-ROM (USB driver software) into the personal
computer's CD-ROM drive.
Click [ Next > ].
The installation of the FX-USB-AW software will begin.
- A window to select the location of the installation files.
USB
Please select the CD-ROM drive.
port
2) The following screen is displayed. (Only in Windows XP)
Cable for
personal
Baud rate
computer
connection
9.6 kbps
19.2 kbps or less
9.6 kbps
USB cable of 5m
(196.9") at most
19.2 kbps or less
(Included cable is
3m (118.1"))
9.6 kbps
9.6 kbps
9.6 kbps
Click [ Continue Anyway ].
