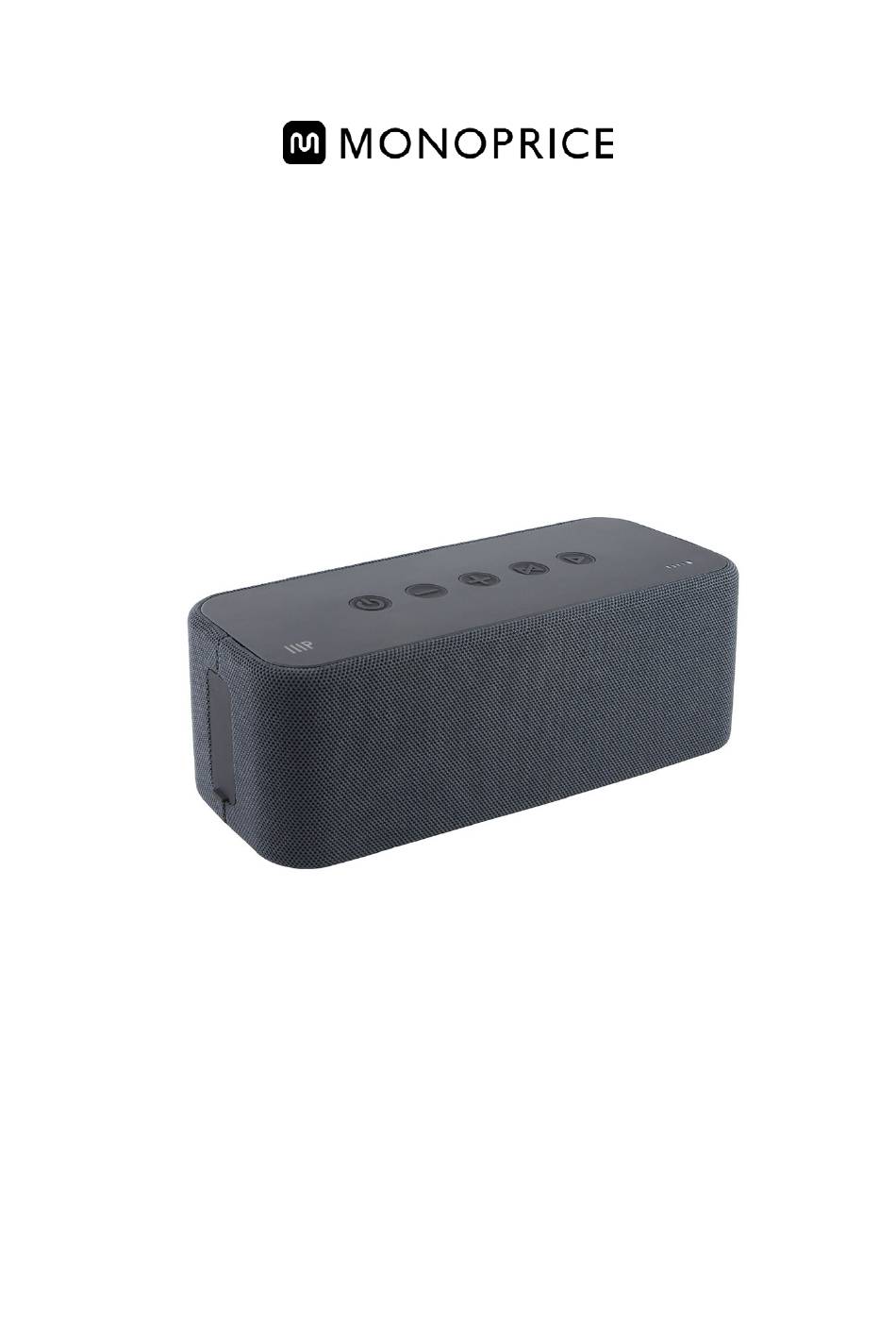

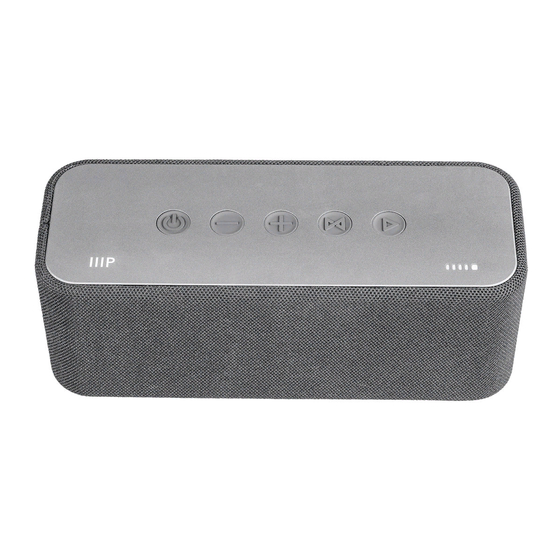

- Page 1 Monoprice HarmonyXL Bluetooth Wireless Speaker User Guide 33826...
-
Page 2: Package Contents
PACKAGE CONTENTS 1. Bluetooth Speaker x 1 pc 2. Micro USB cable x 1 pc 3. 3.5mm Audio cable x 1 pc 4. User manual x 1 pc FUNCTIONS PANEL... -
Page 3: Bluetooth Mode
: Power ON/Power OFF : Volume Down/ Last Track : Volume Up/Next Track : Play/Pause/Hands Free :BT disconnect /Switch Modes : DC 5V IN Charging Port : Aux in ：5V, 2A USB output : Battery Power Indicator BLUETOOTH MODE: 1. Press and hold to turn the speaker ON/OFF. -
Page 4: Aux In Mode
with “MP33826.” When connected, the LED indicator will turn to solid white. Press and hold to disconnect Bluetooth. 3. Press to Pause or Play media. 4. Press to decrease volume; press and hold it to play the last track. 5. Press to increase volume;... -
Page 5: Tws Function
TWS FUNCTION: First time pairing Two speakers: When you have 2 Harmony and/or HarmonyXL speakers and want to wirelessly pair them for stereo sound, power on the 2 units. Next, take the speaker you want to be the passive unit and press... - Page 6 Auto Re-pairing of the same two speakers: Power on the two units, wait about 5 seconds and speaker will automatically re-pair to each other. The master speaker will emit tones and LED indicator will turn to flash slowly, while indicator on the other unit will turn solid blue. If your devise is on and within BT range, the speakers will automatically reconnect to it.
-
Page 7: Specifications
CAUTION: Do not open the speaker’s housing or alter/attempt to fix internal components. This will put you at risk for electric shock or burns. Do not expose the speaker to excessive amounts of heat and do not store or operate near an open flame. SPECIFICATIONS BT Chipset Actions ATS2815... - Page 8 Driver power 15W x2 Driver size 3” x2 Impedance 4Ω Response frequency 50Hz --20kHz ≥75dB <1% Built in Microphone Charging indicator Buttons and controls Power Last Track/V- Next Track/V+ Play/Pause Available modes BT/Aux in 15W x2 Output power (at 10% THD) Input 5V, 2A...
- Page 9 Battery capacity 4000mAh/7.4V Battery weight 89.8g Playback time approx 6 hours @ 60% volume Charging time 3-4h Unit size 270*103*99mm Unit weight 1680g Accessories USB charging cable, Aux in cable Connection jacks AC/DC input jack DC 5V input jack USB output jack Micro USB Aux in jack Others...
-
Page 10: Regulatory Compliance
Modifying the equipment without Monoprice’s authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense. - Page 11 This FCC Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any changes or modification to said product not expressly approved by Monoprice, including the use of non-approved antennas, could void the user’s authority to operate this device.
- Page 12 The Bluetooth® word mark and logos are registered trademarks of Bluetooth SIG, Inc.
