Woody Equipment Inc., 205 rue Commercial, Saint-Odilon-de-Cranbourne, Quebec, Canada G0S3A0
T. (418) 464-2748 F. (418) 464-2746
Website: www.equipementswoody.com <http://www.equipementswoody.com/>
Facebook: Équipements Woody

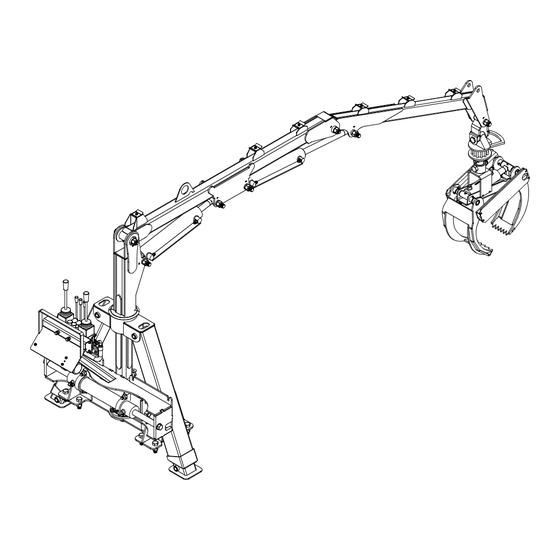

Woody Log Loader
Operator's Manual
Models 115 HD - 115
HDT - 125 LP
Email: ewoody@sogetel.net <mailto:ewoody@sogetel.net>

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 115 HD and is the answer not in the manual?

Questions and answers

Summary of Contents for Woody 115 HD

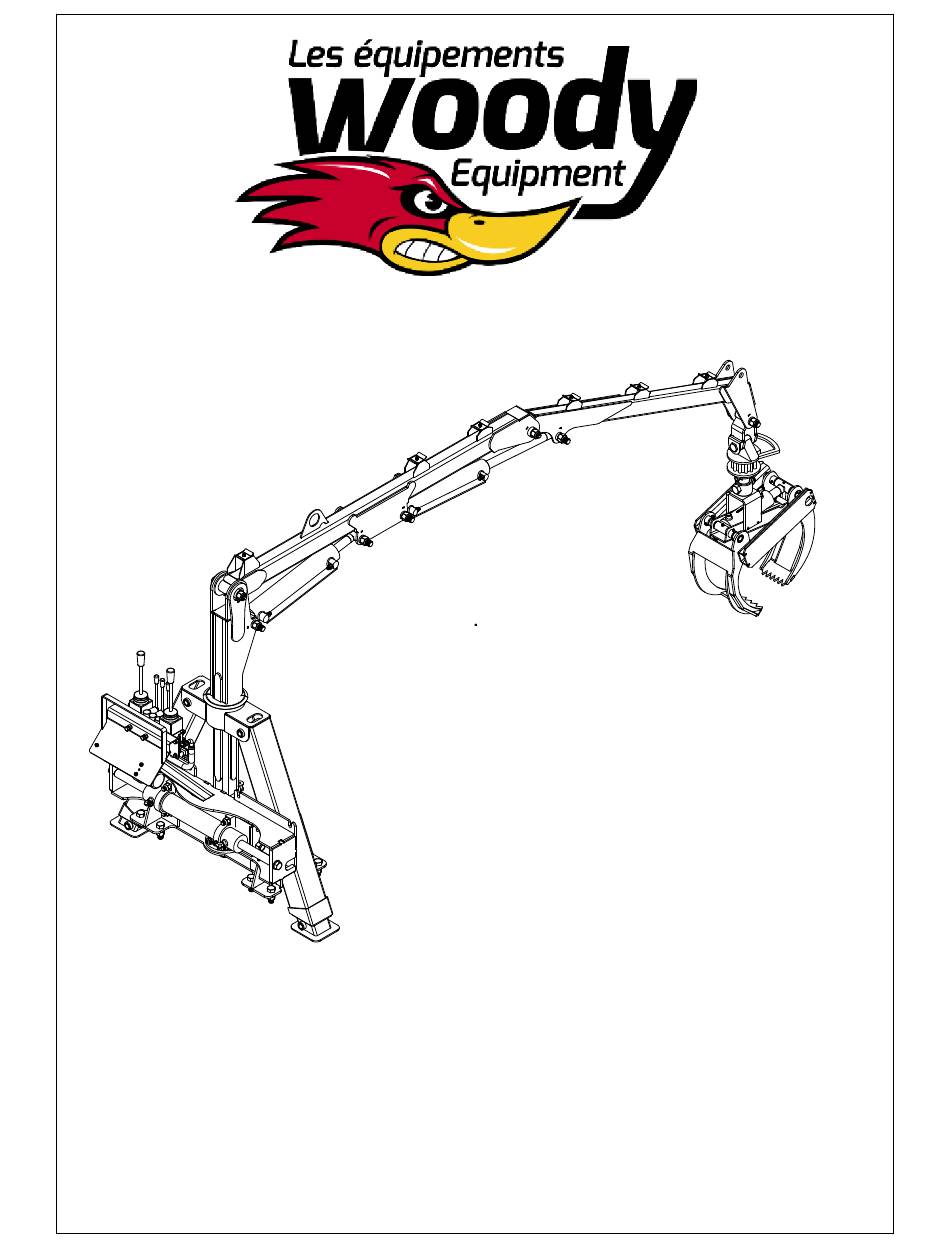

  • Page 1 Woody Log Loader Operator’s Manual Models 115 HD - 115 HDT - 125 LP Woody Equipment Inc., 205 rue Commercial, Saint-Odilon-de-Cranbourne, Quebec, Canada G0S3A0 T. (418) 464-2748 F. (418) 464-2746 Email: ewoody@sogetel.net <mailto:ewoody@sogetel.net> Website: www.equipementswoody.com <http://www.equipementswoody.com/> Facebook: Équipements Woody...
  • Page 2 Email: ewoody@sogetel.net <mailto:ewoody@sogetel.net> Website: www.equipementswoody.com <http://www.equipementswoody.com/> Facebook: Les Equipements Woody Woody Equipment Inc. C All Rights Reserved: Woody Equipment Inc. of Saint-Odilon-de-Cranbourne. No part of this manual may be reproduced in any form without the written permission of Woody Equipment Inc.
  • Page 3: Table Of Contents

    table of contents Introduction...............1 Warning................2 Caracteristic of the loader 115HD........3 115HD Loader Parts List............4 Caracteristic of the loader 115 HDT.......5 115 HDT Loader Parts List..........6 Caracteristic of the loader 125 LP........7 125 LP Loader Parts List............8 Caracteristic of the trailer 10-66 tires 11L15....9 Caracteristic of the trailer 10-66 tires 12.5L15.....10 Caracteristic of the trailer 10-66LP tires 11L15.....11 Parts list grapple 36''............12...
  • Page 4: Introduction

    Woody Equipment reserves the right to modify and / or improve its equipment and maintenance instructions, as well as to revise data without notice. Write down the serial number, model number, purchased date, dealer name, and sales representative’s name.
  • Page 5: Warning

    Warning The following symbols used in this manual are to warn the operator of the dangers connected to the use of this machinery. Follow the safety instructions to avoid any risk of serious injury or death.
  • Page 6: Caracteristic Of The Loader 115Hd

    115 HD LOADER PARTS LIST DETAIL AA DETAIL R DETAIL M DETAIL K DETAIL J SCALE 1 : 15 SCALE 1 : 15 SCALE 1 : 15 SCALE 1 : 15 SCALE 1 : 15...
  • Page 7: 115Hd Loader Parts List

    Main boom loader pin 115, 125 60-012-08 Stick boom loader pin 115, 125 60-021-15 Loader A-Frame 115 HD 60-021-02 Loader column 60-021-03 Loader main boom 115 HD 60-021-04 Loader stick boom 115 HD 60-021-16 Loader swing slider 115, 125 57-000-04 Grapple yoke 199309...
  • Page 8: Caracteristic Of The Loader 115 Hdt

    115 HDT Loader Parts List DETAIL AP DETAIL AV DETAIL AT DETAIL AR DETAIL AU SCALE 1 : 16 SCALE 1 : 16 SCALE 1 : 16 SCALE 1 : 16 SCALE 1 : 16...
  • Page 9: 115 Hdt Loader Parts List

    Loader column 60-027-02 Loader main boom 115 HDT 60-027-01 Loader stick boom 115 HDT 60-021-16 Loader swing slider 115-125 60-021-15 Loader A-Frame 115 HD 60-027-03 Telescope 115 57-000-04 Grapple yoke 301500 Nylon nut 1"-8 300320 Bolt 1"-8 x 6" long 300330 Bolt 1"-8 x 6 1/2"...
  • Page 10: Caracteristic Of The Loader 125 Lp

    125 LP Loader Parts List DETAIL AJ DETAIL AL DETAIL AK DETAIL AM DETAIL AN SCALE 1 : 15 SCALE 1 : 15 SCALE 1 : 15 SCALE 1 : 15 SCALE 1 : 15...
  • Page 11: 125 Lp Loader Parts List

    125 LP Loader Parts List Item Part # Description Loader telescopic stabilizer 115, 125 LP 60-012-06 Rotation chain 115,125 60-003-08 Loader control valve support 115, 125, 130,150 & 170 60-010-04 Loader telescopic stabilizer 115, 125 LP 60-012-05 Loader stick boom pin 115, 125 60-012-07 Loader main boom pin 115, 125 60-012-08...
  • Page 12: Caracteristic Of The Trailer 10-66 Tires 11L15

    10-66 Trailer post 59-000-05 Protective grid 38" wide x 38" high 59-026-03 Tandem trailer 59-011-01 10-66 Forestry trailer frame - 115 HD 86-31-285-F12-00 Shaft 1 15/16" O.D. 302010 11L15 Tire, 8-ply, 6 nuts, 5000 lb. 303020 Trailer Jack - 6000 or (5000) lb.
  • Page 13: Caracteristic Of The Trailer 10-66 Tires 12.5L15

    10-66 Trailer post 59-000-04 59-000-05 Protective grid 38" wide x 38" high 59-026-03 Tandem trailer 59-011-01 10-66 Forestry trailer frame - 115 HD Shaft 1 15/16" O.D. 86-31-285-F12-00 302020 12.5L15 Tire, 10-ply, 6 nuts 303020 Trailer Jack - 6000 or (5000) lb.
  • Page 14: Caracteristic Of The Trailer 10-66Lp Tires 11L15

    10-66LP Forestry Trailer 11L15 Tires Parts List 10-66 Forestry Trailer with 11.5L15 Tires Parts List Item Description Part # 10-66 trailer short post 59-000-33 Protective grid 38" wide x 38" high 59-000-32 Tandem trailer 59-026-03 10-66 Forestry trailer frame 125 HD 59-175-01 Shaft 1 15/16"...
  • Page 15: Parts List Grapple 36

    Parts list Grapple 36'' Item Description Parts # 57-002-01 Grapple 36" center 57-002-02 Little finger grapple 57-002-03 Wide finger grapple 57-002-03 Side plate grapple 86-16-120 Rod 1'' O.D. 86-16-140-E14-00- Rod 1'' O.D. E126-00 86-16-154-E14-00- Rod 1" O.D. E138-00 Hydraulic cylinder 2 1/2" Dia. x 120272 6"...
  • Page 16: Parts List 6000Lb Winch Hight

    Parts list Winch 6000lbs Item Description Part# 58-007-02 Winch head 58-000-04 Swivel head fixation- large, medium, small 58-000-05 Winch roller- large, Medium 58-007-03 Cable tensioner pin 58-000-06 Winch fixed cluth- Large, Medium, Small 58-000-07 Winch fixed cluth- Large, Medium, Small 58-000-08 Clutch arm- Large, Medium 58-000-01...
  • Page 17: Parts List 6000Lb Winch Low

    6000 lb. Hydraulic Winch Parts list 6000 lb. Hydraulique Winch Parts list Item Description part # 58-013-01 26" Winch housing 58-013-04 Winch head 58-000-04 Swivel head fixation - Large, Medium, Small 58-000-05 Winch roller - Large, Medium 58-007-03 Cable tensioner pin 58-007-05 Winch tensioner - Large, Medium 58-000-06...
  • Page 18: Parts List Simple Hydraulic Directional

    Parts list simple directional Item Description Parts # 59-003-08 Hitch 59-076-24 Simple directional frame 59-076-08 Pivot lock 59-076-09 Deck span 9.5 59-076-04 Pivot lock 59-076-02 Pivot simple directional 59-076-035 washer 120442 Hydraulic cylinder 3" Dia. x 16" Stroke 59-076-034 Washer 301020 Bolt 7/8"-9 x 3 1/2"...
  • Page 19: Operation

    Stop all operations immediately if any bystanders enter the work zone (20 Woody loaders are intended for normal use in the agricultural and forestry sectors. They must be used only by persons trained in the handling of this type of machinery.
  • Page 20: Safety Instructions

    Safety Instructions If the overload protection of the hydraulic system is not properly adjusted or certain system functions are altered, safety cannot be ensured. . Always lower the hydraulic stabilizers before each operation to avoid overturning. . Always check that any unauthorized personnel remains outside the work risk area. .
  • Page 21 Safety Instructions Driving on the Road Observe the following instructions to avoid any risk of accident. Position During Transport . If there is no load, position the loader boom as low as possible on the trailer. Make sure that the grapple and the rotator are firmly attached to the trailer, so that there is no risk of the loader rolling over during transport .
  • Page 22 Safety Instructions Welding Repair . If a repair or modification requires the welding of certain parts, you must first contact your dealer for necessary instructions. Improper welding or negligence during welding can cause sudden machine breakdowns. Working in Extreme Conditions .
  • Page 23 Safety Instructions Maintenance and Servicing Safety Instructions . Hot oil can cause burns. Inhalation of hot oil vapor can cause breathing difficulties. . If a hose bursts and you get oil on your skin, it is not dangerous. However, avoid oil contact with eyes and nose.
  • Page 24 Safety Instructions Greasing points and intervals DETAIL AG SCALE 2 : 21 By prevention, remove the cap once a year, tighten the castellated nut, fill the cap with grease and replace the cap! Greasing Interval ITEM Greasing point Lubricating oil hourly / yearly Telescopic stabilizers Bushing grease...
  • Page 25 Regularly monitor tire pressure and increase air pressure as needed based on written tire specifications. By prevention, remove the cap once a year, tighten the castellated nut, fill the cap with grease and replace the cap! Greasing Interval Item Greasing point Lubricating oil hourly / yearly Posts...
  • Page 26 Maintenance and safety instructions for proper use of the 6000 lb. hydraulic winch Grease every 4 hours of use with bushing grease. Caution: Risk of crushing your finger or hand and could even lead to death!!!
  • Page 27 Maintenance and safety instructions for proper use of a single drawbar (Image for illustrative purposes only) Grease every 4 hours of use with bushing grease. Make sure that no one is standing in the perimeter and also make sure no one is standing on the step!
  • Page 28: Safety Instructions

    Safety Instructions Storage If you plan to stop using the loader for a long period of time, it should be cleaned carefully. Note that high pressure cleaning is not recommended! After cleaning, make a visual inspection for any cracks (if you find any, you must have them repaired before the next use of the loader) all grease nipples must be lubricated.
