Woody Equipment Inc., 205 rue Commercial, Saint-Odilon-de-Cranbourne, Quebec, Canada G0S3A0
T. (418) 464-2748 F. (418) 464-2746
Website: www.equipementswoody.com <http://www.equipementswoody.com/>
Facebook: Équipements Woody
Woody Log Loader
Operator's Manual
Models
115 HD - 115 HDT - 125 LP
Email: ewoody@sogetel.net <mailto:ewoody@sogetel.net>

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 115 HD and is the answer not in the manual?

Questions and answers

Related Manuals for Woody 115 HD

Summary of Contents for Woody 115 HD

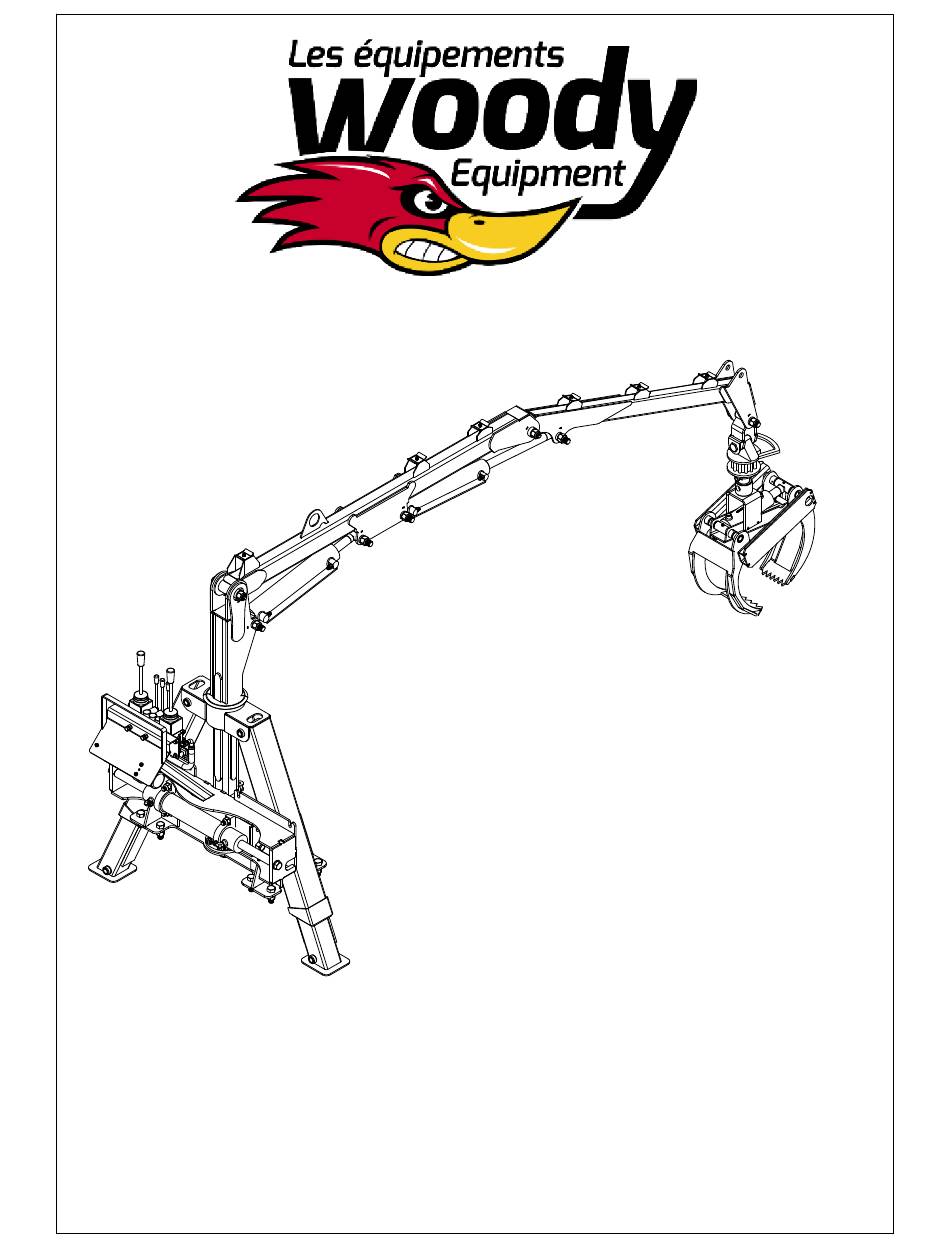

  • Page 1 Woody Log Loader Operator’s Manual Models 115 HD - 115 HDT - 125 LP Woody Equipment Inc., 205 rue Commercial, Saint-Odilon-de-Cranbourne, Quebec, Canada G0S3A0 T. (418) 464-2748 F. (418) 464-2746 Email: ewoody@sogetel.net <mailto:ewoody@sogetel.net> Website: www.equipementswoody.com <http://www.equipementswoody.com/> Facebook: Équipements Woody...
  • Page 2 F. (418) 464-2746 Email: ewoody@sogetel.net Website: www.equipementswoody.com Facebook: Les Equipements Woody Woody Equipment Inc. © All Rights Reserved: Woody Equipment Inc. of Saint-Odilon-de-Cranbourne. No part of this manual may be reproduced in any form without the written permission of Woody Equipment Inc.

  • Page 3: Table Of Contents

    Table of contents Introduction................1 Warning..................2 Characteristic of the loader 115HD (Old models)....3 115HD Loader Parts List (Old models)........4 Characteristic of the loader 115HD (New models)....5 115HD Loader Parts List (New models)........6 Characteristic of the loader 115 HDT (Old models)....7 115 HDT Loader Parts List (Old models)........8 Characteristic of the loader 115 HDT (New models)....9 115 HDT Loader Parts List (New models)......10 Characteristic of the loader 125 LP (Old models)....11...

  • Page 4: Introduction

    These instructions contain important information on safety and efficiency and to ensure the validity of the factory guarantee. Woody Equipment reserves the right to modify and / or improve its equipment and maintenance instructions, as well as to revise data without notice.

  • Page 5: Warning

    Warning The following symbols used in this manual are to warn the operator of the dangers connected to the use of this machinery. Follow the safety instructions to avoid any risk of serious injury or death.
  • Page 6 115-HD Part List - Loader (Models 2020 and olders) DETAIL BD DETAIL BC DETAIL BB DETAIL BA DETAIL AY SCALE 1 : 10 SCALE 1 : 10 SCALE 1 : 10 SCALE 1 : 10 SCALE 1 : 10...
  • Page 7 Pivot pin small to large Boom Loader 115, 125 60-012-08 Pivot pin Boom to Tower Loader 115, 125 60-021-15 A-Frame Loader 115 HD 60-021-02 Main Tower Loader 60-021-03 Large boom Loader 115 HD 60-021-04 Small boom Loader 115 HD 60-021-16 Swing drawer Loader 115-125 57-000-04 Grappler link 199309...
  • Page 8 115 HD Loader - Part List (Models 2020 and recents) DETAIL BD DETAIL BC DETAIL BB DETAIL BA DETAIL AY SCALE 1 : 15 SCALE 1 : 15 SCALE 1 : 15 SCALE 1 : 15 SCALE 1 : 15...
  • Page 9 Pivot pin small to large Boom Loader 115, 125 60-012-08 Pivot pin Boom to Tower Loader 115, 125 60-021-02 Main Tower Loader 60-021-03 Large boom Loader 115 HD 60-021-04 Small boom Loader 115 HD 60-021-15 A-Frame Loader 115 HD 60-021-16...
  • Page 10 115 HDT Loader - Parts List (Models 2020 and olders) DETAIL AV DETAIL AU DETAIL AT DETAIL AR DETAIL AP SCALE 1 : 16 SCALE 1 : 16 SCALE 1 : 16 SCALE 1 : 16 SCALE 1 : 16...

  • Page 11: 115 Hdt Loader Parts List (Old Models)

    Loader column 60-027-02 Loader main boom 115 HDT 60-027-01 Loader stick boom 115 HDT 60-021-16 Loader swing slider 115-125 60-021-15 Loader A-Frame 115 HD 60-027-03 Telescope 115 57-000-04 Grapple yoke 301500 Nylon nut 1"-8 300320 Bolt 1"-8 x 6" long 300330 Bolt 1"-8 x 6 1/2"...
  • Page 12 115 HDT Loader - Parts List (Models 2021 and recents) DETAIL A DETAIL E DETAIL F DETAIL D DETAIL C DETAIL B SCALE 1 : 10 SCALE 1 : 10 SCALE 1 : 10 SCALE 1 : 10 SCALE 1 : 10 SCALE 1 : 10...

  • Page 13: 115 Hdt Loader Parts List (New Models)

    Main Tower Loader 60-027-02 Large Boom Chargeuse 115 HDT 60-027-01 Small Boom Chargeuse 115 HDT 60-021-16 Swing drawer Loader 115-125 60-021-15 A-Frame Loader 115 HD 60-027-03 Telescopic boom for chargeuse 115HDT 57-000-04 Grappler link 36''/42''/52'' 301500 Nylon nut 1"-8 300320 Bolt 1"-8 x 6"...
  • Page 14 125-LP Loader - Part List (Models 2020 and olders) DETAIL AK DETAIL AJ DETAIL AL DETAIL AM DETAIL AN SCALE 1 : 15 SCALE 1 : 15 SCALE 1 : 15 SCALE 1 : 15 SCALE 1 : 15...
  • Page 15 125-LP Loader Part List Part # Description Quantity 60-012-06 Telescopic leg loader 115-125 LP 60-003-08 Rotation chain for 115-125 60-010-04 Valve control support Loader 115, 125, 130, 150 & 170 60-012-05 Telescopic leg loader 115-125 LP 60-012-07 Pivot pin small to large Boom Loader 115, 125 60-012-08 Pivot pin Boom to Tower Loader 115, 125 60-033-01...
  • Page 16 125 LP Loader - Parts List (Models 2021 and olders) DETAIL AJ DETAIL AN DETAIL AM DETAIL AL DETAIL AK SCALE 1 : 15 SCALE 1 : 15 SCALE 1 : 15 SCALE 1 : 15 SCALE 1 : 15...

  • Page 17: 125 Lp Loader Parts List (Old Models)

    125 LP Loader Parts List Item Part # Description Grappler link 36''/42''/52'' 57-000-04 60-003-08 Rotation chain for 115-125 Valve control support Loader 115, 125, 130 ,150 & 170 60-010-04 Telescopic leg loader 115-125 LP 60-012-05 Telescopic leg loader 115-125 LP 60-012-06 60-012-07 Pivot pin small to large Boom Loader 115, 125...
  • Page 18 8 Sections Valve Q30 GA 8 sections valve Q30 03008010304390E Part List Part # Description Quantity Joystick's arm Q30 GA with big handdle 130035 130317 GA Lift Adapter A15-A35 Q30-25-45 Big Boots Joystick Q30-Q130 GA 130030 130015 GA Galtech Lever Box GA Lever Box Small Boots 130020 GA Joystick Plate NEW MODEL...
  • Page 19 10-66 Trailer post 59-000-05 Protective grid 38" wide x 38" high 59-026-03 Tandem trailer 59-011-01 10-66 Forestry trailer frame - 115 HD 86-31-285-F12-00 Shaft 1 15/16" O.D. 302010 11L15 Tire, 8-ply, 6 nuts, 5000 lb. 303020 Trailer Jack - 6000 or (5000) lb.

  • Page 20: Forestry Trailer (Older Models)

    10-66 Trailer post 59-000-04 59-000-05 Protective grid 38" wide x 38" high 59-026-03 Tandem trailer 59-011-01 10-66 Forestry trailer frame - 115 HD 86-31-285-F12-00 Shaft 1 15/16" O.D. 302020 12.5L15 Tire, 10-ply, 6 nuts Trailer Jack - 6000 or (5000) lbs 303020...
  • Page 21 10-66LP Forestry Trailer 11L15 Tires Parts List 10-66 Forestry Trailer with 11.5L15 Tires Parts List Item Part # Description 10-66 trailer short post 59-000-33 Protective grid 38" wide x 38" high 59-000-32 Tandem trailer 59-026-03 10-66 Forestry trailer frame 125 HD 59-175-01 Shaft 1 15/16"...
  • Page 22 5000 lbs Hub assembly Part list 5000 lbs Hub assembly Part # Description 306208 Cap Hub 5000 lbs 306210 Cotter pin 3/16 dia. X 1 1/2" lg. 306209 Castle nut 306214 Washer 306204 Exterior Bearing LM48548 306206 Small cone hub 5000 lbs 306211 Bolt 9/16-18 306201...
  • Page 23 Forestry Trailer (Older models) Axle Tandem Tires PARTS LIST - FORESTRY TRAILERS (OLDER MODELS) TRAILER MODEL PART NO. TANDEM ASSEMBLY AXLE TIRES 11-74 59-013 59-024-03 5000 lbss 12.5L15 11-74 59-150 59-081-02 8000 lbss 385-65-22.5 11-74 59-151 59-082-07 8000 lbss 400-60-15.5 13-78 59-014 59-024-03...
  • Page 24 Gravel Bin assembly Part no. 31-030, 31-040, 31-050, 31-060...

  • Page 25: Gravel Bin Assembly

    Gravel Bin assembly Part no. 31-030, 31-040, 31-050, 31-060 PARTS LIST - GRAVEL BIN ASSEMBL Y 10’ BIN WITH 12’ BIN WITH 10’ BIN CYLINDER 12’ BIN CYLINDER FOR 10-78 HV FOR 10-78 HV FOR 12-86 HV FOR 12-86 HV TRAILER TRAILER TRAILER...
  • Page 26 Part list - Grapple 36" Part # Description 310020 Grease nipple right 1/4"-28 Grappler link 36'' (Welding assembly) 57-022-06 57-022-01 Frame pince 36'' Hardox Retraction arm 36'' Hardox 57-020-03 57-020-04 Assembly pine pivot for clamp 57-020-05 Assembly pine pivot for clamp 57-020-14 Interior clamp 36"...
  • Page 27 Hydraulic Winch 6000 lbs...
  • Page 28 Hydraulic Winch 6000 lbs Part list Qty. Part # Description 58-000-01 Motor assembly support 58-000-04 Swivel wire guide 58-000-05 Wire drum 58-000-06 Jaw and sprocket assembly 58-000-07 Jaw clutch 58-000-08 Fork clutch 58-007-02 Swivel wire guide 58-007-03 Wire pin tensioner 58-007-04 Winch casing 58-007-05...
  • Page 29 6000 lbs Hydraulic Winch Parts List 6000 lbs Hydraulique Winch - Parts List Item Part # Description 58-013-01 26" Winch housing 58-013-04 Winch head 58-000-04 Swivel head fixation - Large, Medium, Small 58-000-05 Winch roller - Large, Medium 58-007-03 Cable tensioner pin 58-007-05 Winch tensioner - Large, Medium 58-000-06...
  • Page 30 Dipper Dredger 24” for Grapple 36” Piece No. 57-025 PART LIST - ASSEMBLY DIPPER DREDGER 24" FOR GRAPPLE 36", PIECE NO. 57-025 ITEM PART NO. DESCRIPTION Dipper Dredger 24” for Grapple 36” Narrow claw 57-025-01 Dipper Dredger 24” for Grapple 36” Wide claw 57-025-02 Small claw pin 57-025-03...
  • Page 31 Part list Small drawbar single joint cylinder removable Assembly 59-076-14 Part # Item Description Grease nipple right 1/4"-28 310020 Split pin 310881 Hydraulic cylinder 3" Dia. x 8" Stroke 120443 Snap-Ring 1 1/4" Thick 307063 Snap-Ring 2" Heavy 307075 Agricultural trailer coupling 59-020-05 Cylinder pin 59-076-04...
  • Page 32 Parts List Medium pole removable # de pièce Qté Grease nipple right 1/4"-28 310020 310881 Split pin 1/8 x 1- 1/4 59-076-30 Assembly medium pole 59-076-36 Stair tread metal sheet 9.5 59-076-74 Foot Step Pivot Assembly 59-003-08 Agricultural trailer coupling 301020 Bolt 7/8"-9 x 3 1/2"...
  • Page 33 Caractéristique Unité GX 160 Hydraulique...
  • Page 34 Item Part # Description 53-001-01 Engine Support 301510 Lock nut 1/2"-13 301310 Flat washer 1/2" narrow 3109-12-08 Adapter Male 3/4"-14 female 1/2"-14 190060 Filter Oil Head CP-750-10P 53-001-030 Oil container 53-001-029 Oil container lateral Elbow 90° NPSM Fem SWI x NPT Male - 1/2" x 3-4" 101310 140040-020-101700-101700 Hose 1/2 x 20"...

  • Page 35: Parts List Hydraulic Hoses

    Hydraulic hoses Part no. 60-021 PARTS LIST - HYDRAULIC HOSES ITEM PART NO. DESCRIPTION 140030-020-102200-102300 Assembly hose 3/8 x 20" - M20813-06-06 - M10510-06-06 for clame and rotor 140030-020-100300-102300 Assembly hose 3/8 x 20" - M20843-06-06 - M10510-06-06 for clame and rotor...
  • Page 36 Regularly monitor tire pressure and increase air pressure as needed based on written tire specifications. By prevention, remove the cap once a year, tighten the castellated nut, fill the cap with grease and replace the cap! Greasing Interval Item Greasing point Lubricating oil hourly / yearly Posts...
  • Page 37 Maintenance and safety instructions for proper use of the 6000 lbs hydraulic winch Grease every 4 hours of use with bushing grease. Caution: Risk of crushing your finger or hand and could even lead to death!!!
  • Page 38 Maintenance and safety instructions for proper use of a single drawbar (Image for illustrative purposes only) Grease every 4 hours of use with bushing grease. Make sure that no one is standing in the perimeter and also make sure no one is standing on the step!

  • Page 39: Operation

    Stop all operations immediately if any bystanders enter the work zone (20 m). Woody loaders are intended for normal use in the agricultural and forestry sectors. They must be used only by persons trained in the handling of this type of machinery.

  • Page 40: Safety Instructions

    Safety Instructions If the overload protection of the hydraulic system is not properly adjusted or certain system functions are altered, safety cannot be ensured. . Always lower the hydraulic stabilizers before each operation to avoid overturning. . Always check that any unauthorized personnel remains outside the work risk area. .
  • Page 41 Safety Instructions Driving on the Road Observe the following instructions to avoid any risk of accident. Position During Transport . If there is no load, position the loader boom as low as possible on the trailer. Make sure that the grapple and the rotator are firmly attached to the trailer, so that there is no risk of the loader rolling over during transport .
  • Page 42 Safety Instructions Welding Repair . If a repair or modification requires the welding of certain parts, you must first contact your dealer for necessary instructions. Improper welding or negligence during welding can cause sudden machine breakdowns. Working in Extreme Conditions .
  • Page 43 Safety Instructions Maintenance and Servicing Safety Instructions . Hot oil can cause burns. Inhalation of hot oil vapor can cause breathing difficulties. . If a hose bursts and you get oil on your skin, it is not dangerous. However, avoid oil contact with eyes and nose.
  • Page 44 Safety Instructions Greasing points and intervals DETAIL AG SCALE 2 : 21 By prevention, remove the cap once a year, tighten the castellated nut, fill the cap with grease and replace the cap! Greasing Interval ITEM Greasing point Lubricating oil hourly / yearly Telescopic stabilizers Bushing grease...
  • Page 45 Safety Instructions Storage If you plan to stop using the loader for a long period of time, it should be cleaned carefully. Note that high pressure cleaning is not recommended! After cleaning, make a visual inspection for any cracks (if you find any, you must have them repaired before the next use of the loader) all grease nipples must be lubricated.

  • Page 46: Year Limited Warranty

    All parts replaced under the warranty shall remain the property of Woody. If the Buyer fails to follow any of the above procedures or if the parts are not proven to be defective to Woody’s satisfaction, the Buyer shall not...
  • Page 47 No Dealer Warranty The Dealer has no authority to make any representation or promise on behalf of Woody, or to modify the terms or limitations of this warranty in any way. Warranty Exclusions This warranty does not cover the following: Product needs periodic parts and service to perform well.

This manual is also suitable for:

115 hdt125 lp
