Dual camera automotive video recorder

Advertisement

Quick Links

iW itness

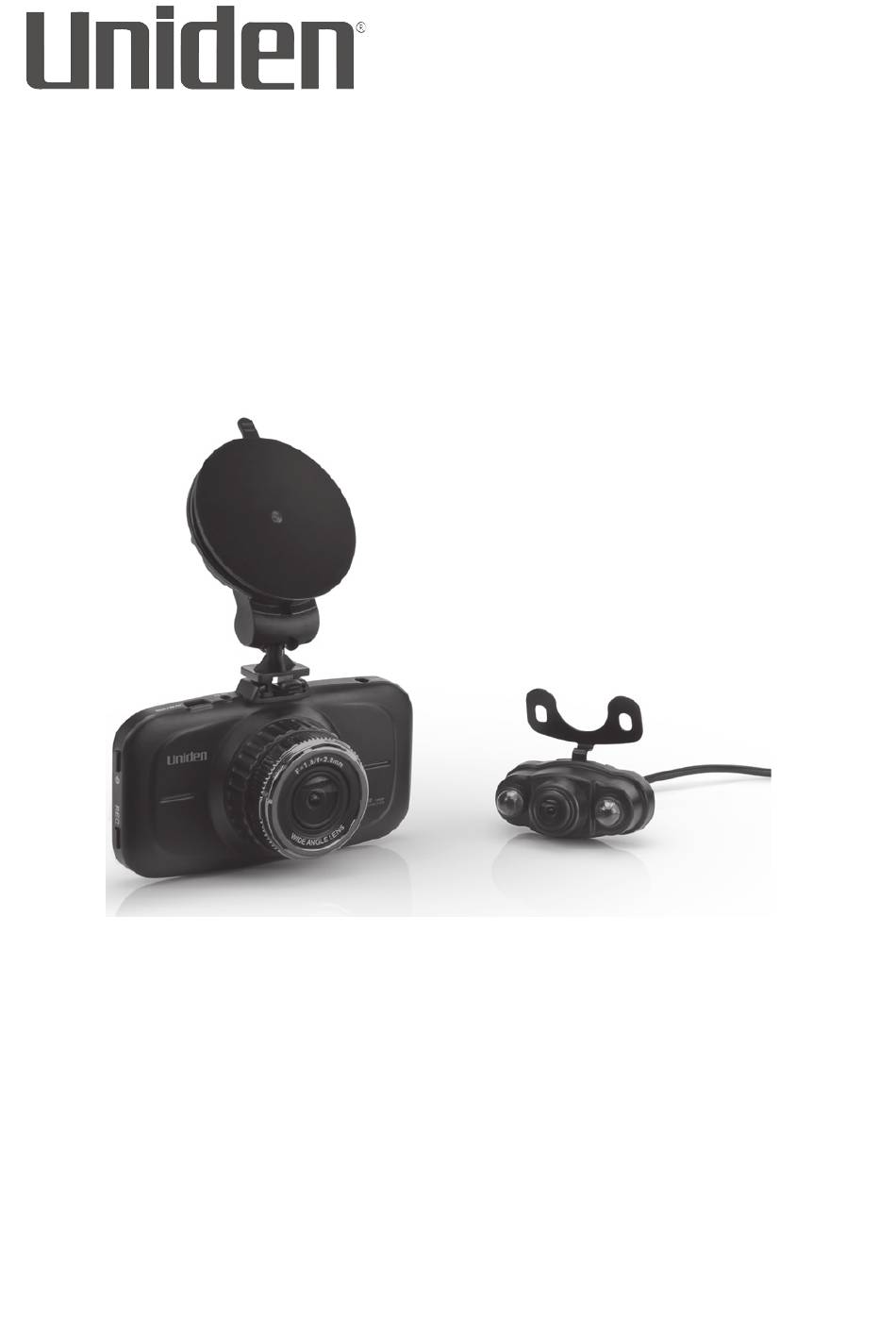

DC12
DUAL CAMERA
AUTOMOTIVE VIDEO RECORDER
OWNER'S MANUAL
© 2016 Uniden America Corporation
Issue 1, June 2016
Irving, Texas
Printed in China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Uniden DC12

  • Page 1 DC12 DUAL CAMERA AUTOMOTIVE VIDEO RECORDER OWNER’S MANUAL © 2016 Uniden America Corporation Issue 1, June 2016 Irving, Texas Printed in China...
  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS • Uniden does not represent this product to be waterproof. Do not expose this product to rain or moisture. • This product is intended for use in a motor vehicle. Don’t install the device where it will block the driver’s view of the road (including the mirrors) or the deployment of the airbag. • Keep your attention on the road! Don’t try to operate or focus on any device while driving. If you have to concentrate on the device, pull off the road for a few minutes. • Ensure that the camera lens is kept clean and there is nothing blocking the lens. • Don’t leave the device in direct sunlight for a long period of time or where the temperature could go above 140°F (60°C).
  • Page 3: Table Of Contents

    OVERVIEW ..............5 FEATURES ..................5 WHAT’S IN THE BOX? ..............6 CONTROLS AND INDICATORS ............ 7 INSTALLATION AND POWER UP - DC12 FRONT CAMERA ..............9 INSTALLATION SAFETY WARNINGS .......... 9 DC12 FRONT CAMERA INSTALLATION ........10 INSTALL THE MICROSD CARD ..........10 ATTACH THE DC12 FRONT CAMERA ........
  • Page 4 USING THE DC12 ............22 RECORD VIDEO ................22 SAVE CURRENT RECORDING (LOCK FILE) ......22 PLAY BACK RECORDED FILES (PLAYBACK MODE) ..... 23 View Files .................. 23 MANAGE RECORDED FILES ............. 23 USE THE BACKUP CAMERA ........24 VIEW FILES ON A PC ..........25 Download the Uniden Player ...........
  • Page 5: Overview

    DC12 AUTOMOTIVE VIDEO RECORDER OVERVIEW The Uniden DC12 is a dual camera ultra-compact recorder with FHD 1920 x 1080 high resolution video that can be set up to continuously capture high quality video even in low light conditions. The built-in G-Sensor system triggers the camera to instantly begin recording if the vehicle is bumped or scraped. The DC12 front camera can even record outside the vehicle for the duration of the internal battery’s power. A second camera, installed above the rear windshield or license plate, displays video on the front camera screen in a picture-in-picture format. It connects to (and is powered by) the main unit via a miniUSB connector. If connected to the backup taillights, it displays in full screen with backup guidelines when the vehicle is in reverse. FEATURES • 3.0” color screen • FHD 1920 x 1080 @ 30 fps • Front camera: 170° Viewing Angle (diagonal); Rear camera: 140° Viewing Angle • Supports H.264 video compression technology • License plate recognition technology • Saves current video in case of accident (G-force) • Audio Recording...
  • Page 6: What's In The Box

    • Date Stamp on Video Playback • Records onto microSD Card (16GB included) • Internal Rechargeable Battery (up to 10 minutes) • Built-In Microphone WHAT’S IN THE BOX? Uniden DC12 Windshield Uniden DC12 Mount Front Camera Rear Camera and cables DC (CAR) MiniUSB to USB 16GB MicroSD Adapter Cable card Not Shown: MicroSD to SD Card Converter, Owner’s Manual, Installation kit If any items are missing or damaged, get answers 24/7 at our website: www.uniden.com.
  • Page 7: Controls And Indicators

    CONTROLS AND INDICATORS Number Name Purpose Unnamed Future expansion jack Latch Connect camera to windshield mount. Power DC 5V power connection.
  • Page 8 Number Name Purpose USB Slot Connect the DC12 to a computer to view recorded video/photos. Menu In Video, Snapshot, and Playback modes: Press to access configuration menu. Press again to return to live video. During video recording: Pess and hold to turn microphone on/off. 6, 7 ▲▼ In Live view: Turn recording microphone on or off. In Menu mode: Up or Down. In Video Playback mode: Press ▼to skip ahead 2 to 3 seconds. Press ▲ to rewind 2 to 3 seconds. Mode Switch between Video, Snapshot, and Playback modes. While recording: Press to lock the recorded file. Screen Display screen Speakers Listen to audio from the camera During recording - Flashing...
  • Page 9: Installation And Power Up - Dc12 Front Camera

    In Snapshot mode: Press to take photo. In Menu mode: Press to confirm an entry or selection. microSD slot Insert microSD card. Reset If the camera freezes or locks up, insert a pin or an unfolded paper clip into this space. Press and hold the Reset button to reset the camera. Turn the camera back on. Microphone INSTALLATION AND POWER UP - DC12 FRONT CAMERA INSTALLATION SAFETY WARNINGS WARNING! Failure to comply with the following warnings could result in an accident or collision,...
  • Page 10: Dc12 Front Camera Installation

    Do not attempt to operate the camera while driving. If you need to access the DC12 to change settings, etc., pull off the road in a safe manner to do so. Some state laws prohibit drivers from mounting anything on the windshield, or restrict mounting to specific areas of the windshield.
  • Page 11: Attach The Dc12 Front Camera

    ATTACH THE DC12 FRONT CAMERA Be sure the bracket locking ring is set to unlock. Slide the DC12 onto the bracket hook on the bottom of the windshield mount until it locks into position. Turn the locking ring to lock. Make sure the bracket is locked to the windshield. To unmount the bracket, turn the locking ring to the unlock ( ) position and then lift the plastic flap on the base to release it from the windshield. POWER UP THE DC12 Only use the DC car adapter that comes with your device. Any other adapter might damage the device. Refer to your car’s owner’s manual to verify where the power outlets are on and around the dashboard.
  • Page 12: Installation And Power Up - Dc12 Rear Camera

    3/4 Full 1/2 Full 1/4 Full Empty INSTALLATION AND POWER UP - DC12 REAR CAMERA INSTALLATION SAFETY WARNINGS WARNING! Failure to comply with the following warnings could result in an accident or collision, resulting in death or serious injury. Do not obstruct the driver’s view or the operation of the vehicle itself.
  • Page 13: Dc12 Rear Camera Installation

    The backup camera displays in a “picture-in-picture” format when the front camera powers up. When the vehicle is in reverse, the back camera displays full screen, with guide lines for backup displayed. See page 24 for details. SETTING UP THE DC12 Before recording video or taking snapshots, set up how you want your DC12 to operate. The configuration menu, common to all three modes, lets you set the date and time stamp, turn audio recording on or off, set the image resolution, etc. CONFIGURATION MENU In any mode, press MENU to access the configuration menu. You cannot access the menus if the DC12 is recording. Press REC to stop recording, then press MENU. Press ▲ or ▼ to scroll through the various options and then press REC to select that option.
  • Page 14 Option Description Car/Driver ID Provides a way to identify the vehicle in which the device is mounted (up to 8 alphanumeric characters). (See page 18 for details.) Video Quality Sets the video resolution. • 1080FHD • 720PHD Picture Defines the quality of the image you Quality take. • 1M • 2M • 5M • 8M Loop Define the length of time video records Recording before recording stops and another recording begins. For example - if Loop Recording is set to 3 minutes and you have recorded for 17 minutes, you may have 5 3-minute and 1 2-minute recorded videos. • 1 minute • 3 minutes • 5 minutes • Off ADAS Advanced Driving Assistant System.
  • Page 15 Option Description Display Car/ Press REC to check the box to display Driver ID the Car/Driver ID during video playback. Camera Flip Check this field to have the backup camera display a reverse image. Monitor When checked, the camera begins Parking recording according to G-Sensor activation (next field in the menu). G-Sensor Detects significant or sudden movement; automatically activates and locks recording preventing it from being erased. Levels of motion required to activate recording are: • High • Medium • Low • Off...
  • Page 16 Option Description Auto Sets the time duration to automatically Shutdown power off the camera when idle, regardless of whether or not the car charger is plugged in. • 1 min • 3 min • 10 min • Off If the setting is Off and the car charger is unplugged while the camera is recording, the camera will power down in 10 seconds. If the car charger is unplugged while the camera is NOT recording, the camera will power down according to this Auto Shutdown field. If OFF is selected, camera remains on until internal battery runs out. Motion Enable this setting to allow the recorder Detection to start recording when it detects movement. Volume Set the playback volume level: • High • Medium • Low...
  • Page 17 Option Description White • Automatic Balance • Sunny • Cloudy • Incandescent light • Flourescence Contrast 0 - 5 Exposure -3, -2, -1, 0, 1, 2, 3 Automatically Check to set video recording to start Record when the camera powers on. Screen Set a time delay before the LCD turns Switch off after the camera is turned on. OFF (always on) or 10, 20, 30 seconds Record Audio Turn recording microphone off or on. Date YYYYMMDD HHMMSS Set the time in 24 hour format (00 - 23); however, time displays on the screen in12-hour format (AM/PM). (Press MODE to return to the menus.)
  • Page 18: Car/Driver Id

    Option Description Time Zone Press ▲ or ▼ to select a Time Zone. The most commonly used time zones for this system are: • -5 - Eastern Standard • -6 - Central Standard • -7 - Mountain Standard • -8 - Pacific Standard (Default) • -9 - Yukon Standard • -10 - Alaska-Hawaii Standard Press REC to confirm and return to the menu. Language • English • Français • Español Time Stamp Select to display the date and time on recorded video Format Reformats the microSD card. Factory Resets the firmware to the factory Reset defaults. Version Displays current firmware version CAR/DRIVER ID This menu option lets you enter the license number or any other identifier (up to 8 alphanumeric characters) to label the vehicle in which the device is mounted. This...
  • Page 19 If recording, press REC to stop. Press MENU. Press ▲ or ▼ to scroll to Car/Driver ID if needed and press REC to select it. UNIDEN displays on the screen the first time this option is accessed. Press REC to toggle between UNIDEN and blank spaces. Press ▲ or ▼ to select the first space or press REC to move to the next space Press ▲ or ▼ to scroll through the character options below the boxes and press REC to select a character. Character options are blank, 1 - 0, blank, comma (,), dash (-), and A - Z (capital letters). The current letter is greyed out. Car/Driver ID 1234567890 .-ABCDEFGHIJKLMNO...
  • Page 20: Adas System

    To remove a character (inserting a blank): Press REC repeatedly to cycle through the characters to reach the character to remove. Select the blank character and press REC. You will now have a blank character in that spot. Press MODE to return to the main menu when the entry is complete. ADAS SYSTEM ADAS (Advanced Driving Assistant System) is comprised of two systems - LDWS (Lane Departure Warning System) and FCWS (Forward Collision Warning System. • LDWS - Lane Departure Warning System. Warns driver when vehicle is drifting into another lane. Uses lane markings. • FCWS - Front Collision Warning System. Warns driver of potential crash ahead in time for driver to take evasive action. DC12 OPERATING MODES The DC12 operates in three modes: Video, Snapshot, and Playback. Quickly press MODE to cycle through the modes. Stop when you are on the mode you want. Video Mode Pres REC to start and stop recording. Recorded video is saved on the microSD card. See page 22 for details. Snapshot Mode The DC12 lets you take still images (snapshots) of live video that is not recording. You cannot take a snapshot...
  • Page 21 of live video while it is recording. You also cannot take a snapshot of recorded video playing back. To take a snapshot: Verify that a valid microSD card is inserted in the microSD slot. Quickly press MODE to select Snapshot mode. Press REC. The camera takes a snapshot of live video. These snapshots are saved on the microSD card. Playback Mode View your recorded files and snapshots through playback mode. 1. From Playback mode, press ▲ or ▼ to scroll through the recorded files one at a time. A counter displays on the top bar (for example, 01/05). If the file displays a play icon ( ► ), it is a video file. Press REC for playback. Press REC again to pause playback and MODE to return to the list of recorded files. If the file does not display a play icon ( ► ), it is a snapshot. Press MODE to return to Live video. During recorded video playback, ▼ jumps forward 2-3 seconds and ▼ jumps backwards 2-3 seconds.
  • Page 22: Using The Dc12

    USING THE DC12 RECORD VIDEO When connected to a car charger, the camera automatically goes into Video mode and starts recording when you start the car if Automatic Record is enabled. A counter displays to indicate recording is in progress. If the camera is not recording, press REC to start recording. A counter displays. To stop recording, press REC and the counter disappears, indicating that the recording has stopped. If the car charger is unplugged while the camera is recording, the camera will power down in 10 seconds. If the car charger is unplugged while the camera is NOT recording, the camera will power down according to the Auto Shutdown setting (see page 16).If OFF is selected, the camera remains on until the internal battery runs out. SAVE CURRENT RECORDING (LOCK FILE) You can save the file currently recording so it will not be overwritten if the microSD gets full. While recording, press Mode. The Locked File icon ( ) displays, indicating that the recording has been locked and will not be overwritten by new video clips. Press MODE again to unlock the file. You cannot lock a file that has already been...
  • Page 23: Play Back Recorded Files (Playback Mode)

    PLAY BACK RECORDED FILES (PLAYBACK MODE) When you access Playback mode, the screen displays an image from the last video recorded/snapshot taken. A file counter also displays. View Files Use the keys on the side of the DC12 to control the video as it plays back. Video File ID Block Date File Name File number Car/Driver ID During Video Playback No function 0524_101857A(02/09) Power on/o UNIDEN Rewinds 2-3 seconds Skips forwards 2-3 seconds...
  • Page 24: Use The Backup Camera

    Press ▼ to scroll forward (▲ to scroll backward) until the file you want to manage displays on the screen; press MENU to delete that file. A confirmation screen displays. Press ▼or▲ to confirm deletion or cancel and REC to process that selection. Repeat for other files. When you have finished, press MODE to exit Playback mode. USE THE BACKUP CAMERA With the backup camera properly installed, live video from it displays in a “picture in picture” format when the vehicle is turned on. As soon as the car is put in reverse, the backup camera live video displays in full screen, flipped. Guidelines display to assist the driver in backing up properly and safely.
  • Page 25: View Files On A Pc

    Once the vehicle is taken out of reverse, the screen returns to “picture in picture” mode, with the image flipped back to normal. VIEW FILES ON A PC When you connect the DC12 to the PC (either through the supplied USB cable or by inserting the SD card into the PC), the PC views the DC12 as a removeable drive. This connection allows you to view your recorded files on the PC through the Uniden Player. Download the Uniden Player Go to www.unidensupport.com and select Automotive Product. Select DC12 under Dashcam by model. Follow the instructions to download the Uniden Player for DC12. Connect microSD Card to PC If you are connecting the DC12 to the PC via USB cable: Connect the DC12 to the PC using the supplied USB cable. A list of options displays.
  • Page 26: View Files On Player

    Select Open the USB Storage Device and press REC. The icon displays, indicating that connection between the camera and the PC is established. Go to the next section, View Files on Player. If you are inserting the microSD card into the PC: Remove the microSD card from the camera and insert it into a microSD card to USB converter (if your PC does NOT have an SD card slot) or into a microSD to SD card converter (if your PC DOES have an SD card slot). Insert the converter into the PC. An AutoPlay message box displays. Close the message box. Go to the next section, View Files on Player. View Files on Player The illustration on page 27 corresponds to the following steps. The highlighted folder/file names show how the steps progress through finding and viewing a recorded file on the microSD card. Open the player. Select File/Open to navigate to the removeable drive containing the recorded video files and open it. Select File, then Open...
  • Page 27 Photo and video folders display For this example, open the video folder. DCIMA and DCIMB folders display. Open DCIMA. A list of recorded files display. Select a file and open The video displays. Select Play to view the recorded file. Step 1 Step 2 Step 4 Step 3 Step 5...
  • Page 28: Video Playback Screen

    Video Playback Screen N00.000000,W00.000000 Number Name Function Help Displays software version and copyright date. View • Language (English, Français, Español) • Maps • Speed Unit File Open recorded file Date/Time • Date video was recorded • Time of day video was recorded. Playback Controls • Reverse • Play • Stop • Fast forward...
  • Page 29: Viewing Snapshots From Video On Pc

    Number Name Function Volume Control Click on slider and move to adjust playback volume G-Force indicator Tracks camera movement inside vehicle. For example, if the vehicle goes over a bump, it will register here. X-Y-Z Axis legend Color of indicator in #8 above indicates direction of force. Camera Pause the video and click on the camera icon to take a snapshot of a video image. See page 29 for details. Video Time Video playback time Previously List of previously viewed Viewed Files files. Double-click on a file to play again. VIEWING SNAPSHOTS FROM VIDEO ON PC You can take snapshots from video playing on the PC. The Uniden Player stores these snapshots on the PC. To view the snapshots, go to C:\Users\Public\Public Pictures. Snapshots display. Click on a snapshot to view...
  • Page 30: Troubleshooting

    • Check the microSD card; it might be out of space. take photos or record Either delete files from that videos microSD card or use a new microSD card. The camera automatically stops when recording Camera does not turn • Check your vehicle’s owner’s manual to verify off when the car is that you have connected turned off. the camera to a power outlet that only operates when the key is in the ON or ACC position. • If you have connected your camera accordingly and it still remains on when the car is turned off, go to www.uniden.com for assistance. Video is unclear Ensure that there are no fingerprints or dirt on the lens. Ensure that the lens is always kept clean. The camera crashes Using a pin or an unfolded paper clip, press and hold the Reset button to reset the camera. Turn the camera back on.
  • Page 31: Specifications

    General Problems Possible Solutions “File Error” appears Card format error. Reformat when photos or video your microSD card. (Setup/ are replayed. Format) You cannot access Press REC to stop recording. menus. Recorded files are The DC12 records over missing. older files. Be sure to save important files to your PC every 2 weeks. Can’t delete recorded The file or snapshot may be files or snapshots. protected. See page 23. Backup camera does Check the miniUSB not display connection. SPECIFICATIONS Screen 3.0 in. LCD DDR3 Storage microSD (up to 64GB), Class 10 (16GB microSD card included) AV Input/Output USB 2.0 Power Supply Built-in Lithium Ion battery (10 min)
  • Page 32 View Angle Front: 170° (diagonal) Ultra-Wide angle Rear: 140° Image Sensor, inch Video Frame Rate 30fps Sound Recording Yes (built-in microphone) Channels G-sensor ADAS LDWS FCWS Video Format Photo Resolution 1M, 2M, 5M, 8M Video Codec H.264 (avc1) Audio Codec Operating Systems Windows 2000/XP/ Supported Vista/7/8/8.1 Mac OS 10+/LINUX (webcam and storage) Operating Temperature 32° F ~ 140° F 0° C ~ +60° C Storage Temperature 14° F ~ 158° F -10° C ~ +70° C Working Humidity 10 ~ 90%...
  • Page 33: Fcc/Industry Canada Compliance

    FCC/INDUSTRY CANADA COMPLIANCE FCC Compliance This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Avis de conformité à la FCC : Ce dispositif a été testé et s’avère conforme à l’article 15 des règlements de la Commission fédérale des communications (FCC). Ce dispositif est soumis aux conditions suivantes: 1) Ce dispositif ne doit pas causer d’interférences nuisibles et; 2) Il doit pouvoir supporter les parasites qu’il reçoit, incluant les parasites pouvant nuire à son fonctionnement. Tout changement ou modification non approuvé expressément par la partie responsable pourrait annuler le droit à l’utilisateur de faire fonctionner cet équipement. IC Compliance This device complies with Industry Canada license- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any...
  • Page 34: One-Year Limited Warranty

    Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Cet appareil est conforme aux normes RSS exemptes de licences d’Industrie Canada. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d’interférences nuisibles et (2), il doit pouvoir accepter les interférences, incluant celles pouvant nuire à son fonctionnement normal. Tout changement ou modification non approuvé expressément par la partie responsable pourrait annuler le droit à l’utilisateur de faire fonctionner cet équipement. ONE-YEAR LIMITED WARRANTY Important: Save your receipt! Evidence of original purchase is required for warranty service. WARRANTOR: Uniden America Corporation (“Uniden”) ELEMENTS OF WARRANTY: Uniden warrants, for one year, to the original retail owner, this Uniden Product to be free from defects in materials & craftsmanship with only the limitations or exclusions set out below. WARRANTY DURATION: This warranty to the original user shall terminate & be of no further effect 12 months after the date of original retail sale. The warranty is invalid if the Product is (A) damaged or not maintained as reasonable or necessary, (B) modified, altered, or used as part of any conversion kits, subassemblies, or...
  • Page 35 STATEMENT OF REMEDY: In the event that the product does not conform to this warranty at any time while this warranty is in effect, warrantor will either, at its option, repair or replace the defective unit & return it to you without charge for parts, service, or any other cost (except shipping & handling) incurred by warrantor or its representatives in connection with the performance of this warranty. Warrantor, at its option, may replace the unit with a new or refurbished unit. THE LIMITED WARRANTY SET FORTH ABOVE IS THE SOLE & ENTIRE WARRANTY PERTAINING TO THE PRODUCT & IS IN LIEU OF & EXCLUDES ALL OTHER WARRANTIES OF ANY NATURE WHATSOEVER, WHETHER EXPRESS, IMPLIED OR ARISING BY OPERATION OF LAW, INCLUDING, BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THIS WARRANTY DOES NOT COVER OR PROVIDE FOR THE REIMBURSEMENT OR PAYMENT OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow this exclusion or limitation...
  • Page 36 LEGAL REMEDIES: This warranty gives you specific legal rights, & you may also have other rights which vary from state to state. This warranty is void outside the United States of America & Canada. PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY: If, after following the instructions in the owner’s manual you are certain that the Product is defective, pack the Product carefully (preferably in its original packaging). The Product should include all parts & accessories originally packaged with the Product. Include evidence of original purchase & a note describing the defect that has caused you to return it. The Product should be shipped freight prepaid, by traceable means, to warrantor at: Uniden America Corporation C/O Saddle Creek 743 Henrietta Creek Rd., Suite 100 Roanoke, TX 76262...
